LOW TIRE PRESSURE WARNING LAMP SYMPTOM CHART

TPMS

WT-37

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

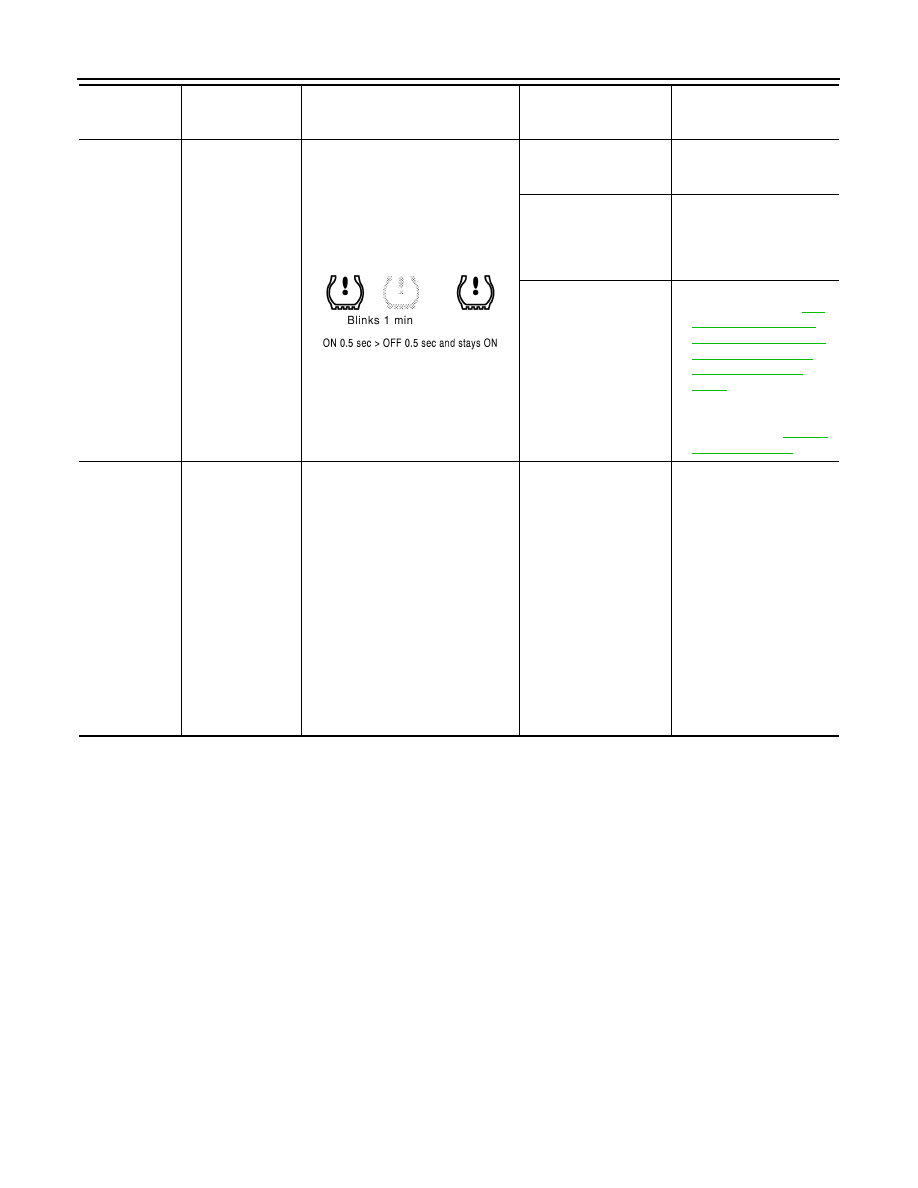

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
illuminates for 1
second, then turns
OFF.

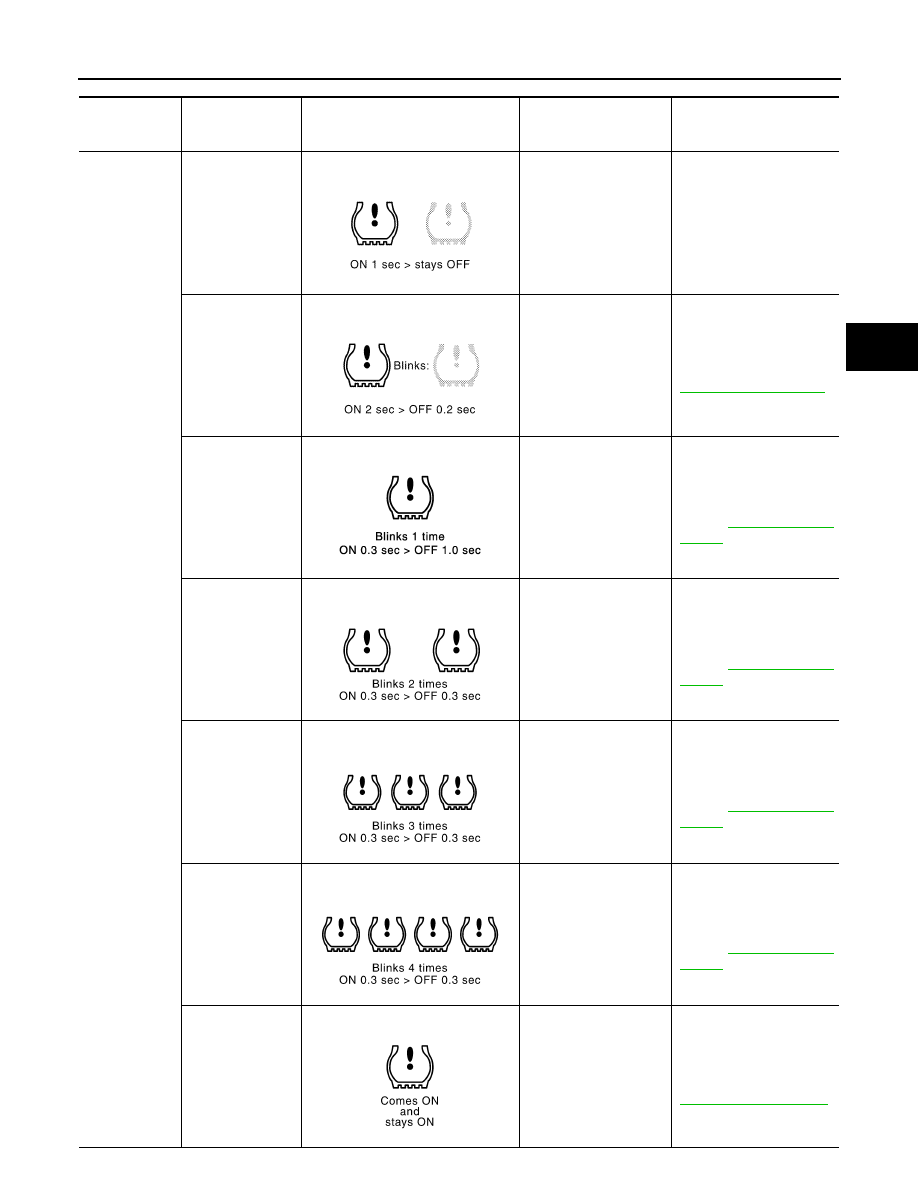

Wake-up operation for all
tire pressure sensors at
wheels is completed.

No system malfunctions

The low tire pres-
sure warning lamp
repeats blinking
ON for 2 seconds
and OFF for 0.2
seconds.

Wake-up operation for all
tire pressure sensors at
wheels is not completed.

Perform the wake-up oper-
ation for all tire pressure
sensors at wheels. Refer to

WT-20, "Work Procedure"

.

The low tire pres-
sure warning lamp
blinks once.

The front left tire pres-
sure sensor is not acti-
vated.

Perform the wake-up oper-
ation for the tire pressure
sensor at front left wheel.
Refer to

WT-20, "Work Pro-

cedure"

.

The low tire pres-
sure warning lamp
repeats blinking
twice.

The front right tire pres-
sure sensor is not acti-
vated.

Perform the wake-up oper-
ation for the tire pressure
sensor at front right wheel.
Refer to

WT-20, "Work Pro-

cedure"

.

The low tire pres-
sure warning lamp
repeats blinking for
3 times.

The rear right tire pres-
sure sensor is not acti-
vated.

Perform the wake-up oper-
ation for the tire pressure
sensor at rear right wheel.
Refer to

WT-20, "Work Pro-

cedure"

.

The low tire pres-
sure warning lamp
repeats blinking for
4 times.

The rear left tire pressure
sensor is not activated.

Perform the wake-up oper-
ation for the tire pressure
sensor at rear left wheel.
Refer to

WT-20, "Work Pro-

cedure"

.

The low tire pres-
sure warning lamp
turns ON and stays
illuminated.

Low tire pressure

Check the tire pressure for
all wheels and adjust to the
specified value. Refer to

WT-52, "Tire Air Pressure"

.

SEIA0592E

SEIA0593E

JPEIC0090GB

SEIA0595E

SEIA0596E

SEIA0597E

SEIA0598E

WT-38

< SYMPTOM DIAGNOSIS >

TPMS

NOTE:
If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applica-
ble low tire pressure warning lamp blinking patterns are displayed continuously.
(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and
rear right wheel tire pressure sensors.)

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
repeats blinking at
0.5-second inter-
vals for 1 minute,
and then stays illu-
minated.

The combination meter
fuse is open or removed
(or pulled out).

Check and install the com-
bination meter fuse. If nec-
essary, replace the fuse.

The low tire pressure
warning control unit har-
ness connector is re-
moved.

Check the connection con-
ditions of the low tire pres-
sure warning control unit
harness connector, and re-
pair if necessary.

Tire Pressure Monitoring
System (TPMS) mal-
function.

• Perform CONSULT self-

diagnosis. Refer to

WT-

10, "AIR PRESSURE
MONITOR : CONSULT
Function (BCM - AIR
PRESSURE MONI-
TOR)"

.

• If necessary, perform tire

pressure sensor ID regis-
tration. Refer to

WT-21,

"Work Procedure"

.

Hazard warning
lamp

The hazard warn-
ing lamp does not
blink twice when
the tire pressure
sensor is activated.

—

1.

The tire pressure
sensor activation
tool (J-45295) does
not activate.

2.

The ignition switch
is OFF when the
tire pressure sen-
sor wake-up opera-
tion is performed.

3.

The tire pressure
sensor activation
tool (J-45295) is
not used in the cor-
rect position.

4.

The tire pressure
sensor is already
waked up.

1.

Replace the battery in
the tire pressure sen-
sor activation tool (J-
45295).

2.

Turn the ignition
switch ON when per-
forming the tire pres-
sure sensor wake-up
operation.

3.

Operate the tire pres-
sure sensor activation
tool (J-45295) in the
correct position when
performing the wake-
up operation.

4.

No procedure.

Diagnosis items

Symptom

(Ignition switch

ON)

Low tire pressure warning lamp

Cause

Action

SEIA0788E

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

WT-39

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000009722276

The low tire pressure warning lamp does not illuminate when the ignition switch is turned ON.
NOTE:
The low tire pressure warning lamp illuminates for approximately 1 second and then turns OFF when the igni-
tion switch is turned ON. This is to check that no abnormal condition is present in the tire pressure monitoring
system.
The lamp bulb may be burnt out or the tire pressure monitoring system may be malfunctioning if the low tire
pressure warning lamp does not illuminate when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000009722277

1.

CHECK LOW TIRE PRESSURE WARNING LAMP

Perform trouble diagnosis of the low tire pressure warning lamp. Refer to

WT-34, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Check pin terminal and connection of each connector for damage and loose connection.

NO

>> Repair or replace damaged parts.
