HEATER & COOLING UNIT ASSEMBLY

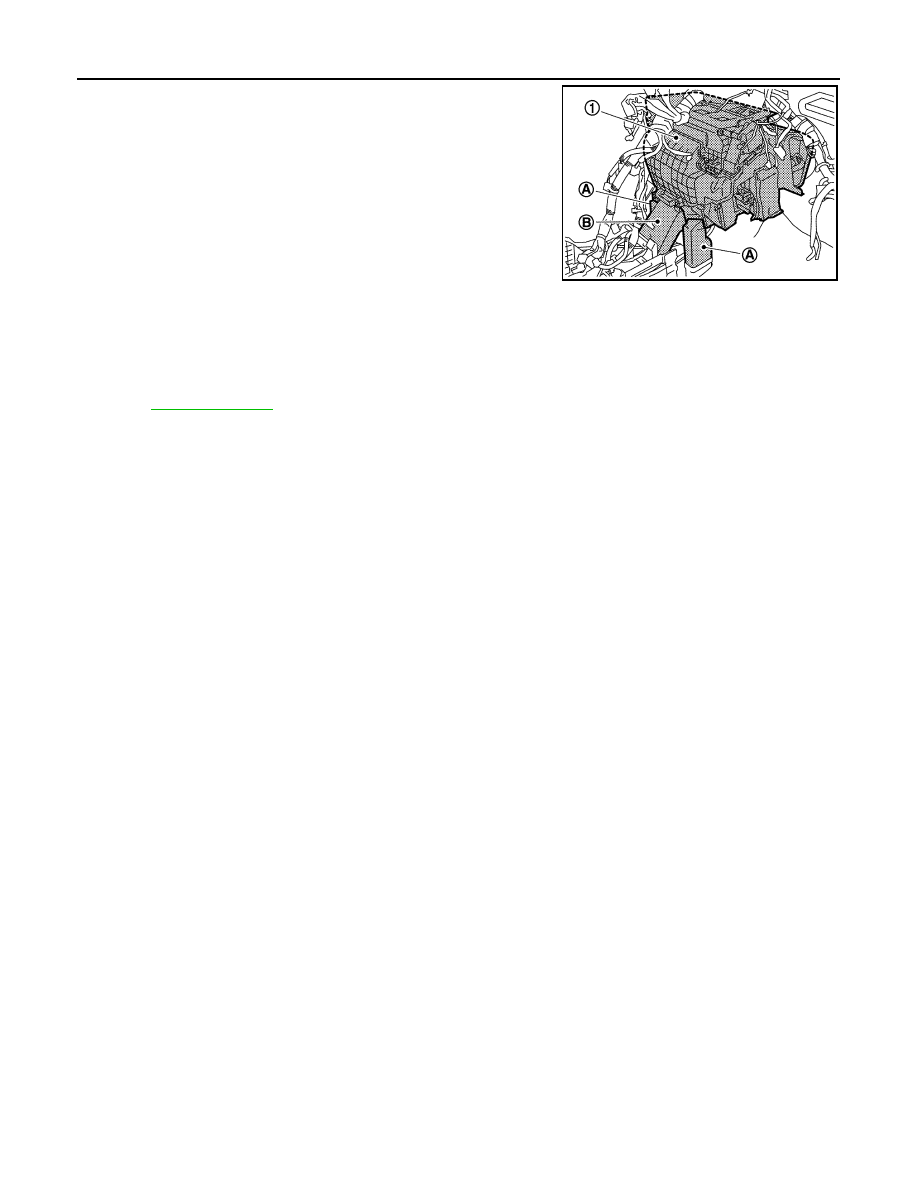

15. Remove rear foot ducts 1 (A) and rear ventilator duct 1 (B), and

then remove heater & cooling unit assembly (1).

INSTALLATION

Note the following items and then install in the reverse order of removal.

CAUTION:

• Replace the O-ring with a new one. Apply a coat of compressor oil to the O-ring prior to installation.
• Check for refrigerant leakage when charging refrigerant.
NOTE:
• Refer to

CO-12, "Refilling"

 when filling the radiator with engine coolant.

• Charge the refrigerant again.

JPIIA0573ZZ

UPPER VENTILATOR DOOR MOTOR

VTL-41

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

UPPER VENTILATOR DOOR MOTOR

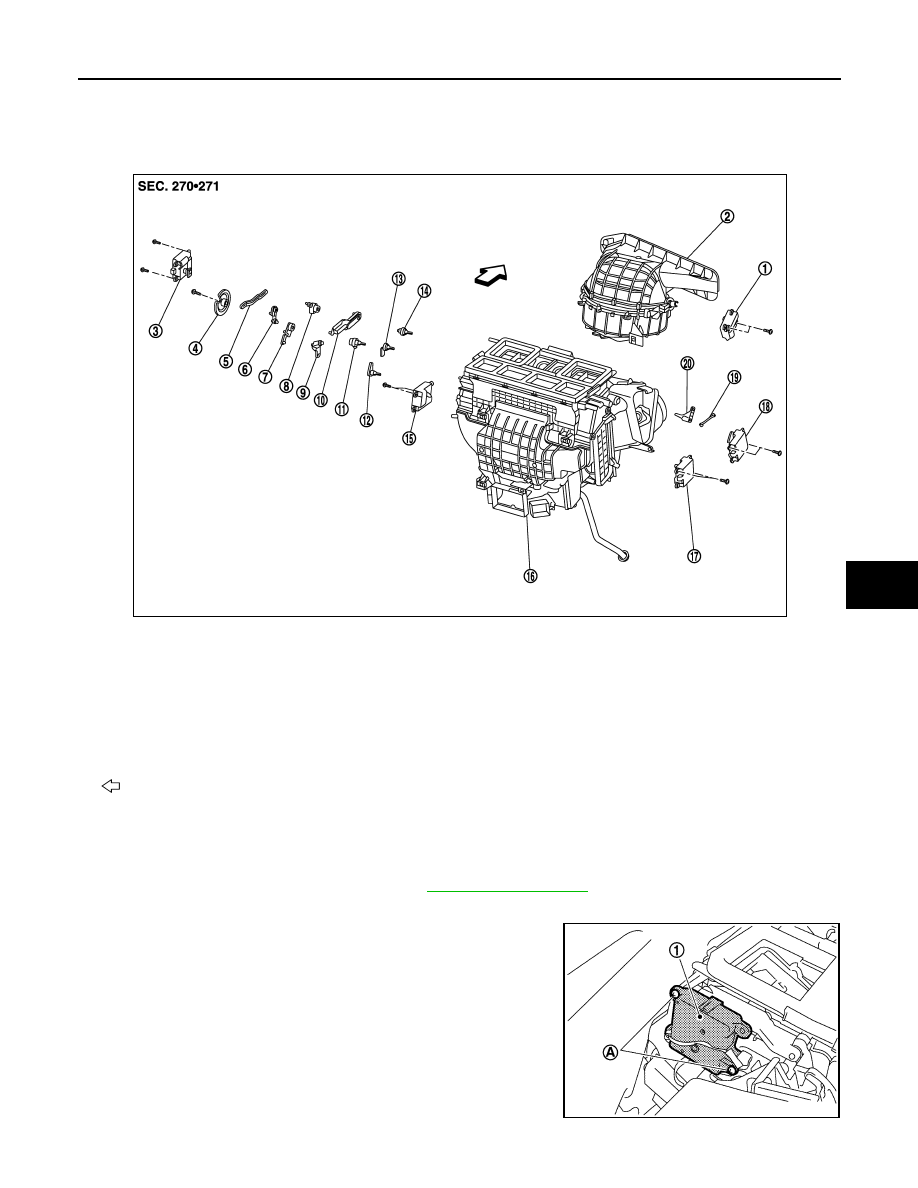

Exploded View

INFOID:0000000009721100

Removal and Installation

INFOID:0000000009721101

REMOVAL

1.

Remove blower unit assembly. Refer to

VTL-30, "Exploded View"

.

2.

Disconnect upper ventilator door motor connector.

3.

Remove fixing screws (A) and then remove upper ventilator
door motor (1).

INSTALLATION

1.

Intake door motor

2.

Bower unit assembly

3.

Mode door motor

4.

Main link

5.

Rod link

6.

Max. cool door link

7.

Max. cool door link

8.

Mode door lever

9.

Ventilator door link

10. Defroster door link

11.

Ventilator door lever

12. Foot door lever

13. Max. cool door lever

14.

Defroster door lever

15. Air mix door motor (Driver side)

16. Heater & cooling unit assembly

17.

Air mix door motor (Passenger side) 18. Upper ventilator door motor

19. Upper ventilator door rod

20.

Upper ventilator door lever

: Vehicle front

JPIIA1238ZZ

JPIIA0574ZZ

VTL-42

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

UPPER VENTILATOR DOOR MOTOR

Install in the reverse order of removal.

MODE DOOR MOTOR

VTL-43

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

MODE DOOR MOTOR

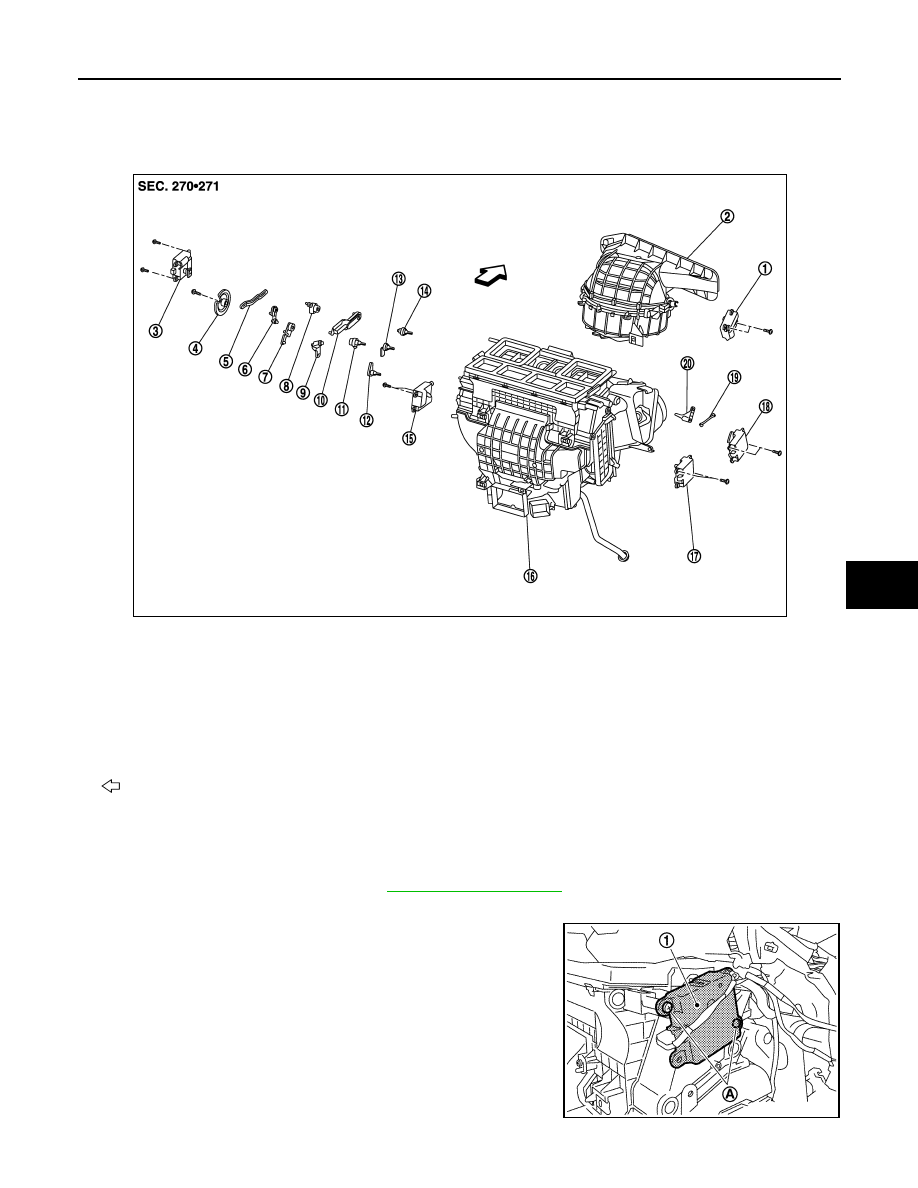

Exploded View
