Nissan Murano. Manual - part 1417

VTL-24

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

A/C DISPLAY

A/C DISPLAY

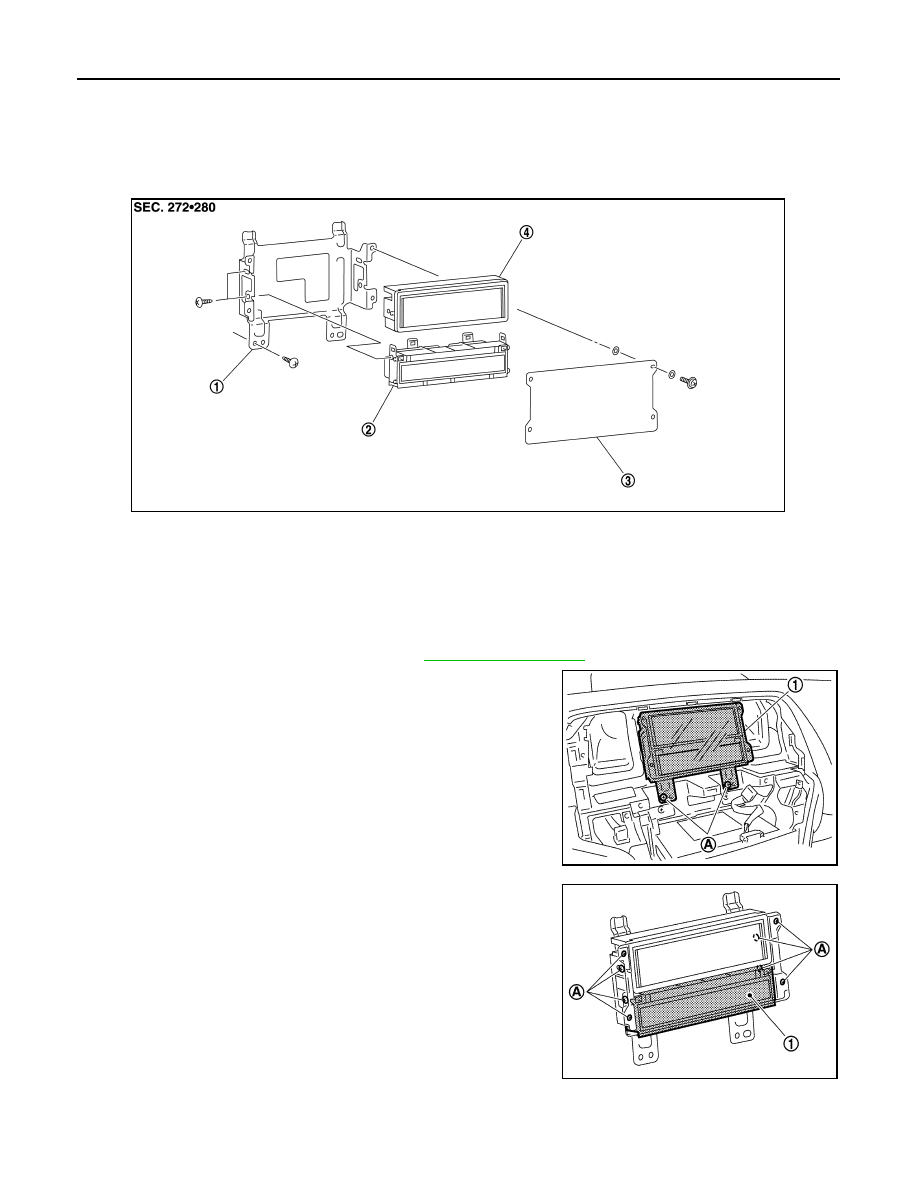

Exploded View

INFOID:0000000009721080

DISASSEMBLY

Removal and Installation

INFOID:0000000009721081

REMOVAL

1.

Remove central ventilator assembly. Refer to

IP-14, "Exploded View"

.

2.

Remove fixing screws (A) and then remove mounting bracket
(1).

3.

Remove fixing screws (A) and then remove A/C display (1).

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

A/C display

3.

CRT filter

4.

AV display

JPIIA0603ZZ

JPIIA0604ZZ

JPIIA0605ZZ

A/C AUTO AMP.

VTL-25

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

A/C AUTO AMP.

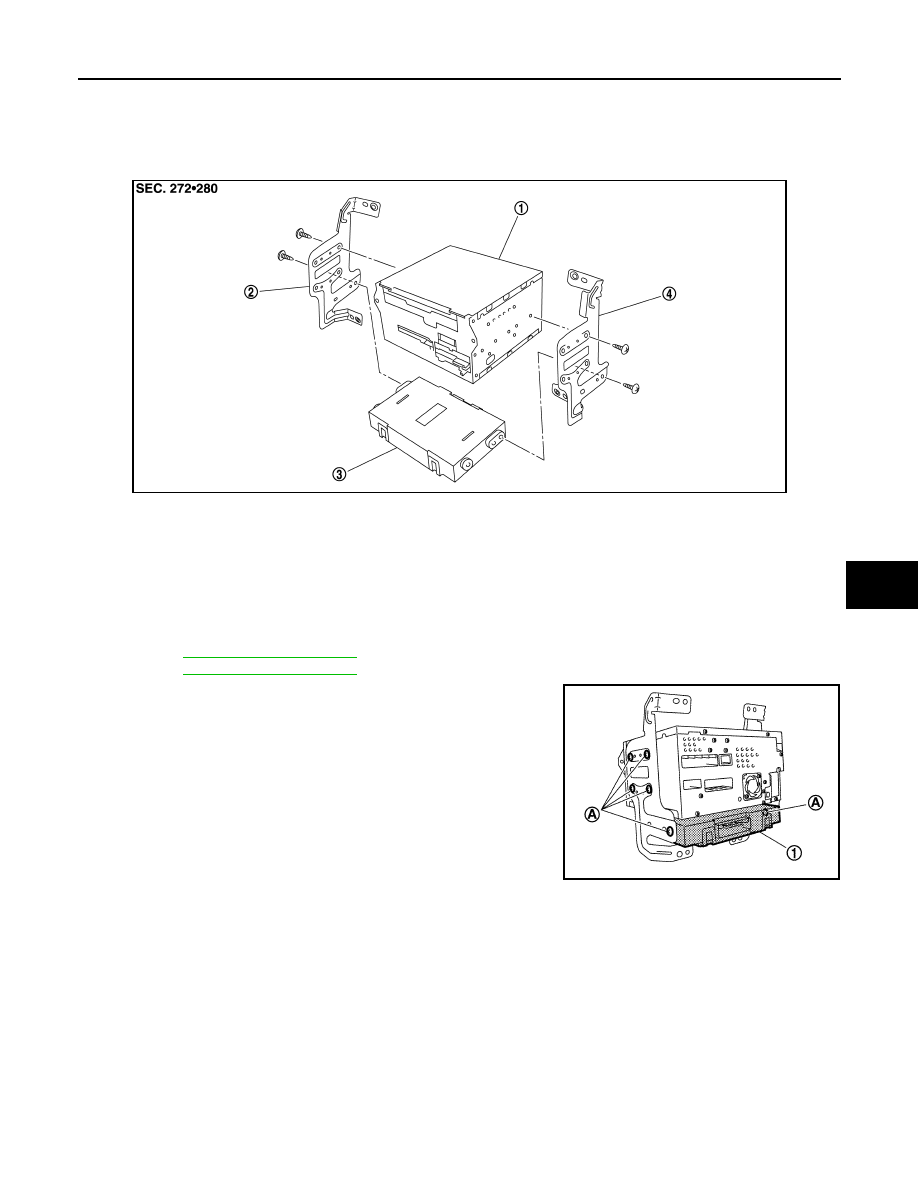

Exploded View

INFOID:0000000009721082

DISASSEMBLY

Removal and Installation

INFOID:0000000009721083

REMOVAL

1.

Remove AV control unit. Refer to the following.
• Refer to

AV-276, "Exploded View"

 (BOSE AUDIO WITHOUT NAVIGATION).

• Refer to

AV-448, "Exploded View"

 (BOSE AUDIO WITH NAVIGATION).

2.

Remove fixing screws (A) and then remove A/C auto amp. (1).

INSTALLATION

Install in the reverse order of removal.

JPIIA0553ZZ

1.

AV control unit

2.

Bracket LH

3.

A/C auto amp.

4.

Bracket RH

JPIIA0554ZZ

VTL-26

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

AMBIENT SENSOR

AMBIENT SENSOR

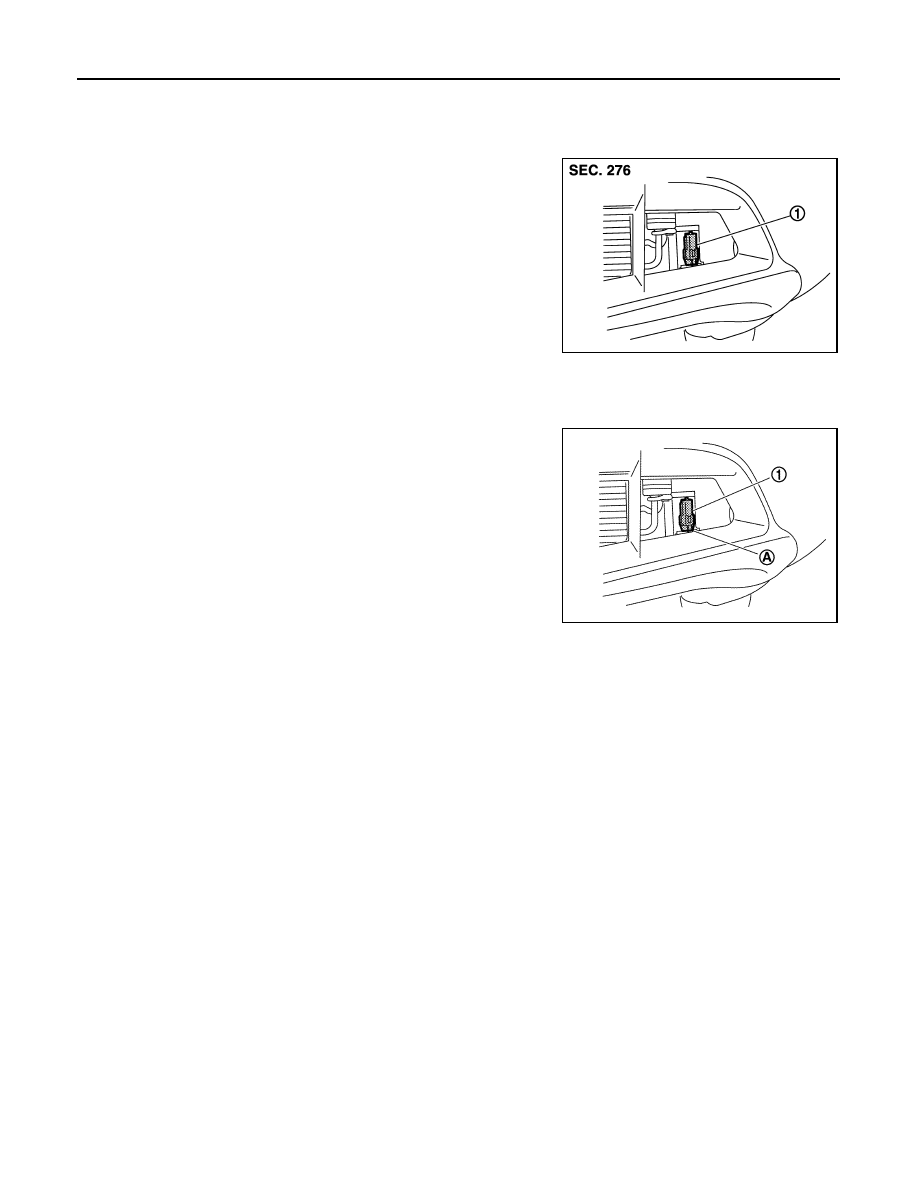

Exploded View

INFOID:0000000009721084

Removal and Installation

INFOID:0000000009721085

REMOVAL

Disconnect ambient sensor connector (A) and then remove ambient
sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

Ambient sensor

JPIIA1300ZZ

JPIIA0556ZZ

IN-VEHICLE SENSOR

VTL-27

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

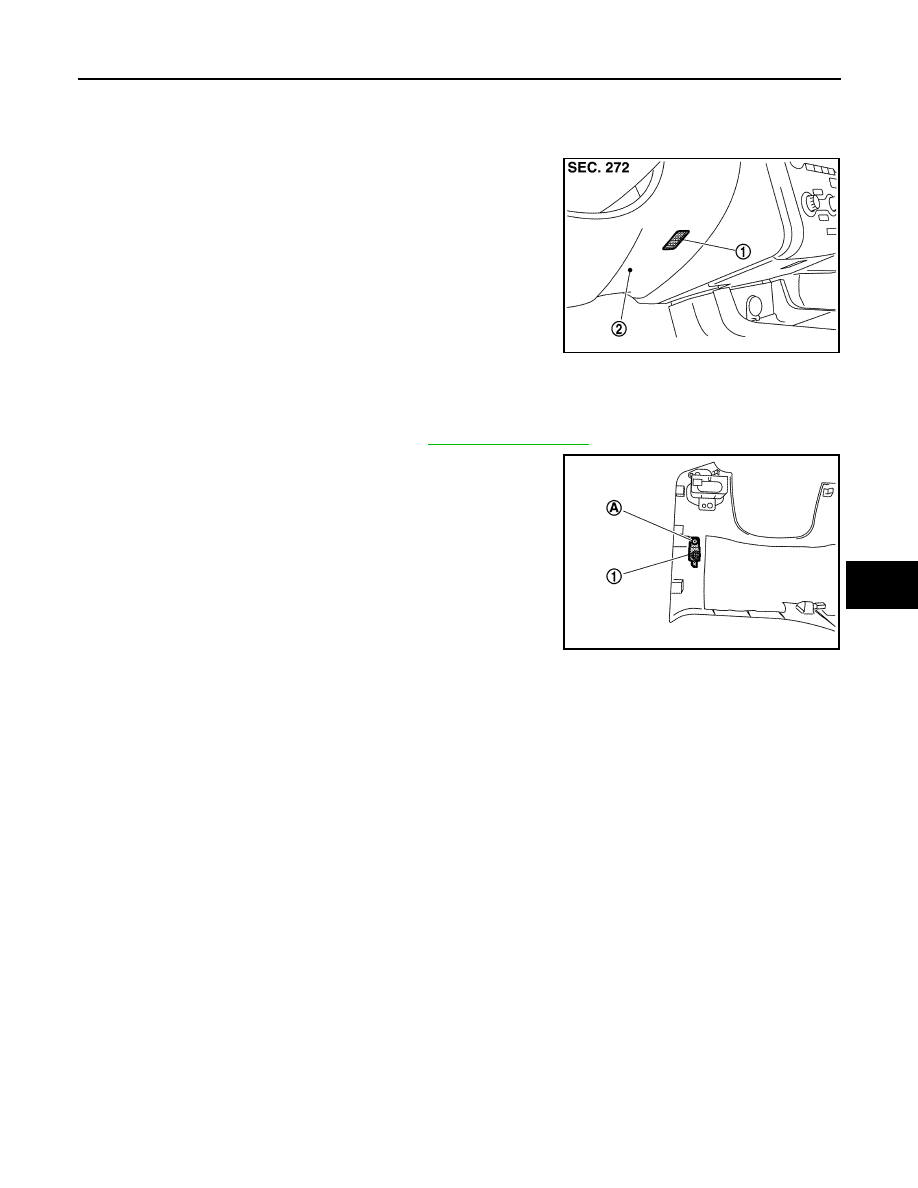

Exploded View

INFOID:0000000009721086

Removal and Installation

INFOID:0000000009721087

REMOVAL

1.

Remove instrument lower panel LH.  Refer to

IP-14, "Exploded View"

.

2.

Remove fixing screw (A) and then remove in-vehicle sensor (1).

INSTALLATION

Install in the reverse order of removal.

1.

In-vehicle sensor

2.

Instrument lower panel LH

JPIIA0557ZZ

JPIIA0558ZZ
