ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

Description

INFOID:0000000009719390

When replacing the transaxle assembly, perform the following work.

ERASING, LOADING AND STORING OF CALIBRATION DATA

• The TCM acquires calibration data (individual characteristic value) of each solenoid that is stored in the

ROM assembly (in the control valve). This enables the TCM to perform accurate control. For this reason,
after the transaxle assembly/control valve is replaced, it is necessary to erase the calibration data previously
stored in TCM, to load new calibration data, and to store them.

ERASING OF CVT FLUID DEGRADATION LEVEL DATA

• TCM records the degradation level of the CVT fluid calculated from the vehicle driving status. Therefore, if

the transaxle assembly/control valve is replaced, it is necessary to erase the CVT fluid degradation level
data recorded by TCM.

Procedure

INFOID:0000000009719391

CAUTION:

Immediately after TCM is replaced or after transaxle assembly is replaced (after TCM initialization is
complete), self-diagnosis result of “P1701“, “P1709” may be displayed. In this case, erase self-diagno-
sis result using CONSULT. After erasing self-diagnosis result, perform DTC “P1701“, “P1709” repro-
duction procedure and check that malfunction is not detected. Refer to

TM-87, "DTC Logic"

 (P1701),

TM-91, "DTC Logic"

 (P1709).

1.

PREPARATION BEFORE WORK

With CONSULT

1.

Start the engine.

CAUTION:

Never drive the vehicle.

2.

Select “Data Monitor” in “TRANSMISSION”.

3.

Select “ATFTEMP COUNT”.

 Is “ATFTEMP COUNT” 47 [equivalent to 20

°

C (68

°

F)] or more?

YES

>> GO TO 2.

NO

>> 1.

Warm up the transaxle assembly until “ATFTEMP COUNT” reaches “47” [equivalent to 20

°

C

(68

°

F)] or more.

2.

GO TO 2.

2.

PERFORM TCM INITIALIZATION

With CONSULT

1.

Turn ignition switch OFF.

2.

Turn ignition switch ON.

CAUTION:

Never start the engine.

3.

Select “Self Diagnostic Results” in “TRANSMISSION”.

4.

Shift selector lever to “R” position.

5.

Depress slightly the accelerator pedal (Pedal angle: 2.0/8) while depressing the brake pedal.

6.

Select “Erase” with step 5.

7.

Release brake pedal and accelerator pedal.

8.

Select “CALIB DATA” in “TRANSMISSION”.

9.

Check that “CALIB DATA” value is as shown as in the following table.

Item name

Display value

UNIT CLB ID 1

00

UNIT CLB ID 2

00

UNIT CLB ID 3

00

UNIT CLB ID 4

00

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

TM-11

< BASIC INSPECTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Is “CALIB DATA” value it?

YES

>> GO TO 3.

NO

>> GO TO 1.

3.

LOAD CALIBRATION DATA

1.

Shift selector lever to “P” position.

2.

Check that “P” is displayed on shift position indicator on combination meter.
NOTE:
It indicates approximately 1 – 2 seconds after shifting the selector lever to “P” position.

Does shift position indicator display “P”?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

DETECT MALFUNCTIONING ITEM

Check the following items:

• Harness between the TCM and the ROM assembly inside the transaxle assembly is open or shorted.
• Disconnected, loose, bent, collapsed, or otherwise abnormal connector housing terminals
• Power supply and ground of TCM. (Refer to

TM-87, "Diagnosis Procedure"

.)

Is the inspection result normal?

YES

>> GO TO 1.

NO

>> Repair or replace the malfunctioning parts.

5.

STORE CALIBRATION DATA

1.

Turn ignition switch OFF and wait for 5 seconds.

2.

Turn ignition switch ON.

Does the shift position indicator display “P” at the same time when turning ON the ignition switch?

YES

>> GO TO 6.

NO

>> Check harness between battery and TCM harness connector terminal. Refer to

TM-87, "Diagno-

sis Procedure"

.

6.

ERASE CVT FLUID DEGRADATION LEVEL DATA

With CONSULT

1.

Select “WORK SUPPORT” in “TRANSMISSION”.

2.

Select “CONFORM CVTF DETERIORTN”.

3.

Touch “Clear”.

>> WORK END

UNIT CLB ID 5

00

UNIT CLB ID 6

00

Item name

Display value

TM-12

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

CVT SYSTEM

SYSTEM DESCRIPTION

CVT SYSTEM

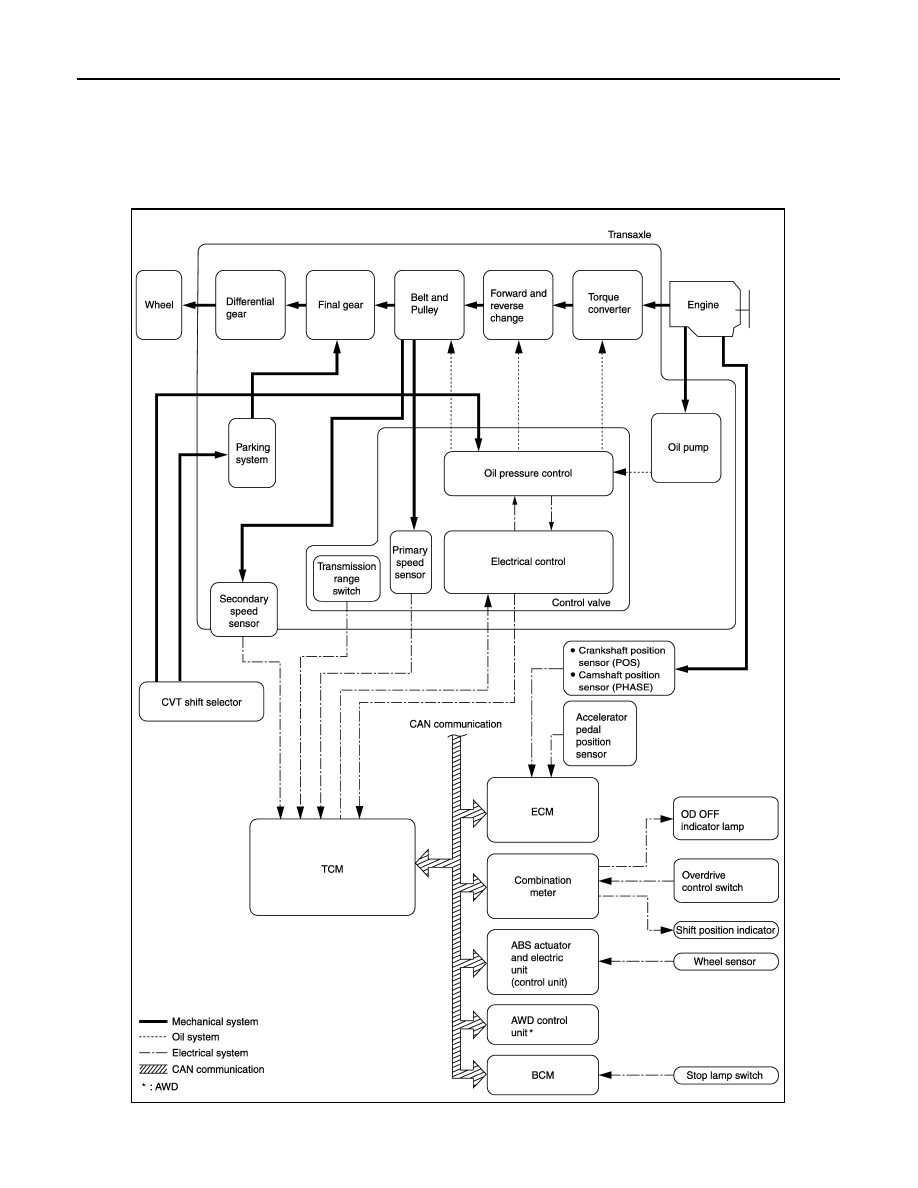

System Diagram

INFOID:0000000009719392

JSDIA1367GB

CVT SYSTEM

TM-13

< SYSTEM DESCRIPTION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

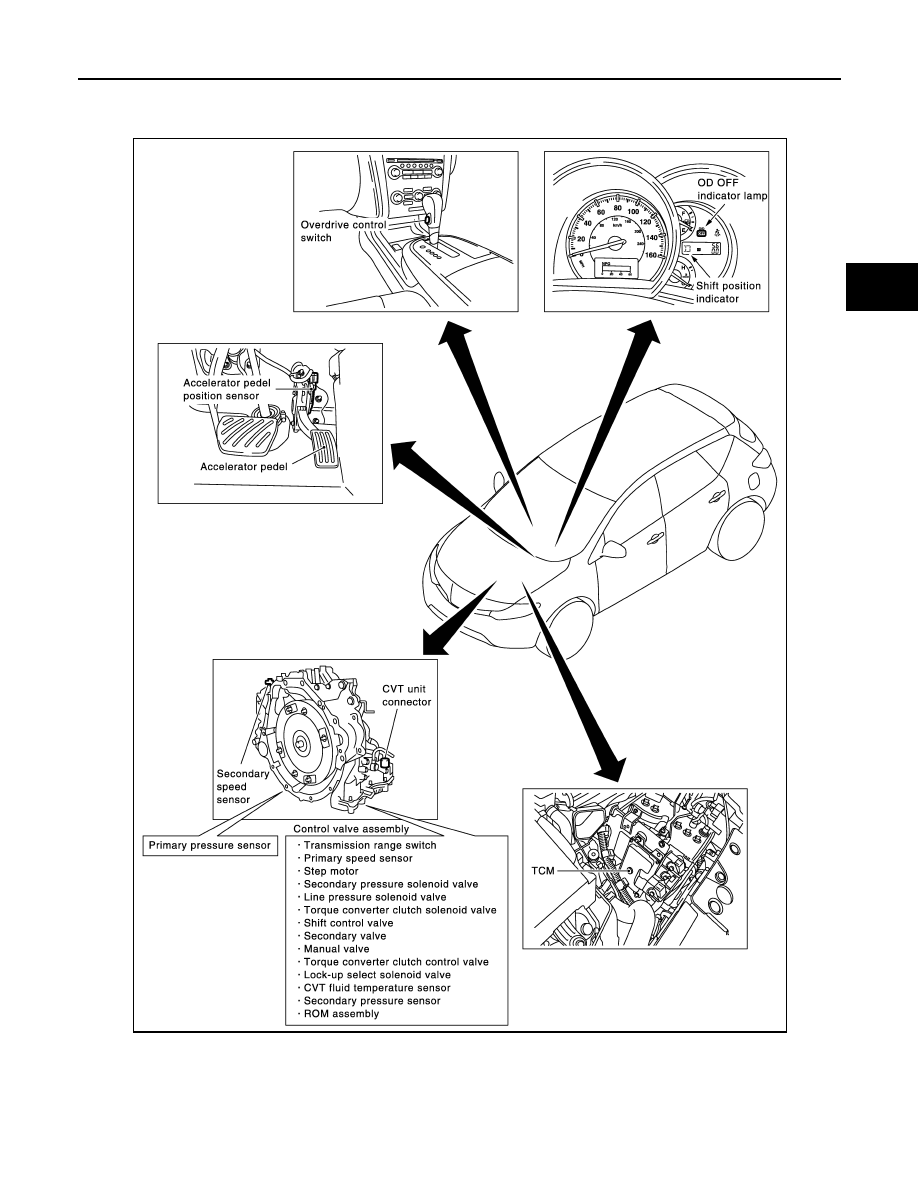

Component Parts Location

INFOID:0000000009719393

JSDIA1368GB
