STARTER MOTOR

STR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

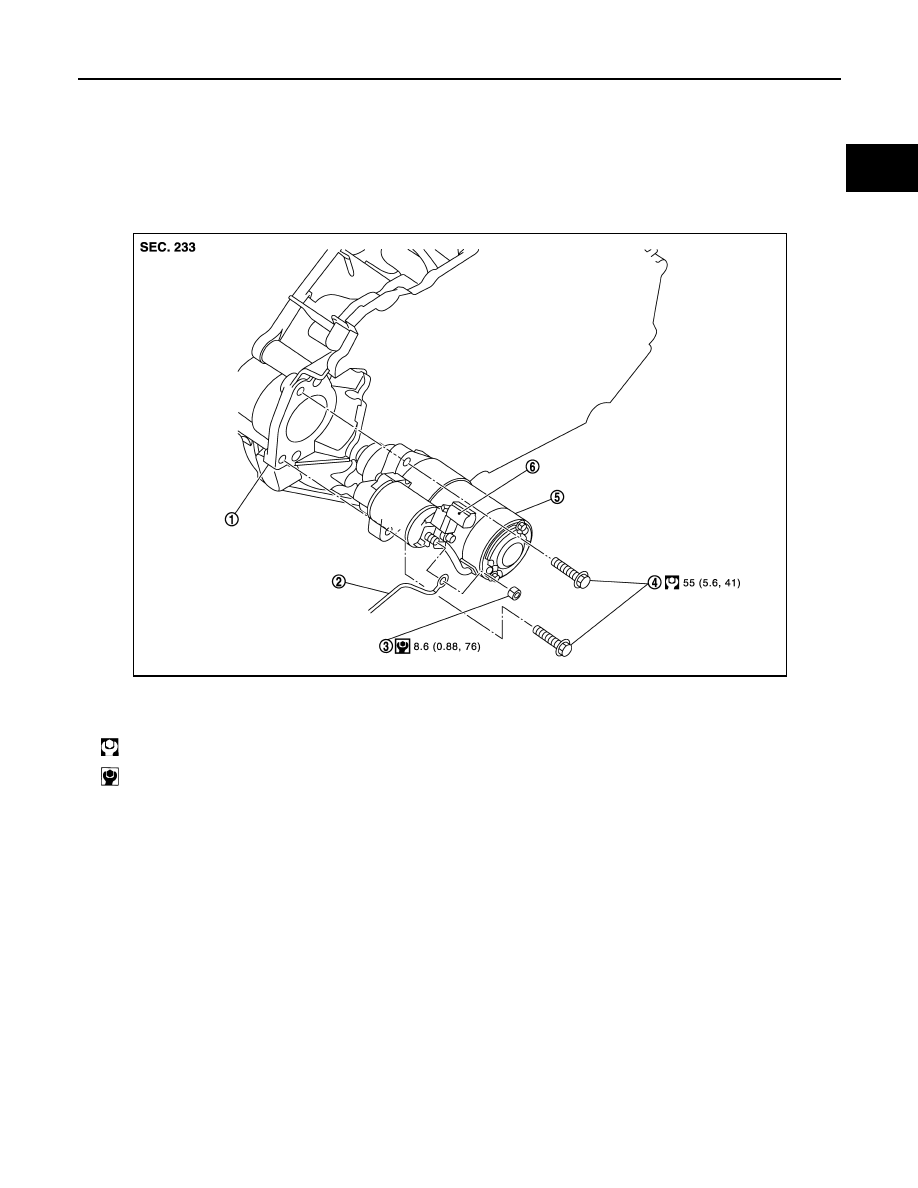

Exploded View

INFOID:0000000009722585

REMOVAL

DISASSEMBLY

1.

Converter housing

2.

“B” terminal harness

3.

Starter motor “B” terminal nut

4.

Starter motor mounting bolt

5.

Starter motor

6.

“S” connector

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA1922GB

STR-20

< REMOVAL AND INSTALLATION >

STARTER MOTOR

Type: M000TA0073

Removal and Installation

INFOID:0000000009722586

REMOVAL

1.

Remove the battery Refer to

PG-97, "Removal and Installation"

.

2.

Remove the air cleaner assembly and air ducts.

3.

Disconnect the following unit connectors:
• ECM
• TCM
• IPDM  E/R

4.

Remove the battery tray.

5.

Disconnect the starter motor harness connectors.

6.

Remove the starter motor mounting bolts, using power tools.

7.

Remove the starter motor.

INSTALLATION

Installation is in the reverse order of removal.

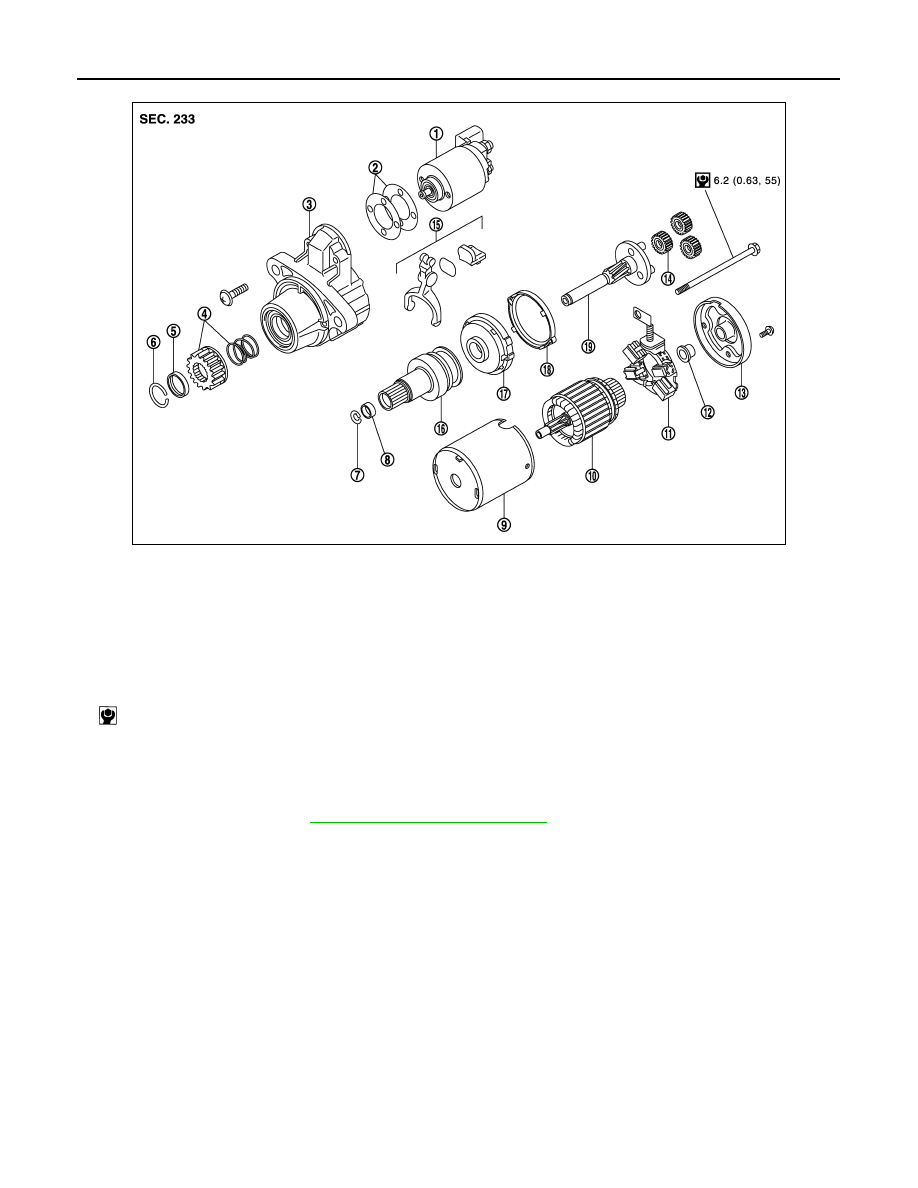

JPBIA1777GB

1.

Magnetic switch assembly

2.

Dust cover kit

3.

Gear case assembly

4.

Pinion assembly

5.

Stopper

6.

Ring

7.

Ring

8.

Stopper

9.

Yoke assembly

10. Armature assembly

11.

Brush holder assembly

12. Metal

13. Rear cover

14. Gear assembly

15. Shift lever set

16. Clutch gear assembly

17. Center bracket

18. Packing

19. Gear shaft

: N·m (kg-m, in-lb)

SERVICE DATA AND SPECIFICATIONS (SDS)

STR-21

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Starter Motor

INFOID:0000000009722587

Type

M000TA0073

MITSUBISHI make

Reduction gear type

System voltage

(V)

12

No-load

Terminal voltage

(V)

11

Current

(A)

Less than 90

Revolution

(rpm)

More than 2,400

TM-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

TM

A

B

TM

N

O

P

CONTENTS

TRANSAXLE & TRANSMISSION

CVT: RE0F09B

BASIC INSPECTION  ....................................

5

DIAGNOSIS AND REPAIR WORK FLOW  .........

5

Work Flow  .................................................................

5

Diagnostic Work Sheet ..............................................

6

ADDITIONAL SERVICE WHEN REPLACING
TCM .....................................................................

8

Description ................................................................

8

Procedure ..................................................................

8

ADDITIONAL SERVICE WHEN REPLACING
TRANSAXLE ASSEMBLY  .................................

10

Description ..............................................................

10

Procedure ................................................................

10

SYSTEM DESCRIPTION  .............................

12

CVT SYSTEM  .....................................................

12

System Diagram ......................................................

12

Component Parts Location ......................................

13

MECHANICAL SYSTEM  ....................................

14

Cross-Sectional View  ..............................................

14

System Diagram ......................................................

15

System Description  .................................................

15

Component Parts Location ......................................

16

Component Description ...........................................

16

HYDRAULIC CONTROL SYSTEM  ....................

18

System Diagram ......................................................

18

System Description  .................................................

18

Component Parts Location ......................................

20

Component Description ...........................................

20

CONTROL SYSTEM ..........................................

22

System Diagram ......................................................

22

System Description  .................................................

22

Component Parts Location ......................................

24

Component Description ...........................................

24

LOCK-UP AND SELECT CONTROL SYSTEM

...

26

System Diagram  ......................................................

26

System Description ..................................................

26

Component Parts Location  ......................................

27

Component Description  ...........................................

27

SHIFT CONTROL SYSTEM ..............................

29

System Diagram  ......................................................

29

System Description ..................................................

29

Component Parts Location  ......................................

31

Component Description  ...........................................

31

SHIFT LOCK SYSTEM  .....................................

33

System Description ..................................................

33

Component Parts Location  ......................................

34

Component Description  ...........................................

34

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ....

36

Diagnosis Description ..............................................

36

DIAGNOSIS SYSTEM (TCM) ............................

38

CONSULT Function .................................................

38

Diagnostic Tool Function  .........................................

41

DTC/CIRCUIT DIAGNOSIS  .........................

42

U0100 LOST COMMUNICATION (ECM A)  ......

42

DTC Logic ................................................................

42

Diagnosis Procedure  ...............................................

42

U1000 CAN COMM CIRCUIT  ...........................

43

Description ...............................................................

43

DTC Logic ................................................................

43

Diagnosis Procedure  ...............................................

43

U1010 CONTROL UNIT (CAN) .........................

44

Description ...............................................................

44

DTC Logic ................................................................

44

Diagnosis Procedure  ...............................................

44

P0615 STARTER RELAY  .................................

45
