< ECU DIAGNOSIS INFORMATION >

[FOR USA AND CANADA]

DIAGNOSIS SENSOR UNIT

B0091

B-PILLAR SAT SEN LH

[RESET]

Sensor system

2

SRC-41, "DTC
Logic"

[COMM ERR]

[OPEN]

[UNMATCH]

[OFFSET ERR]

[SELF-DIAG ERR]

[LOWER LIMIT ERR]

[UPPER LIMIT ERR]

[GND-SHORT]

B0094

CRASH ZONE SENS

[RESET]

Sensor system

1

SRC-43, "DTC
Logic"

[COMM ERR]

[OPEN]

[UNMATCH]

[OFFSET ERR]

[SELF-DIAG ERR]

[LOWER LIMIT ERR]

[UPPER LIMIT ERR]

[GND-SHORT]

B0096

B-PILLAR SAT SEN RH

[RESET]

Sensor system

3

SRC-45, "DTC
Logic"

[COMM ERR]

[OPEN]

[UNMATCH]

[OFFSET ERR]

[SELF-DIAG ERR]

[LOWER LIMIT ERR]

[UPPER LIMIT ERR]

[GND-SHORT]

B0099

SATELLITE SENSOR

[RESET]

Sensor system

12

SRC-47, "DTC
Logic"

[COMM ERR]

[OPEN]

[UNMATCH]

[OFFSET ERR]

[SELF-DIAG ERR]

[LOWER LIMIT ERR]

[UPPER LIMIT ERR]

[GND-SHORT]

B00A0

OCCUPANT SENS

[ABNOMAL VOLT-
AGE]

Air bag control unit
system

4

SRC-49, "DTC
Logic"

[UNIT MALFUNC]

OCCUPANT SENS C/U

[UNIT MALFUNC]

[RESET]

[COMM ERR]

[UNDEFINED]

DTC

Diagnostic item

Number of times of warning lamp

blinking in diagnosis mode

Reference page

System display

Item display

DIAGNOSIS SENSOR UNIT

SRC-69

< ECU DIAGNOSIS INFORMATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B00D5

PASS A/B INDCTR CKT

[UNIT MALFUNC]

Air bag control unit
system

3

SRC-51, "DTC
Logic"

[PWR-SHORT/
OPEN]

[OPEN]

[VB-SHORT]

[GND-SHORT]

B1400-B1405

CONTROL UNIT

[UNIT MALFUNC]

Air bag control unit
system

2

SRC-53, "DTC
Logic"

B1406-B1410

CONTROL UNIT

[UNIT MALFUNC]

Air bag control unit
system

2

SRC-54, "DTC
Logic"

B1411-B1415

CONTROL UNIT

[UNIT MALFUNC]

Air bag control unit
system

2

SRC-55, "DTC
Logic"

B1416-B1420

CONTROL UNIT

[UNIT MALFUNC]

Air bag control unit
system

2

SRC-56, "DTC
Logic"

B1421

FRONTAL COLLISION

—

Air bag control unit
system

1

SRC-57, "DTC
Logic"

B1422

SIDE COLLISION

—

Air bag control unit
system

1

SRC-58, "DTC
Logic"

B1423

ROLLOVER DETECTION

—

Air bag control unit
system

1

SRC-59, "DTC
Logic"

B1425

REAR COLLISION

—

Air bag control unit
system

1

SRC-60, "DTC
Logic"

B142A

IGNITION VOLTAGE

[VB-LOW]

—

—

SRC-61, "DTC
Logic"

[VB-HIGH]

—

—

B1430

PRE-TEN FRONT LH

[OPEN]

Front air bag system

3

SRC-63, "DTC
Logic"

[VB-SHORT]

[GND-SHORT]

[SHORT]

B1431

PRE-TEN FRONT RH

[OPEN]

Front air bag system

4

SRC-65, "DTC
Logic"

[VB-SHORT]

[GND-SHORT]

[SHORT]

DTC

Diagnostic item

Number of times of warning lamp

blinking in diagnosis mode

Reference page

System display

Item display

SRC-70

< ECU DIAGNOSIS INFORMATION >

[FOR USA AND CANADA]

DIAGNOSIS SENSOR UNIT

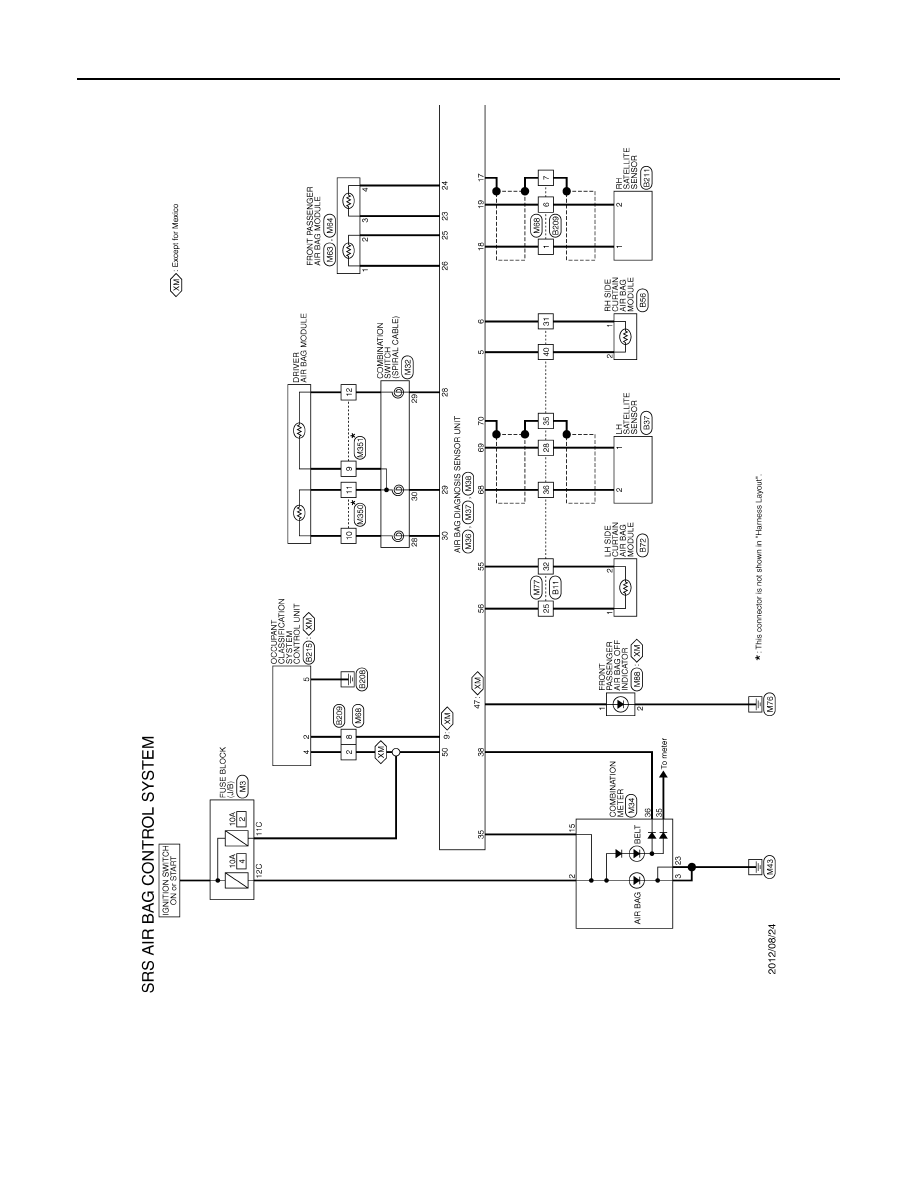

Wiring Diagram — SRS AIR BAG CONTROL SYSTEM —

INFOID:0000000009718536

JRHWC0326GB

DIAGNOSIS SENSOR UNIT

SRC-71

< ECU DIAGNOSIS INFORMATION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

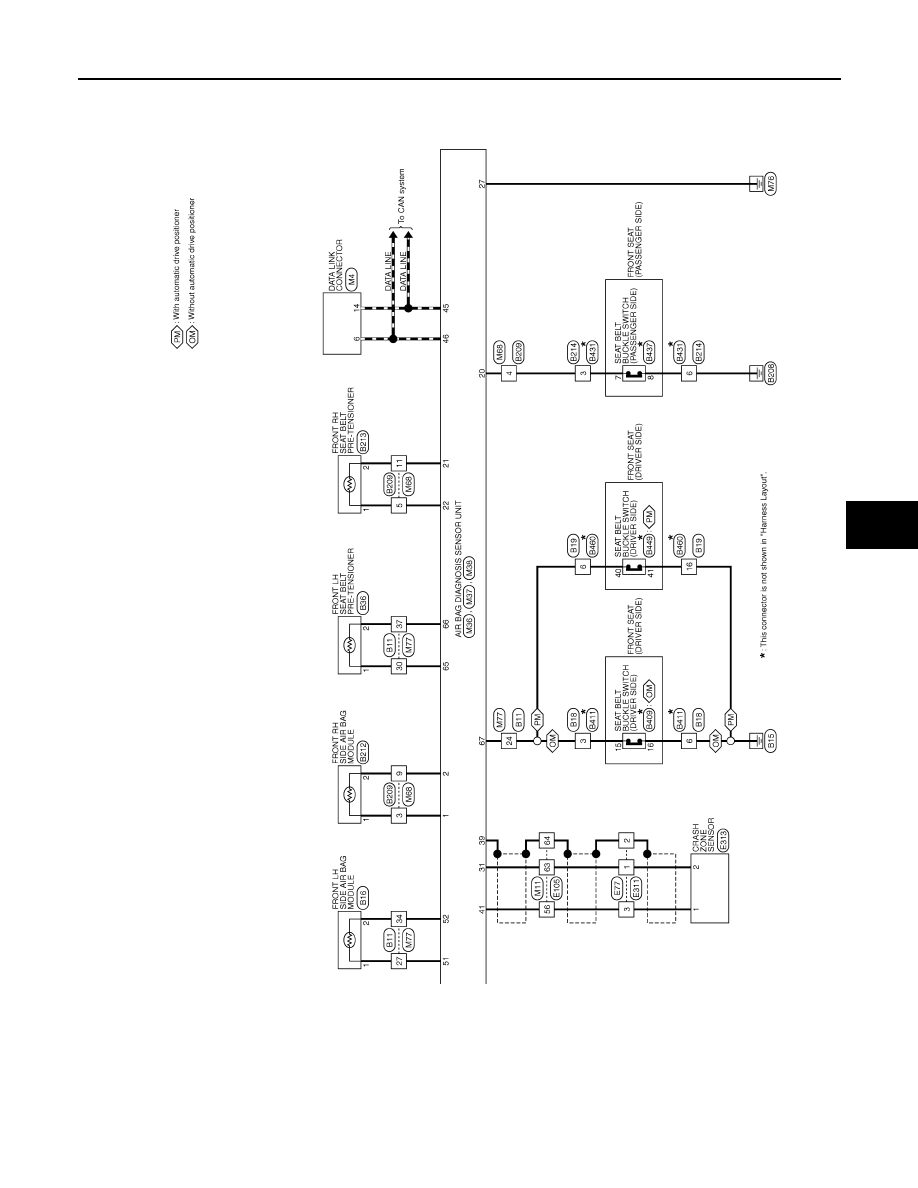

JRHWC0327GB
