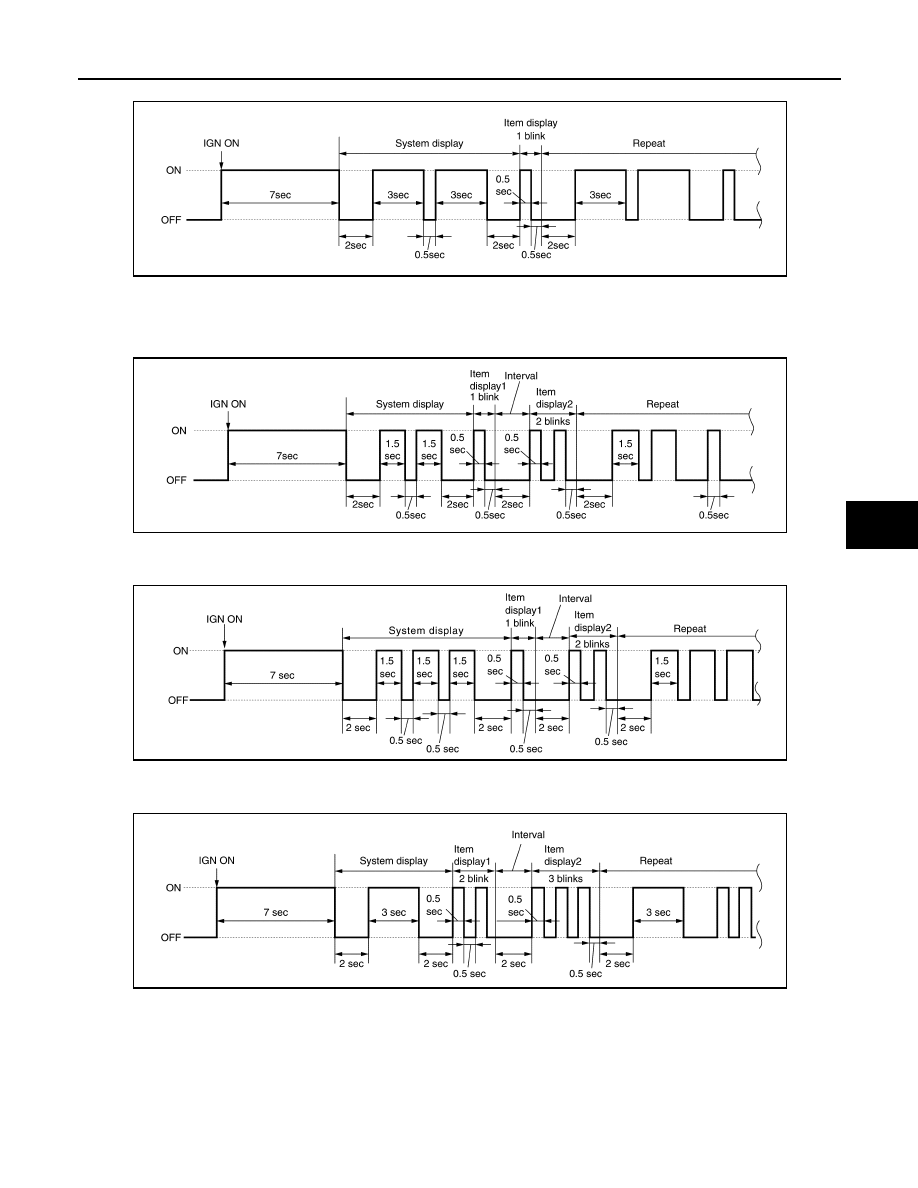

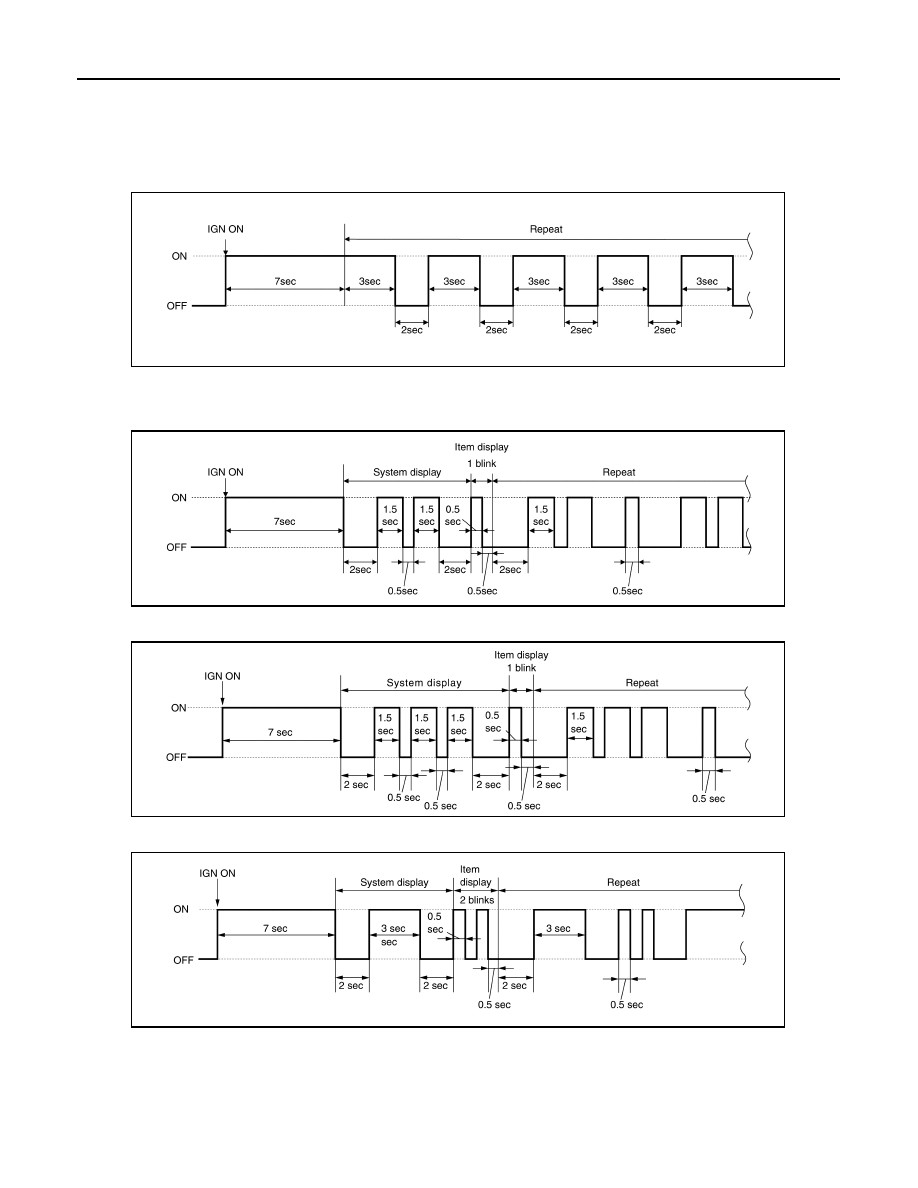

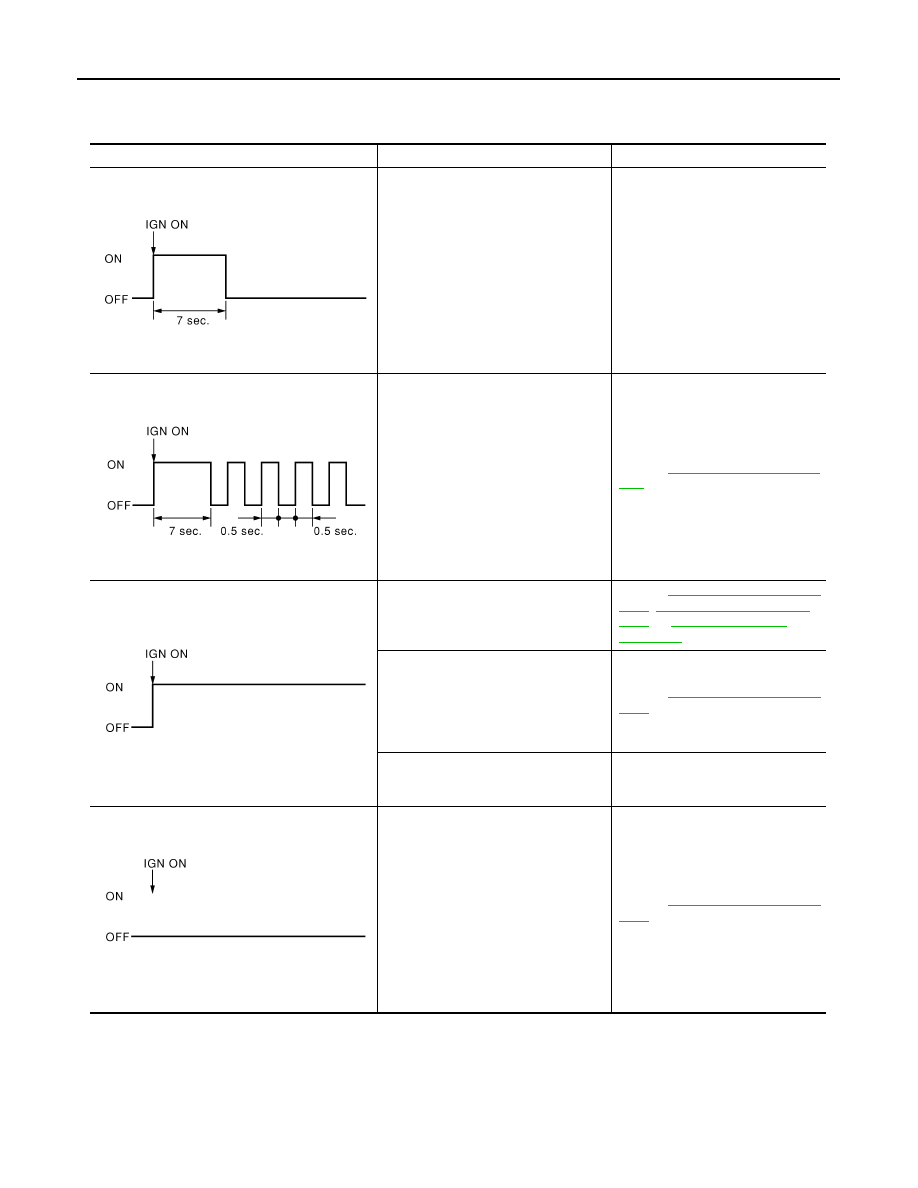

SRC-16 < SYSTEM DESCRIPTION > [FOR USA AND CANADA] DIAGNOSIS SYSTEM (AIRBAG) 2. Compare the air bag warning lamp blinking pattern with the examples. Air Bag Warning Lamp Examples Occurrence of Intermittent Malfunction Air bag warning lamp blinks in user mode when an intermittent malfunction occurs. Air bag warning lamp turns Battery Low Voltage Detection Air bag diagnosis sensor unit warns the driver by turning air bag warning lamp ON when air bag diagnosis Air bag warning lamp operation (user mode) SRS condition Reference item • No malfunction is detected Change to Diagnosis mode is not possible when the system is normal. The system is malfunctioning Refer to or “DIAGNOSIS MODE” • Air bag is deployed Refer to • Air bag diagnosis sensor unit is mal- functioning • Air bag power supply circuit is mal- functioning • Air bag warning lamp circuit is mal- functioning Refer to Battery voltage is low (less than 9 V, or Refer to “BATTERY LOW VOLTAGE • Air bag diagnosis sensor unit is mal- functioning • Air bag warning lamp circuit is mal- functioning Refer to SHIA0011E SHIA0012E SHIA0013E SHIA0014E |
