Nissan Murano. Manual - part 1262





BCM (BODY CONTROL MODULE)

SEC-145

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

144

(P)

Ground

Combination switch
OUTPUT 2

Output

Combination
switch

All switches OFF
(Wiper intermittent dial 4)

0 V

Front washer switch ON
(Wiper intermittent dial 4)

10.7 V

Rear wiper switch ON
(Wiper intermittent dial 4)

Rear washer switch ON
(Wiper intermittent dial 4)

Any of the conditions below
with all switches OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

145

(V)

Ground

Combination switch
OUTPUT 3

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switches OFF

0 V

Front wiper switch INT/
AUTO

10.7 V

Front wiper switch LO

Lighting switch AUTO

146

(Y)

Ground

Combination switch
OUTPUT 4

Output

Combination
switch
(Wiper intermit-
tent dial 4)

All switches OFF

0 V

Front fog lamp switch ON

10.7 V

Lighting switch 2ND

Lighting switch PASS

Turn signal switch LH

150

(SB)

Ground

Driver door switch

Input

Driver door
switch

OFF (When driver door
closes)

11.8 V

ON (When driver door
opens)

0 V

151

(G)

Ground

Rear window defog-
ger relay control

Output

Rear window de-
fogger

Active

0 V

Not activated

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0033GB

JPMIA0034GB

JPMIA0035GB

JPMIA0011GB

SEC-146

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

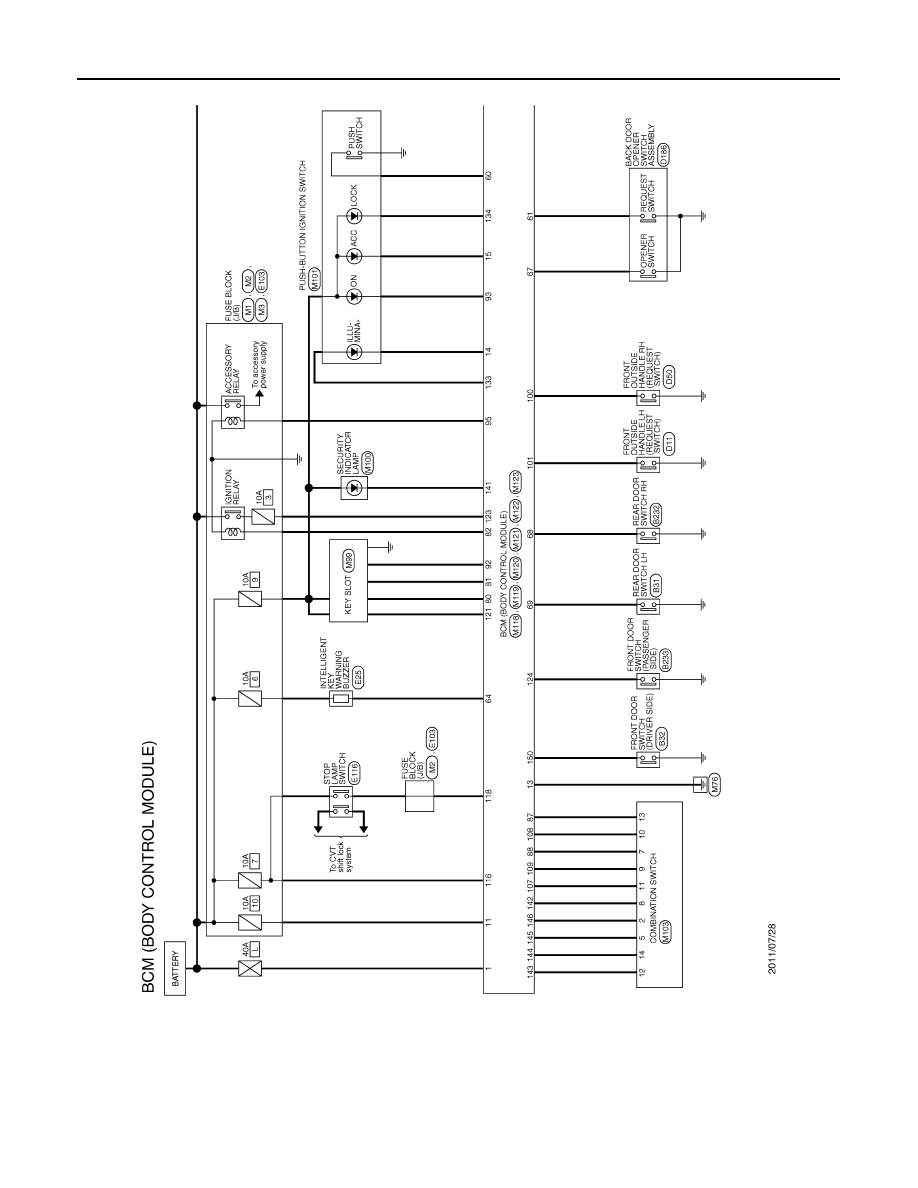

Wiring Diagram - BCM -

INFOID:0000000010037983

JRMWC5024GB

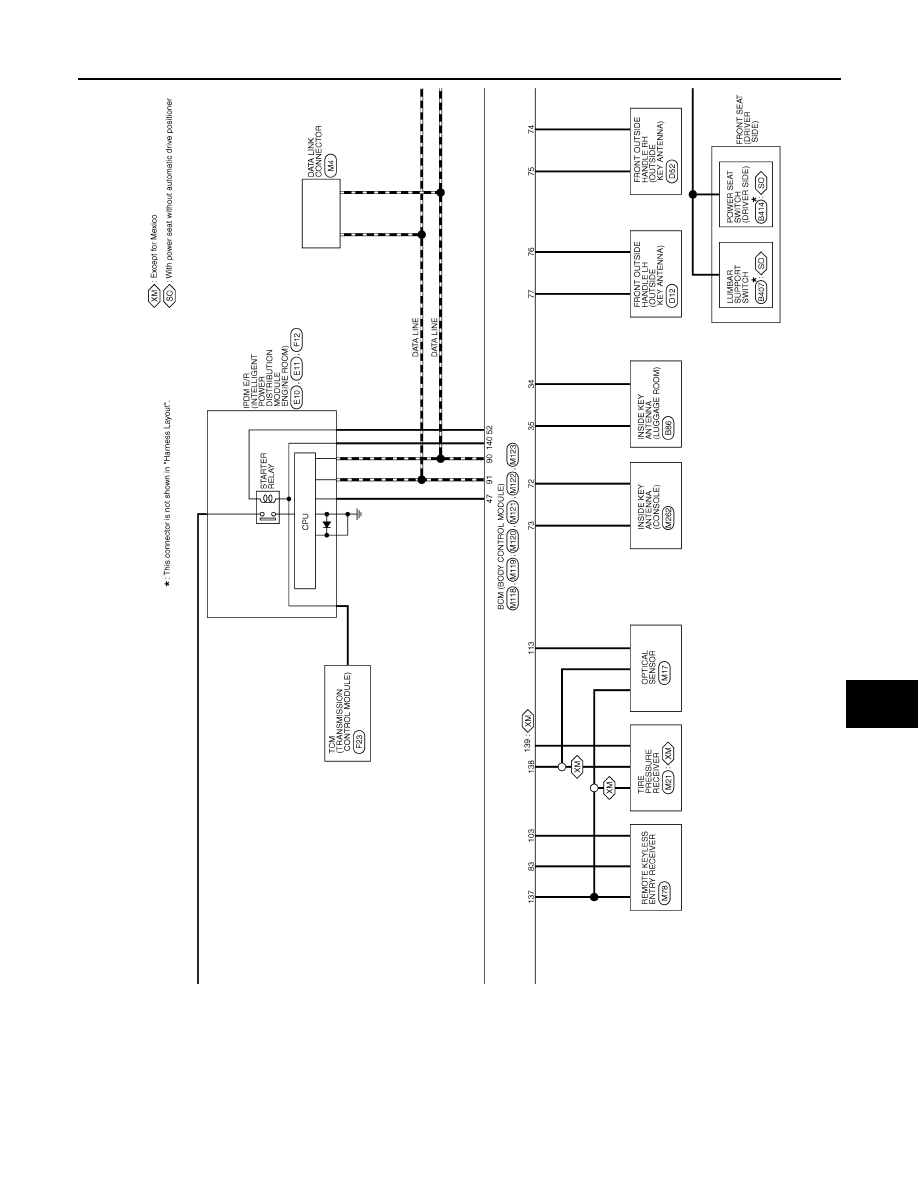

BCM (BODY CONTROL MODULE)

SEC-147

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRMWC5025GB

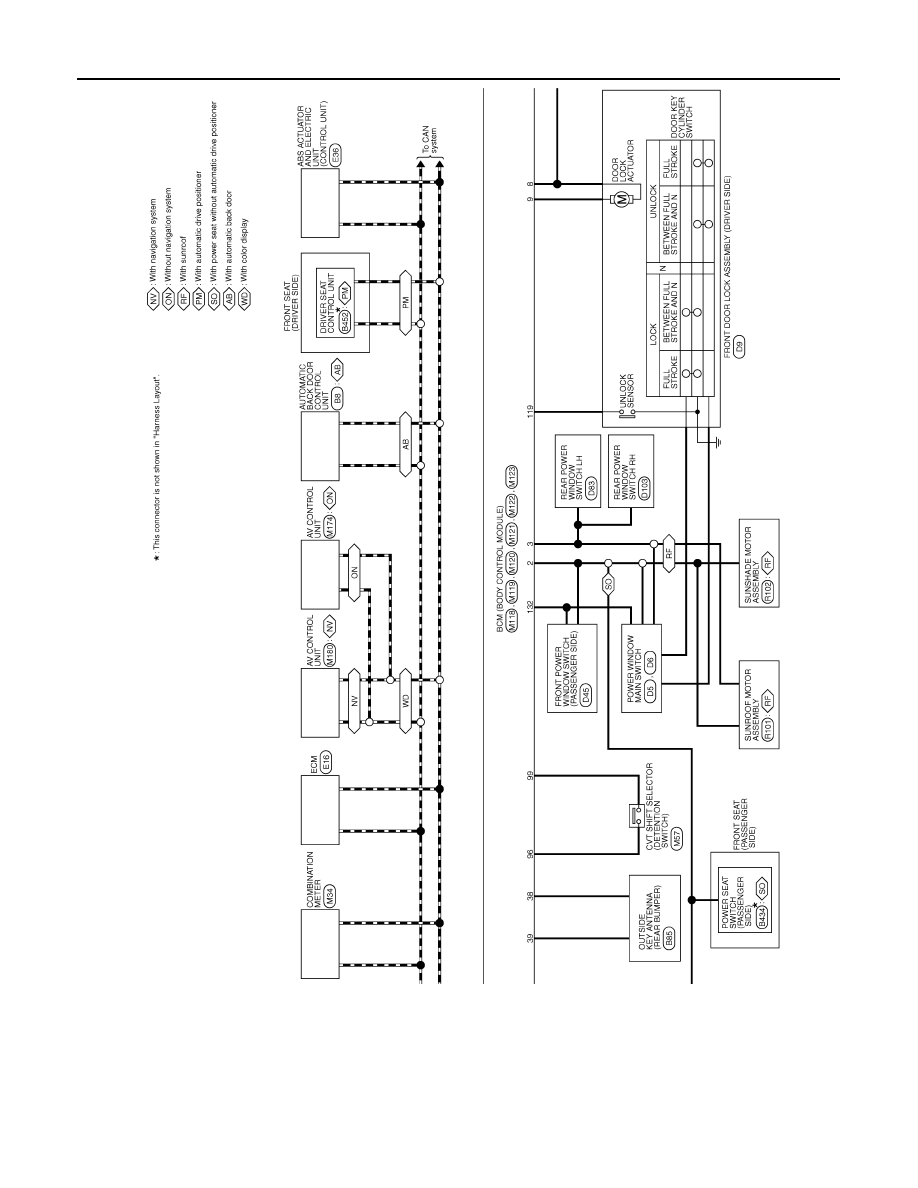

SEC-148

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

JRMWC5026GB
