BCM (BODY CONTROL MODULE)

SEC-133

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

68

(W)

Ground

Rear RH door switch

Input

Rear RH door
switch

OFF (When rear RH door
closes)

11.8 V

ON (When rear RH door
opens)

0 V

69

(R)

Ground

Rear LH door switch

Input

Rear LH door
switch

OFF (When rear LH door
closes)

11.8 V

ON (When rear LH door
opens)

0 V

72

(B)

Ground

Room antenna (-)
(Center console)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JPMIA0011GB

JPMIA0011GB

JMKIA0062GB

JMKIA0063GB

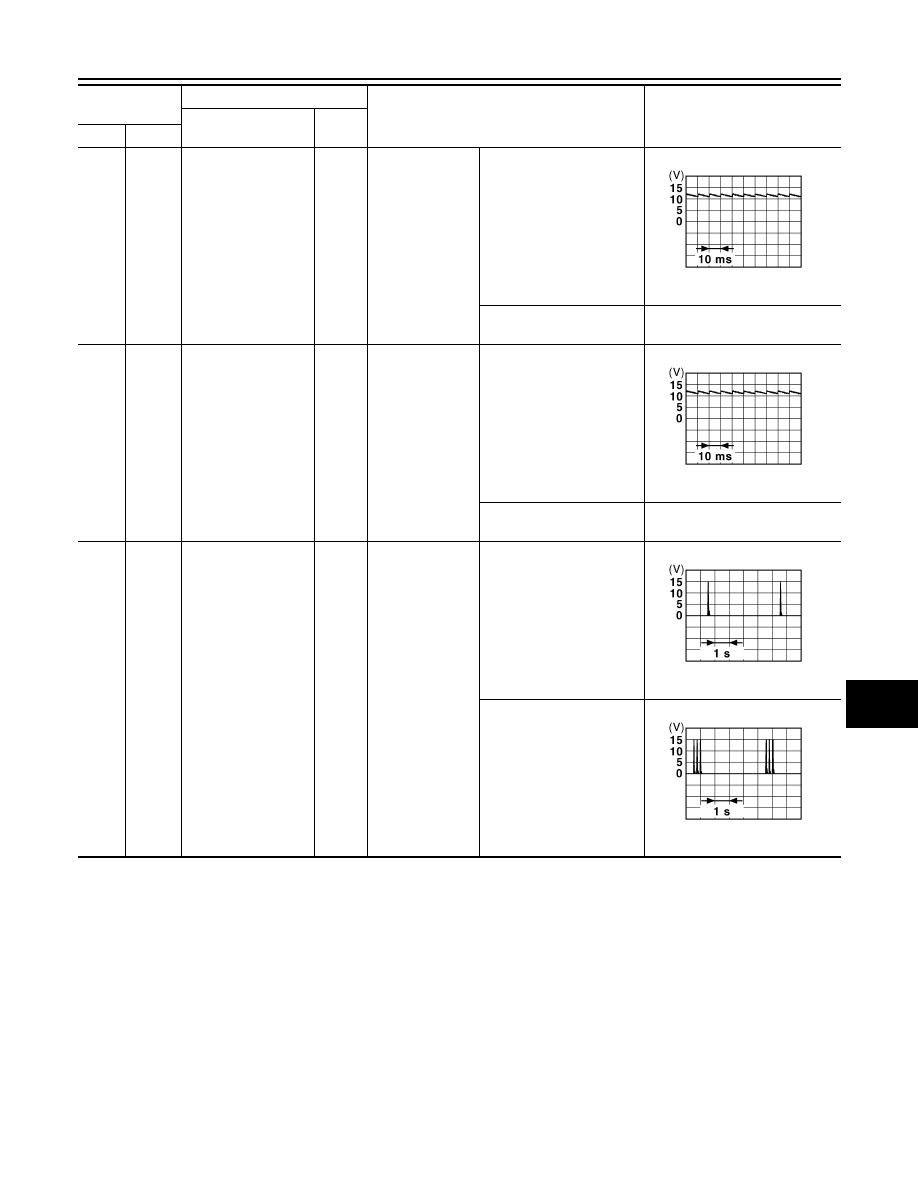

SEC-134

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

73

(W)

Ground

Room antenna (+)
(Center console)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

74

(Y)

Ground

Passenger door an-
tenna (-)

Output

When the pas-
senger door re-
quest switch is
operated with ig-
nition switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

75

(LG)

Ground

Passenger door an-
tenna (+)

Output

When the pas-
senger door re-
quest switch is
operated with ig-
nition switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

BCM (BODY CONTROL MODULE)

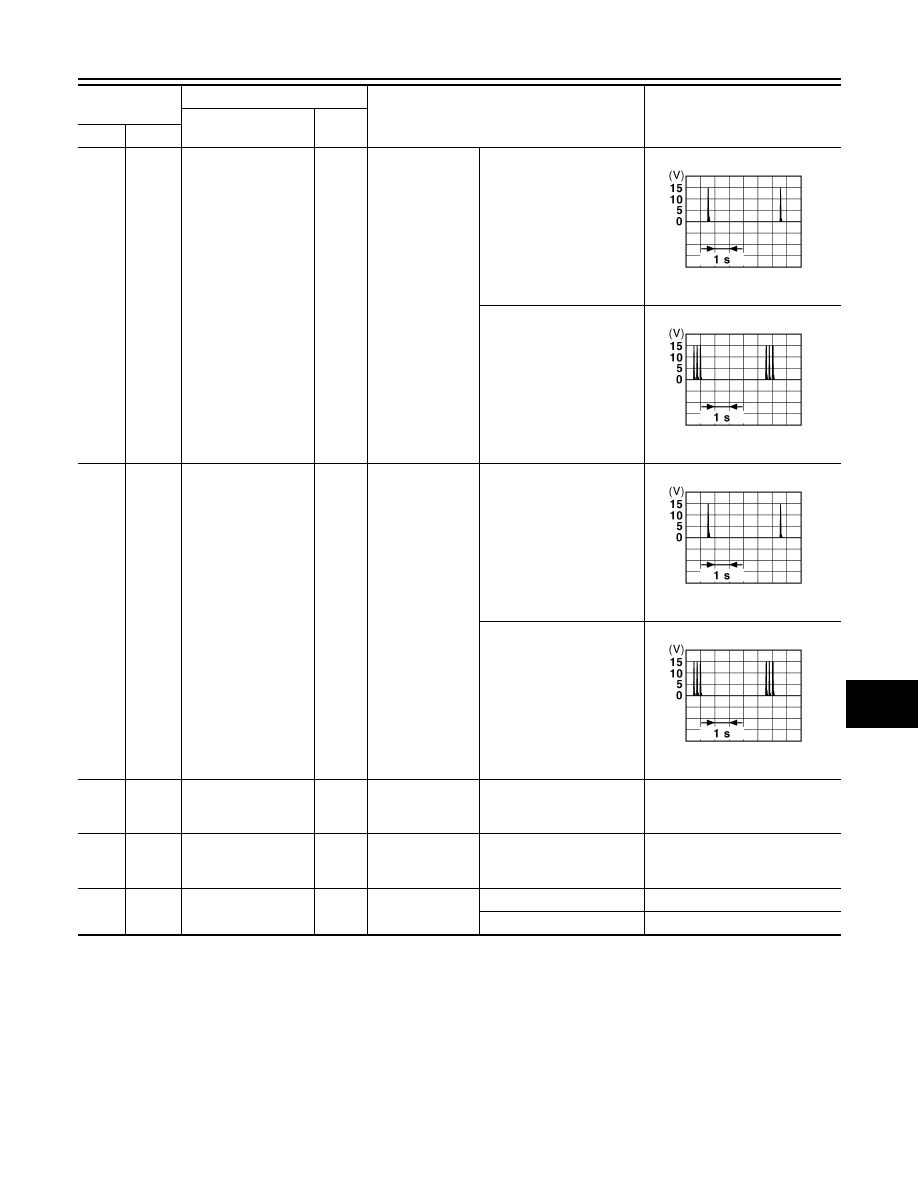

SEC-135

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

76

(V)

Ground

Driver door antenna
(-)

Output

When the driver
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

77

(P)

Ground

Driver door antenna
(+)

Output

When the driver
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

80

(SB)

Ground

NATS antenna amp.

Input/

Output

During waiting

Ignition switch is pressed
while inserting Intelligent
Key into the key slot.

Just after pressing ignition

switch. Pointer of tester should

move.

81

(O)

Ground

NATS antenna amp.

Input/

Output

During waiting

Ignition switch is pressed
while inserting Intelligent
Key into the key slot.

Just after pressing ignition

switch. Pointer of tester should

move.

82

(BR)

Ground

Ignition relay [fuse
block (J/B)] control

Output

Ignition switch

OFF or ACC

0 V

ON

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

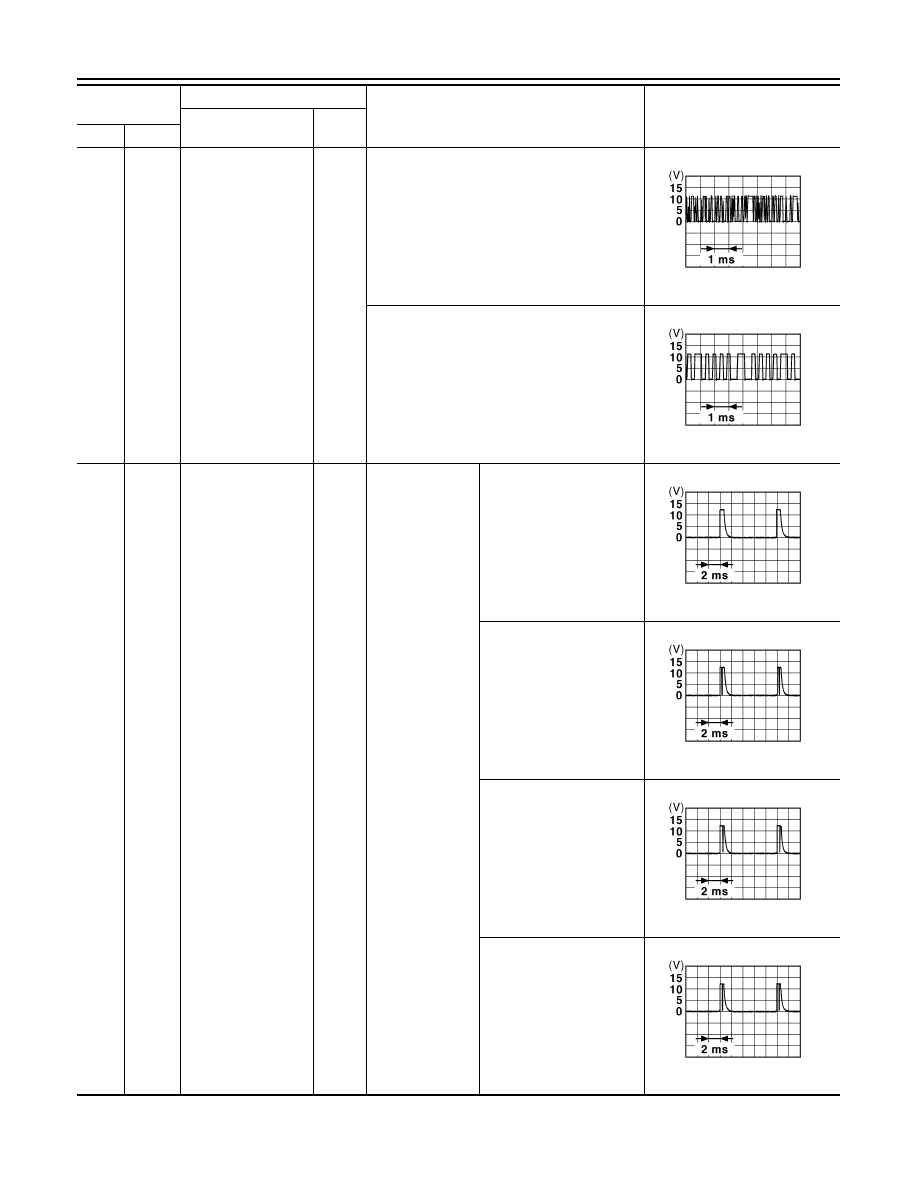

SEC-136

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

83

(P)

Ground

Remote keyless entry
receiver communica-
tion

Input/

Output

During waiting

When operating either button on Intelligent Key

87

(R)

Ground

Combination switch
INPUT 5

Input

Combination
switch

All switches OFF
(Wiper intermittent dial 4)

1.4 V

Front fog lamp switch ON
(Wiper intermittent dial 4)

1.3 V

Rear wiper switch ON
(Wiper intermittent dial 4)

1.3 V

Any of the conditions below
with all switches OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2
• Wiper intermittent dial 6
• Wiper intermittent dial 7

1.3 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

JMKIA0064GB

JMKIA0065GB

JPMIA0041GB

JPMIA0037GB

JPMIA0039GB

JPMIA0040GB
