REAR SEATBACK POWER RETURN CONTROL UNIT
SE-63
< ECU DIAGNOSIS INFORMATION >
C
D
E
F
G
H
I
K
L
M
A
B
SE
N
O
P
ECU DIAGNOSIS INFORMATION

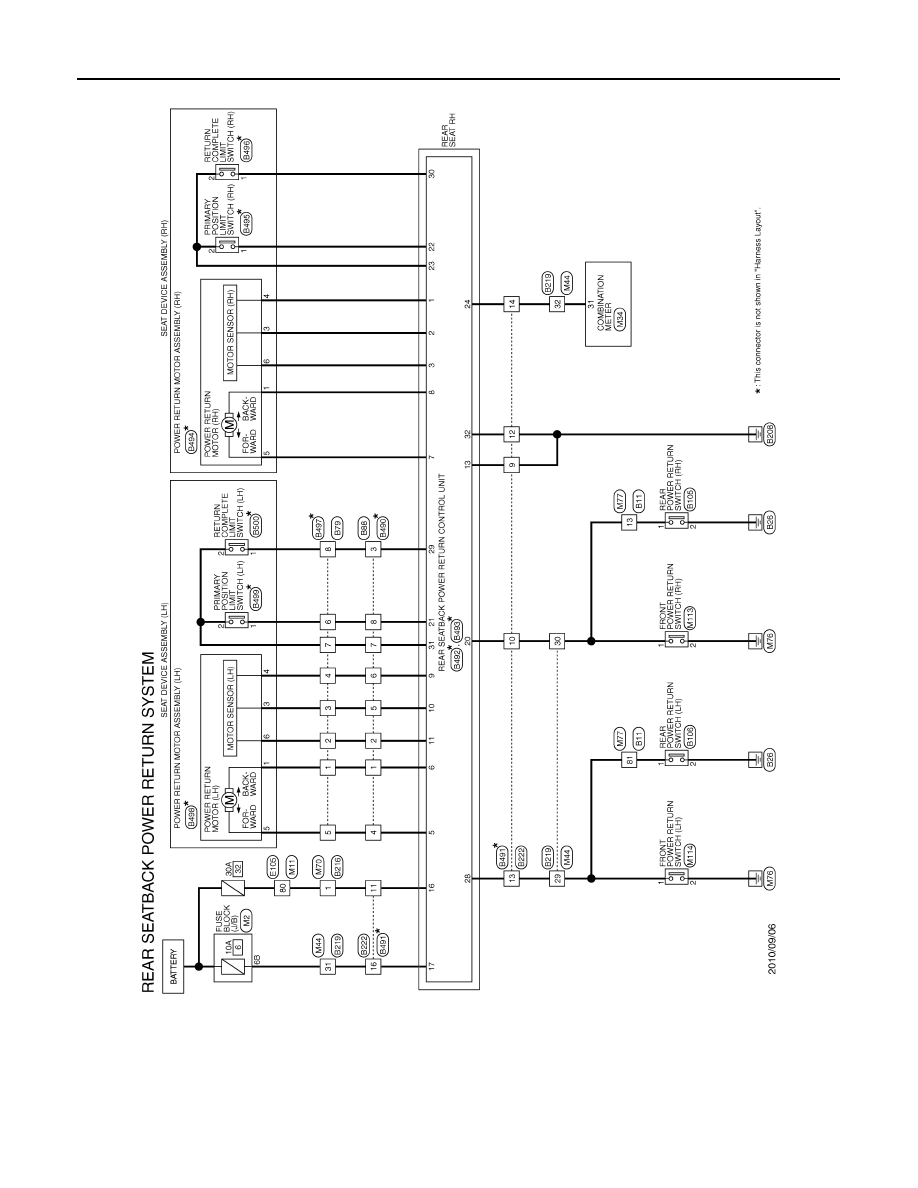

REAR SEATBACK POWER RETURN CONTROL UNIT
Reference Value
INFOID:0000000009718746

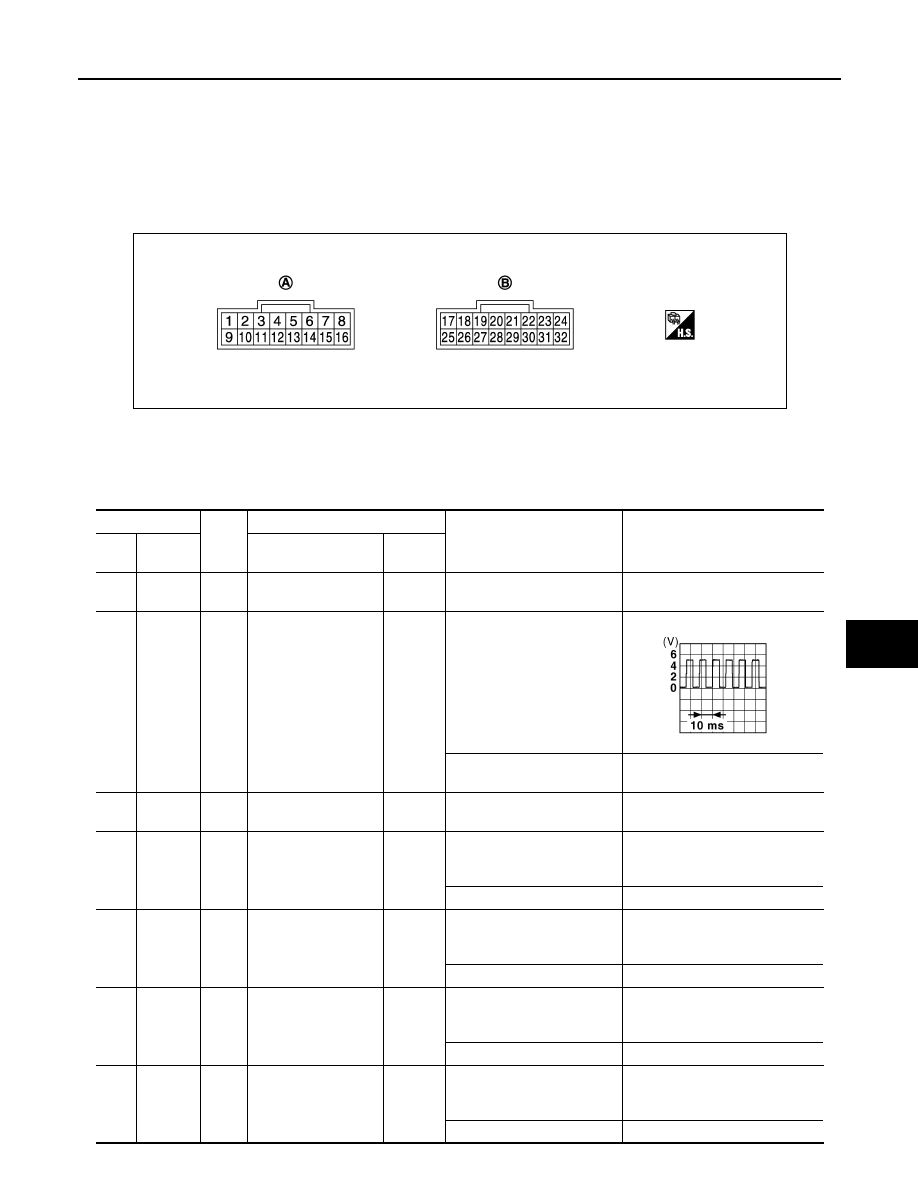

TERMINAL LAYOUT
PHYSICAL VALUES
Rear seat back power return control unit
A.
B492
B.
B493
JMJIA1682ZZ

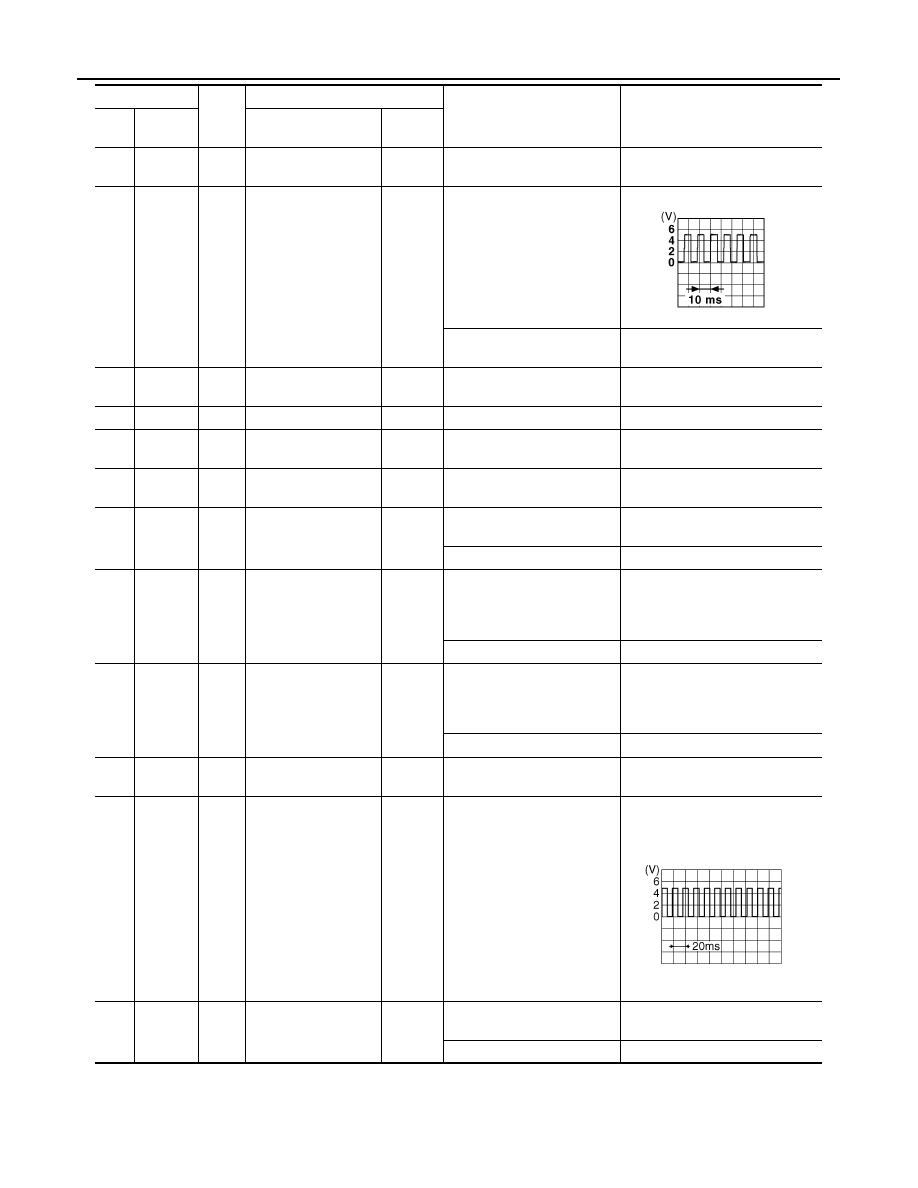

Terminal No.
Wire
color
Description
Condition
Value
(Approx.)
+
–
Signal name
Input/
Output
1
Ground
B/W
Ground (Motor sensor
RH)
—
—
0
2
Ground
G/W
Motor sensor (RH) in-
put signal
Input
When the power return motor
(RH) is operated
When the pinch occurs
The above pulse width should be
expanded
3
Ground
Y/R
Motor sensor (RH)
Power supply
Input
When the power return motor
is operated
Battery voltage
5
Ground
R/B
Power return motor
(LH) backward signal
Output
When the power return motor
(LH) performs reverse opera-
tion
Battery voltage
Other than the above
0
6
Ground
L
Power return motor
(LH) forward signal
Output
When the power return motor
(LH) performs return opera-
tion
Battery voltage
Other than the above
0
7
Ground
R/W
Power return motor
(RH) backward signal
Output
When the power return motor
(RH) performs reverse opera-
tion
Battery voltage
Other than the above
0
8
Ground
L/W
Power return motor
(RH) forward signal
Output
When the power return motor
(RH) performs return opera-
tion
Battery voltage
Other than the above
0
JMKIA0070GB
