REAR SEAT BELT

SB-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000009718872

REMOVAL

1.

Remove the outer anchor.
• Remove the rear seat assembly. Refer to

SE-109, "Removal and Installation"

.

• Remove the outer lower anchor fixing anchor bolt and remove the outer anchor.

2.

Remove the shoulder anchor.
• Remove the shoulder anchor cover.
• Remove the shoulder anchor fixing anchor bolt and remove the shoulder anchor.

3.

Remove the outer seat belt retractor.
• Remove the luggage side finisher (upper and lower). Refer to

INT-35, "Removal and Installation"

.

• Remove the fixing anchor bolt and remove the outer seat belt retractor.

4.

Remove the seat belt adjuster.
Remove the seat belt adjuster fixing bolts and remove the seat belt adjuster.

5.

Remove the center seat belt retractor.
• Remove the rear center seat belt cover.
- Normal roof: Refer to

INT-26, "NORMAL ROOF : Removal and Installation"

.

- Sunroof: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

• Remove the headlining rear side.
- Normal roof: Refer to

INT-26, "NORMAL ROOF : Removal and Installation"

.

- Sunroof: Refer to

INT-30, "SUNROOF : Removal and Installation"

.

• Remove the fixing anchor bolt and remove the center seat belt retractor.

INSTALLATION

Install in the reverse order of removal.

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Inspection

INFOID:0000000009718873

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attached hardware after any collision.
NISSAN/INFINITI recommends that all seat belt assemblies in use during a collision be replaced
unless the collision was minor and the belts show no damage and continue to operate properly. Fail-
ure to do so could result in serious personal injury in an accident. Seat belt assemblies not in use dur-
ing a collision should also be replaced if either damage or improper operation is noted. Seat belt pre-
tensioners should be replaced even if the seat belts are not in use during a frontal collision in which
the air bags were deployed.
Replace any seat belt assembly (including anchor bolts) if:
• The seat belt is in use at the time of a collision (except for minor collisions and the belts, retractors and buck-

les show no damage and continue to operate properly).

• The seat belt is damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
• The seat belt attaching point is damaged in an accident. Inspect the seat belt attaching area for damage or

distortion and repair if necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

PRELIMINARY CHECKS

1.

Check that the seat belt retractor, seat belt anchor and buckle bolts are tightened firmly.

2.

Repeat the step above if necessary to check the other seat belts.

7.

Outer seat belt retractor

8.

Outer anchor

9.

Outer seat belt buckle

10. Center seat belt buckle

11.

Center seat belt retractor cover

12. Center seat belt retractor

: N·m (kg-m, ft-lb)

SB-14

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

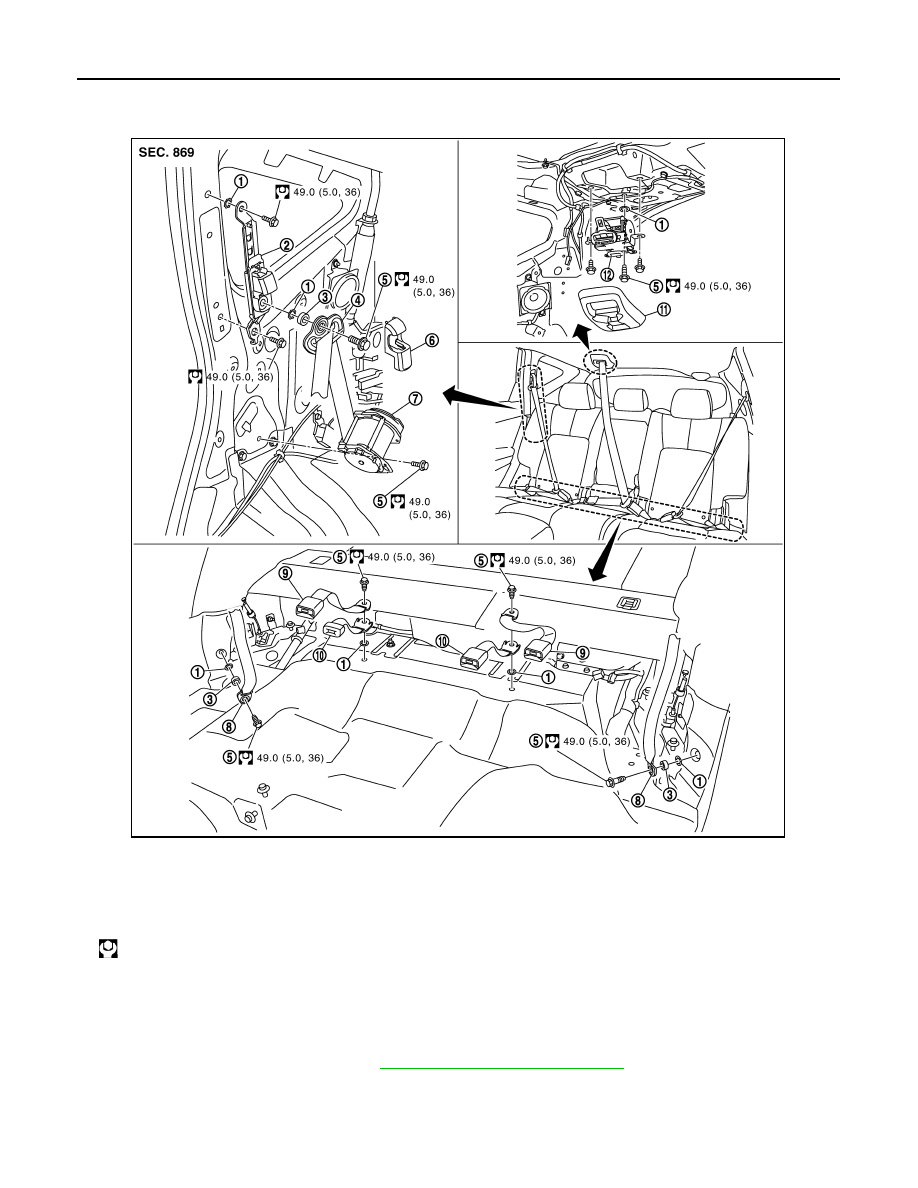

SEAT BELT BUCKLE : Exploded View

INFOID:0000000009718874

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000009718875

REMOVAL

Remove the center and outer seat belt buckle.
• Remove the rear seat assembly. Refer to

SE-109, "Removal and Installation"

.

• Remove the fixing anchor bolts of the center and outer seat belt buckle.

INSTALLATION

Install in the reverse order of removal.

1.

Retaining washer

2.

Seat belt adjuster

3.

Spacer

4.

Shoulder anchor

5.

Anchor bolt

6.

Shoulder anchor cover

7.

Outer seat belt retractor

8.

Outer anchor

9.

Outer seat belt buckle

10. Center seat belt buckle

11.

Center seat belt retractor cover

12. Center seat belt retractor

: N·m (kg-m, ft-lb)

JMHIA0521GB

SE-1
