PWO-12
< REMOVAL AND INSTALLATION >
POWER SOCKET
2.
Disconnect power socket connector (A).
3.
Pull out inner socket (1) by pushing the ring pawl (C) from the
inner socket hole (square) (D).
4.
Remove ring (2) from console box while pressing pawls.
INSTALLATION
Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring, and console box.
LUGGAGE ROOM POWER SOCKET

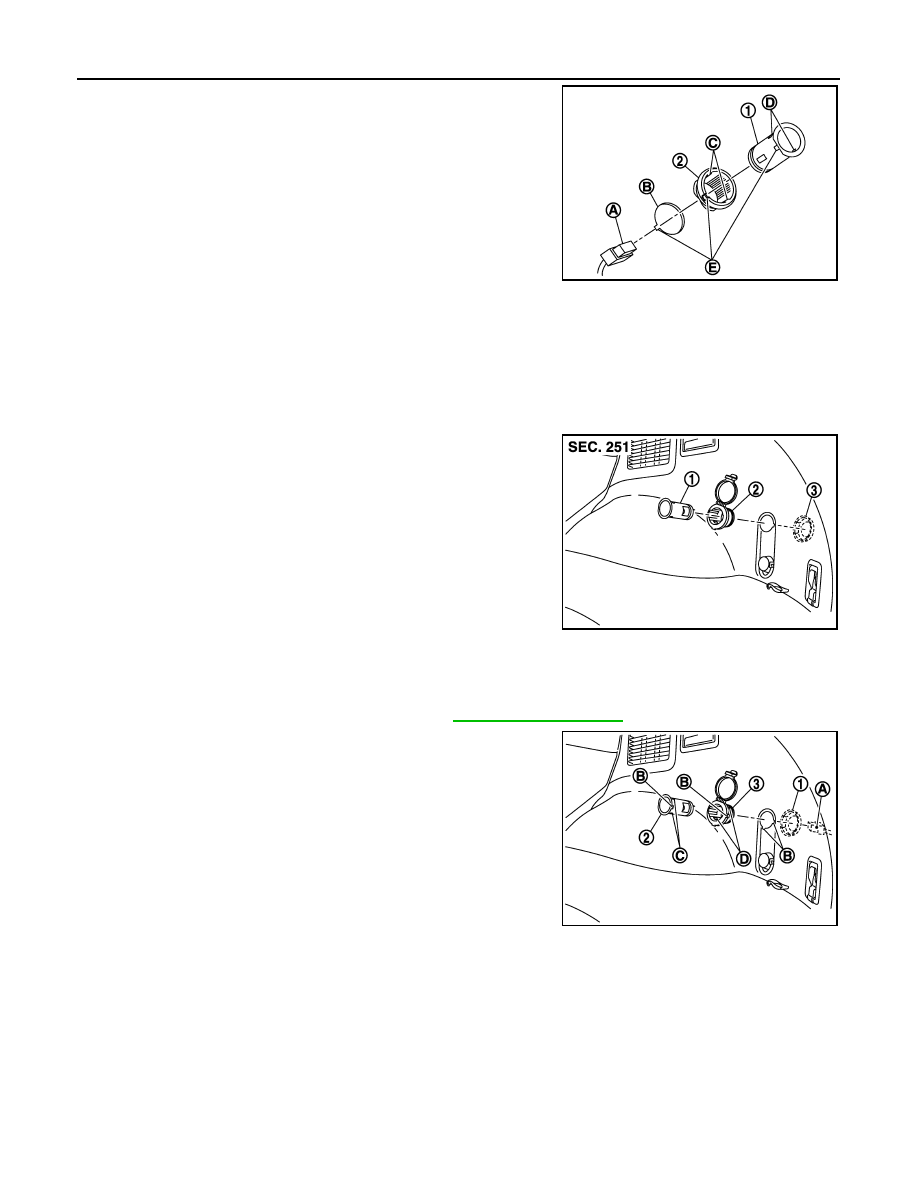

LUGGAGE ROOM POWER SOCKET : Exploded View
INFOID:0000000009722022
LUGGAGE ROOM POWER SOCKET : Removal and Installation
INFOID:0000000009722023
REMOVAL
1.
Remove luggage side lower finisher RH. Refer to
.
2.
Disconnect power socket connector (A).
3.
Remove retainer (1) and remove power socket assembly.
4.
Pull out inner socket (2) by pushing the ring pawl (D) from the
inner socket hole (square) (C).
5.
Remove ring (3) from luggage side lower finisher RH while
pressing pawls.
INSTALLATION
Install in the reverse order of removal.
NOTE:
Align the cut outs of inner socket, ring, and luggage side lower finisher RH.
B
: Hole for power socket
(Console box)
E
: Cut out
JSMIA0233ZZ
1
: Inner socket
2
: Ring
3
: Retainer
JPMIA1299ZZ
B
: Cut out
JPMIA1300ZZ
