POWER WINDOW MAIN SWITCH

REMOVAL AND INSTALLATION

POWER WINDOW MAIN SWITCH

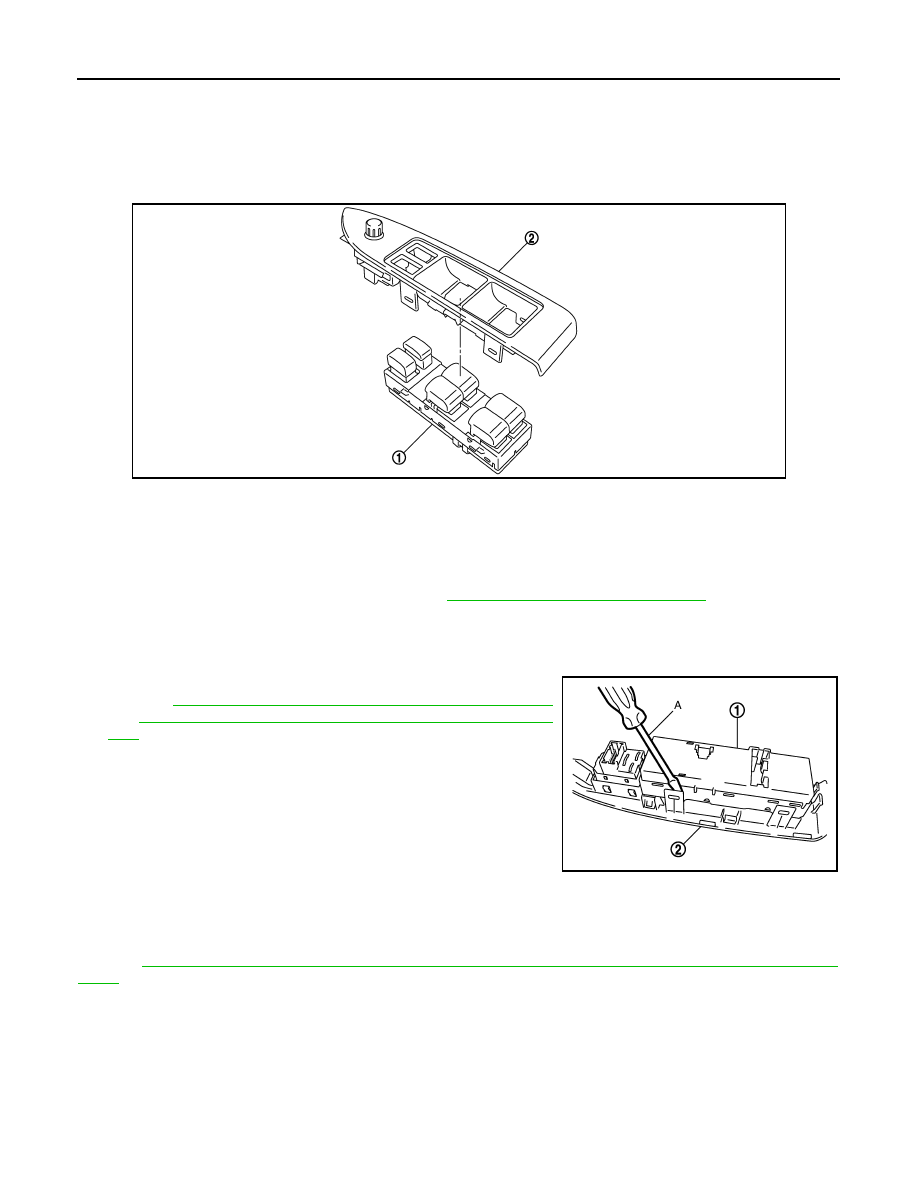

Exploded View

INFOID:0000000009723196

NOTE:
The same procedure is also performed for front power window switch (passenger side) and rear power switch
(LH & RH).
Refer to removal and installation procedure. Refer to

PWC-118, "Removal and Installation"

.

Removal and Installation

INFOID:0000000009723197

REMOVAL

1.

Remove the power window main switch finisher (2).
Refer to

INT-13, "FRONT DOOR FINISHER : Exploded View"

and

INT-13, "FRONT DOOR FINISHER : Removal and Installa-

tion"

.

2.

Power window main switch (1) is removed from power window
main switch finisher (2) using remover tool (A).

CAUTION:

Do not fold the pawl of power window main switch finisher.
NOTE:
The same procedure is also performed for front power window
switch (passenger side) and rear power window switch (LH & RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
Power window main switch is exchanged or is detached it is necessary to do the initialization procedure.
Refer to

PWC-6, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.
