Nissan Murano. Manual - part 1135

PWC-78

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

C1708: [NO DATA] FL

—

—

—

×

WT-25

C1709: [NO DATA] FR

—

—

—

×

C1710: [NO DATA] RR

—

—

—

×

C1711: [NO DATA] RL

—

—

—

×

C1716: [PRESSDATA ERR] FL

—

—

—

×

WT-28

C1717: [PRESSDATA ERR] FR

—

—

—

×

C1718: [PRESSDATA ERR] RR

—

—

—

×

C1719: [PRESSDATA ERR] RL

—

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

—

×

WT-29

C1734: CONTROL UNIT

—

—

—

×

WT-30

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

POWER WINDOW MAIN SWITCH

PWC-79

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009723166

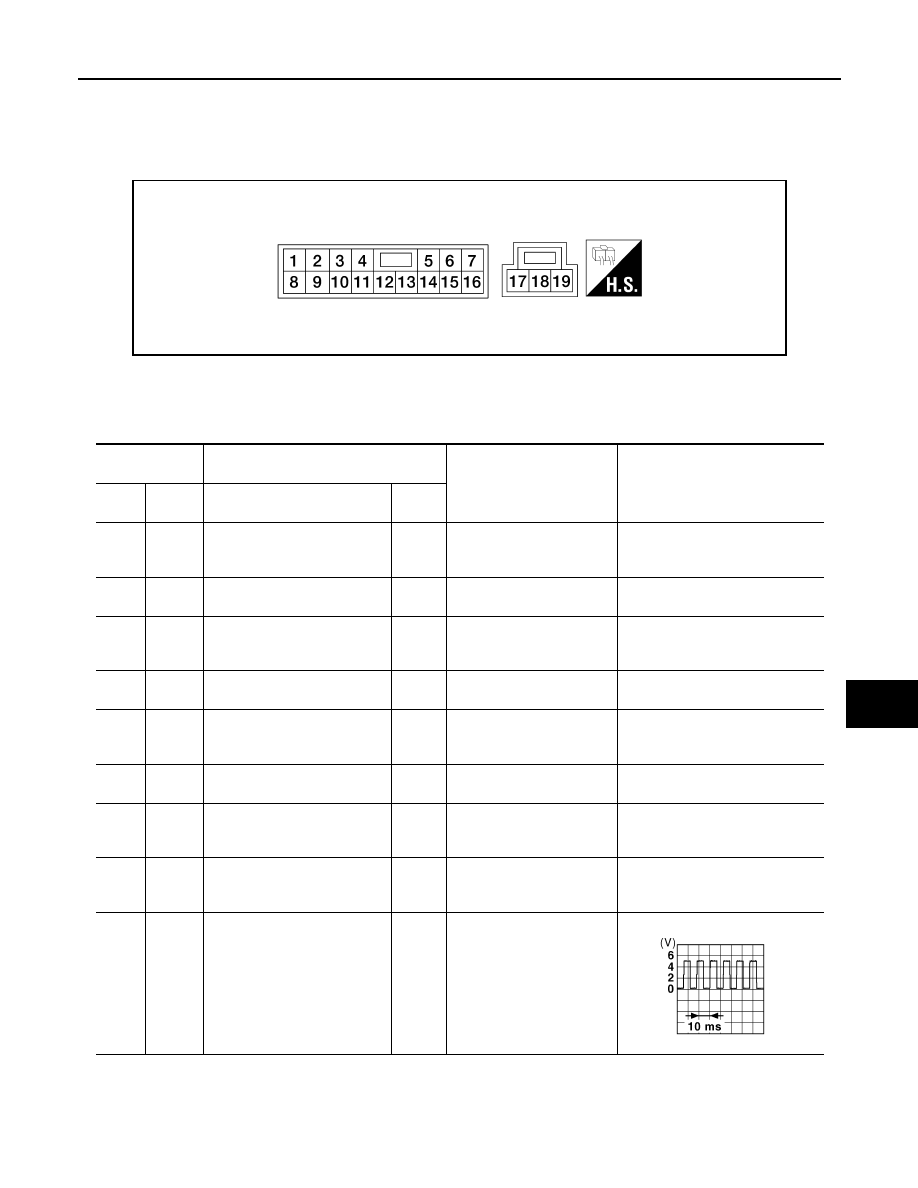

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW MAIN SWITCH

LIIA2455E

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(GR)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in pow-
er window main switch is UP
at operated

Battery voltage

2

(W)

Ground

Encoder ground

—

—

0

3

(BR)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in pow-
er window main switch is
DOWN at operated

Battery voltage

4

(L)

Ground

Door key cylinder switch LH
LOCK signal

Input

Key position
(Neutral

→

 Locked)

5

→

 0

5

(SB)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is DOWN at operated

Battery voltage

6

(R)

Ground

Door key cylinder switch LH
UNLOCK signal

Input

Key position
(Neutral

→

 Unlocked)

5

→

 0

7

(P)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is UP at operated

Battery voltage

8

(L)

Ground

Front power window motor
(driver side) UP signal

Output

When front LH switch in
power window main switch
is UP at operated

Battery voltage

9

(G)

Ground

Encoder pulse signal 2

Input

When front power window
motor (driver side) operates

JMKIA0070GB

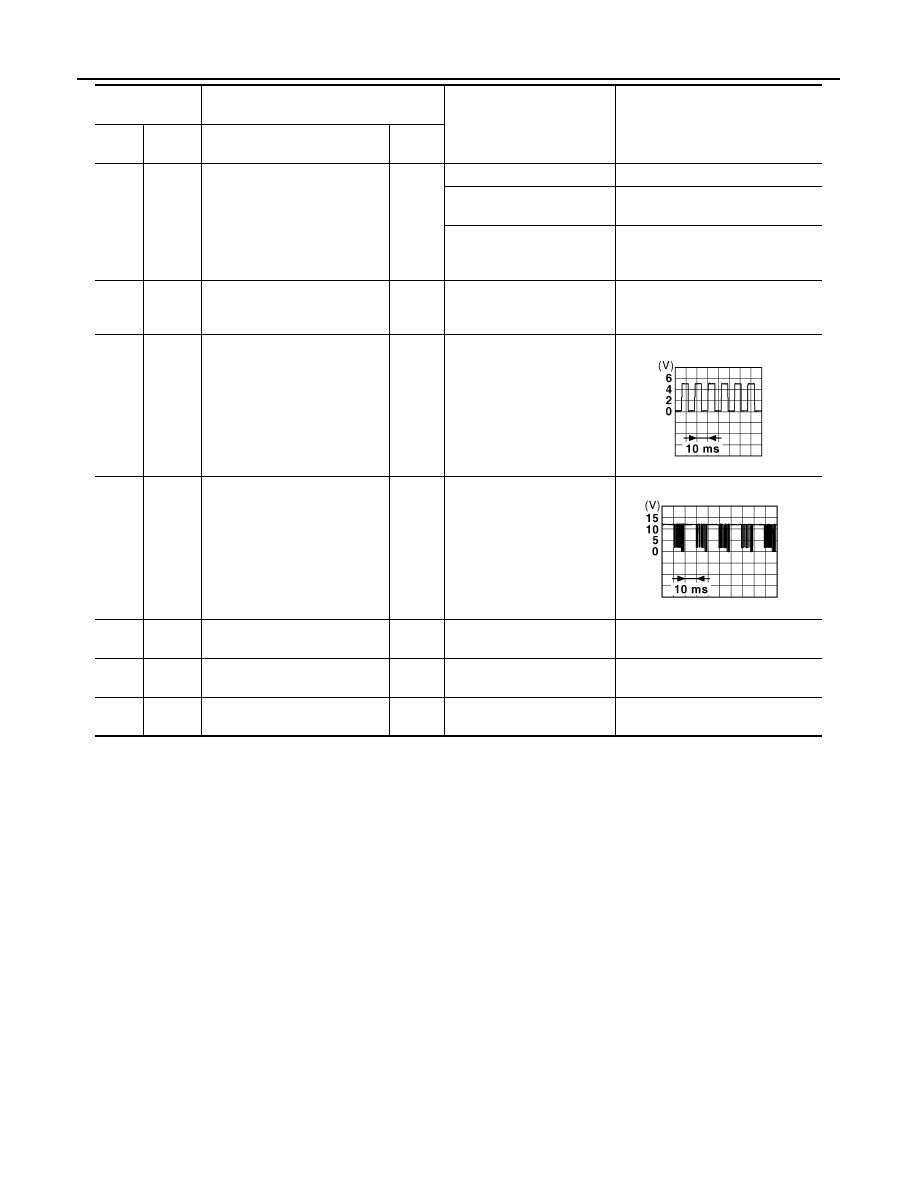

PWC-80

< ECU DIAGNOSIS INFORMATION >

POWER WINDOW MAIN SWITCH

10

(V)

Ground

Retained power signal

Input

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch is turned to OFF

Battery voltage

When driver side or passen-
ger side door is opened dur-
ing retained power operation

0

11

(LG)

Ground

Front power window motor
(driver side) DOWN signal

Output

When front LH switch in
power window main switch
is DOWN at operated

 Battery voltage

13

(Y)

Ground

Encoder pulse signal 1

Input

When front power window
motor (driver side) operates.

14

(O)

Ground

Power window serial link

Input/

Output

Ignition switch ON or power
window timer operating

15

(R)

Ground

Encoder power supply

Output

Ignition switch ON

Battery voltage

17

(B)

Ground

Ground

—

—

0

19

(LG)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

POWER WINDOW MAIN SWITCH

PWC-81

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

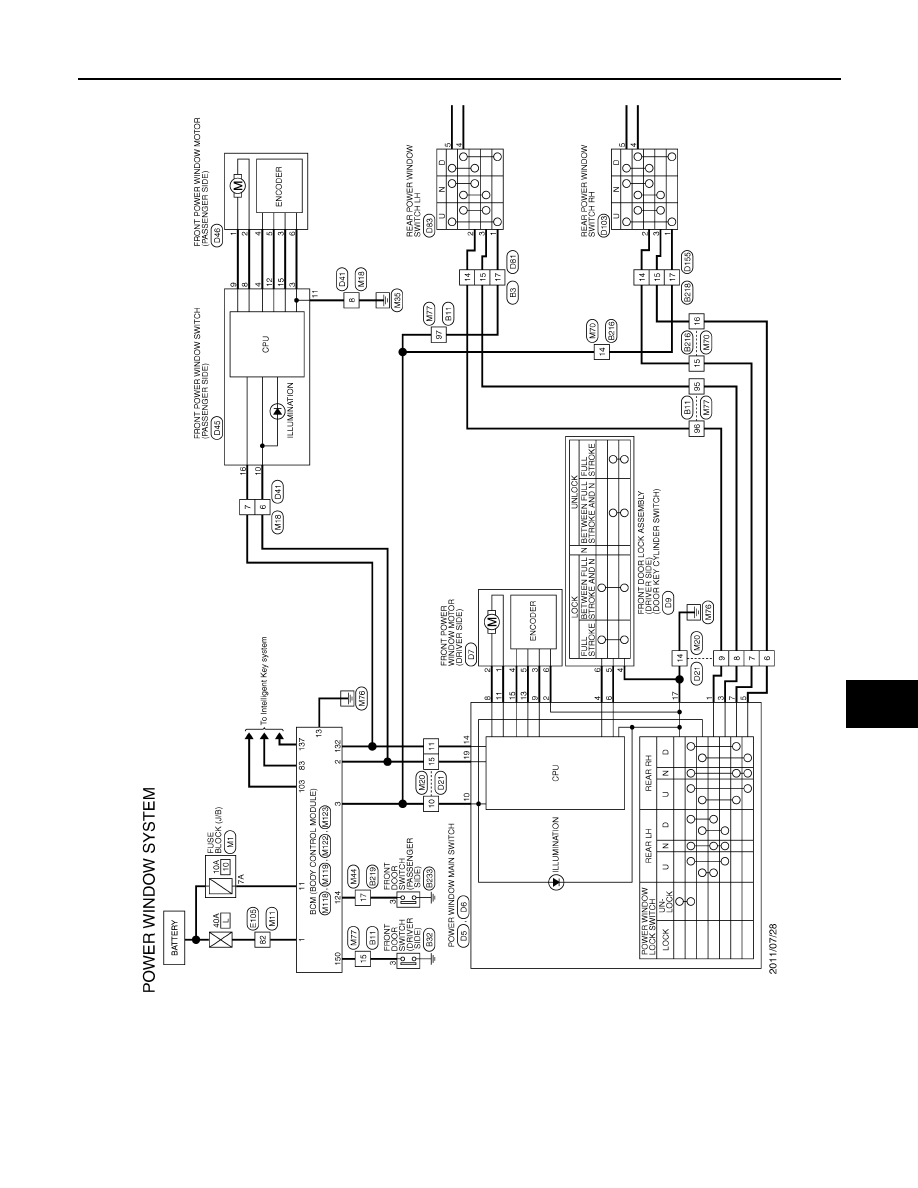

Wiring Diagram - POWER WINDOW SYSTEM -

INFOID:0000000009723167

JRKWC0974GB
