PWC-30

< DTC/CIRCUIT DIAGNOSIS >

ENCODER CIRCUIT

2.

Disconnect front power window switch (passenger side) connector and front power window motor (pas-
senger side) connector.

3.

Check continuity between front power window switch (passenger side) harness connector and front power
window motor (passenger side) harness connector.

4.

Check continuity between front power window switch (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK ENCORDER POWER SUPPLY

1.

Connect front power window switch (passenger side) connector.

2.

Turn ignition switch ON.

3.

Check voltage between front power window motor (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK ENCODER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect front power window switch (passenger side) connector.

3.

Check continuity between front power window switch (passenger side) harness connector and front power
window motor (passenger side) harness connector.

4.

Check continuity between front power window switch (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power window switch (passenger side). Refer to

PWC-118, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

5.

CHECK GROUND CIRCUIT 1

1.

Turn ignition switch OFF.

Front power window switch (passenger side)

Front power window motor (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

D45

12

D46

5

Existed

15

3

Front power window switch (passenger side)

Ground

Continuity

Connector

Terminal

D45

12

Not existed

15

(+)

(–)

Voltage (V)

(Approx.)

Front power window motor (passenger side)

Connector

Terminal

D46

4

Ground

Battery voltage

Front power window switch (passenger side)

Front power window motor (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

D45

4

D46

4

Existed

Front power window switch (passenger side)

Ground

Continuity

Connector

Terminal

D45

4

Not existed

ENCODER CIRCUIT

PWC-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

2.

Disconnect front power window switch (passenger side) connector.

3.

Check continuity between front power window switch (passenger side) harness connector and front power
window motor (passenger side) harness connector.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK GROUND CIRCUIT 2

1.

Connect front power window switch (passenger side) connector.

2.

Check continuity between front power window switch (passenger side) harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power window motor (passenger side). Refer to

GW-22, "Removal and Installation"

.

NO

>> Replace front power window switch (passenger side). Refer to

PWC-118, "Removal and Installa-

tion"

.

Front power window switch (passenger side)

Front power window motor (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

D45

3

D46

6

Existed

Front power window switch (passenger side)

Ground

Continuity

Connector

Terminal

D45

3

Existed

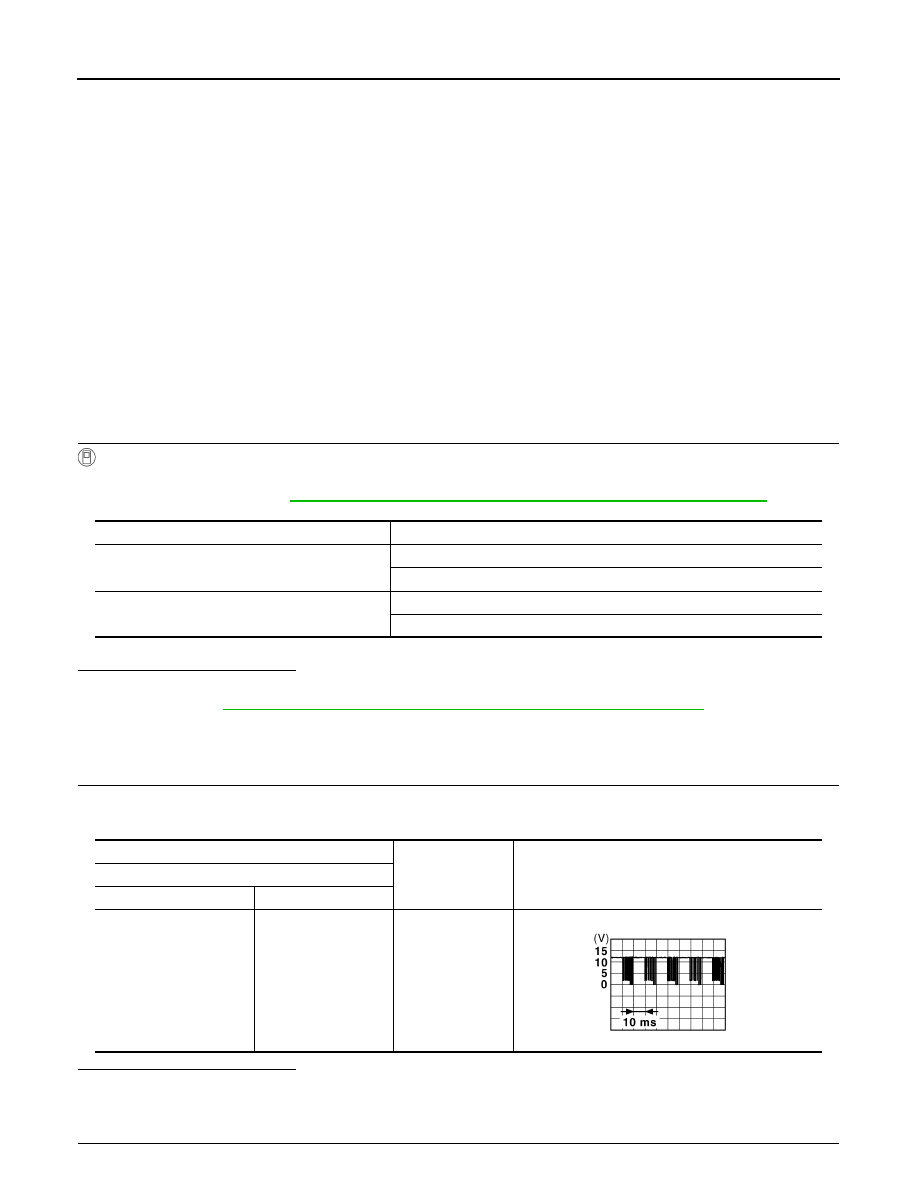

PWC-32

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW SERIAL LINK

POWER WINDOW SERIAL LINK

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description

INFOID:0000000009723155

Power window main switch, front power window switch (passenger side) and BCM transmit and receive the
signal by power window serial link.
The signal mentioned below is transmitted from BCM to power window main switch, front power window
switch (passenger side).
• Keyless power window down signal
The signal mentioned below is transmitted from power window main switch to front power window switch (pas-
senger side).
• Front passenger side door window operation signal
• Power window control by key cylinder switch signal
• Power window lock switch signal
• Retained power operation signal

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000009723156

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

 With CONSULT

Check (“CDL LOCK SW ”, “CDL UNLOCK SW”) in “DATA MONITOR” mode for “POWER DOOR LOCK SYS-
TEM” with CONSULT. Refer to

DLK-55, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Is the inspection result normal?

YES

>> Power window serial link is OK.

NO

>> Refer to

PWC-32, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000009723157

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

1.

 Turn ignition switch ON.

2.

Check signal between power window main switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK POWER WINDOW SERIAL LINK SIGNAL

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

(+)

(–)

Signal

(Reference value)

Power window main switch

Connector

Terminal

D5

14

Ground

JPMIA0013GB

POWER WINDOW SERIAL LINK

PWC-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1.

Turn ignition switch OFF.

2.

Disconnect power window main switch connector.

3.

Turn ignition switch ON.

4.

Check voltage between power window main switch harness connector and ground.

Is the measurement value within the specification?

YES

>> Replace power window main switch. Refer to

PWC-118, "Removal and Installation"

.

NO

>> GO TO 3.

3.

CHECK POWER WINDOW SERIAL LINK CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between BCM connector and power window main switch connector.

4.

Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-98, "Exploded View"

.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

FRONT POWER WINDOW SWITCH (PASSENGER SIDE) : Description

INFOID:0000000009723158

Power window main switch, front power window switch (passenger side) and BCM transmit and receive the
signal by power window serial link.
The signal mentioned below is transmitted from BCM to power window main switch, front power window
switch (passenger side).
• Keyless power window down signal
The signal mentioned below is transmitted from power window main switch to front power window switch (pas-
senger side).
• Front passenger side door window operation signal
• Power window control by key cylinder switch signal
• Power window lock switch signal
• Retained power operation signal

FRONT POWER WINDOW SWITCH (PASSENGER SIDE) : Component Function
Check

INFOID:0000000009723159

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

(+)

(–)

Voltage (V)

(Approx.)

Power window main switch

Connector

Terminal

D5

14

Ground

Battery voltage

BCM

Power window main switch

Continuity

Connector

Terminal

Connector

Terminal

M123

132

D5

14

Existed

BCM

Ground

Continuity

Connector

Terminal

M123

132

Not existed
