PG-62

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JRMWE5895GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-63

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

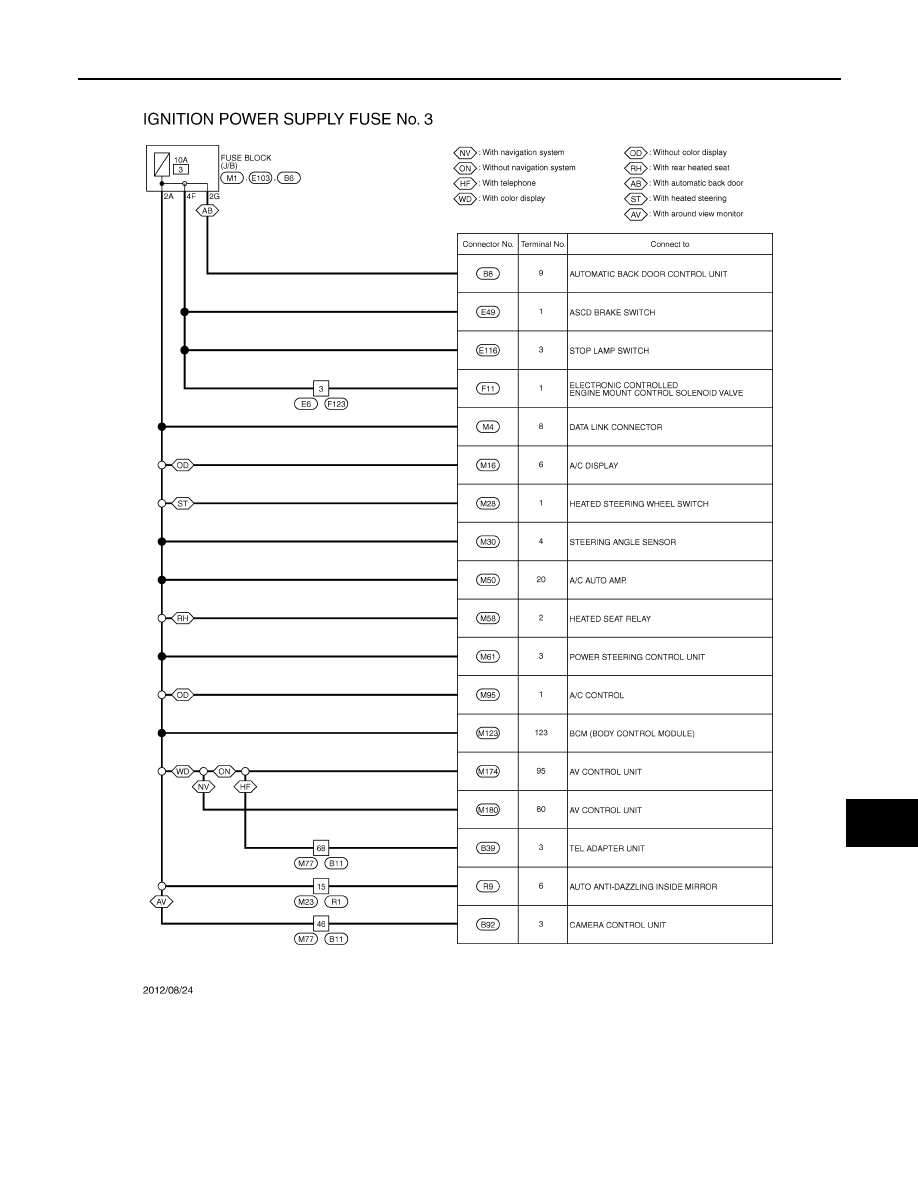

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 3 -

INFOID:0000000009720285

JRMWD4446GB

PG-64

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

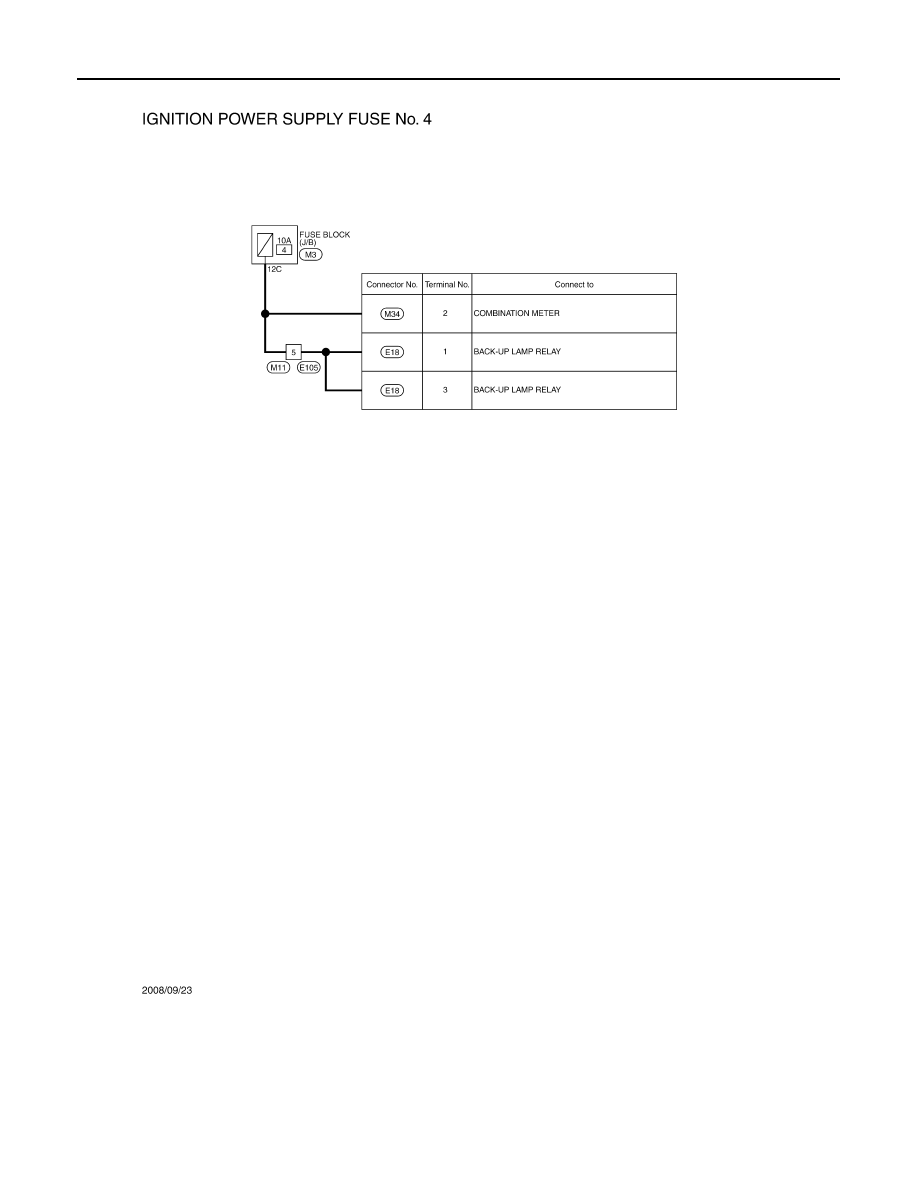

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 4 -

INFOID:0000000009720286

JCMWM3259GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-65

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

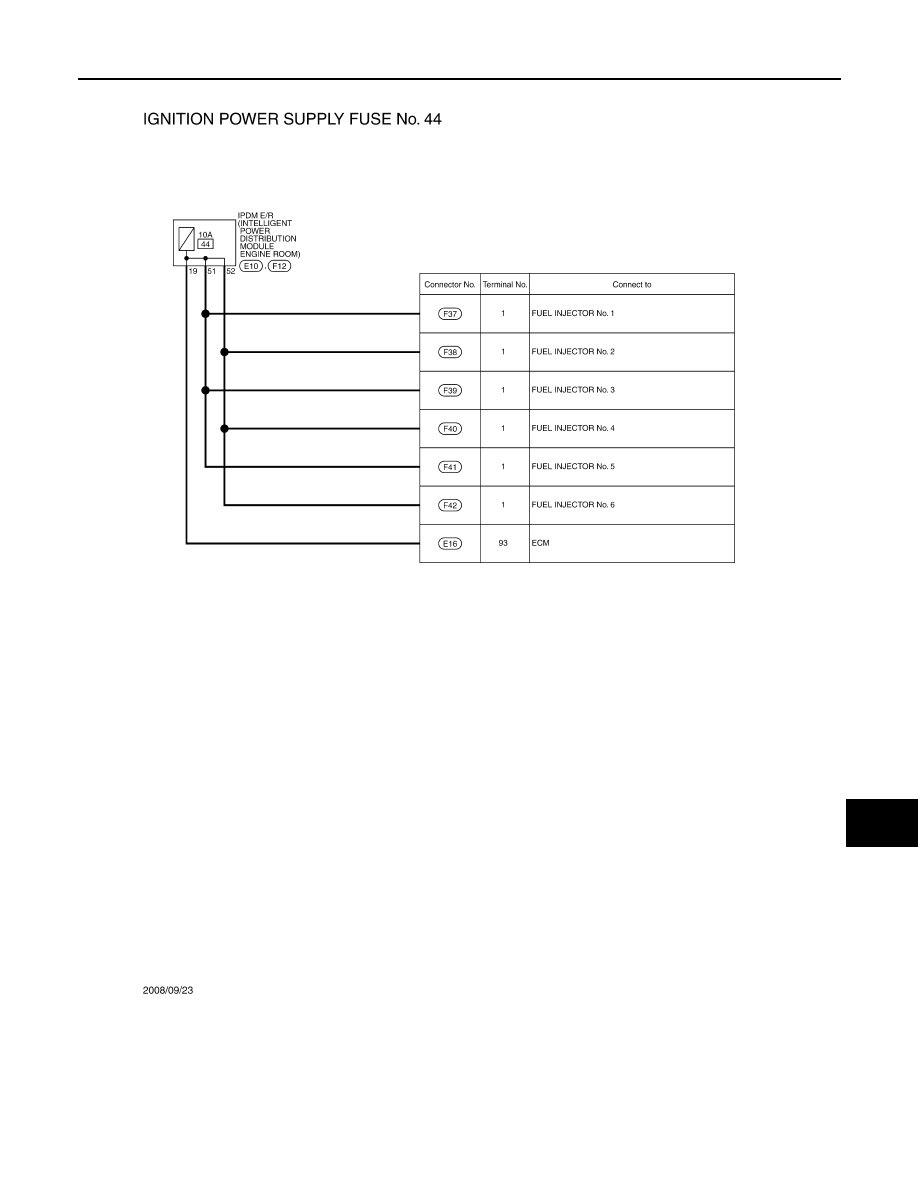

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 44 -

INFOID:0000000009720287

JCMWM3261GB
