PG-34

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

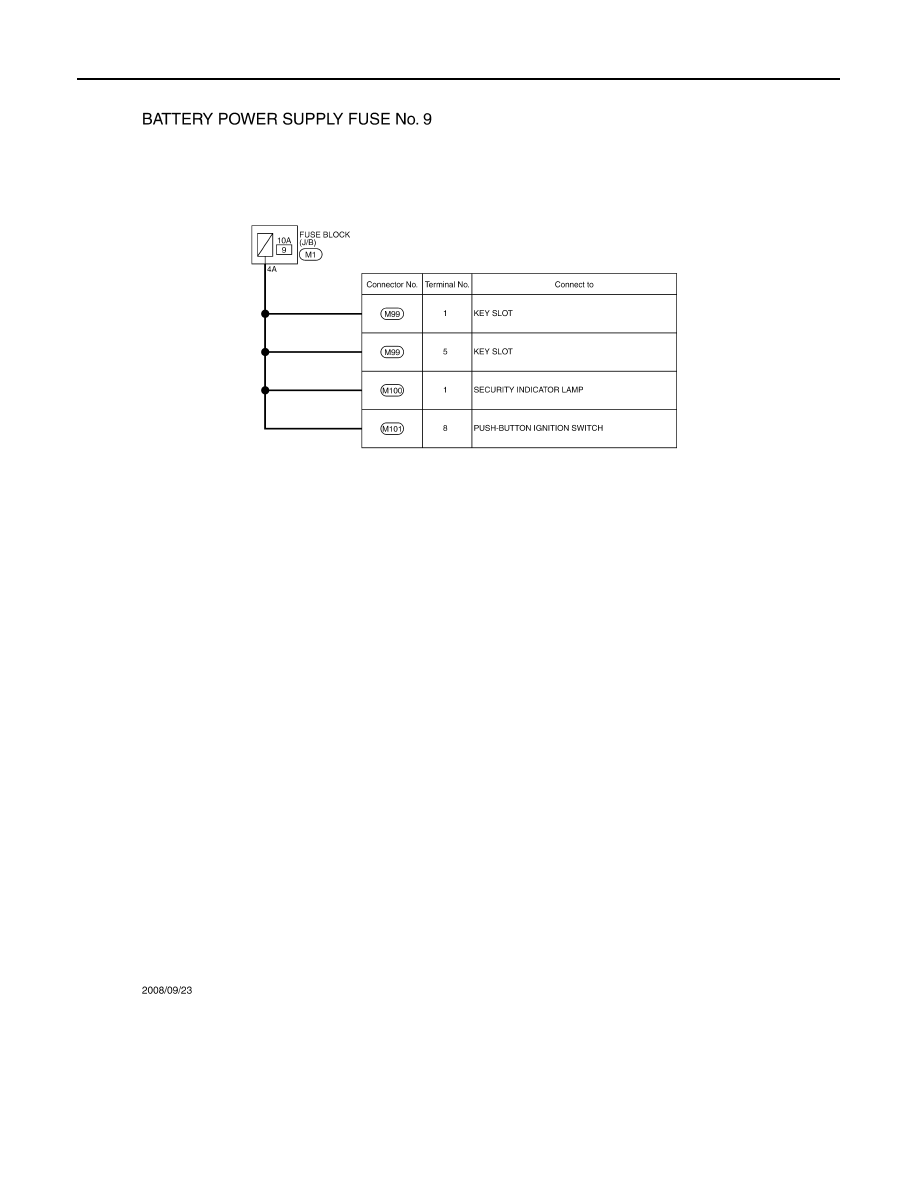

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 9 -

INFOID:0000000009720276

JCMWM3212GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-35

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

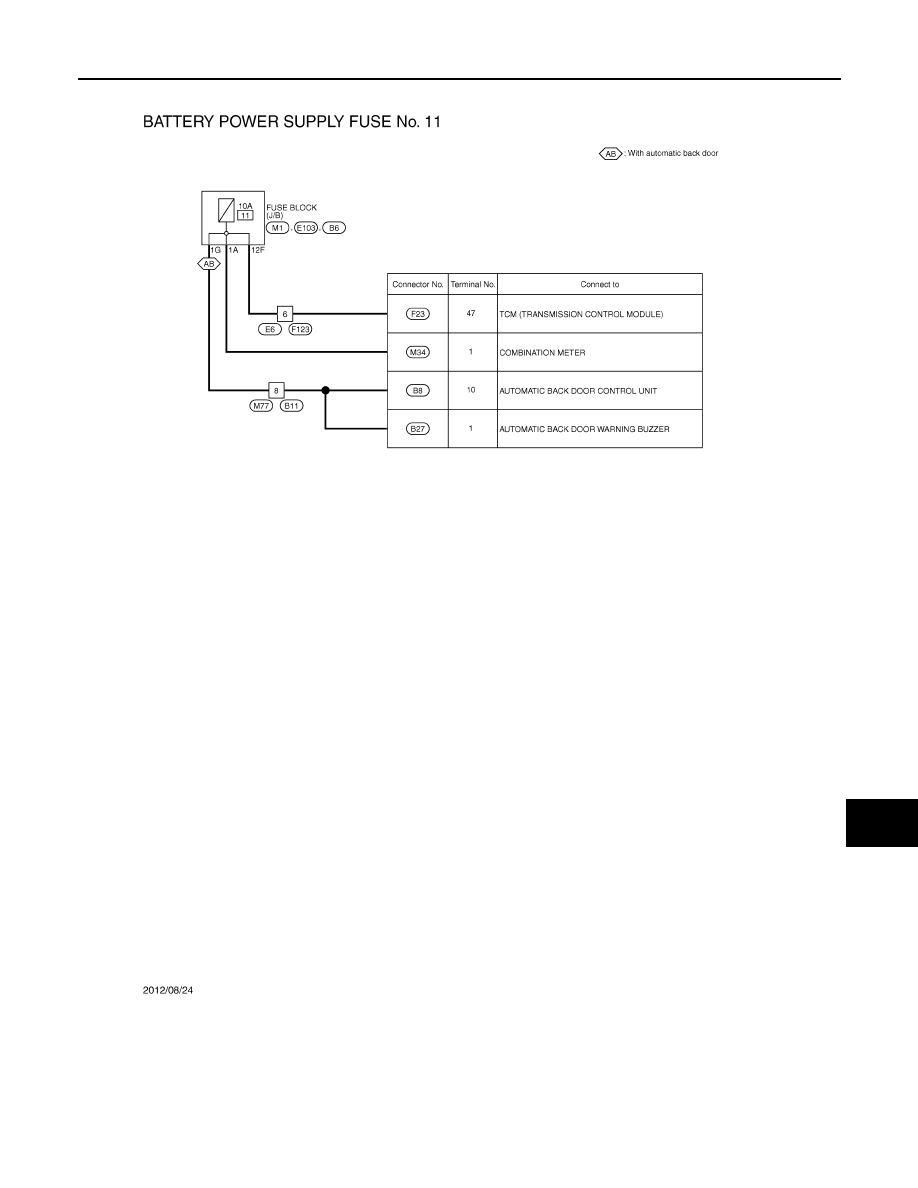

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 11 -

INFOID:0000000009720277

JRMWD4439GB

PG-36

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

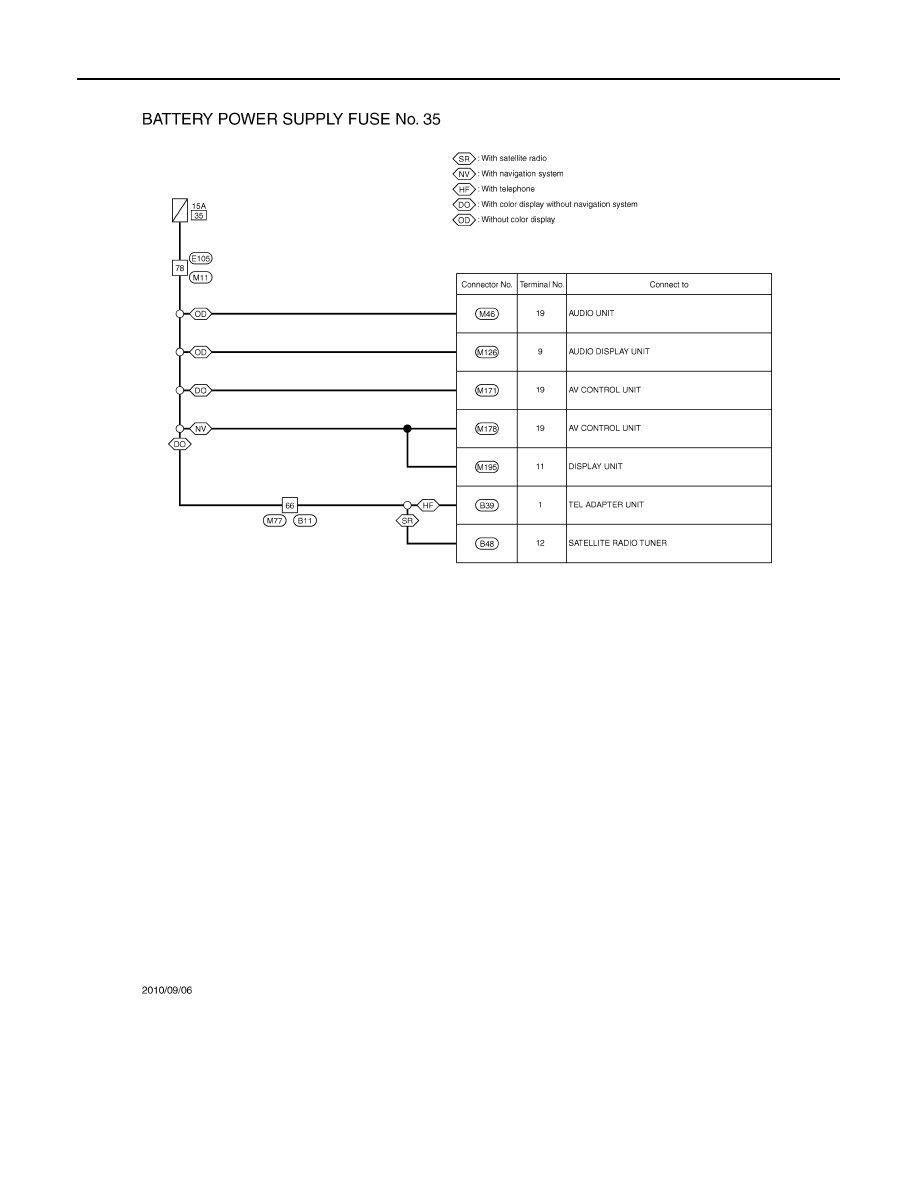

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 35 -

INFOID:0000000009720278

JCMWN0069GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-37

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

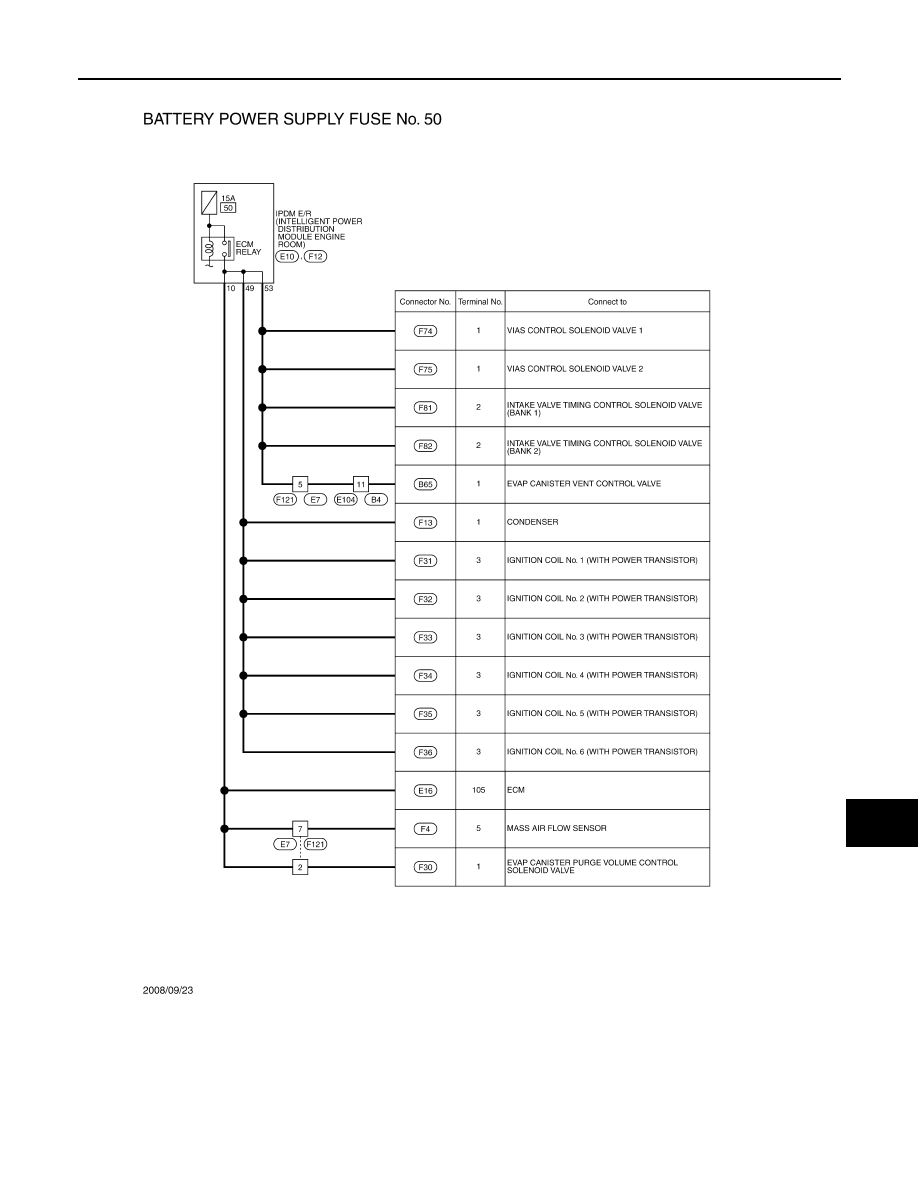

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 50 -

INFOID:0000000009720279

JCMWM3220GB
