MWI-64

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

*1: Without automatic drive positioner

*2: With automatic drive positioner

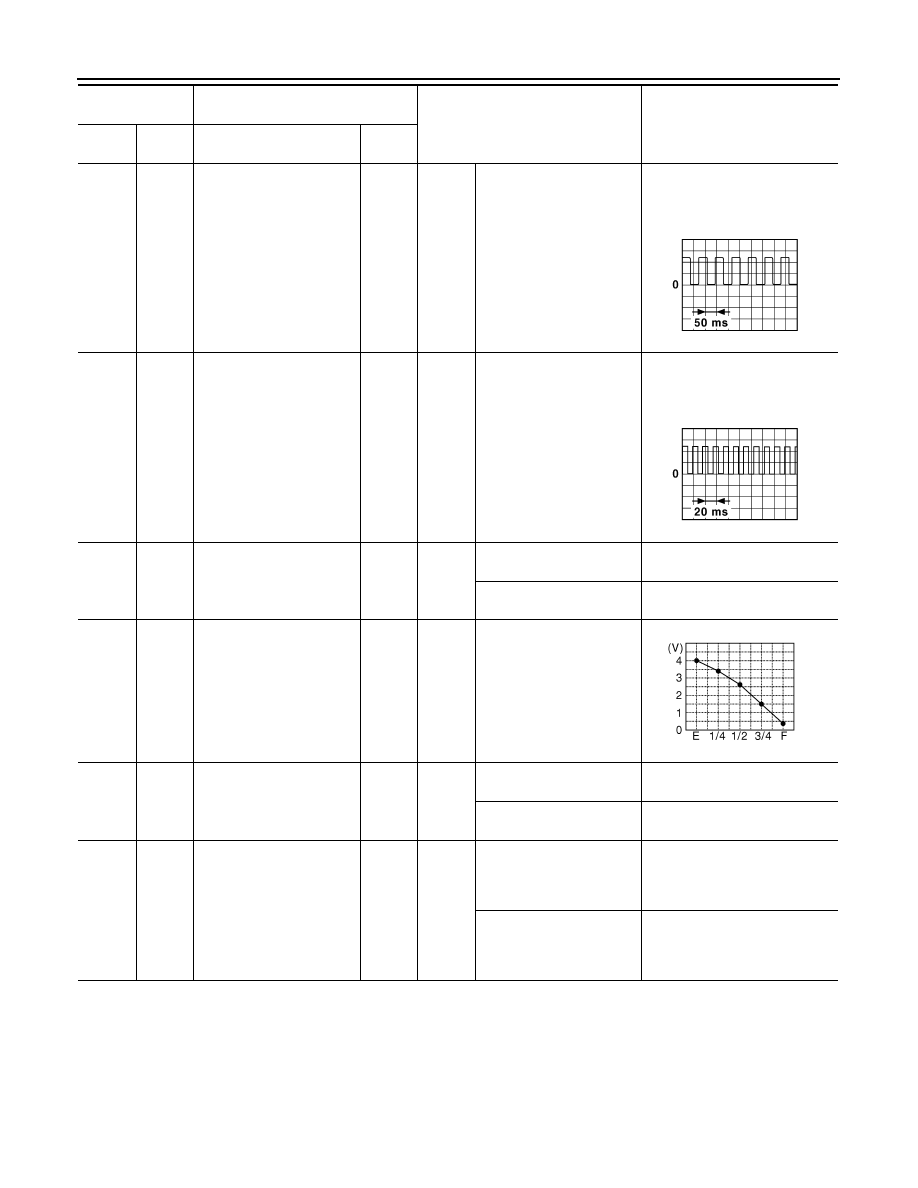

30

(P)

Ground

Vehicle speed signal
(2-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

31

(V)

Ground

Vehicle speed signal
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

32

(LG)

Ground

Overdrive control switch
signal

Input

Ignition
switch
ON

Overdrive control switch
pressed.

0 V

Overdrive control switch
not pressed.

12 V

34

(G)

Ground

Fuel level sensor signal

Input

Ignition
switch
ON

35

(SB)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened.

12 V

When driver seat belt is un-
fastened.

0 V

36

(R)

Ground

Seat belt buckle switch sig-
nal (passenger side)

Input

Ignition
switch
ON

• When getting in the pas-

senger seat.

• When passenger seat

belt is fastened.

12 V

• When getting in the pas-

senger seat.

• When passenger seat

belt is unfastened.

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA0015GB

JSNIA0012GB

JPNIA0740ZZ

MWI

COMBINATION METER

MWI-65

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

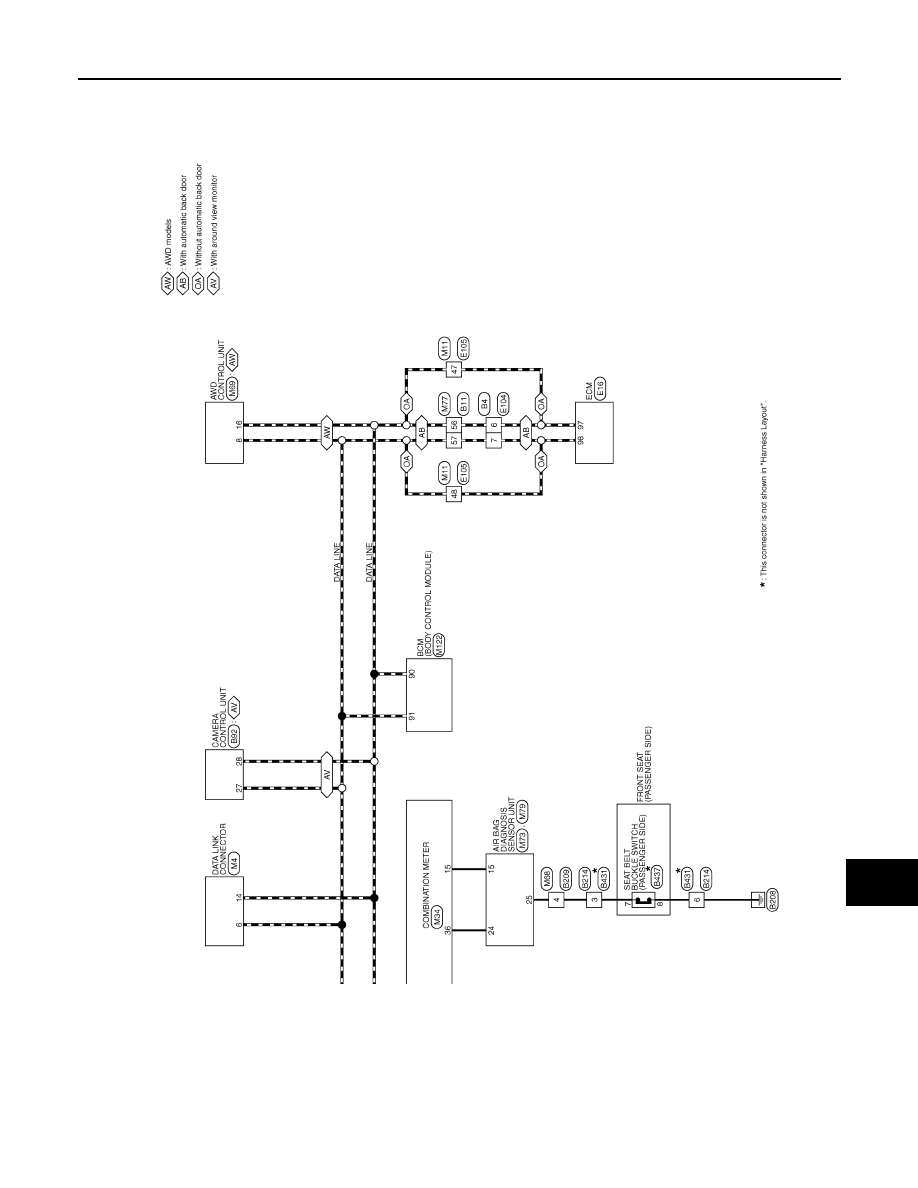

Wiring Diagram - METER -

INFOID:0000000009721303

JRNWC2798GB

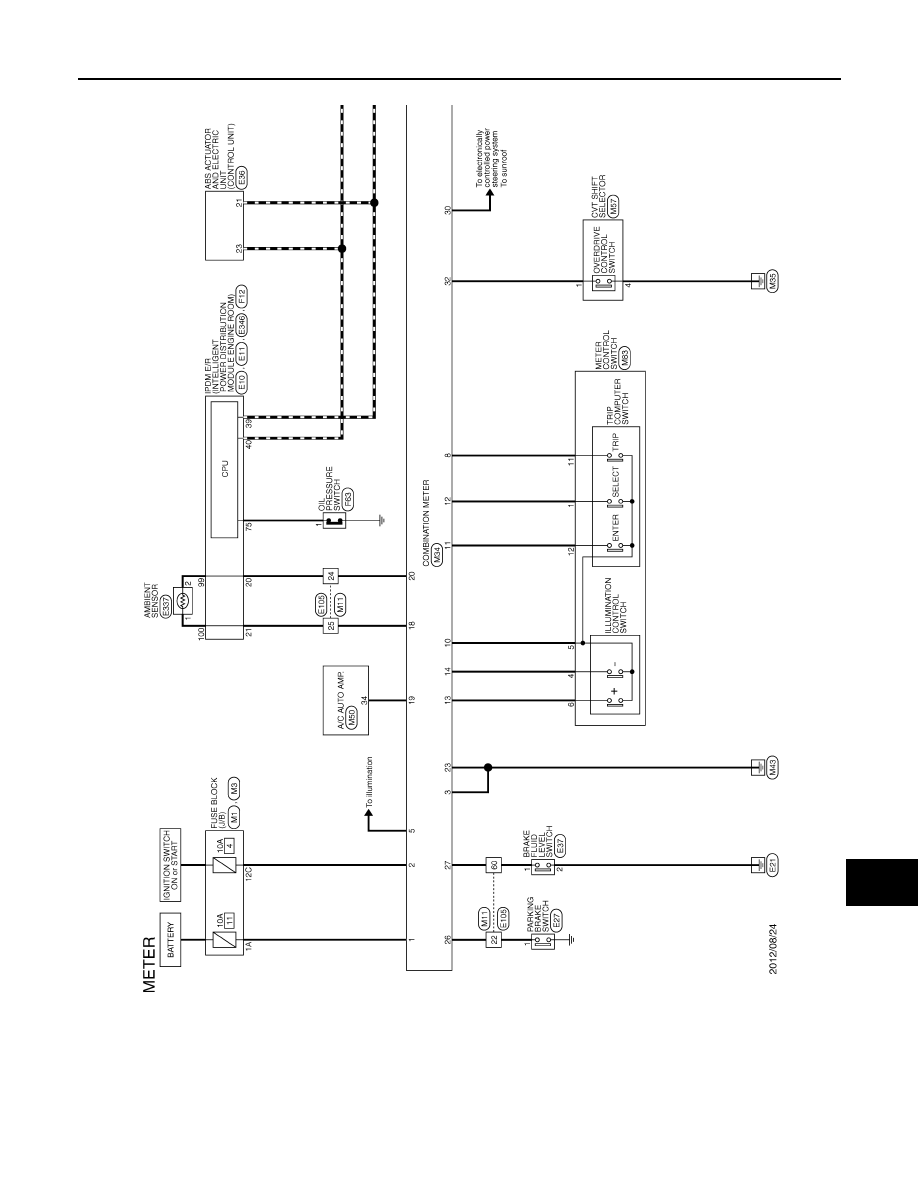

MWI-66

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

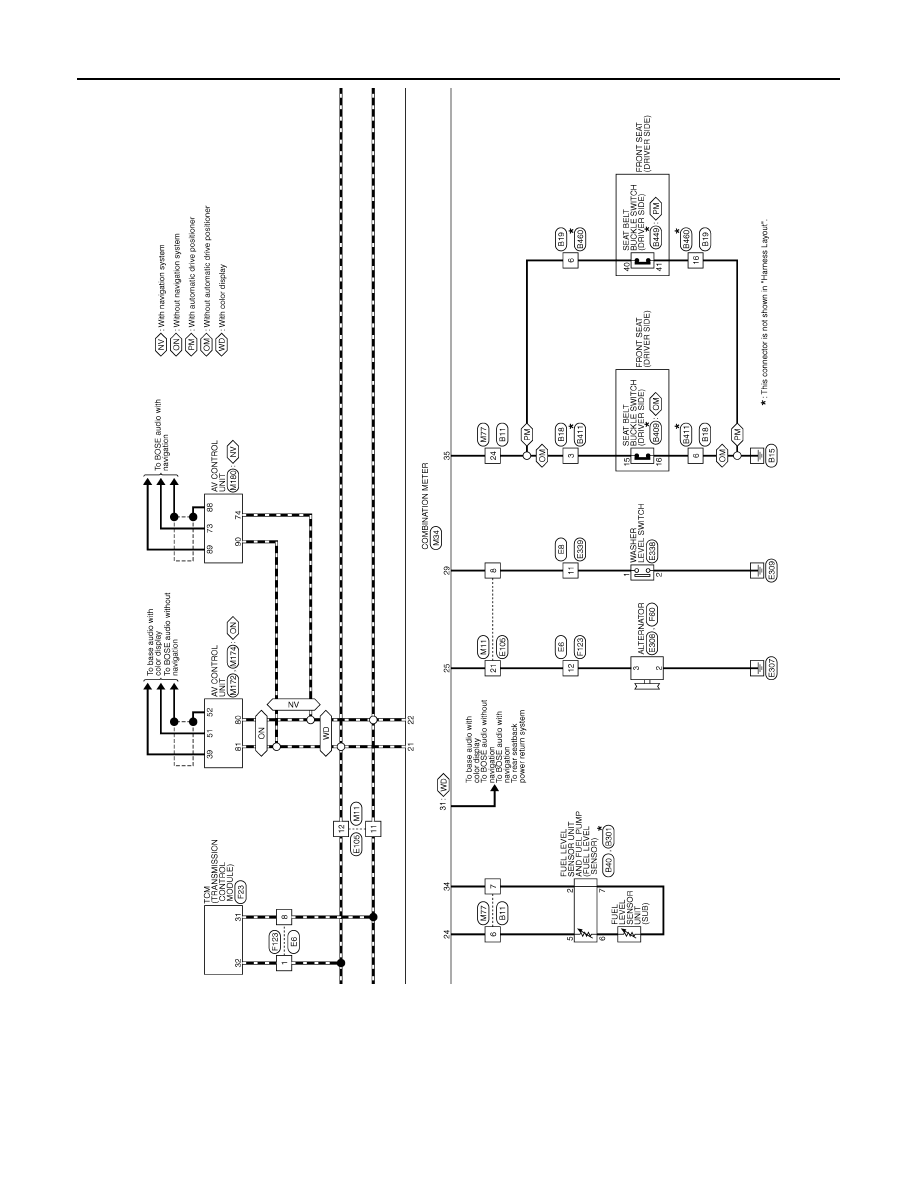

JRNWC2799GB

MWI

COMBINATION METER

MWI-67

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWC2800GB
