MIR-74

< REMOVAL AND INSTALLATION >

[WITH ADP]

OUTSIDE MIRROR

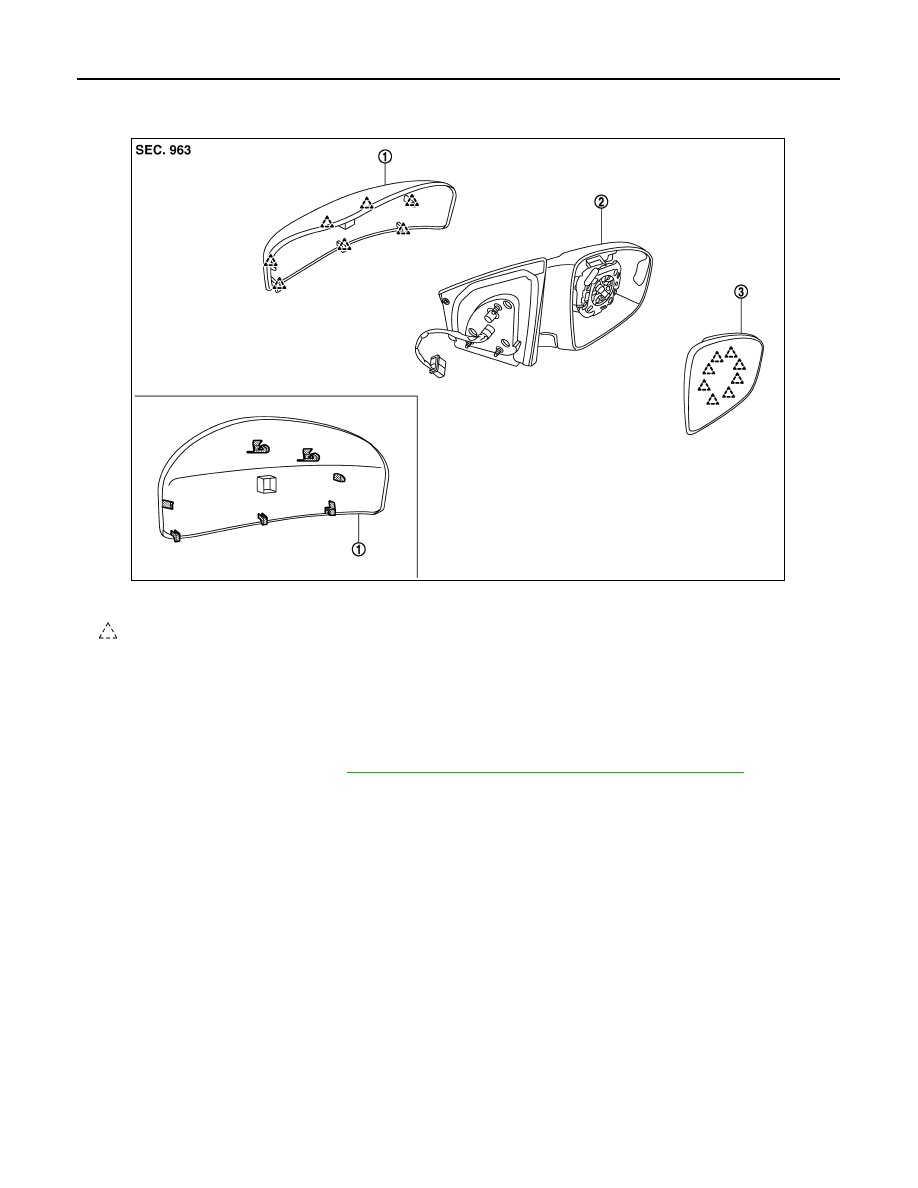

DOOR MIRROR COVER : Exploded View

INFOID:0000000009719356

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000009719357

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-72, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from the mirror assembly.

ASSEMBLY

Install in the reverse order of removal.
NOTE:
After installation, visually check that pawls are securely engaged.

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-75

< REMOVAL AND INSTALLATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Exploded View

INFOID:0000000009719358

Refer to

INT-13, "FRONT DOOR FINISHER : Exploded View"

.

Removal and Installation

INFOID:0000000009719359

REMOVAL

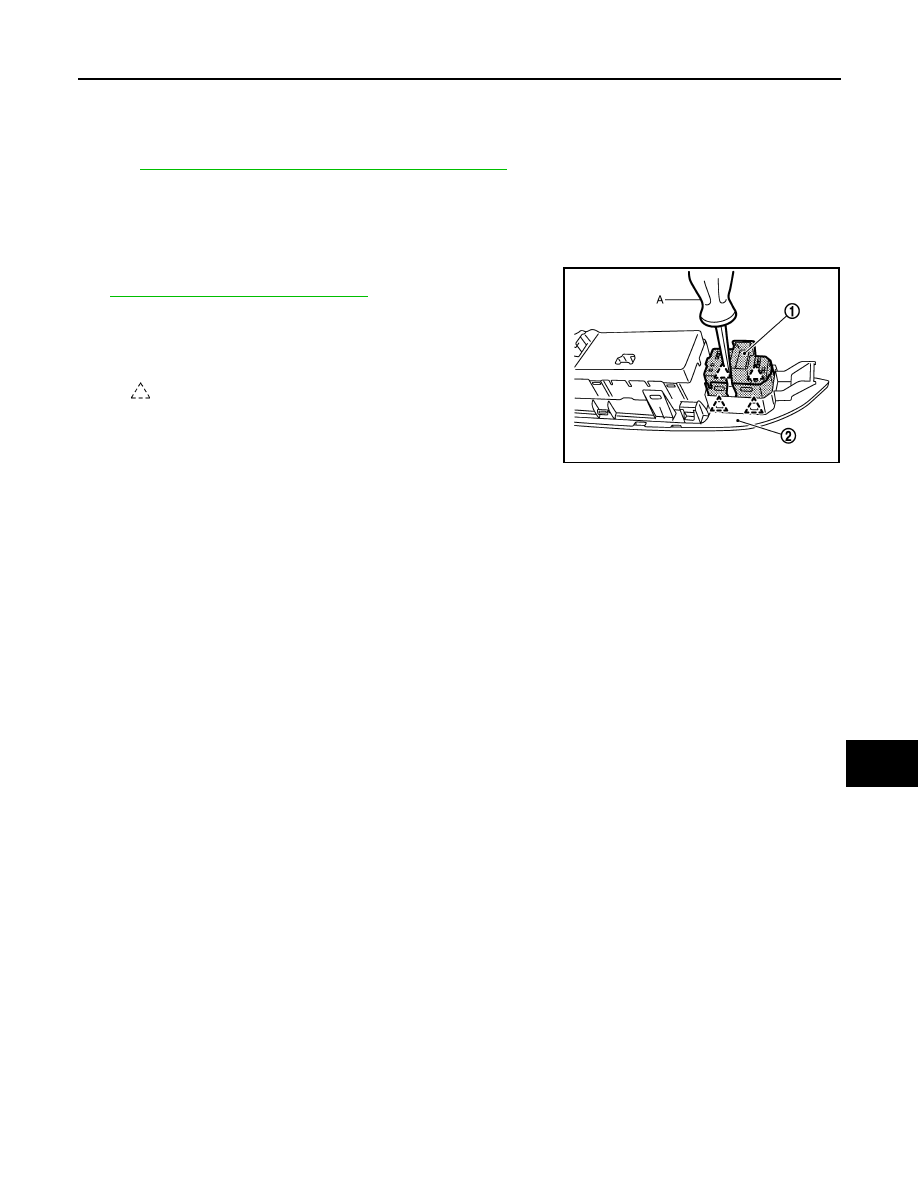

1.

Remove the power window main switch finisher (2). Refer to

PWC-118, "Removal and Installation"

.

2.

Remove door mirror remote control switch (1) from power win-
dow main switch finisher (2) using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA0118ZZ

MIR-76

< SYSTEM DESCRIPTION >

[WITHOUT ADP]

DOOR MIRROR SYSTEM

SYSTEM DESCRIPTION

DOOR MIRROR SYSTEM

Component Description

INFOID:0000000009719360

Component

Function

Door mirror remote control switch

It supplies power to mirror motor through mirror switch and changeover
switch.

Door mirror

It makes mirror face operate from side to side and up and down with the
mirror control switch operation.

INSIDE MIRROR SYSTEM

MIR-77

< SYSTEM DESCRIPTION >

[WITHOUT ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

INSIDE MIRROR SYSTEM

System Description

INFOID:0000000009719361

The sensor built in inside mirror detects the headlight of the vehicle behind and automatically changes the light
transmission to decrease the brightness.

Component Description

INFOID:0000000009719362

Component

Function

Auto anti-dazzling inside mirror

It automatically changes the light transmittance according to the brightness of the
light from the headlight of the vehicle behind.
