REAR DOOR SPEAKER

REAR DOOR SPEAKER

Exploded View

INFOID:0000000009721581

Removal and Installation

INFOID:0000000009721582

REMOVAL

1.

Remove rear door finisher. Refer to

INT-16, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker screws, then disconnect rear door speaker connector and remove rear door
speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0774ZZ

1.

Rear door speaker

AV

FRONT SQUAWKER

AV-43

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

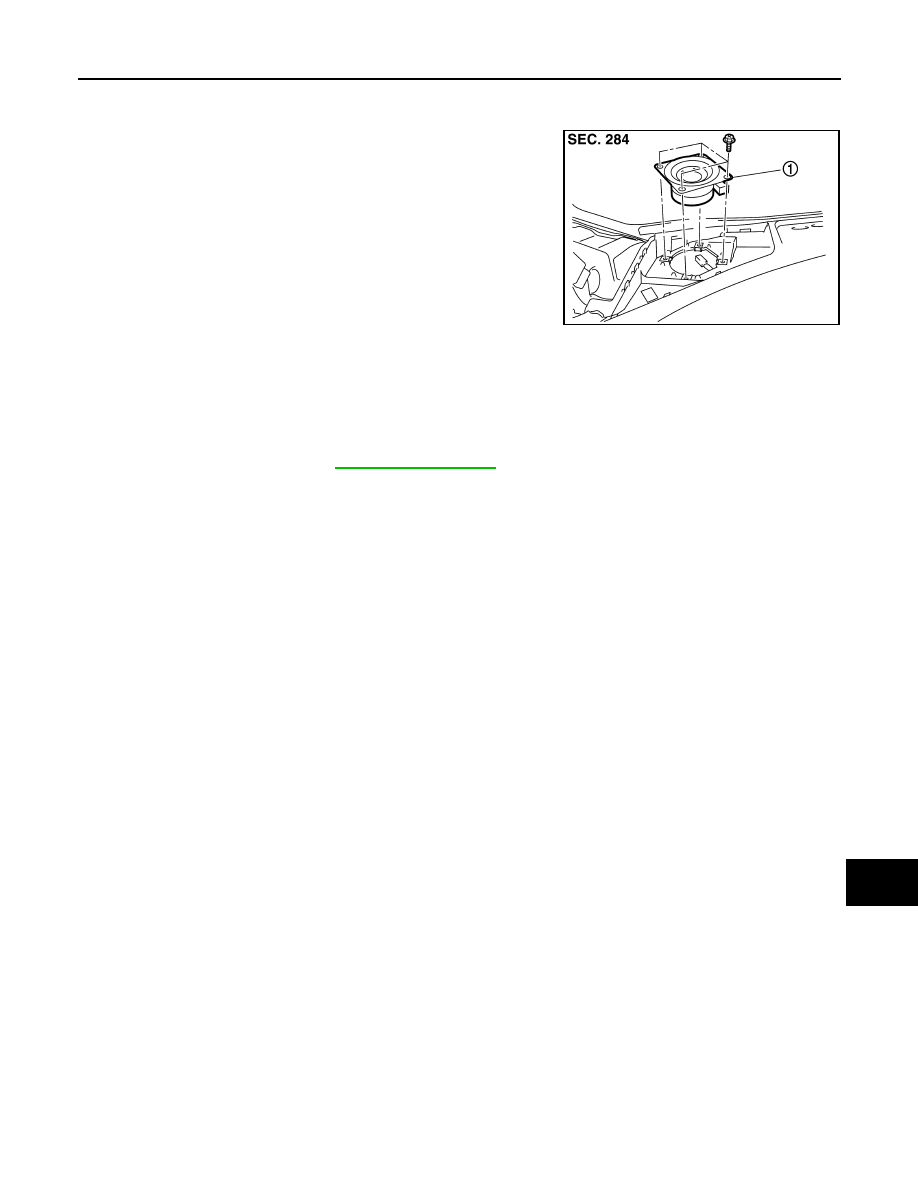

FRONT SQUAWKER

Exploded View

INFOID:0000000009721583

Removal and Installation

INFOID:0000000009721584

REMOVAL

1.

Remove speaker grille. Refer to

IP-14, "Exploded View"

.

2.

Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0775ZZ

1.

Front squawker

AV-44

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

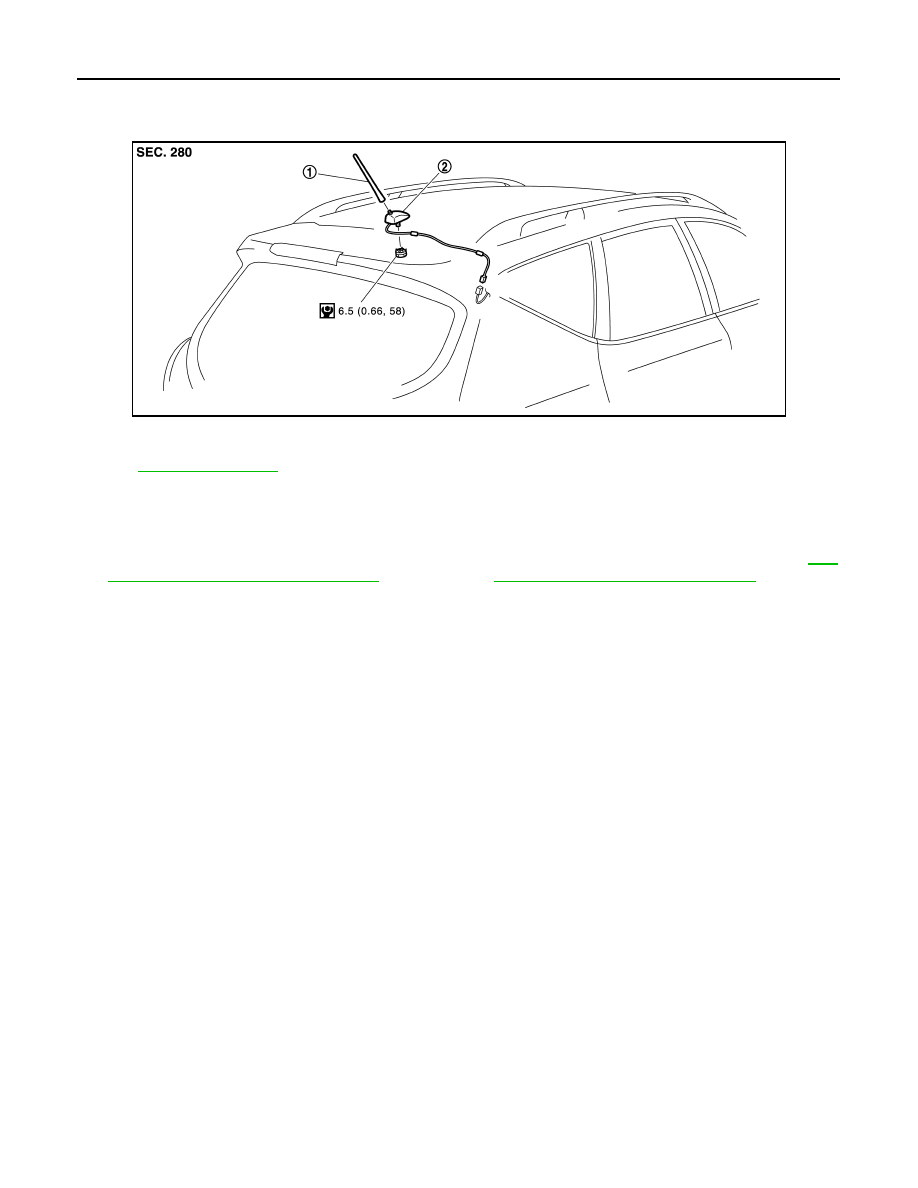

ROOF ANTENNA

ROOF ANTENNA

Exploded View

INFOID:0000000009721585

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000009721586

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

26, "NORMAL ROOF : Exploded View"

 [normal roof] or

INT-30, "SUNROOF : Exploded View"

 [sunroof].

2.

Disconnect AM/FM main connector.

3.

Remove antenna base mounting nut, and then remove antenna base from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

JPNIA0776ZZ

1.

Rod antenna

2.

Antenna base

AV

ANTENNA FEEDER (RADIO)

AV-45

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITHOUT COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

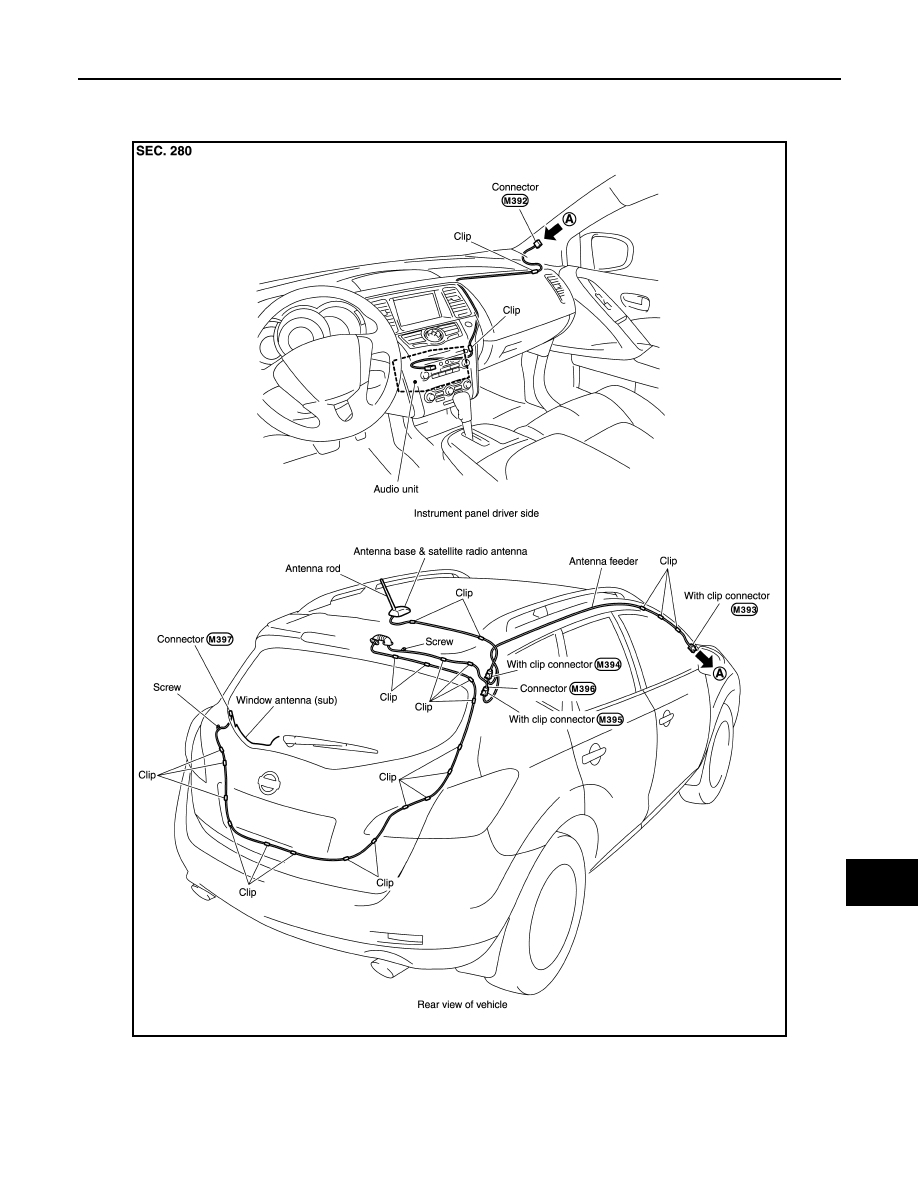

ANTENNA FEEDER (RADIO)

Feeder Layout

INFOID:0000000009721587

JSNIA3859GB
