ADP-212

< REMOVAL AND INSTALLATION >

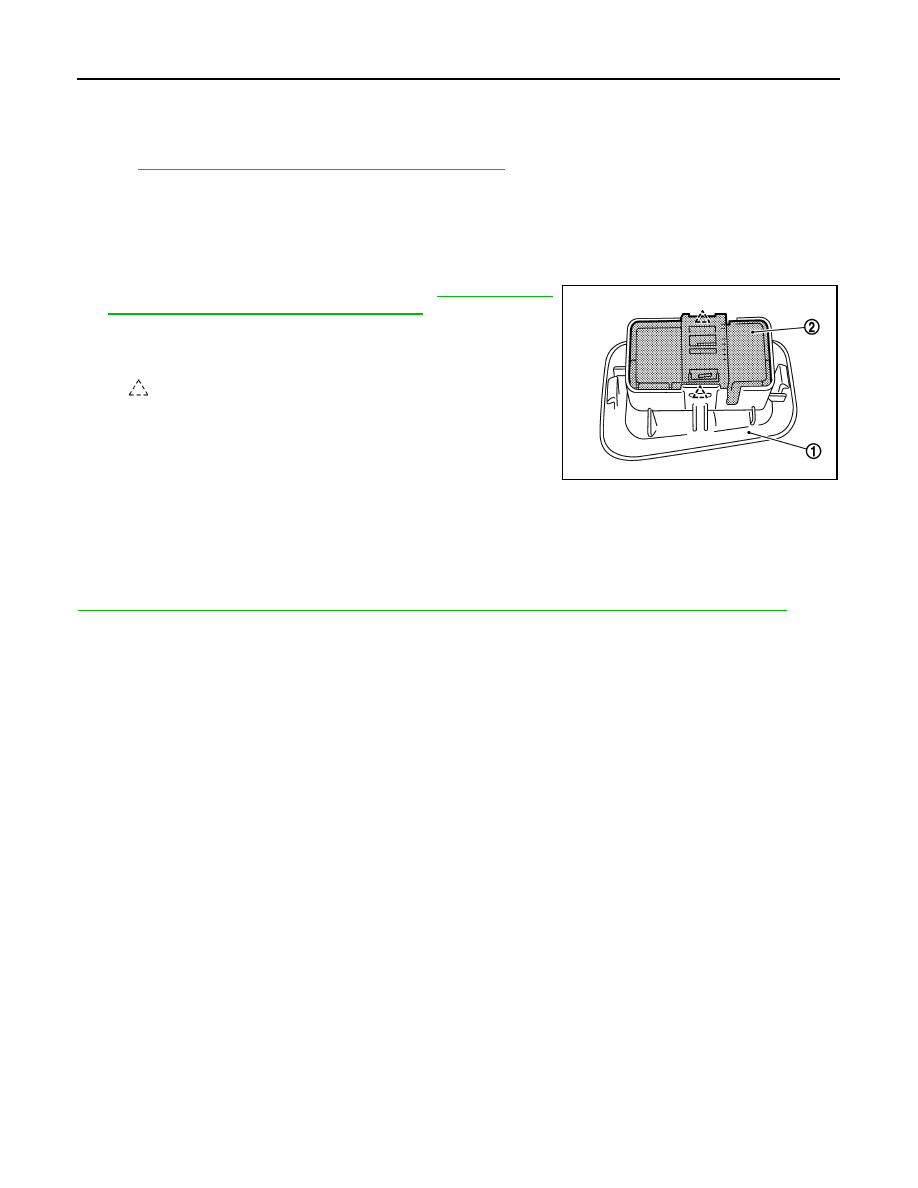

SEAT MEMORY SWITCH

SEAT MEMORY SWITCH

Exploded View

INFOID:0000000009720804

Refer to

INT-13, "FRONT DOOR FINISHER : Exploded View"

.

Removal and Installation

INFOID:0000000009720805

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the seat memory finisher (1). Refer to

INT-13, "FRONT

DOOR FINISHER : Removal and Installation"

.

2.

Press pawls and remove seat memory switch (2) from seat
memory finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

:

Pawl

JMJIA1450ZZ

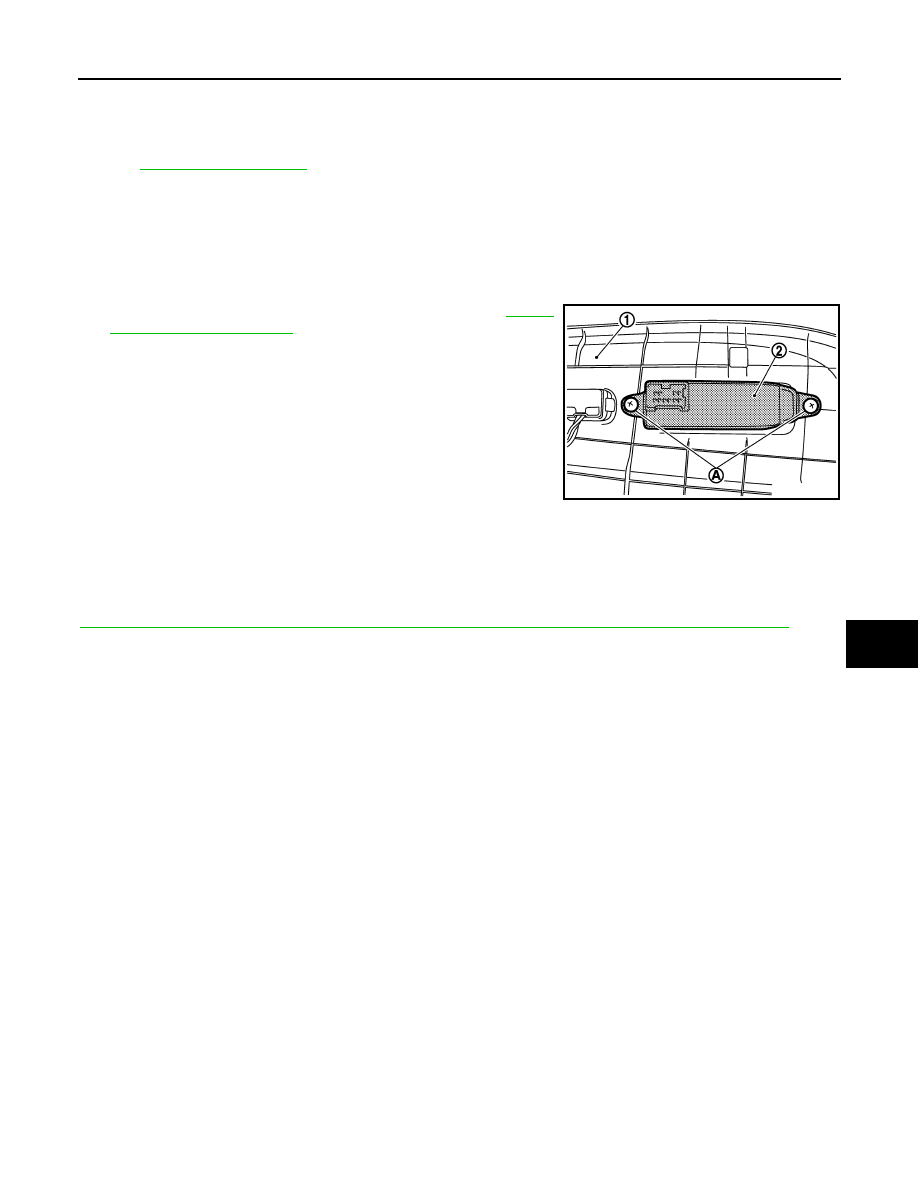

POWER SEAT SWITCH

ADP-213

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

POWER SEAT SWITCH

Exploded View

INFOID:0000000009720806

Refer to

SE-92, "Exploded View"

.

Removal and Installation

INFOID:0000000009720807

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion outer finisher (1). Refer to

SE-98,

"Removal and Installation"

.

2.

Remove the screws (A).

3.

Remove the power seat switch (2) from the seat cushion outer
finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

JMJIA1451ZZ

ADP-214

< REMOVAL AND INSTALLATION >

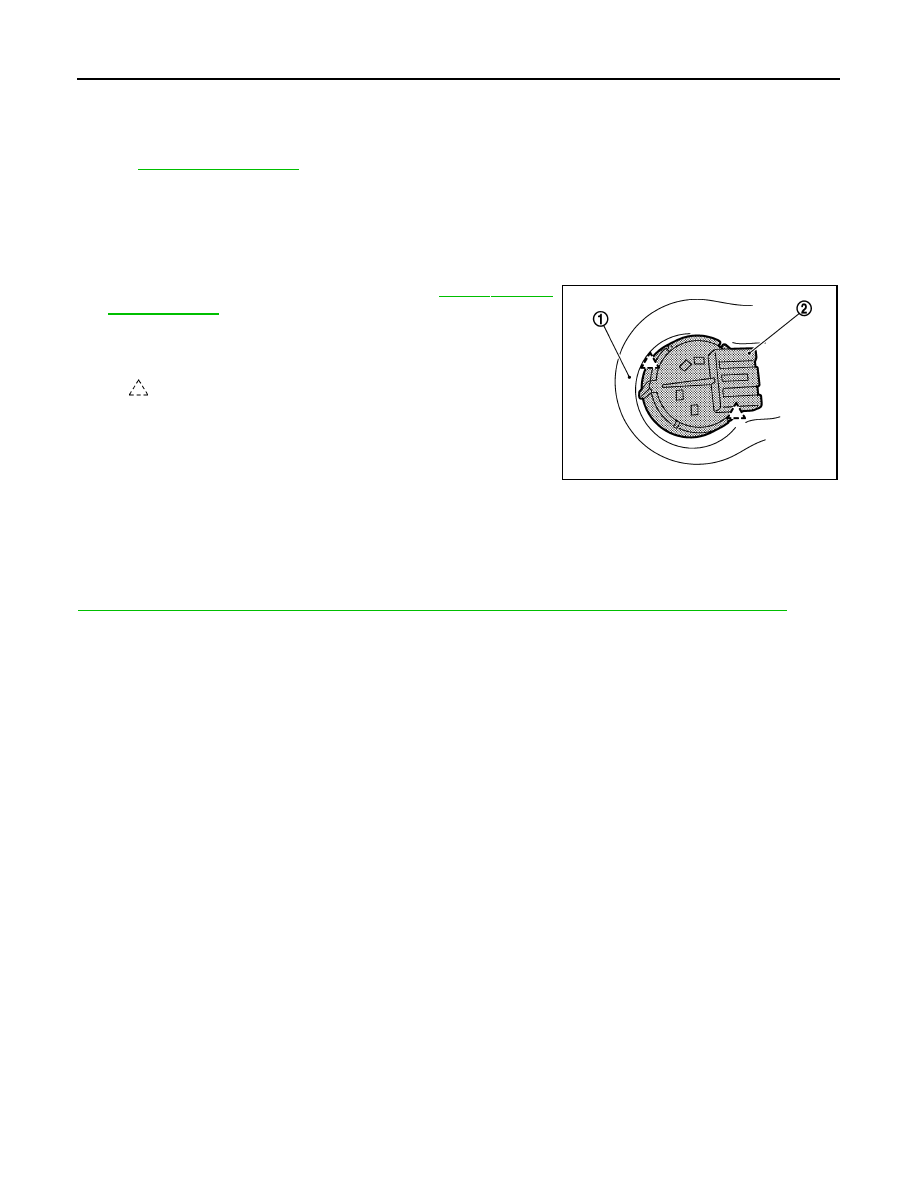

TILT&TELESCOPIC SWITCH

TILT&TELESCOPIC SWITCH

Exploded View

INFOID:0000000009720808

Refer to

IP-14, "Exploded View"

.

Removal and Installation

INFOID:0000000009720809

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the steering column mask (1). Refer to

IP-15, "Removal

and Installation"

.

2.

Press pawls and remove tilt & telescopic switch (2) from the
steering column mask (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal. Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Description"

.

: Pawl

JMJIA1467ZZ

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

BASE AUDIO WITHOUT COLOR DISPLAY

BASIC INSPECTION  ...................................

11

DIAGNOSIS AND REPAIR WORKFLOW  .........

11

Work Flow  ...............................................................

11

SYSTEM DESCRIPTION  .............................

13

AUDIO SYSTEM .................................................

13

System Diagram ......................................................

13

System Description  .................................................

13

Component Parts Location ......................................

14

Component Description ...........................................

14

DIAGNOSIS SYSTEM (AUDIO UNIT) ................

15

Diagnosis Description  .............................................

15

DTC/CIRCUIT DIAGNOSIS  .........................

19

POWER SUPPLY AND GROUND CIRCUIT ......

19

AUDIO UNIT  ..............................................................

19

AUDIO UNIT : Diagnosis Procedure  .......................

19

AUDIO DISPLAY UNIT ..............................................

19

AUDIO DISPLAY UNIT : Diagnosis Procedure  .......

19

ECU DIAGNOSIS INFORMATION ..............

21

AUDIO UNIT  .......................................................

21

Reference Values ....................................................

21

AUDIO DISPLAY UNIT  ......................................

23

Reference Value  .....................................................

23

WIRING DIAGRAM  ......................................

24

BASE AUDIO WITHOUT COLOR DISPLAY  .....

24

Wiring Diagram  .......................................................

24

SYMPTOM DIAGNOSIS  ..............................

32

AUDIO SYSTEM SYMPTOMS  ...........................

32

Symptom Table  .......................................................

32

NORMAL OPERATING CONDITION  ...............

33

Description ...............................................................

33

PRECAUTION ..............................................

35

PRECAUTIONS .................................................

35

EXCEPT FOR MEXICO  .............................................

35

EXCEPT FOR MEXICO : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ............................

35

EXCEPT FOR MEXICO : Precautions for Remov-
ing of Battery Terminal  ............................................

35

EXCEPT FOR MEXICO : Precaution for Trouble
Diagnosis .................................................................

35

EXCEPT FOR MEXICO : Precaution for Harness
Repair ......................................................................

36

FOR MEXICO .............................................................

36

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ..................................................

36

FOR MEXICO : Precautions for Removing of Bat-
tery Terminal ............................................................

37

FOR MEXICO : Precaution for Trouble Diagnosis ....

37

FOR MEXICO : Precaution for Harness Repair  ......

37

PREPARATION ...........................................

38

PREPARATION .................................................

38

Commercial Service Tools .......................................

38

REMOVAL AND INSTALLATION  ...............

39

AUDIO UNIT ......................................................

39

Exploded View .........................................................

39

Removal and Installation  .........................................

39

AUDIO DISPLAY UNIT  .....................................

40

Exploded View .........................................................

40

Removal and Installation  .........................................

40
