DC/DC CONVERTER

EC-913

< ECU DIAGNOSIS INFORMATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

10

(R)

2

(B)

Ignition signal

Input

[Ignition switch: ON]

9 - 13 V

[Ignition switch: OFF]

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

EC-914

< WIRING DIAGRAM >

[R9M]

ENGINE CONTROL SYSTEM

WIRING DIAGRAM

ENGINE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010935592

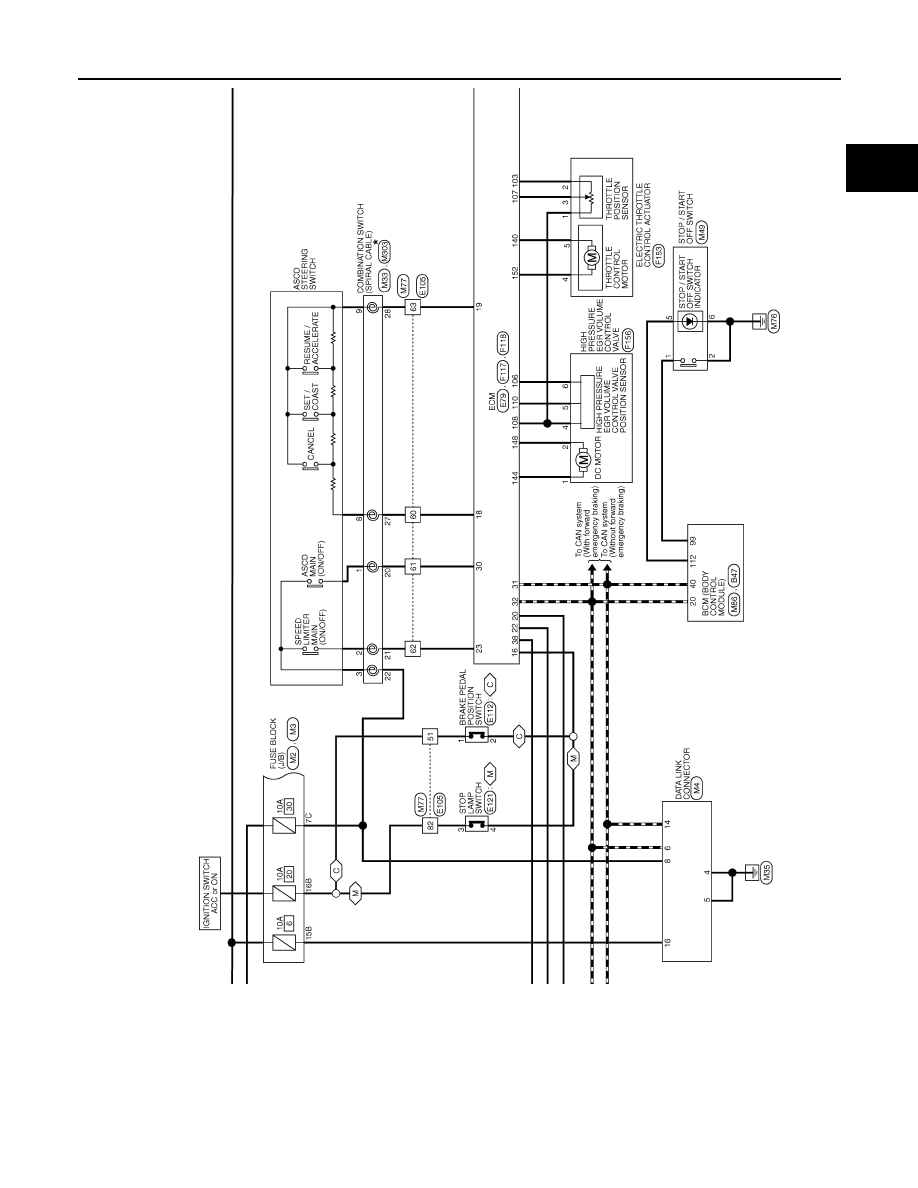

JRBWC7618GB

ENGINE CONTROL SYSTEM

EC-915

< WIRING DIAGRAM >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

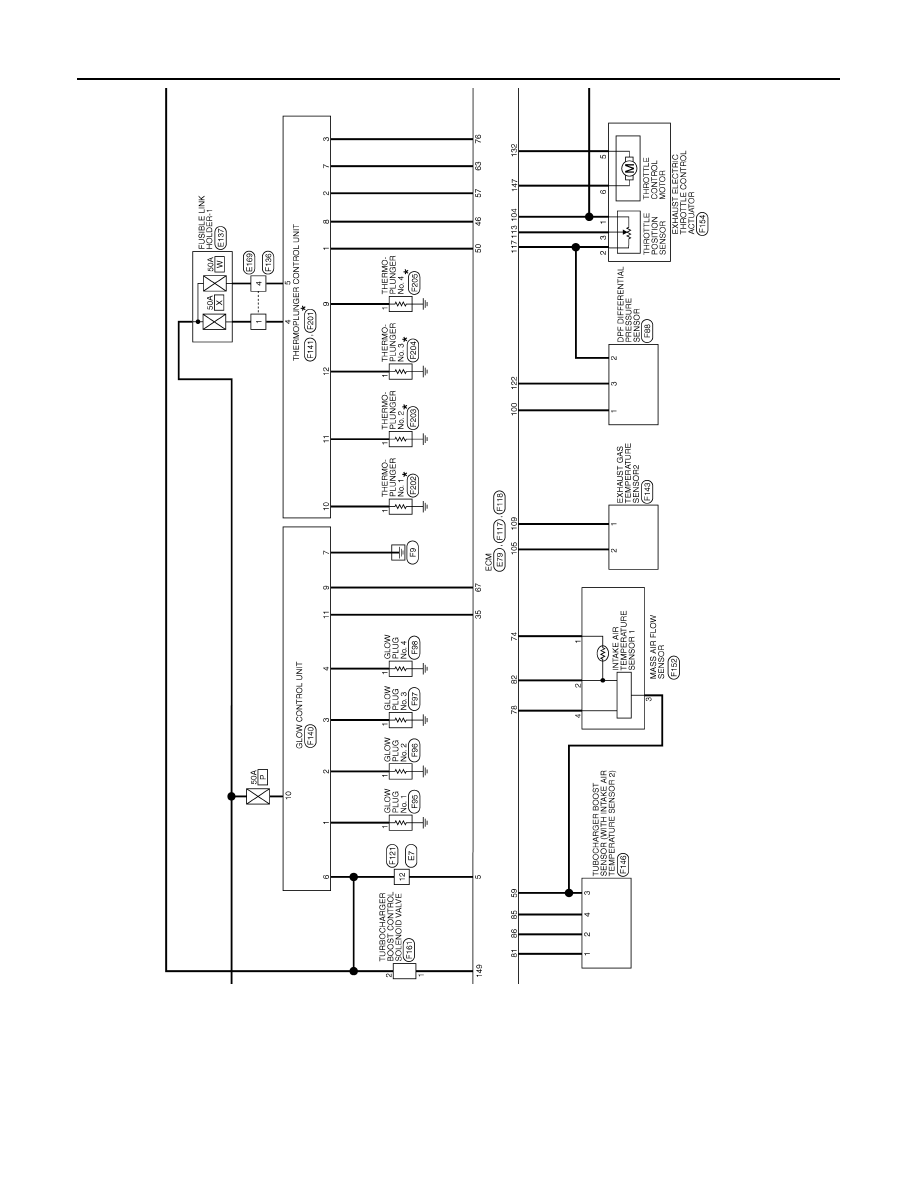

JRBWC7619GB

EC-916

< WIRING DIAGRAM >

[R9M]

ENGINE CONTROL SYSTEM

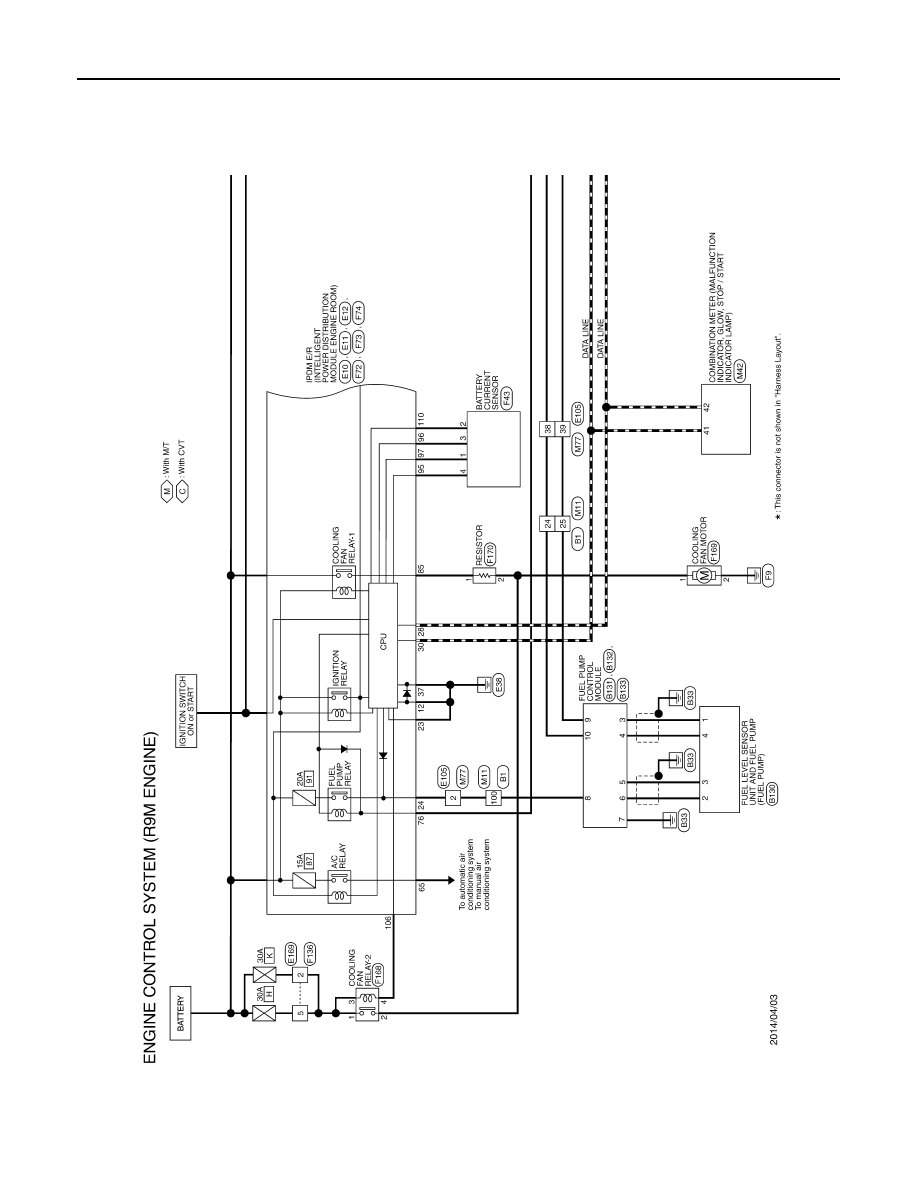

JRBWC7620GB
