POSITIVE CRANKCASE VENTILATION

Inspection

INFOID:0000000010986512

1.

CHECK PCV VALVE

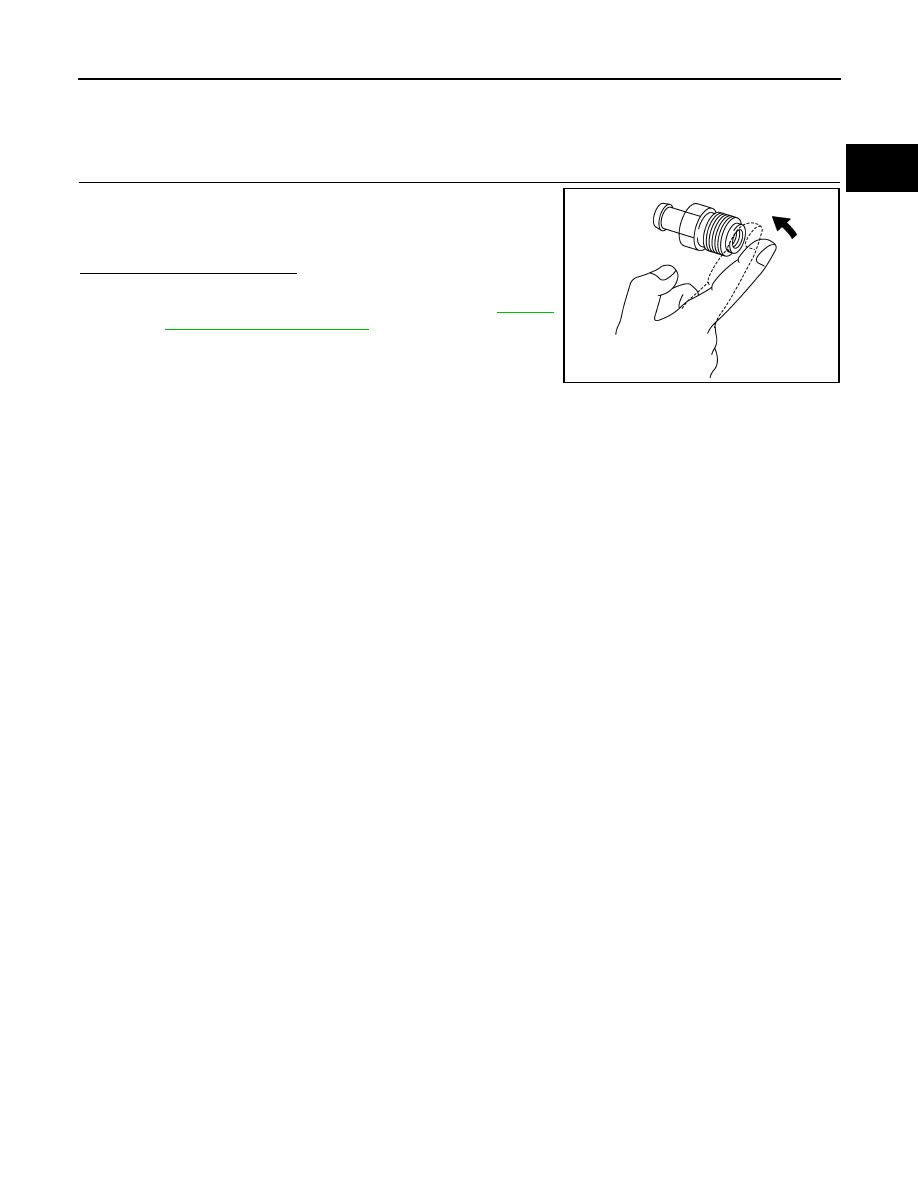

With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PCV valve. Refer to

EC-440,

"Component Parts Location"

.

PBIB1589E

EC-806

< REMOVAL AND INSTALLATION >

[QR25DE]

ECM

REMOVAL AND INSTALLATION

ECM

Removal and Installation

INFOID:0000000010986513

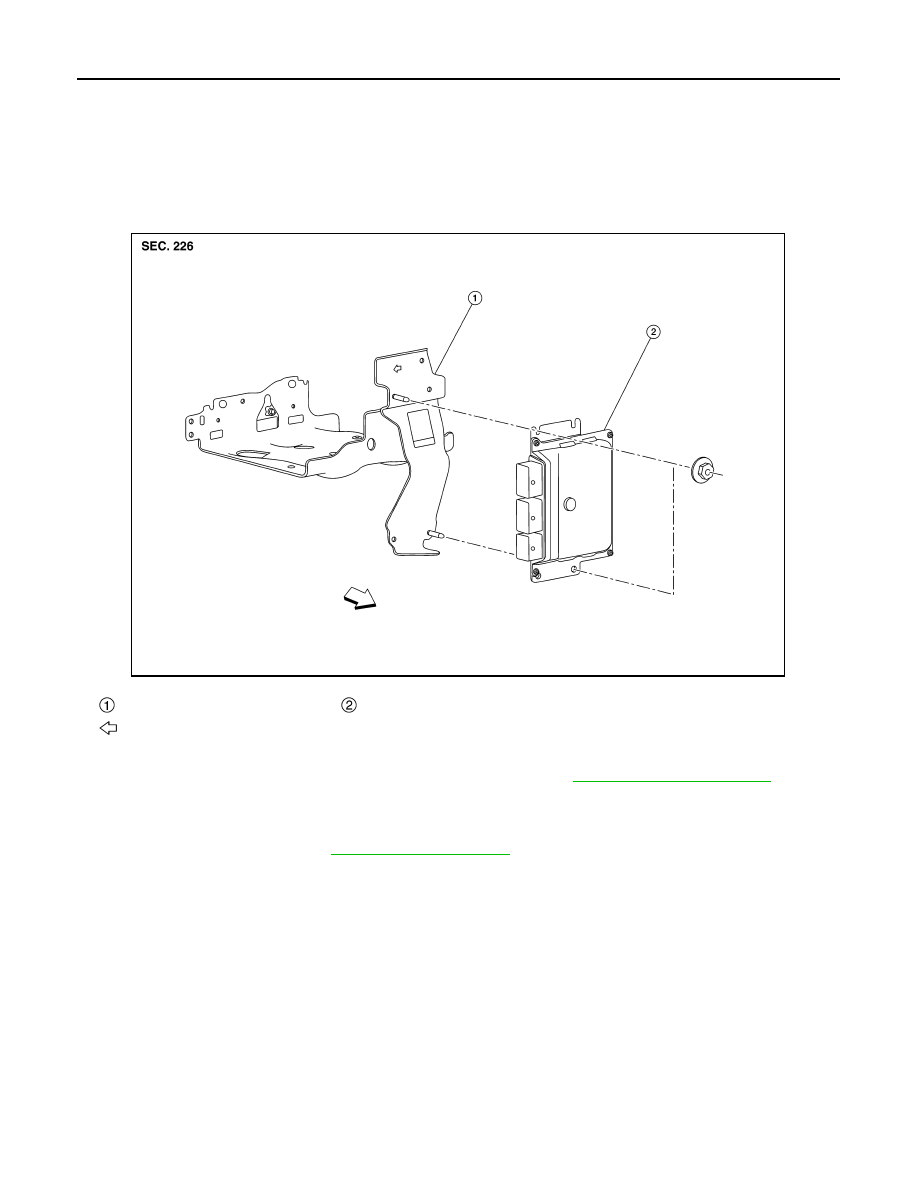

EXPLODED VIEW

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC-550, "Work Procedure"

.

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Remove the resonator. Refer to

EM-174, "Exploded View"

.

3.

Disconnect ECM harness connectors.

4.

Remove ECM mounting nuts, and then remove ECM.

INSTALLATION

Install in the reverse order of removal.

ECM bracket

ECM

: Vehicle front

ALBIA1179ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-807

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000010986514

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000010986515

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Calculated Load Value

INFOID:0000000010986516

Mass Air Flow Sensor

INFOID:0000000010986517

*: Engine is warmed up to normal operating temperature and running under no load.

Condition

Specification

No load* (in P or N position)

650

±

 50 rpm

Condition

Specification

No load* (in P or N position)

10

±

 2

°

 BTDC

Condition

Specification (Using CONSULT or GST)

At idle

10 – 35 %

At 2,500 rpm

10 – 35 %

Supply voltage

Battery voltage (11 – 14 V)

Output voltage at idle

1.3 – 1.6 V*

Mass air flow (Using CONSULT or GST)

1.0 – 4.0 g/s at idle*

4.0 – 10.0 g/s at 2,500 rpm*
