MISFIRE

A1H

Multiple cylinder misfires

P0301

80H

24H

Misfiring counter at 1000 revolution of
the first cylinder

P0302

81H

24H

Misfiring counter at 1000 revolution of
the second cylinder

P0303

82H

24H

Misfiring counter at 1000 revolution of
the third cylinder

P0304

83H

24H

Misfiring counter at 1000 revolution of
the fourth cylinder

P0305

84H

24H

Misfiring counter at 1000 revolution of
the fifth cylinder

P0306

85H

24H

Misfiring counter at 1000 revolution of
the sixth cylinder

P0307

86H

24H

Misfiring counter at 1000 revolution of
the seventh cylinder

P0308

87H

24H

Misfiring counter at 1000 revolution of
the eighth cylinder

P0300

88H

24H

Misfiring counter at 1000 revolution of
the multiple cylinders

P0301

89H

24H

Misfiring counter at 200 revolution of
the first cylinder

P0302

8AH

24H

Misfiring counter at 200 revolution of
the second cylinder

P0303

8BH

24H

Misfiring counter at 200 revolution of
the third cylinder

P0304

8CH

24H

Misfiring counter at 200 revolution of
the fourth cylinder

P0305

8DH

24H

Misfiring counter at 200 revolution of
the fifth cylinder

P0306

8EH

24H

Misfiring counter at 200 revolution of
the sixth cylinder

P0307

8FH

24H

Misfiring counter at 200 revolution of
the seventh cylinder

P0308

90H

24H

Misfiring counter at 200 revolution of
the eighth cylinder

P0300

91H

24H

Misfiring counter at 1000 revolution of
the single cylinder

P0300

92H

24H

Misfiring counter at 200 revolution of
the single cylinder

P0300

93H

24H

Misfiring counter at 200 revolution of
the multiple cylinders

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

EC-526

< ECU DIAGNOSIS INFORMATION >

[QR25DE]

ECM

MISFIRE

A2H

No. 1 cylinder misfire

P0301

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0301

0CH

24H

Misfire counts for last/current driving
cycles

A3H

No. 2 cylinder misfire

P0302

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0302

0CH

24H

Misfire counts for last/current driving
cycles

A4H

No. 3 cylinder misfire

P0303

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0303

0CH

24H

Misfire counts for last/current driving
cycles

A5H

No. 4 cylinder misfire

P0304

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0304

0CH

24H

Misfire counts for last/current driving
cycles

A6H

No. 5 cylinder misfire

P0305

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0305

0CH

24H

Misfire counts for last/current driving
cycles

A7H

No. 6 cylinder misfire

P0306

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0306

0CH

24H

Misfire counts for last/current driving
cycles

A8H

No. 7 cylinder misfire

P0307

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0307

0CH

24H

Misfire counts for last/current driving
cycles

A9H

No. 8 cylinder misfire

P0308

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0308

0CH

24H

Misfire counts for last/current driving
cycles

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

ENGINE CONTROL SYSTEM

EC-527

< WIRING DIAGRAM >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

WIRING DIAGRAM

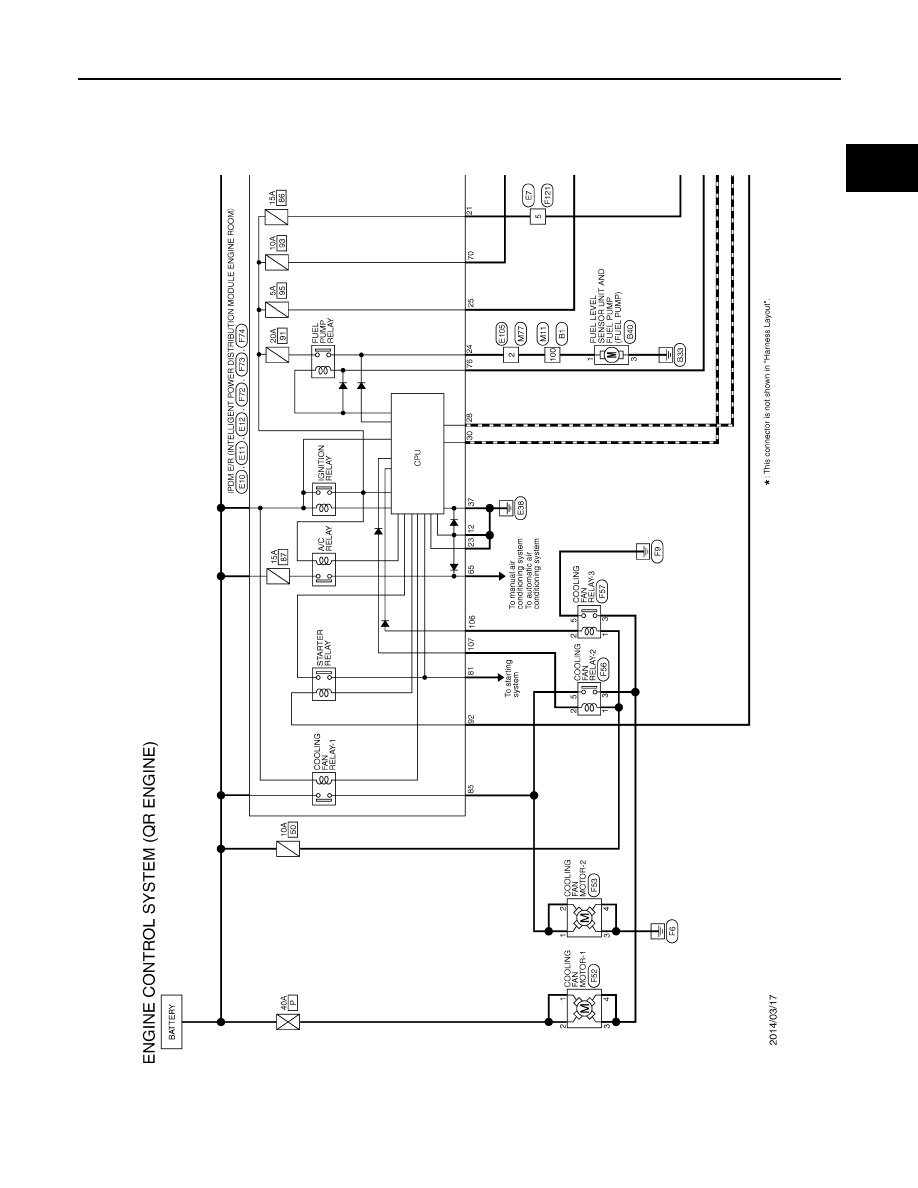

ENGINE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010986267

JRBWC7603GB

EC-528

< WIRING DIAGRAM >

[QR25DE]

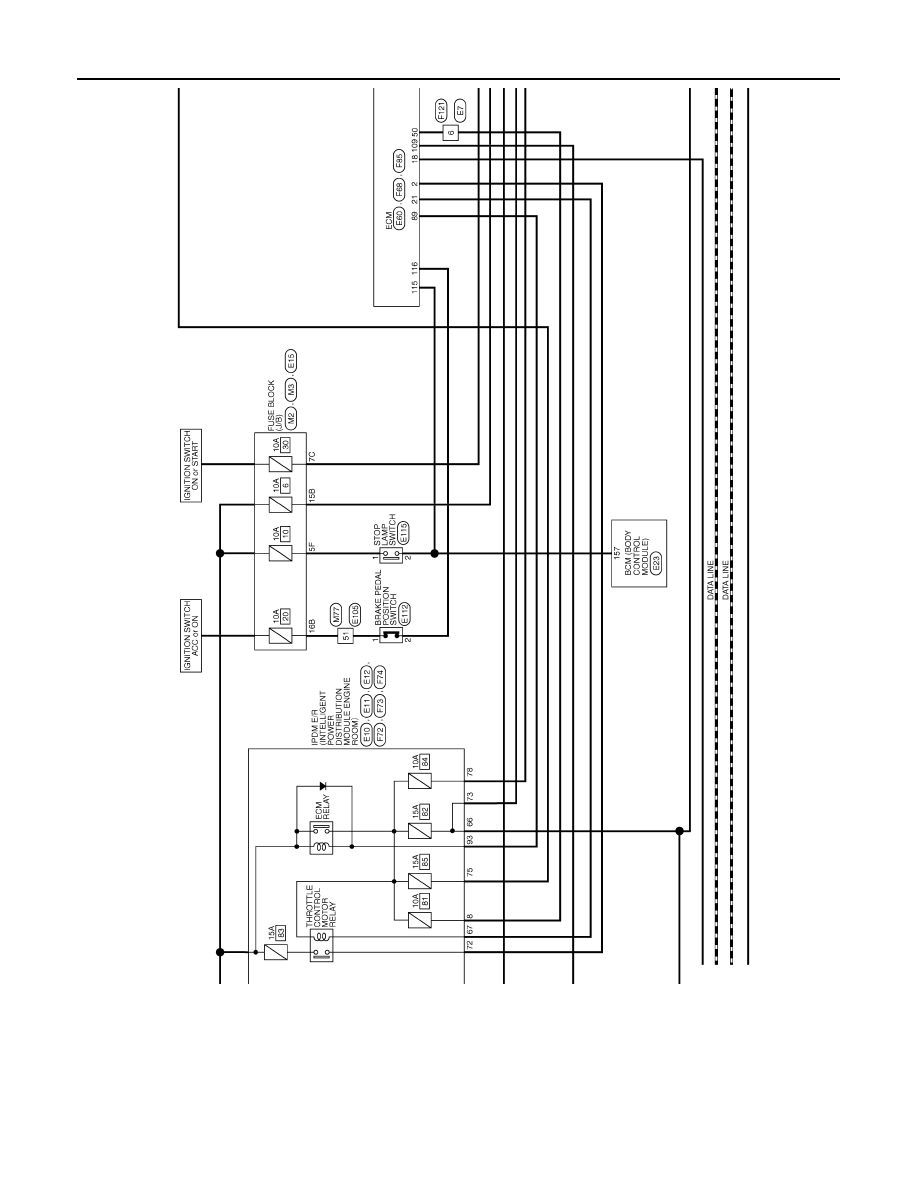

ENGINE CONTROL SYSTEM

JRBWC7604GB
