PRECAUTIONS

EC-437

< PRECAUTION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

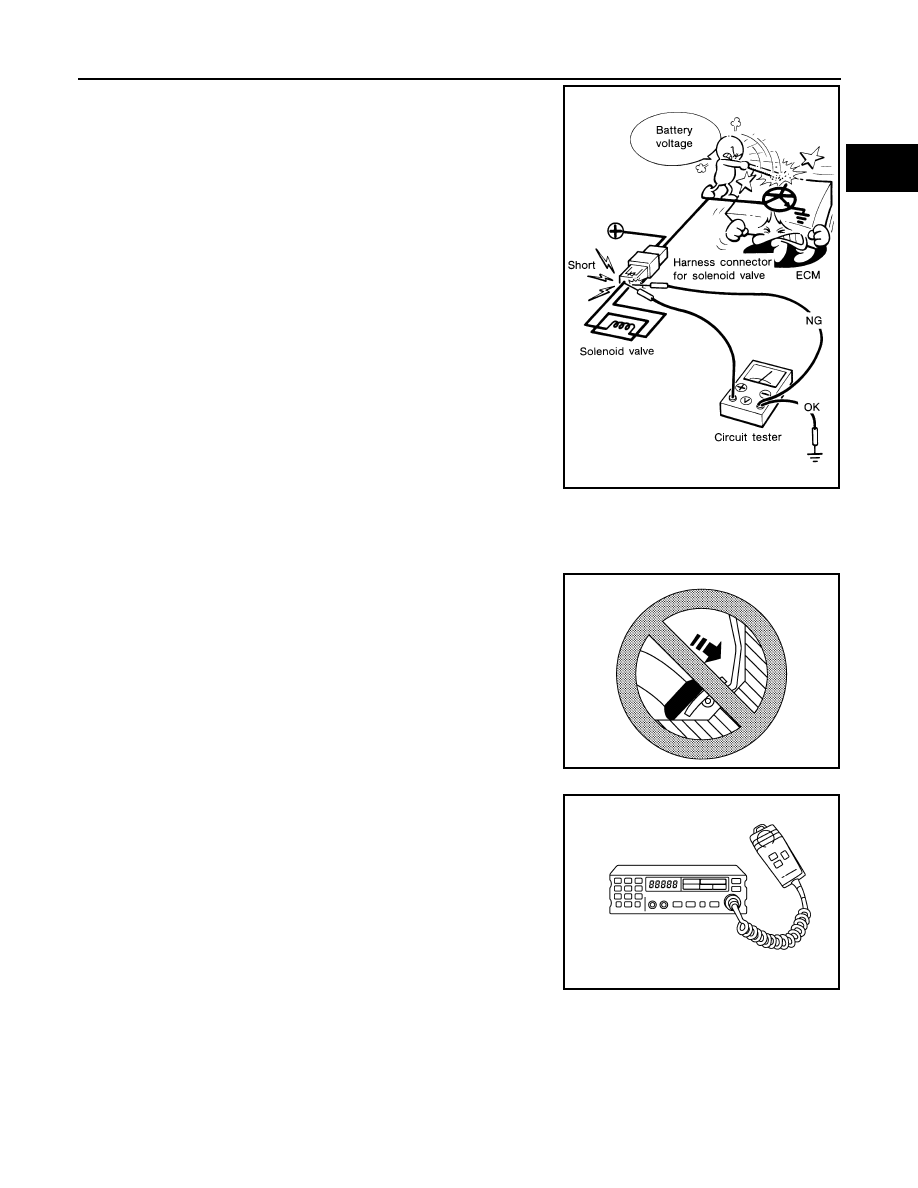

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.

• Do not operate fuel pump when there is no fuel in lines.
• Tighten fuel hose clamps to the specified torque.

• Do not depress accelerator pedal when starting.
• Immediately after starting, do not rev up engine unnecessar-

ily.

• Do not rev up engine just prior to shutdown.

• When installing C.B. ham radio or a mobile phone, be sure to

observe the following as it may adversely affect electronic
control systems depending on installation location.

- Keep the antenna as far as possible from the electronic con-

trol units.

- Keep the antenna feeder line more than 20 cm (8 in) away

from the harness of electronic controls.
Do not let them run parallel for a long distance.

- Adjust the antenna and feeder line so that the standing-wave

ratio can be kept smaller.

- Be sure to ground the radio to vehicle body.

SEF348N

SEF709Y

SEF708Y

EC-438

< PREPARATION >

[QR25DE]

PREPARATION

PREPARATION

PREPARATION

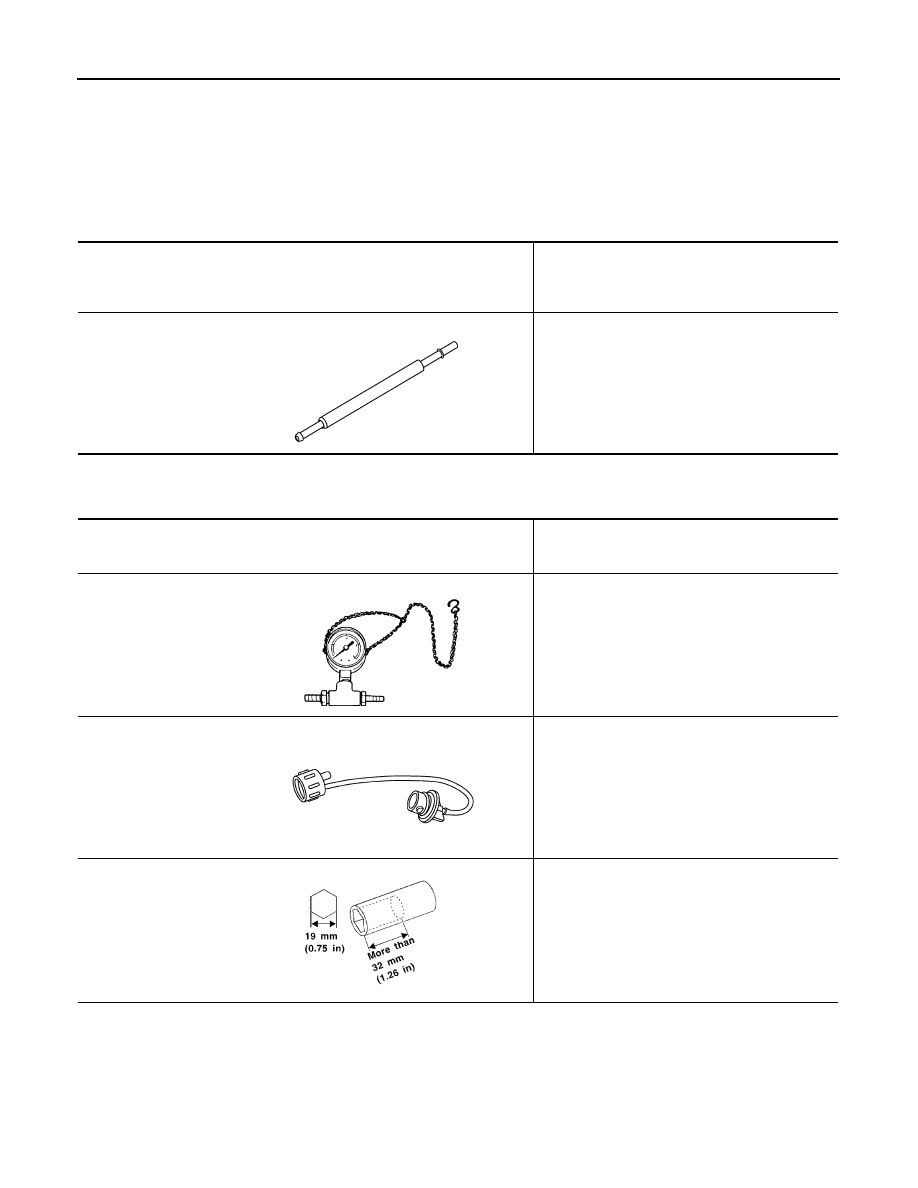

Special Service Tools

INFOID:0000000010986198

NOTE:
The actual shapes of the may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000010986199

Tool number
(SPX-North America
No.)
Tool name

Description

KV10120000
Fuel tube adapter

Measures fuel pressure

JSBIA0410ZZ

Tool name
(SPX-North America
No.)

Description

Fuel pressure gauge

Measuring fuel pressure

Fuel filler cap adapter
i.e.: (MLR-8382)

Checks fuel tank vacuum relief valve opening
pressure

Socket wrench

Removes and installs engine coolant temperature
sensor

ZZA0061D

S-NT815

S-NT705

PREPARATION

EC-439

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

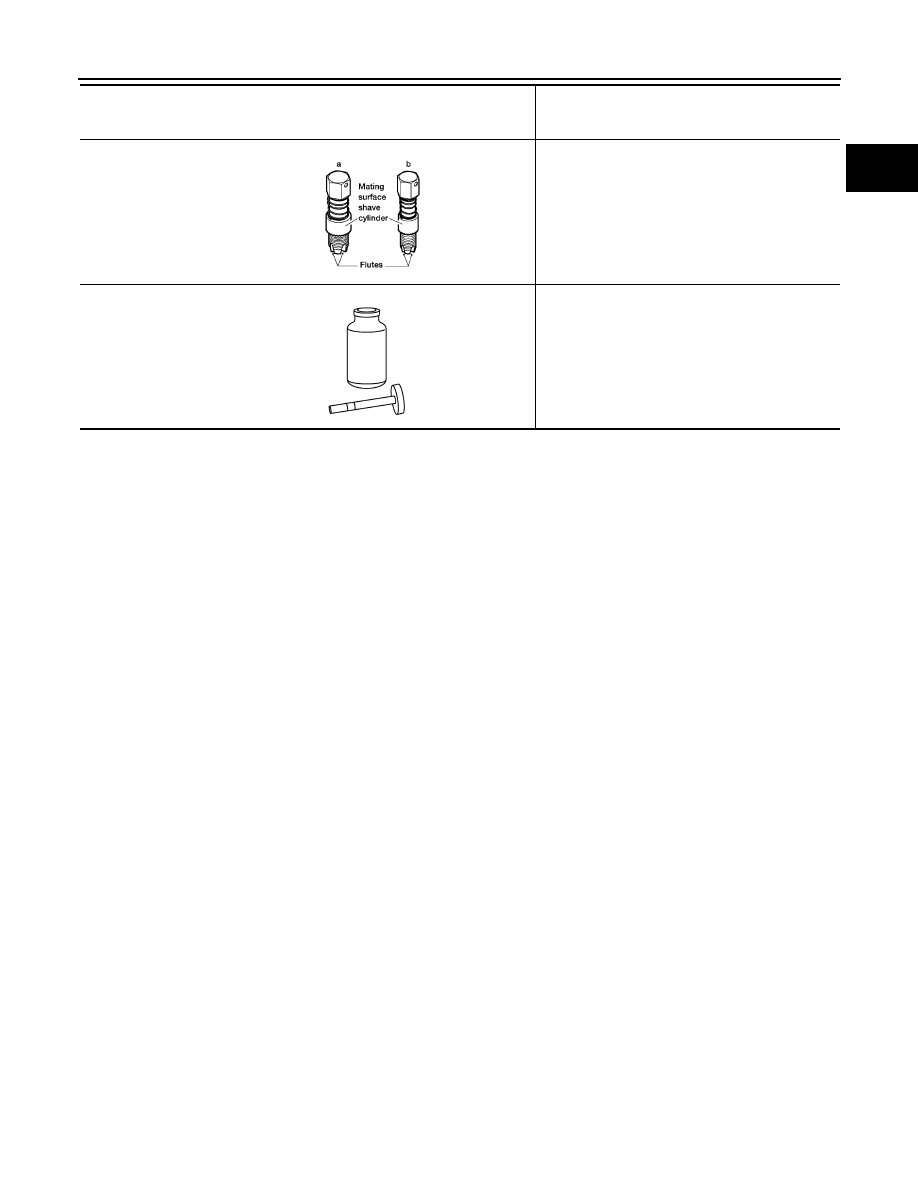

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditions the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant

i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricates oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(SPX-North America
No.)

Description

AEM488

S-NT779

EC-440

< SYSTEM DESCRIPTION >

[QR25DE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

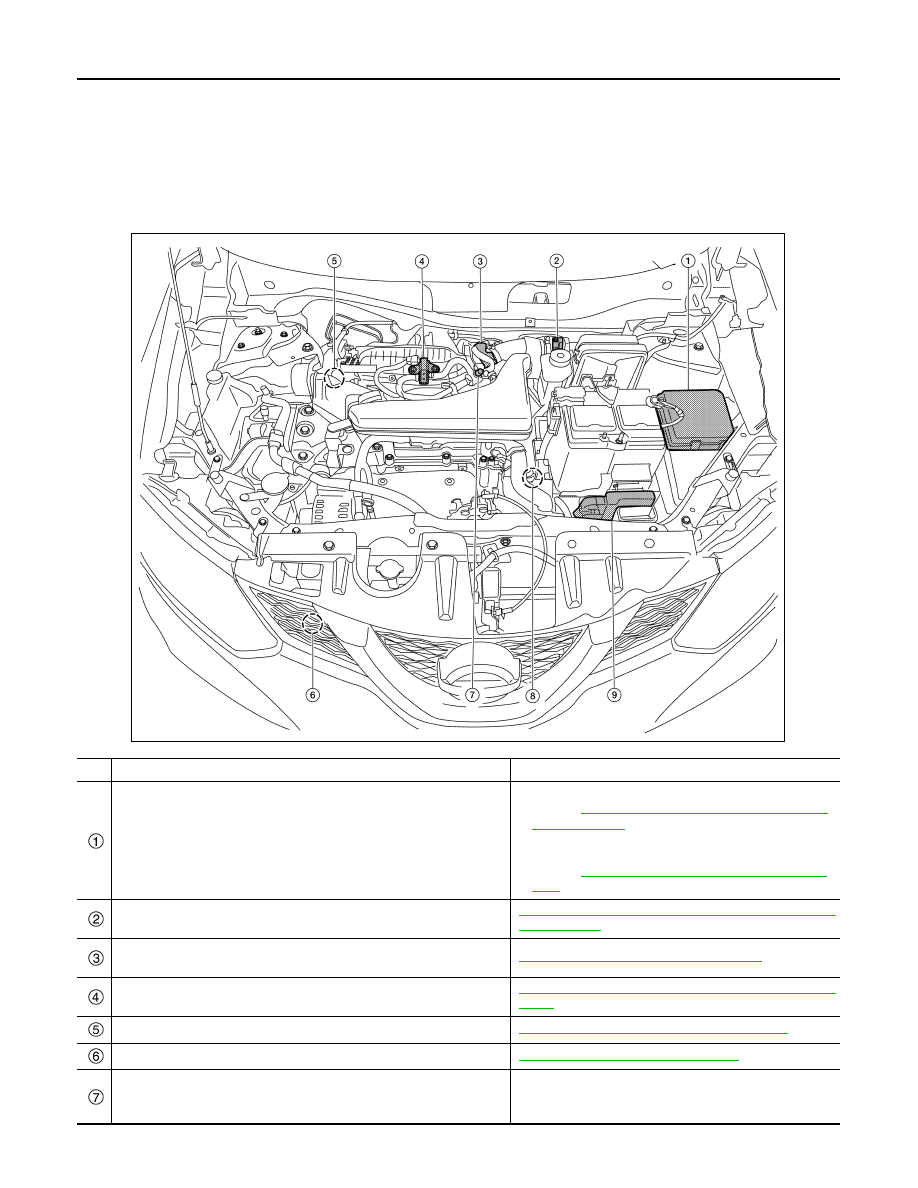

Component Parts Location

INFOID:0000000010986200

ENGINE ROOM COMPARTMENT

ALBIA1180ZZ

No.

Component

Function

IPDM E/R

• IPDM E/R control the internal relays and the actuators.
- Refer to

PCS-7, "RELAY CONTROL SYSTEM : Sys-

tem Description"

.

• When CAN communication with ECM is impossible,

IPDM E/R performs fail-safe control.

- Refer to

PCS-8, "RELAY CONTROL SYSTEM : Fail-

safe"

.

Mass air flow sensor
(with intake air temperature sensor)

EC-446, "Mass Air Flow Sensor (With Intake Air Temper-
ature Sensor)"

Electric throttle control actuator
(with built in throttle position sensor and throttle control motor)

EC-444, "Electric Throttle Control Actuator"

EVAP canister purge volume control solenoid valve

EC-452, "EVAP Canister Purge Volume Control Solenoid
Valve"

Intake manifold runner control valve position sensor

EC-449, "Intake Manifold Runner Control Valve"

Refrigerant pressure sensor

EC-453, "Refrigerant Pressure Sensor"

EVAP service port

*

When perform the EVAP leak check, positive pressure is
delivered to the EVAP system through the EVAP service
port.
