P0011 IVT CONTROL

EC-173

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0011 IVT CONTROL

DTC Description

INFOID:0000000010775104

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Crankshaft position sensor
• Camshaft position sensor
• Intake valve timing control solenoid valve
• Accumulation of debris to the signal plate of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for intake valve timing control

FAIL-SAFE

DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P0011 is displayed with DTC P0075, first perform the trouble diagnosis for DTC P0075.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-187, "DTC Description"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-1

Start the inspection.
NOTE:
• Use component function check to check the overall function of the intake valve timing control. During this

check, a 1st trip DTC might not be confirmed.

• If the cause is a temporal jamming of debris, it may be back to normal during the following procedure.

Will CONSULT be used?

YES

>> GO TO 3.

NO

>> GO TO 5.

3.

PERFORM COMPONENT FUNCTION CHECK-2

WITH CONSULT

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” in “ENGINE” with CONSULT.

3.

Start engine and check that “INT/V TIM CONT-B1” immediately after starting displays a value within

±

13

°

CA.

Perform the following procedure when the value is more than 13

°

CA.

-

Start engine and warm it up to the normal operating temperature.

-

Start engine and keep the engine speed at 1,000 rpm for at least 10 seconds.

-

Turn ignition switch OFF and wait at least 10 seconds and restart engine.

-

Check step 3 again.

Is the inspection result normal?

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P0011

INT/V TIM CONT-B1
“A” Camshaft position - timing over-ad-
vanced or system performance bank 1)

There is a gap between angle of target and phase-control angle degree.

Engine operating condition in fail-safe mode

Fail safe mode

Vehicle behavior

Device fix mode

• This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the refer-

ence position.

• The intake manifold runner control valve motor is turned OFF (intake manifold runner valve

opens).

EC-174

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0011 IVT CONTROL

YES

>> GO TO 4.

NO

>> Proceed to

EC-174, "Diagnosis Procedure"

.

4.

PERFORM COMPONENT FUNCTION CHECK-3

1.

Select “INT V/T ASSIGN ANGLE” in “ACTIVE TEST” with CONSULT.

2.

Touch “START” with the engine speed is maintained at approximately 2,500 rpm.

3.

“Up” and “Down” and check if it makes change of the value in “IN VTC S/V B1”.
NOTE:
Intake valve timing angle is limited and not up or down over that.

Is the inspection result normal?

YES-1 >> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

YES-2 >> Confirmation after repair: INSPECTION END
NO

>> Proceed to

EC-174, "Diagnosis Procedure"

.

5.

PERFORM COMPONENT FUNCTION CHECK-4

WITHOUT CONSULT

1.

Check service records for any recent repairs that may cause timing chain misalignment. If there are,
check timing chain installation first.

2.

Start engine and warm it up to normal operating temperature.

3.

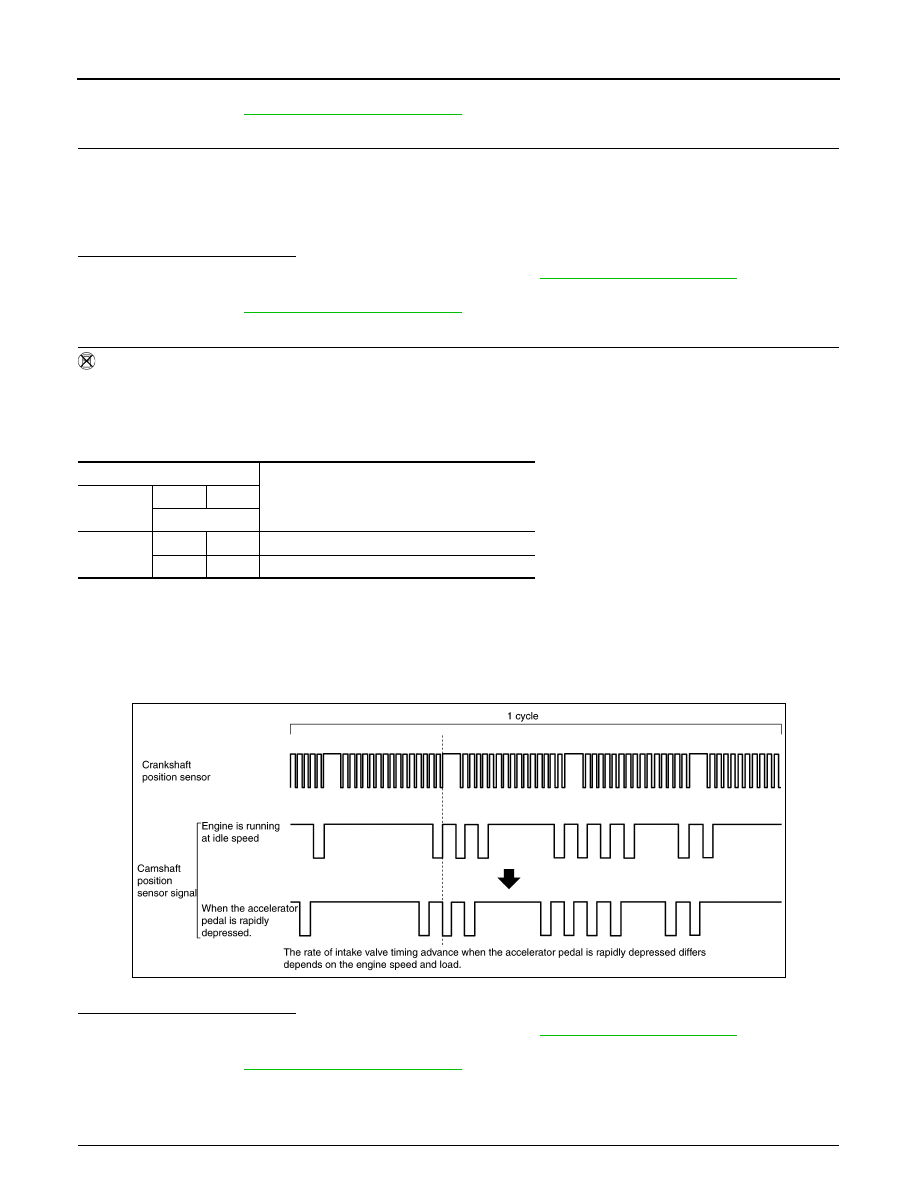

Set the oscilloscope probe between ECM harness connector terminals.

4.

Record the wave pattern of the crankshaft position sensor signal and the camshaft position sensor signal
at idling.

5.

Record the wave pattern of the crankshaft position sensor signal and the camshaft position sensor signal
when the accelerator pedal is depressed quickly.

6.

Compare both wave patterns and confirm that the camshaft position sensor signal is shifted to the
advance side.

If there is no shift, keep the engine speed at around 1,000 rpm for 10 seconds and confirm again.

Is the inspection result normal?

YES-1 >> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

YES-2 >> Confirmation after repair: INSPECTION END
NO

>> Proceed to

EC-174, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010775105

1.

CHECK DTC PRIORITY

ECM

Signal name

Connector

+

–

Terminal

F15

48

44

Crankshaft position sensor

19

15

Camshaft position sensor

JSBIA5009GB

P0011 IVT CONTROL

EC-175

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

If DTC P0011 is displayed with DTC P0075, first perform the trouble diagnosis for DTC P0075.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

EC-187, "DTC Description"

.

NO

>> GO TO 2.

2.

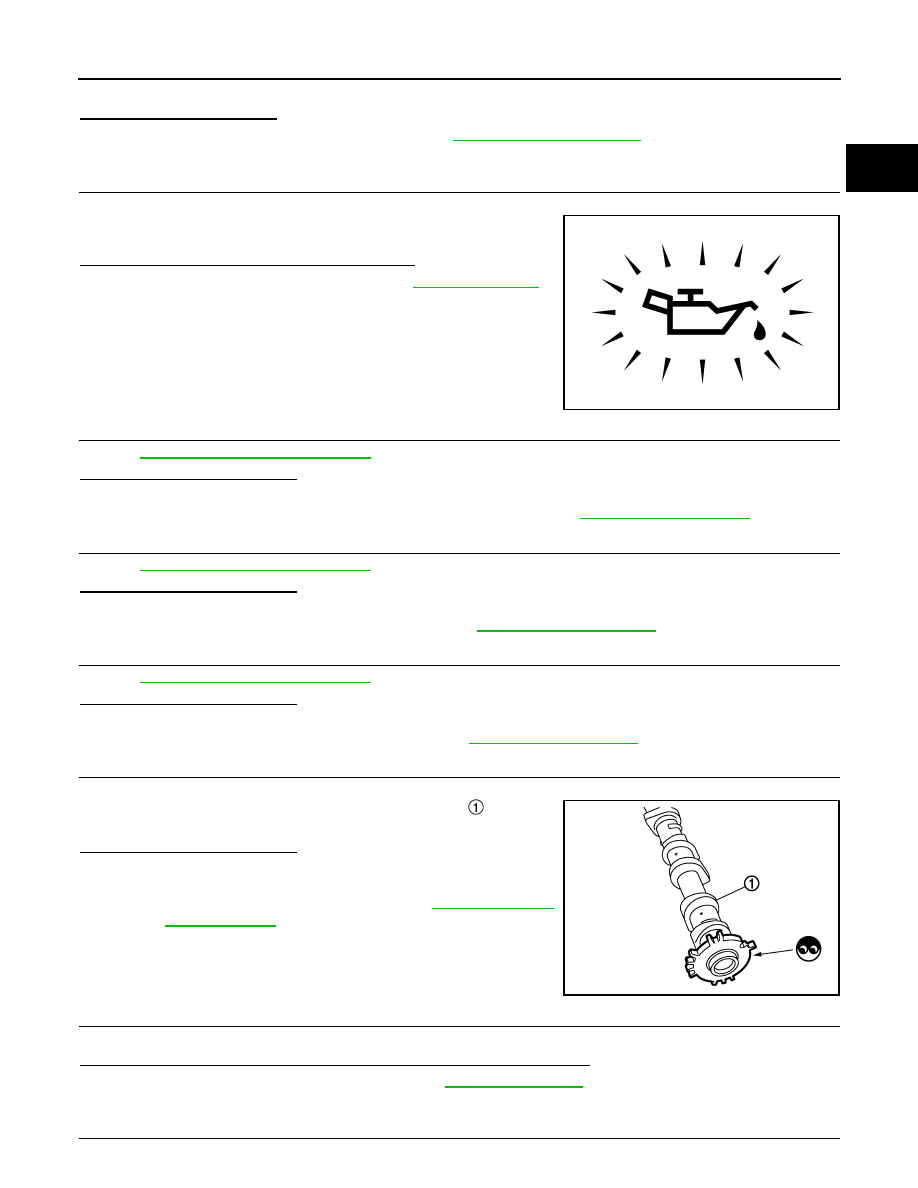

CHECK ENGINE OIL PRESSURE WARNING LAMP

1.

Start engine.

2.

Check engine oil pressure warning lamp and confirm it is not illu-
minated.

Is engine oil pressure warning lamp illuminated?

YES

>> Check the engine oil level. Refer to

LU-9, "Inspection"

.

NO

>> GO TO 3.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

EC-176, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace intake valve timing control solenoid valve. Refer to

EM-67, "Exploded View"

.

4.

CHECK CRANKSHAFT POSITION SENSOR

Refer to

EC-279, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace crankshaft position sensor. Refer to

EM-106, "Exploded View"

.

5.

CHECK CAMSHAFT POSITION SENSOR

Refer to

EC-285, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace camshaft position sensor. Refer to

EM-80, "Exploded View"

.

6.

CHECK CAMSHAFT (INTAKE)

Check the following.
• Accumulation of debris to the signal plate of camshaft

 rear end

• Chipping signal plate of camshaft rear end
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Remove debris and clean the signal plate of camshaft

rear end or replace camshaft. Refer to

EM-81, "Removal

and Installation"

.

7.

CHECK TIMING CHAIN INSTALLATION

Check service records for any recent repairs that may cause timing chain misalignment.

Are there any service records that may cause timing chain misalignment?

YES

>> Check timing chain installation. Refer to

EM-78, "Inspection"

.

NO

>> GO TO 8.

8.

CHECK LUBRICATION CIRCUIT

PBIA8559J

PBIA9557J

EC-176

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P0011 IVT CONTROL

Perform “Inspection of Camshaft Sprocket (INT) Oil Groove”. Refer to

EM-84, "Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Clean lubrication line.

Component Inspection

INFOID:0000000010775106

1.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-1

1.

Turn ignition switch OFF.

2.

Disconnect intake valve timing control solenoid valve harness connector.

3.

Check resistance between intake valve timing control solenoid valve terminals as per the following.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-67, "Exploded

View"

.

2.

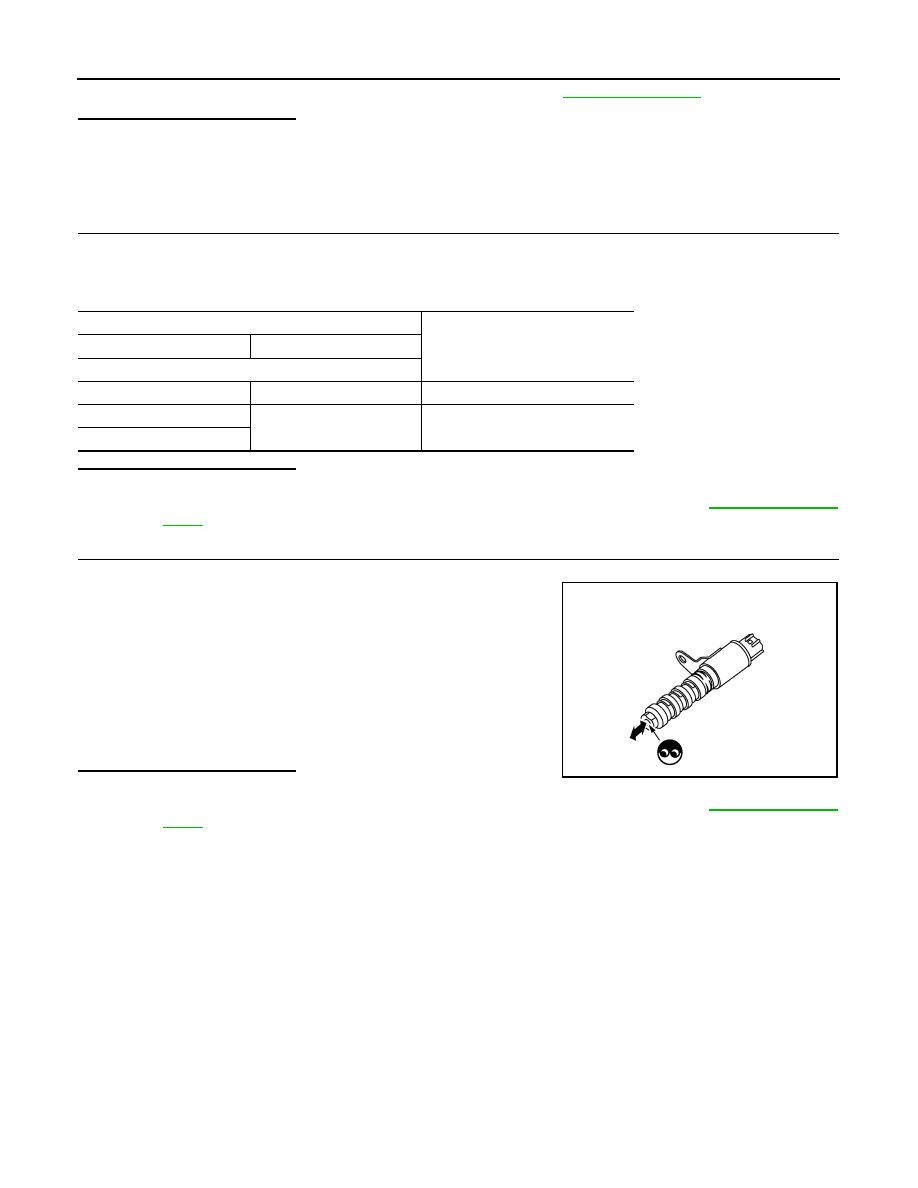

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE-2

1.

Remove intake valve timing control solenoid valve.

2.

Provide battery voltage between intake valve timing control sole-
noid valve terminals 1 and 2, and then interrupt it. Check that the
plunger moves as shown in the figure.

CAUTION:

Never apply battery voltage continuously for 5 seconds or
more. Doing so may result in damage to the coil in intake
valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control solenoid
valve is removed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-67, "Exploded

View"

.

Intake valve timing control solenoid valve

Resistance

+

−

Terminals

1

2

6.7 - 7.7

Ω

 [at 20

°

C (68

°

F)]

1

Ground

Not exist

2
