Nissan X-Trail 32. Manual - part 725





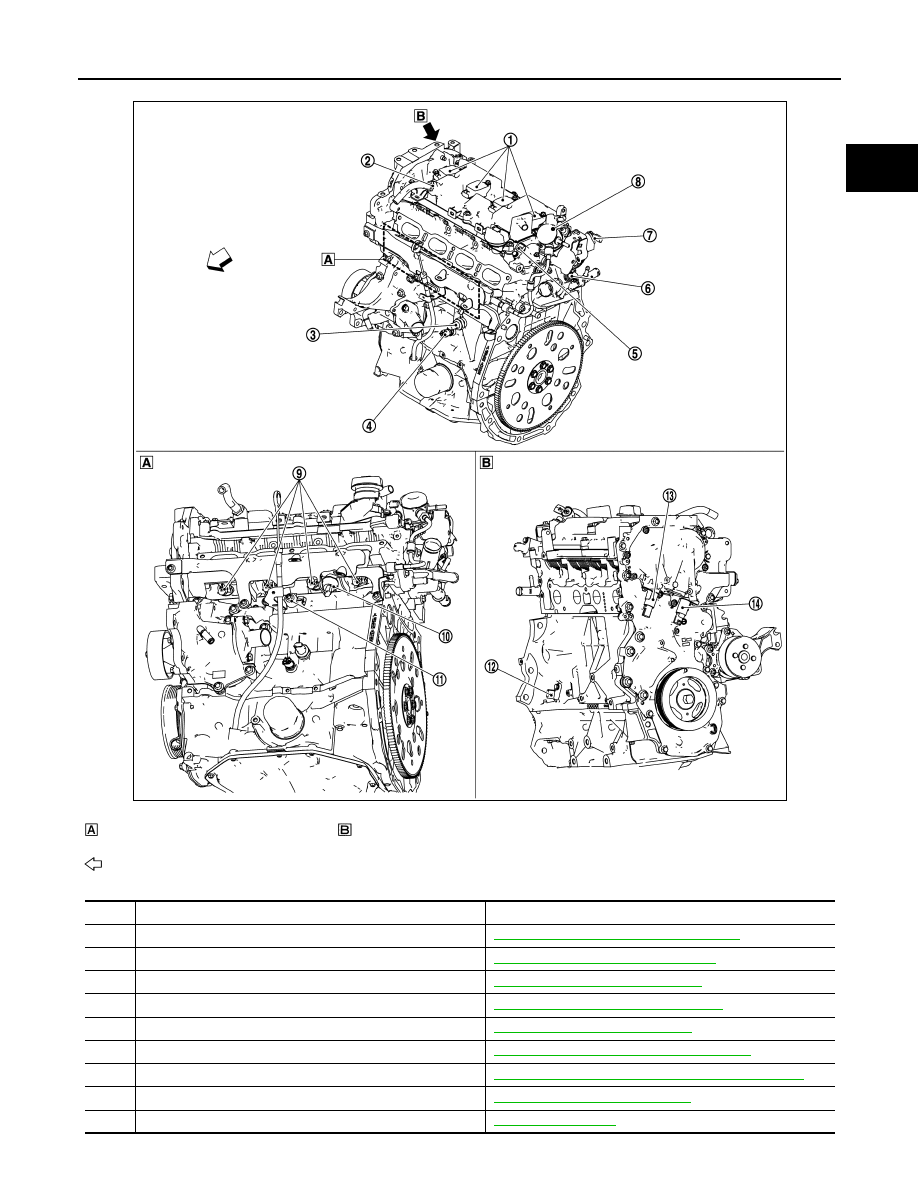

COMPONENT PARTS

EC-29

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

JSBIA4503ZZ

Cylinder block left side
(Vehicle front side)

Cylinder head front side
(Vehicle right side)

: Vehicle front

No.

Component

Function

1.

Ignition coil

EC-33, "Ignition Coil With Power Transistor"

2.

PCV valve

EC-42, "Positive Crankcase Ventilation"

3.

Engine oil pressure sensor

EC-40, "Engine Oil Pressure Sensor"

4.

Engine oil temperature sensor

EC-40, "Engine Oil Temperature Sensor"

5.

Camshaft position sensor

EC-37, "Camshaft Position Sensor"

6.

Engine coolant temperature sensor

EC-36, "Engine Coolant Temperature Sensor"

7.

Exhaust valve timing control position sensor

EC-37, "Exhaust Valve Timing Control Position Sensor"

8.

High pressure fuel pump

EC-34, "High Pressure Fuel Pump"

9.

Fuel injector

EC-34, "Fuel Injector"

EC-30

< SYSTEM DESCRIPTION >

[MR20DD]

COMPONENT PARTS

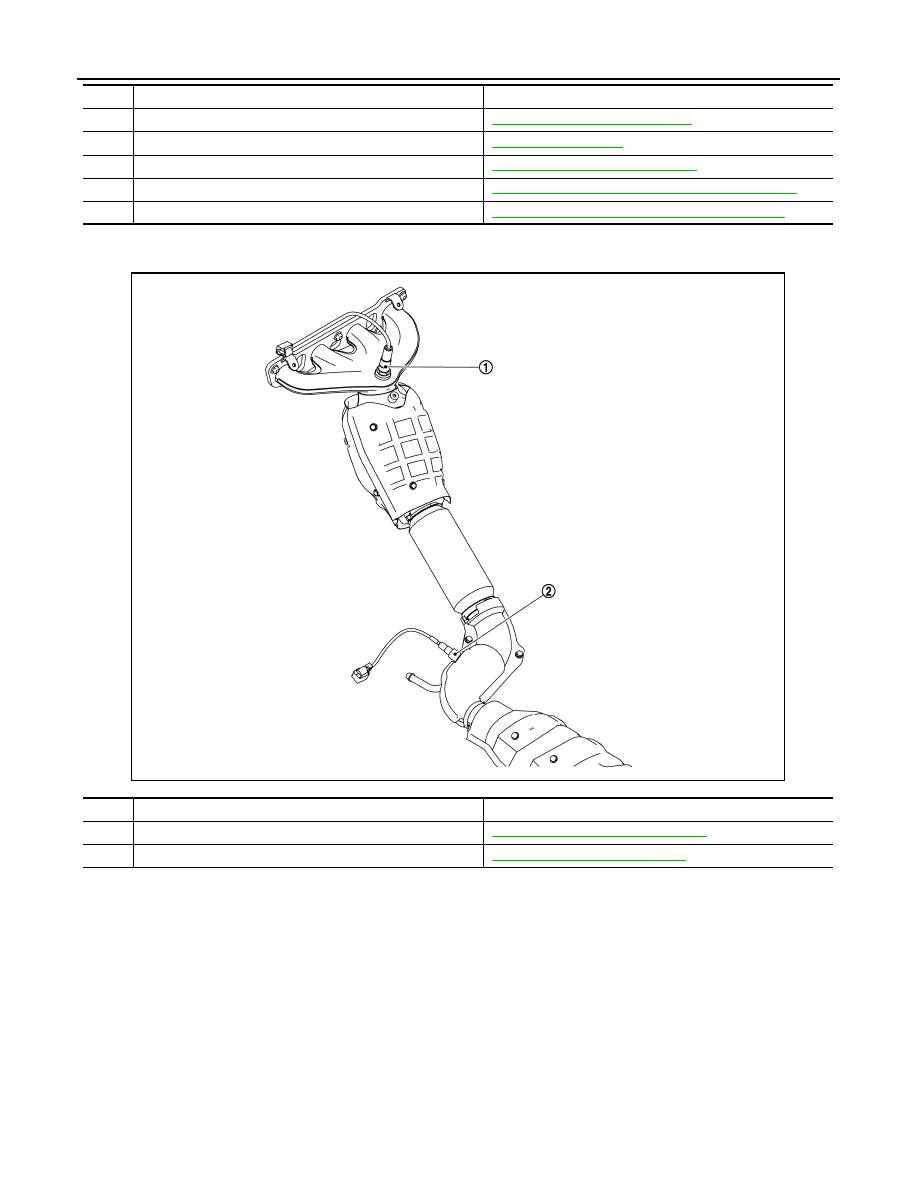

EXHAUST COMPARTMENT

BODY COMPARTMENT

10.

Fuel rail pressure sensor

EC-35, "Fuel Rail Pressure Sensor"

11.

Knock sensor

EC-39, "Knock Sensor"

12.

Crankshaft position sensor

EC-37, "Crankshaft Position Sensor"

13.

Exhaust valve timing control solenoid valve

EC-38, "Exhaust Valve Timing Control Solenoid Valve"

14.

Intake valve timing control solenoid valve

EC-37, "Intake Valve Timing Control Solenoid Valve"

No.

Component

Function

No.

Component

Function

1.

Air fuel ratio (A/F) sensor 1

EC-38, "Air Fuel Ratio (A/F) Sensor 1"

2.

Heated oxygen sensor 2

EC-39, "Heated Oxygen Sensor 2"

JSBIA4504ZZ

COMPONENT PARTS

EC-31

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

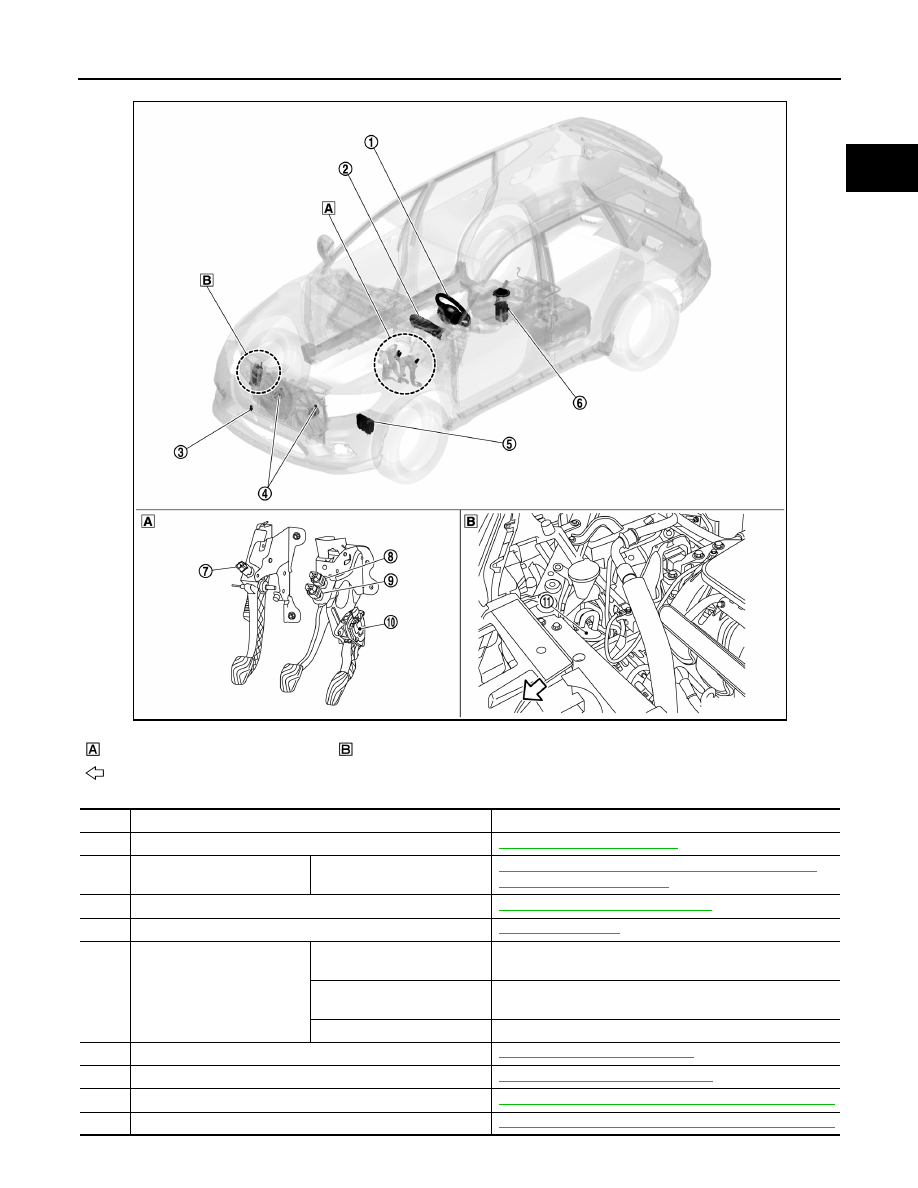

Periphery of pedals

Front right side of engine room area

Vehicle front

No.

Component

Function

1.

ASCD steering switch

EC-41, "ASCD Steering Switch"

2.

Combination meter

MIL

MWI-50, "WARNING LAMPS/INDICATOR LAMPS : Mal-
function Indicator Lamp (MIL)"

3.

Refrigent pressure sensor

EC-41, "Refrigerant Pressure Sensor"

4.

Cooling fan motor

EC-40, "Cooling Fan"

5.

Relay box

Cooling fan relay

Controled by IPDM E/R, which receives command from
ECM, energizes cooling fan motor.

Fuel injector relay

Controlled by ECM, energizes fuel injectors through ECM in-
side.

High pressure fuel pump relay

Controlled by ECM, energizes high pressure fuel pump.

6.

Fuel gauge/ fuel filter/ fuel pump ASSY

EC-35, "Low Pressure Fuel Pump"

7.

Clutch pedal position switch

EC-41, "Clutch Pedal Position Switch"

8.

Brake pedal position switch

EC-41, "Stop Lamp Switch and Brake pedal position switch"

9.

Stop lamp switch

EC-41, "Stop Lamp Switch and Brake pedal position switch"

JSBIA5139ZZ

EC-32

< SYSTEM DESCRIPTION >

[MR20DD]

COMPONENT PARTS

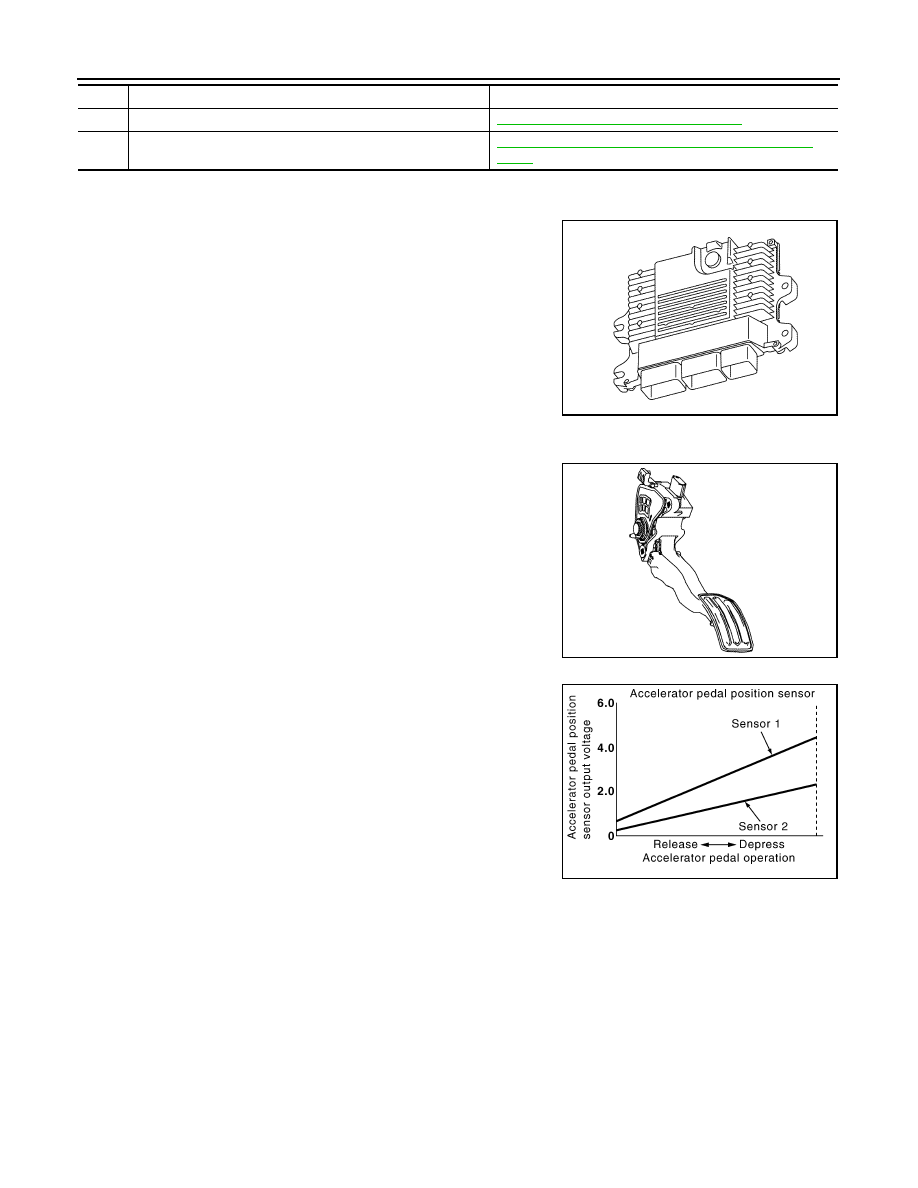

ECM

INFOID:0000000010775004

The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.

Accelerator Pedal Position Sensor

INFOID:0000000010775005

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.

Electric Throttle Control Actuator

INFOID:0000000010775006

Description

10.

Accelerator pedal position sensor

EC-32, "Accelerator Pedal Position Sensor"

11.

EVAP canister

EC-40, "EVAP Canister Purge Volume Control Solenoid
Valve"

No.

Component

Function

JPBIA4618ZZ

JPBIA4615ZZ

PBIB1741E
