DIAGNOSIS AND REPAIR WORK FLOW

DLN-143

< BASIC INSPECTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Other conditions

Memo

Interview sheet

Customer
name

MR/MS

Registration
number

Initial year
registration

Vehicle type

VIN

Storage date

Engine

Mileage

km (Mile)

DLN-144

< BASIC INSPECTION >

[TRANSFER: TY30A]

ADDITIONAL SERVICE WHEN REPLACING 4WD CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING 4WD CONTROL UNIT

Description

INFOID:0000000011003993

When replacing 4WD control unit, unit characteristics writing is required.

Work Procedure

INFOID:0000000011003994

1.

PERFORM WRITING UNIT CHARACTERISTICS

Perform writing unit characteristics of electric controlled coupling.

>> Refer to

DLN-145, "Work Procedure"

.

UNIT CHARACTERISTICS WRITING

DLN-145

< BASIC INSPECTION >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT CHARACTERISTICS WRITING

Description

INFOID:0000000011003995

When replacing 4WD control unit, rear final drive assembly and/or electric controlled coupling, unit character-
istics of electric controlled coupling writing is required.

Work Procedure

INFOID:0000000011003996

1.

UNIT CHARACTERISTICS WRITING

With CONSULT

1.

Confirm the unit characteristics of electric controlled coupling.
NOTE:
Unit characteristics is 12-digit alphanumeric.

2.

Turn the ignition switch OFF to ON.

3.

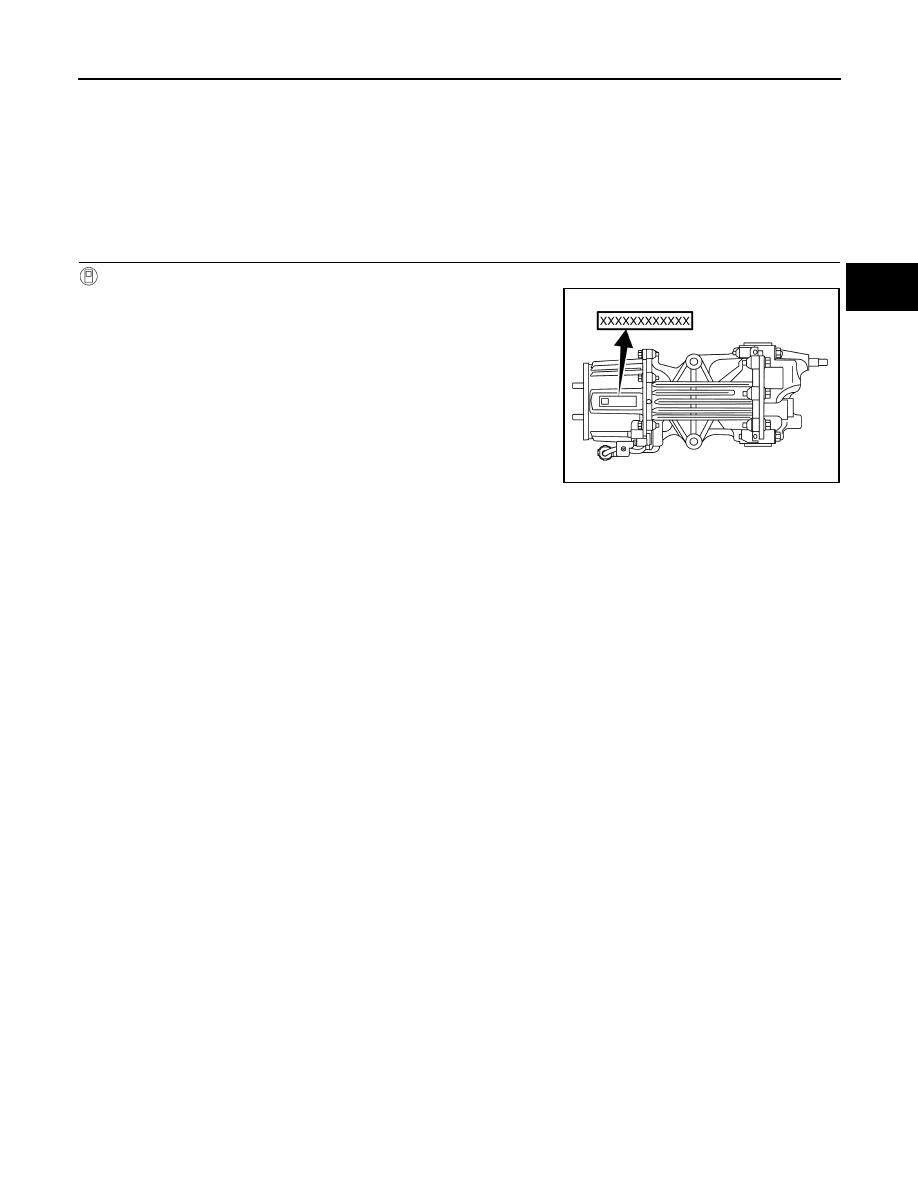

Select “UNIT CHARACTERISTICS WRITE” in “WORK SUP-
PORT” for “ALL MODE AWD/4WD”.

4.

Input unit characteristics.

5.

Select “Start”.

6.

Check that “UNIT CHARACTERISTICS WRITE COMPLETED”
is displayed.

>> WORK END

JSDIA5446ZZ

DLN-146

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TY30A]

C1201 4WD CONTROL UNIT

DTC/CIRCUIT DIAGNOSIS

C1201 4WD CONTROL UNIT

DTC Description

INFOID:0000000011003997

DTC DETECTION LOGIC

POSSIBLE CAUSE

Internal malfunction of 4WD control unit

FAIL-SAFE

4WD control changes to front-wheel drive immediately, then 4WD control stops, and the vehicle becomes
front-wheel drive.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If “DTC CONFIRMATION PROCEDURE” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.

>> GO TO 2.

2.

DTC REPRODUCTION PROCEDURE

With CONSULT

1.

Turn the ignition switch OFF to ON.

2.

Perform self-diagnosis for “ALL MODE AWD/4WD”.

Is DTC “C1201” detected?

YES

>> Proceed to diagnosis procedure. Refer to

DLN-146, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000011003998

1.

PERFORM SELF-DIAGNOSIS

With CONSULT

1.

Erase self-diagnostic results for “ALL MODE AWD/4WD”.

2.

Turn the ignition switch OFF, and then wait 10 seconds or more.

3.

Perform self-diagnosis for “ALL MODE AWD/4WD”.

Is DTC “C1201” detected?

YES

>> Replace 4WD control unit. Refer to

DLN-179, "Removal and Installation"

.

NO

>> Check 4WD control unit pin terminals for damage or loose connection with harness connector. If

any items are damaged, repair or replace error-detected parts.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

C1201

CONTROLLER FAILURE
(Control unit failure)

Malfunction has occurred inside 4WD control unit.
