PREPARATION

DLN-11

< PREPARATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

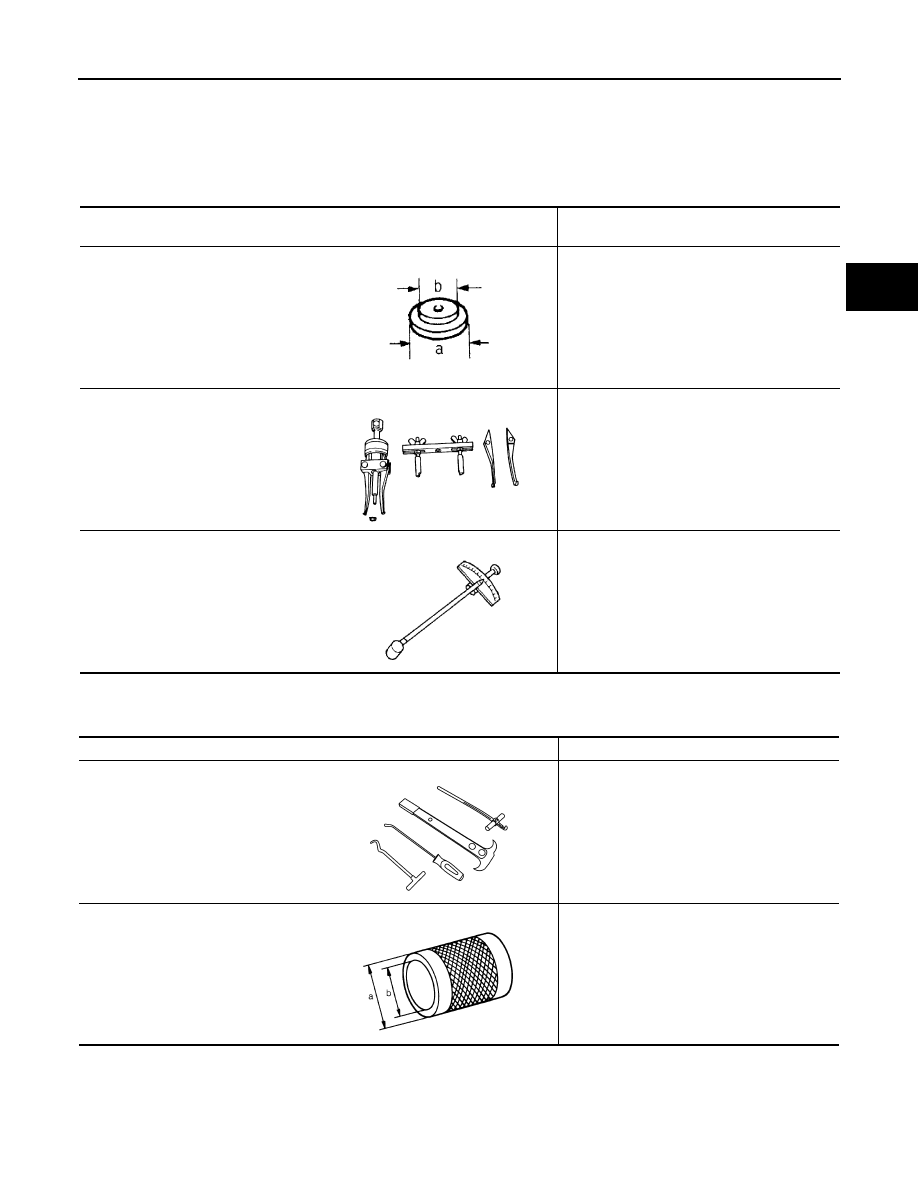

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010991950

Commercial Service Tool

INFOID:0000000010991951

Tool number
Tool name

Description

ST33061000
Drift
a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.

Removing gear ring bearing inner race (trans-
fer case side)

KV381054S0
Puller

Removing ring gear shaft oil seal

ST3127S000
Preload gauge

Measuring preload torque

ZZA0810D

ZZA0601D

ZZA0503D

Tool name

Description

Oil seal remover

Removing transfer cover oil seal (outer/inner)

Drift
a: 52 mm (2.05 in) dia.
b: 44 mm (1.73 in) dia.

Removing ring gear bearing inner race (trans-
fer cover side)

JSDIA4998ZZ

ZZA1002D

DLN-12

< PREPARATION >

[TRANSFER: TY21C]

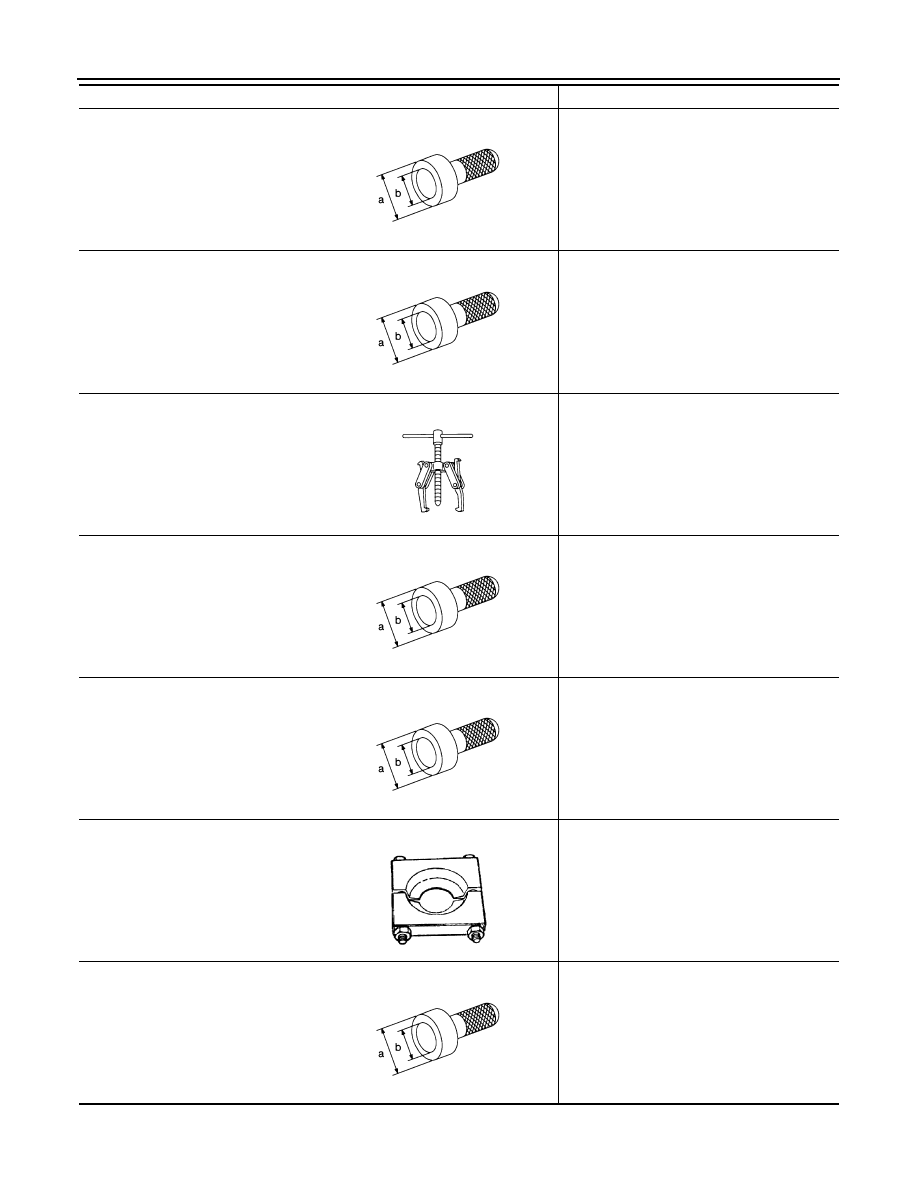

PREPARATION

Drift
a: 56.5 mm (2.224 in) dia.
b: 48 mm (1.89 in) dia.

Installing side oil seal (installing transfer case
oil seal)

Drift
a: 44 mm (1.73 in) dia.
b: 33 mm (1.3 in) dia.

Installing ring gear shaft oil seal

Puller

Removing ring gear bearing (left) inner race
(transfer case side)

Drift
a: 70 mm (2.76 in) dia.
b: 60 mm (2.36 in) dia.

Installing oil seal (installing pinion bearing
seal)

Drift
a: 78 mm (3.07 in) dia.
b: 68 mm (2.68 in) dia.

Installing side oil seal [installing transfer cover
oil seal (outer inner)]

Replacer

• Removing drive pinion
• Removing ring gear bearing (left) inner race

(transfer cover side)

Drift
a: 58 mm (2.28 in) dia.
b: 55 mm (2.17 in) dia.

Installing ring gear bearing (left) inner race
(transfer case side)

Tool name

Description

NT115

NT115

NT077

NT115

NT115

ZZA0700D

NT115

PREPARATION

DLN-13

< PREPARATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

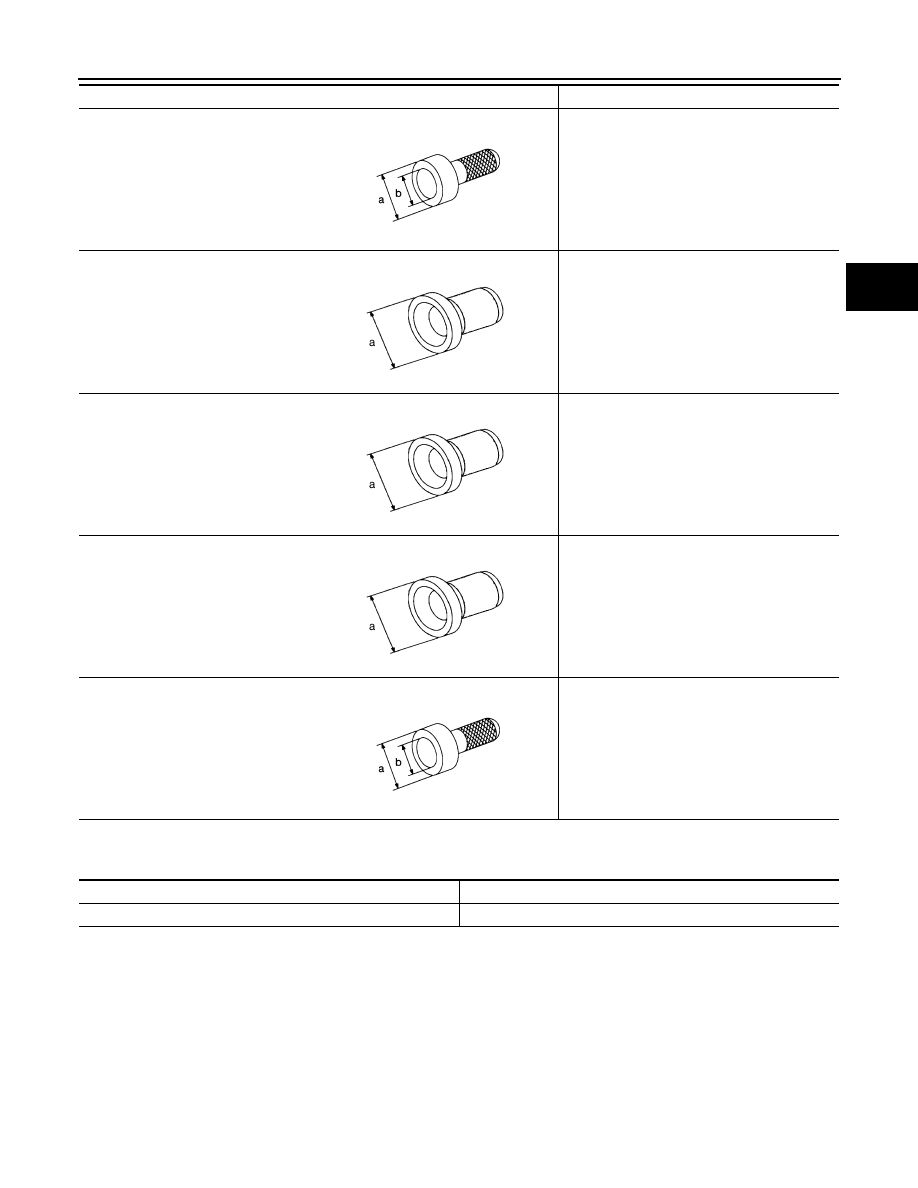

Lubricant or/and Sealant

INFOID:0000000010991952

Drift
a: 62 mm (2.44 in) dia.
b: 58 mm (2.28 in) dia.

Installing ring gear bearing (right) inner race
(transfer cover side)

Drift
a: 73.5 mm (2.894 in) dia.

Installing ring gear bearing (left) outer race
(transfer case side)

Drift
a: 87 mm (3.43 in) dia.

Installing ring gear bearing (right) outer race
(transfer cover side)

Drift
a: 20 mm (0.79 in) dia.

Installing and removing drive pinion

Drift
a: 40 mm (1.57 in) dia.
b: 25 mm (0.98 in) dia.

Installing companion flange

Tool name

Description

NT115

SCIA5338E

SCIA5338E

SCIA5338E

NT115

Item

Use

Red lead or equivalent

Checking tooth contact

DLN-14

< SYSTEM DESCRIPTION >

[TRANSFER: TY21C]

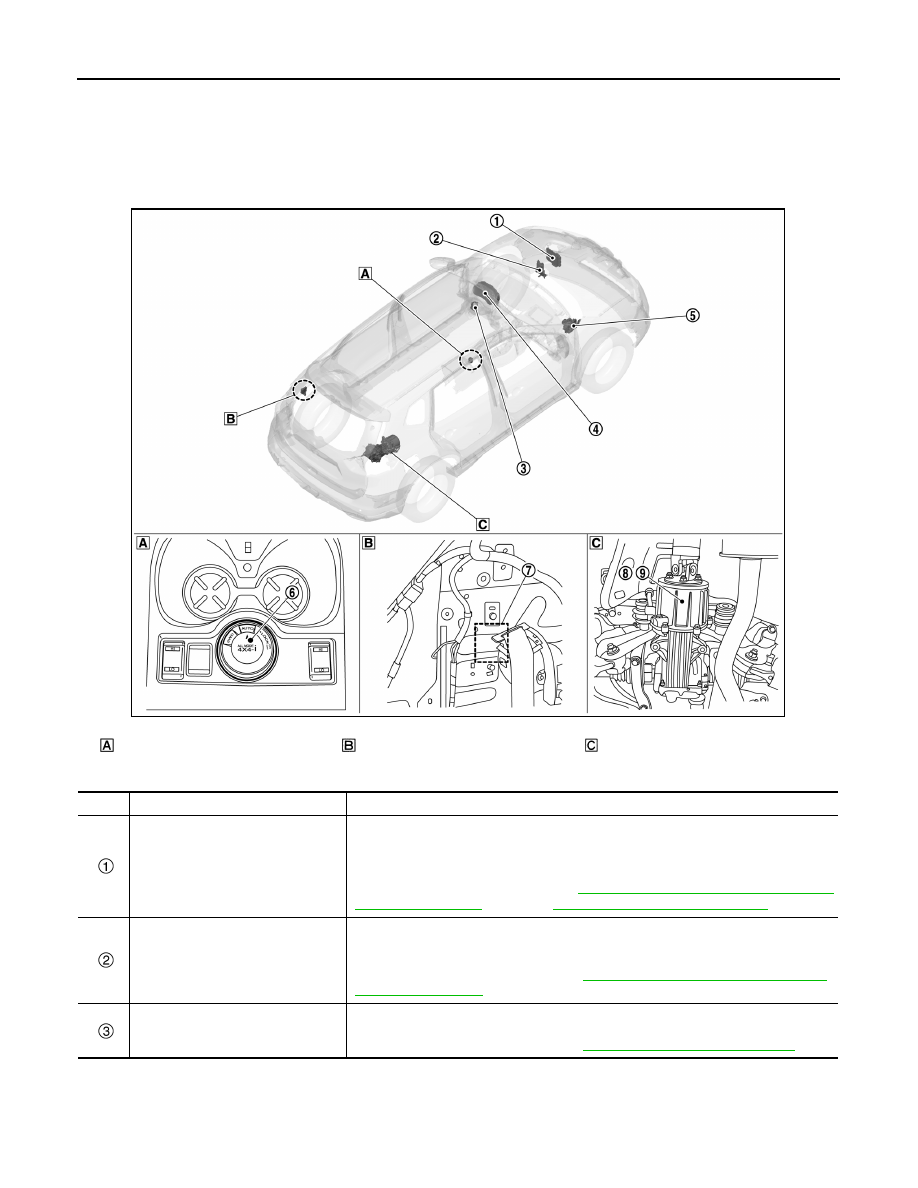

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000010991953

Console switch panel

Rear wheel house outer panel in lug-
gage room of left side

Rear final drive

No.

Component

Function

ECM

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine status signal
For detailed installation location, refer to

EC-28, "ENGINE CONTROL SYSTEM : Com-

ponent Parts Location"

 (MR20DD),

EC-440, "Component Parts Location"

 (QR25DE).

TCM

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Input shaft revolutional signal
• CVT ratio signal
For detailed installation location, refer to

TM-235, "CVT CONTROL SYSTEM : Com-

ponent Parts Location"

.

Steering angle sensor

Mainly transmits the following signals to 4WD control unit via CAN communication.
• Steering angle sensor signal
For detailed installation location, refer to

BRC-14, "Component Parts Location"

.
