HOOD

DLK-873

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove hood lock assembly mounting bolts, and then remove hood lock assembly.

2.

Adjust the surface height of hood assembly according to the specified value by rotating hood bumper rub-
ber.

3.

Loosen hood hinge mounting bolts, and then adjust clearance of hood according to the specified value by
moving the hood assembly.

4.

Tighten hood hinge mounting bolts to the specified torque.

5.

Install hood lock assembly and temporary tighten hood lock
assembly mounting bolts, and then position hood lock assembly

 and engage primary striker

. Check hood lock assembly

and primary striker for looseness.

6.

Move hood lock assembly laterally until the center of primary striker and hood lock assembly are vertical
when viewed from the front.

7.

Tighten hood lock assembly mounting bolts to the specified torque.

8.

After adjusting, check that hood opens and closes normally. Refer to

DLK-911, "HOOD LOCK : Inspec-

tion"

.

HOOD HINGE

HOOD HINGE : Removal and Installation

INFOID:0000000010728621

REMOVAL

1.

Remove hood assembly. Refer to

DLK-870, "HOOD ASSEMBLY : Removal and Installation"

.

2.

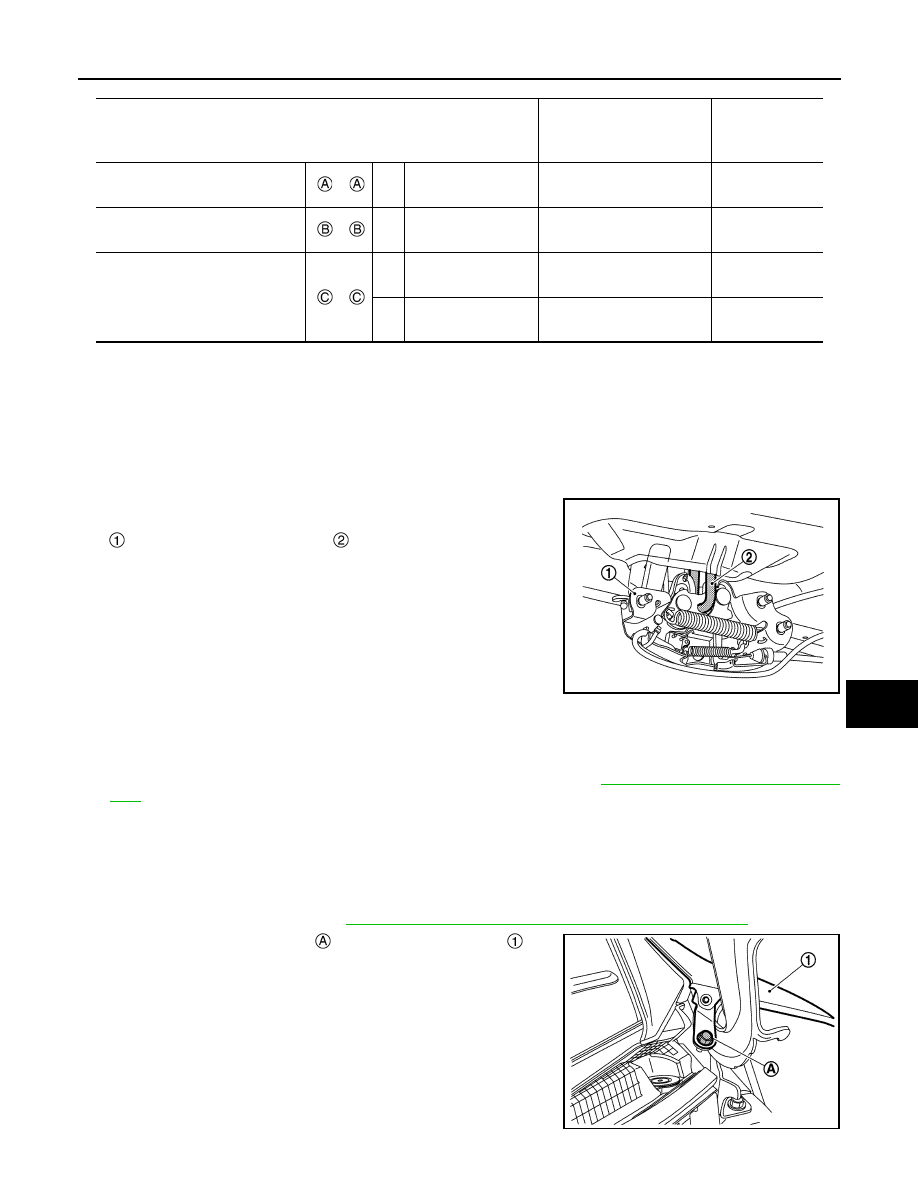

Remove upper mounting bolt

 of front fender assembly

.

Portion

Standard

Difference

(RH/LH,

MAX)

Hood – Front grille

 –

D

Clearance

7.2 – 11.2

[0.283 – 0.441]

Hood –
Front combination lamp

 –

E

Clearance

7.0 – 11.0

[0.276 – 0.433]

Hood – Front fender

 –

F

Clearance

2.5 – 4.5

[0.098 – 0.177]

< 1.4 [0.055]

G

Surface height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

< 1.4 [0.055]

JMKIB3498ZZ

JMKIB2955ZZ

DLK-874

< REMOVAL AND INSTALLATION >

[TYPE 4]

HOOD

3.

Remove hood hinge mounting bolts, and then remove hood hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Before installation of hood hinge, apply anticorrosive agent onto the mounting surface of the hood

hinge.

• After installation, perform hood fitting adjustment. Refer to

DLK-871, "HOOD ASSEMBLY : Adjust-

ment"

.

• Apply touch-up paint to the body color if the paint around the hinge is peeled off during removal.
• After installation, check that hood opens and closes normally. Refer to

DLK-871, "HOOD ASSEMBLY

: Inspection"

.

HOOD SUPPORT ROD

HOOD SUPPORT ROD : Removal and Installation

INFOID:0000000010728622

CAUTION:

2 workers are required to support the hood.

REMOVAL

1.

Support hood assembly with a suitable material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported by the proper material when removing hood
assembly.

2.

Pull hood support rod from grommet and remove it.

INSTALLATION

Install in the reverse order of removal.

RADIATOR CORE SEAL

RADIATOR CORE SEAL : Removal and Installation

INFOID:0000000010728623

REMOVAL

1.

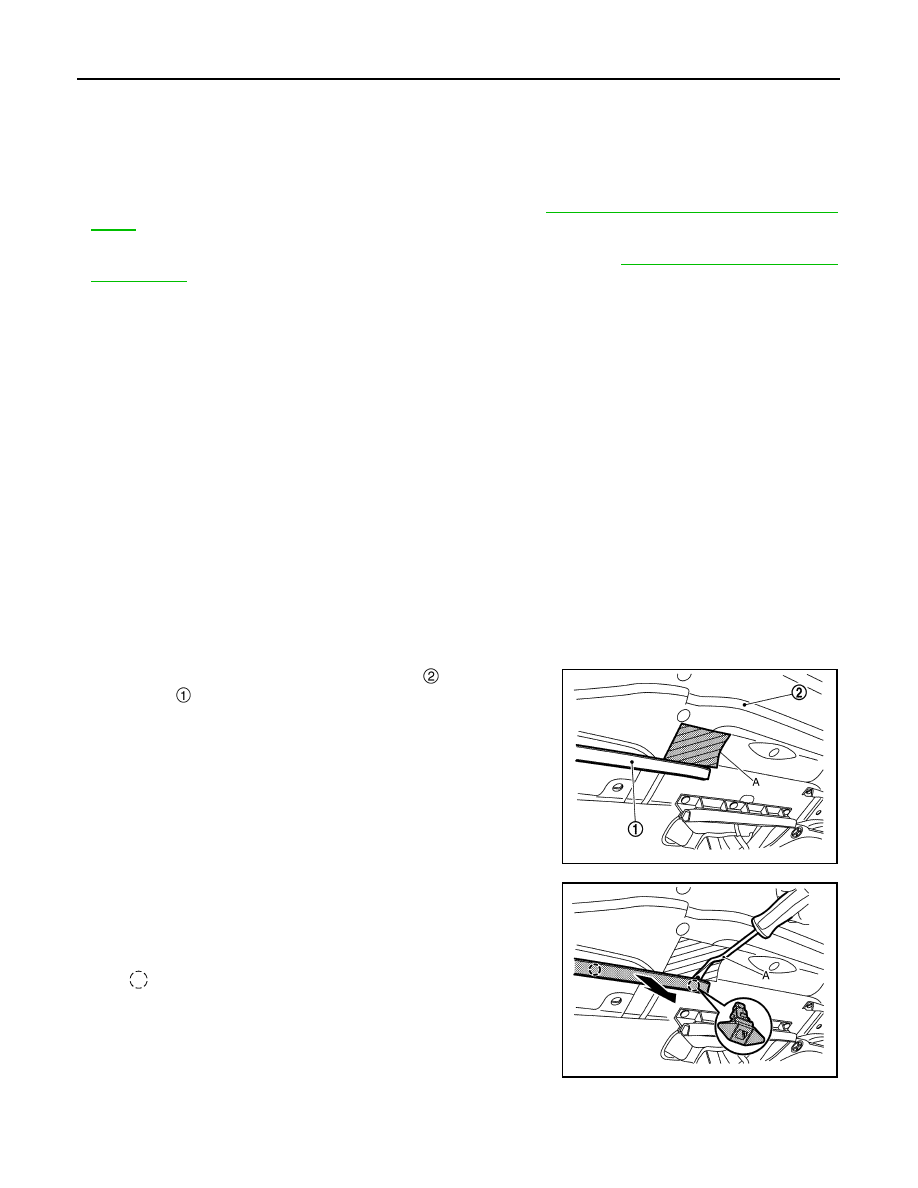

Apply protective tape (A) to hood assembly

 around radiator

core seal

 fixing clips for preventing damage.

2.

Disengage fixing clips on the reverse side of radiator core seal
using a remover tool (A).

CAUTION:

Never damage hood assembly.

3.

Remove radiator core seal from hood assembly.

INSTALLATION

JMKIB2956ZZ

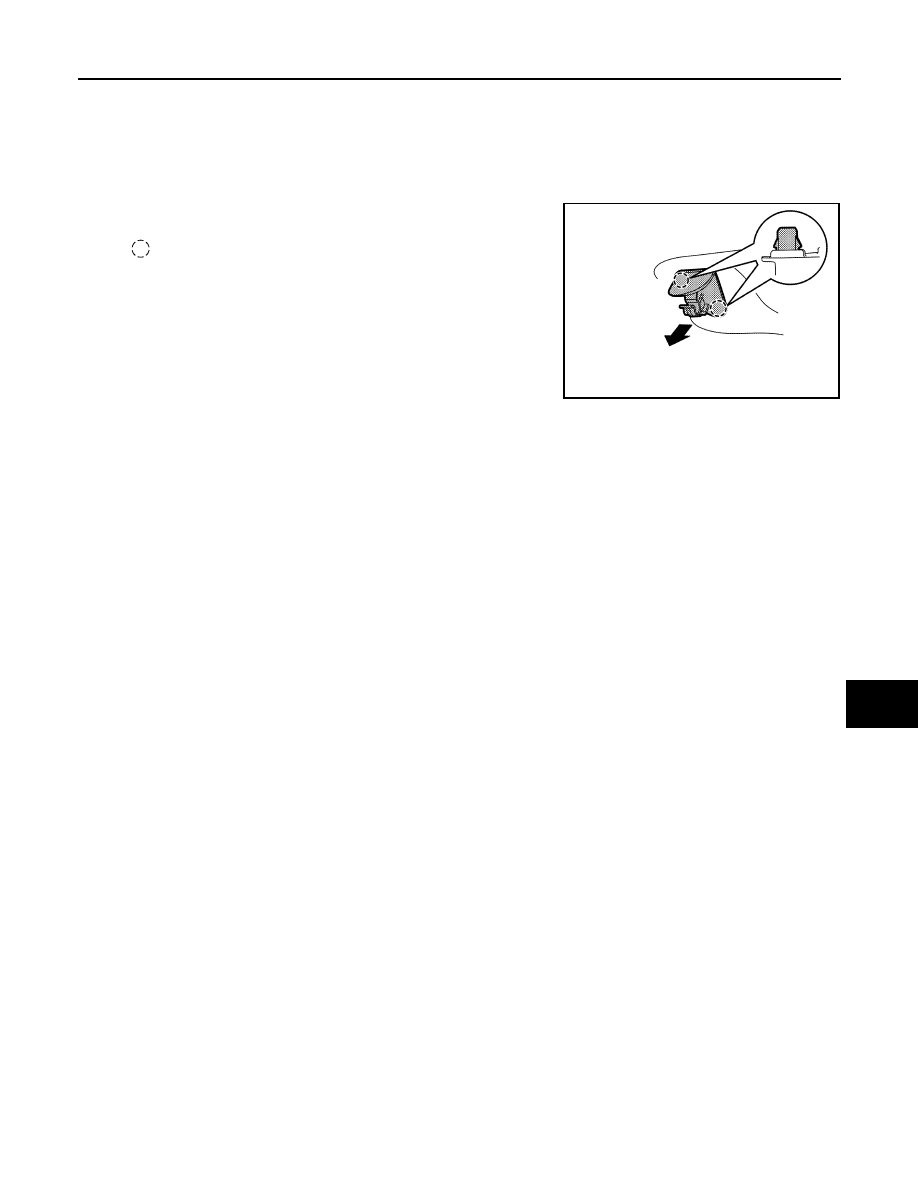

: Clip

JMKIB2957ZZ

HOOD

DLK-875

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Install in the reverse order of removal.

HOOD INSULATOR

HOOD INSULATOR : Removal and Installation

INFOID:0000000010728624

REMOVAL

1.

Remove hood rod clamp from hood assembly.

2.

Remove hood insulator fixing clips, and then remove hood insulator from hood assembly.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMKIB0387ZZ

DLK-876

< REMOVAL AND INSTALLATION >

[TYPE 4]

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

MR20DD

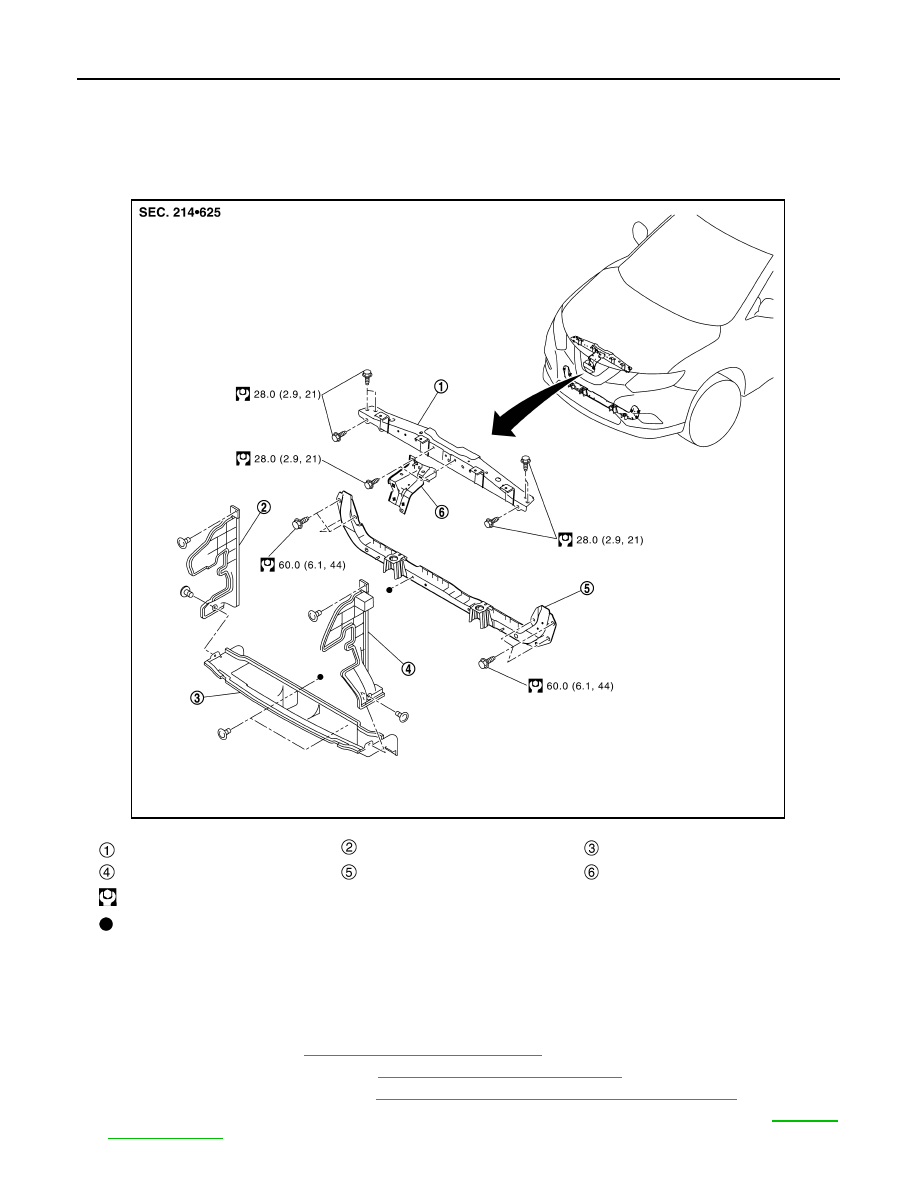

MR20DD : Exploded View

INFOID:0000000010728625

MR20DD : Removal and Installation

INFOID:0000000010728626

RADIATOR CORE SUPPORT UPPER

Removal

1.

Remove air duct 1. Refer to

EM-31, "Removal and Installation"

.

2.

Remove front grille assembly. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove hood lock assembly. Refer to

DLK-910, "HOOD LOCK : Removal and Installation"

.

4.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-910,

"Exploded View"

.

Radiator core support upper

Air guide RH

Air lower guide

Air guide LH

Radiator core support lower

Hood lock support stay

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2691GB
