Nissan X-Trail 32. Manual - part 558

RADIATOR CORE SUPPORT

DLK-573

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove fixing clip

 of engine room harness connector

.

6.

Remove fixing clip

 of engine room harness

 from radiator

core support upper

.

7.

Remove crash zone sensor. Refer to

SR-31, "Removal and Installation"

.

8.

Remove hood lock support stay mounting bolts, and then move hood lock support stay to a location where
it does not inhibit work.

9.

Remove radiator mounting bracket fixing clips. Refer to

CO-17, "Exploded View"

.

10. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

Installation

Install in the reverse order of removal.

RADIATOR CORE SUPPORT LOWER

Removal

1.

Remove front bumper fascia and apron bracket. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove air lower guide fixing clips, and then remove air lower guide.

3.

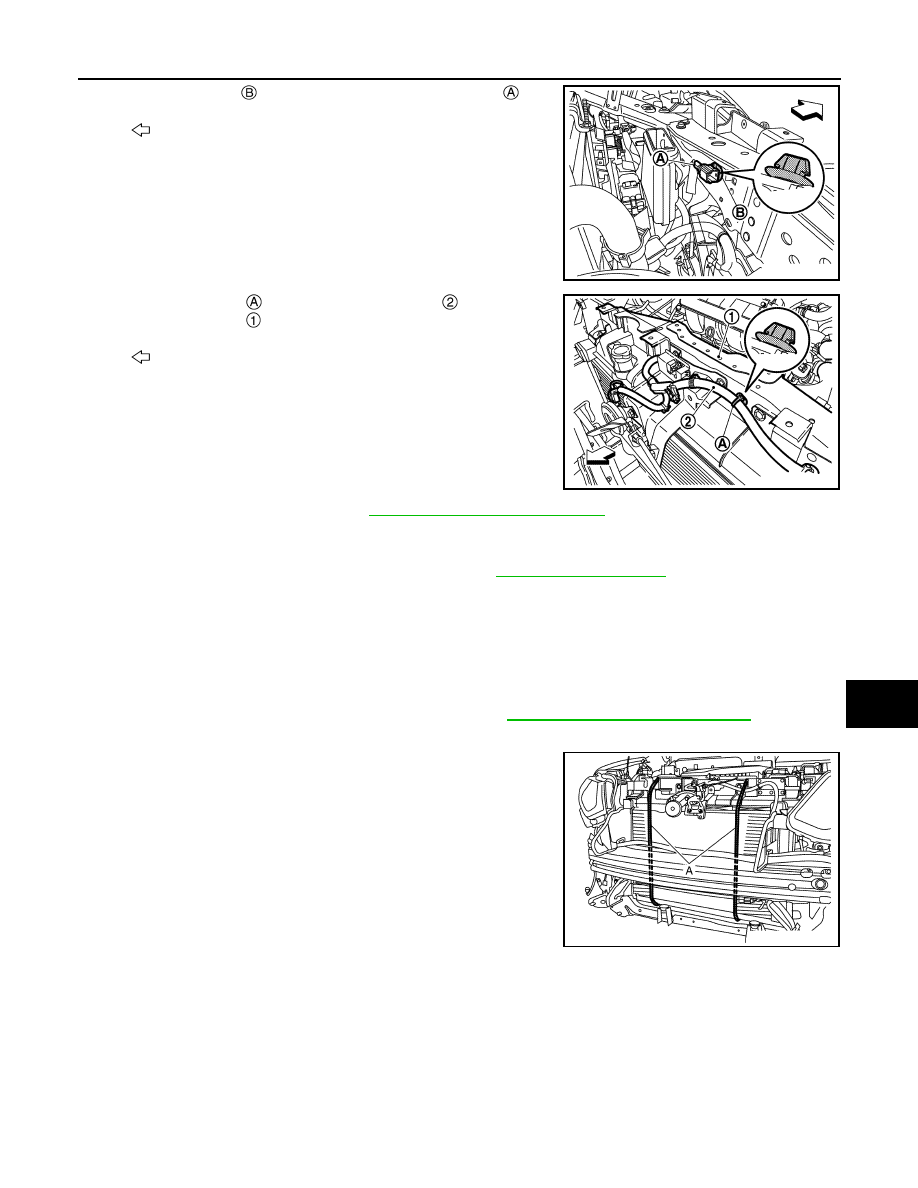

Use belts (A) to suspend radiator and condenser to prevent
them from falling as shown in the figure.

CAUTION:

Never damage radiator and condenser.

4.

Remove radiator core support lower mounting bolts, and then remove radiator core support lower.

Installation

Install in the reverse order of removal.

QR25DE

: Vehicle front

JMKIB3006ZZ

: Vehicle front

JMKIB3005ZZ

JMKIB3007ZZ

DLK-574

< REMOVAL AND INSTALLATION >

[TYPE 2]

RADIATOR CORE SUPPORT

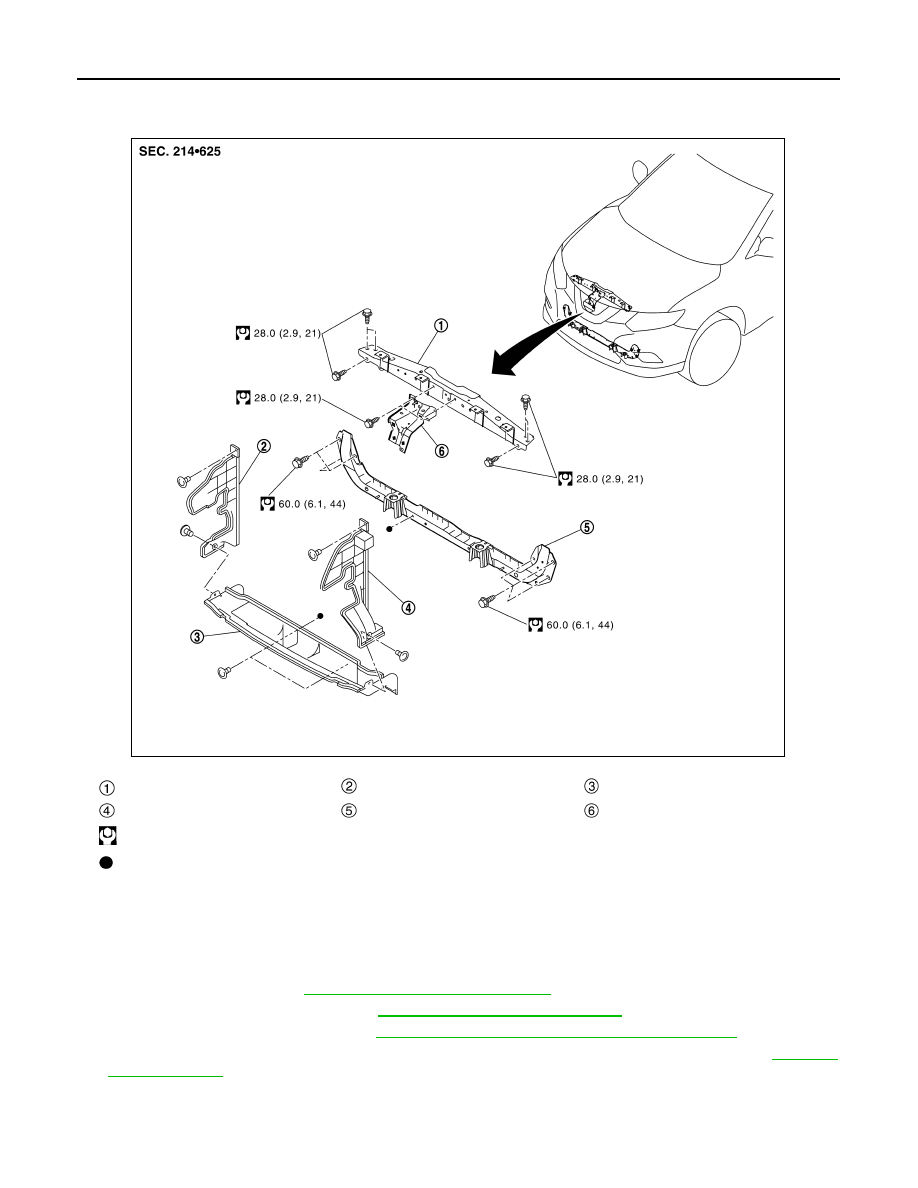

QR25DE : Exploded View

INFOID:0000000010728115

QR25DE : Removal and Installation

INFOID:0000000010728116

RADIATOR CORE SUPPORT UPPER

Removal

1.

Remove air duct 1. Refer to

EM-175, "Removal and Installation"

.

2.

Remove front grille assembly. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove hood lock assembly. Refer to

DLK-605, "HOOD LOCK : Removal and Installation"

.

4.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-605,

"Exploded View"

.

Radiator core support upper

Air guide RH

Air lower guide

Air guide LH

Radiator core support lower

Hood lock support stay

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2691GB

RADIATOR CORE SUPPORT

DLK-575

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove fixing clip

 of engine room harness connector

.

6.

Remove fixing clip

 of engine room harness

 from radiator

core support upper

.

7.

Remove crash zone sensor. Refer to

SR-31, "Removal and Installation"

.

8.

Remove hood lock support stay mounting bolts, and then move hood lock support stay to a location where
it does not inhibit work.

9.

Remove radiator mounting bracket fixing clips. Refer to

CO-43, "Exploded View"

.

10. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

Installation

Install in the reverse order of removal.

RADIATOR CORE SUPPORT LOWER

Removal

1.

Remove front bumper fascia and apron bracket. Refer to

EXT-15, "Removal and Installation"

.

2.

Remove air lower guide fixing clips, and then remove air lower guide.

3.

Remove CVT fluid cooler lower bracket mounting bolt and CVT fluid cooler tube bracket mounting bolts (if
equipped). Refer to

TM-441, "QR25DE : Exploded View"

.

4.

Use belts (A) to suspend radiator and condenser to prevent
them from falling as shown in the figure.

CAUTION:

Never damage radiator and condenser.

5.

Remove radiator core support lower mounting bolts, and then remove radiator core support lower.

Installation

Install in the reverse order of removal.

R9M

: Vehicle front

JMKIB3006ZZ

: Vehicle front

JMKIB3005ZZ

JMKIB3007ZZ

DLK-576

< REMOVAL AND INSTALLATION >

[TYPE 2]

RADIATOR CORE SUPPORT

R9M : Exploded View

INFOID:0000000010728117

R9M : Removal and Installation

INFOID:0000000010728118

RADIATOR CORE SUPPORT UPPER

Removal

1.

Remove air duct 1. Refer to

EM-308, "Removal and Installation"

.

2.

Remove front grille assembly. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove hood lock assembly. Refer to

DLK-605, "HOOD LOCK : Removal and Installation"

.

4.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-605,

"Exploded View"

.

Radiator core support upper

Air guide RH

Air lower guide

Air guide LH

Radiator core support lower

Hood lock support stay

: N·m (kg-m, ft-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3660GB
