AUTOMATIC BACK DOOR SYSTEM

DLK-413

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

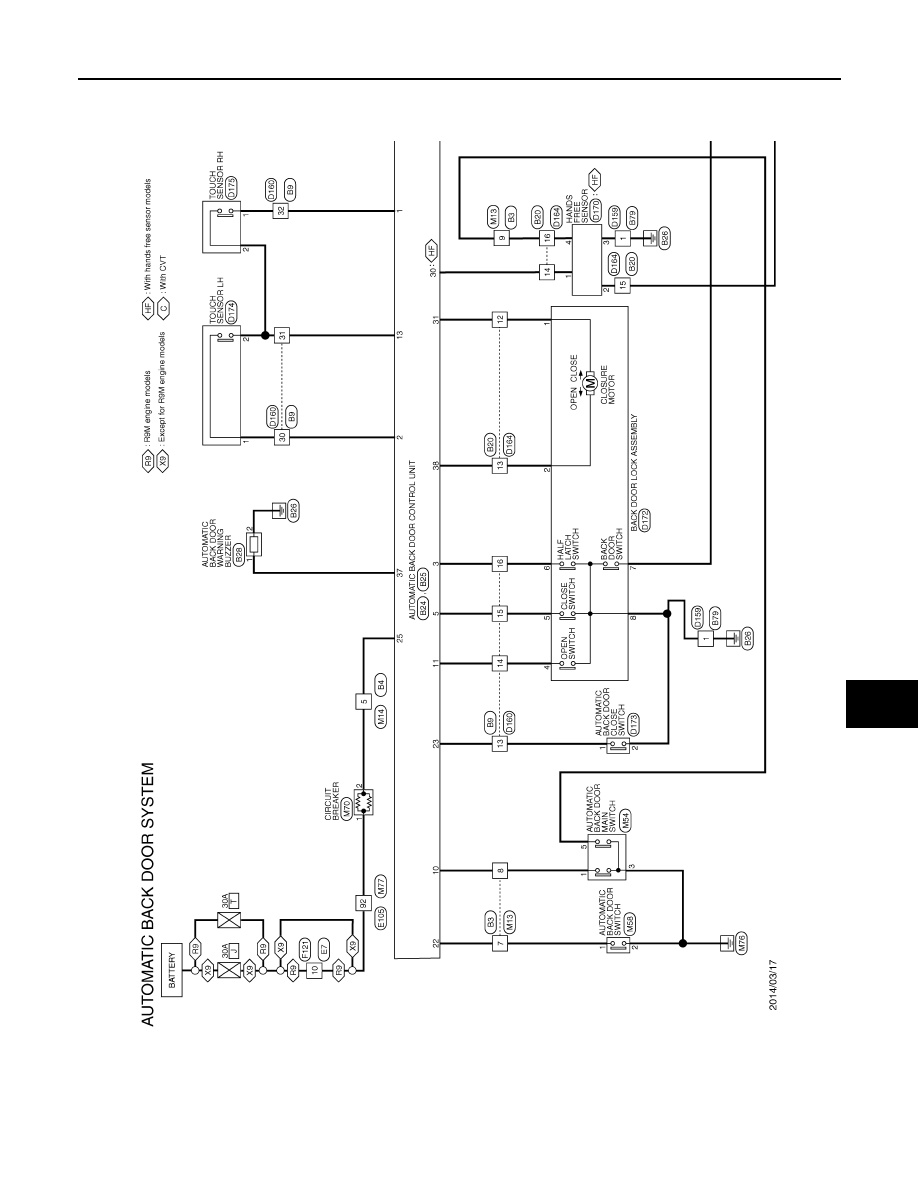

AUTOMATIC BACK DOOR SYSTEM

Wiring Diagram

INFOID:0000000010717469

JRKWD4432GB

DLK-414

< WIRING DIAGRAM >

[TYPE 2]

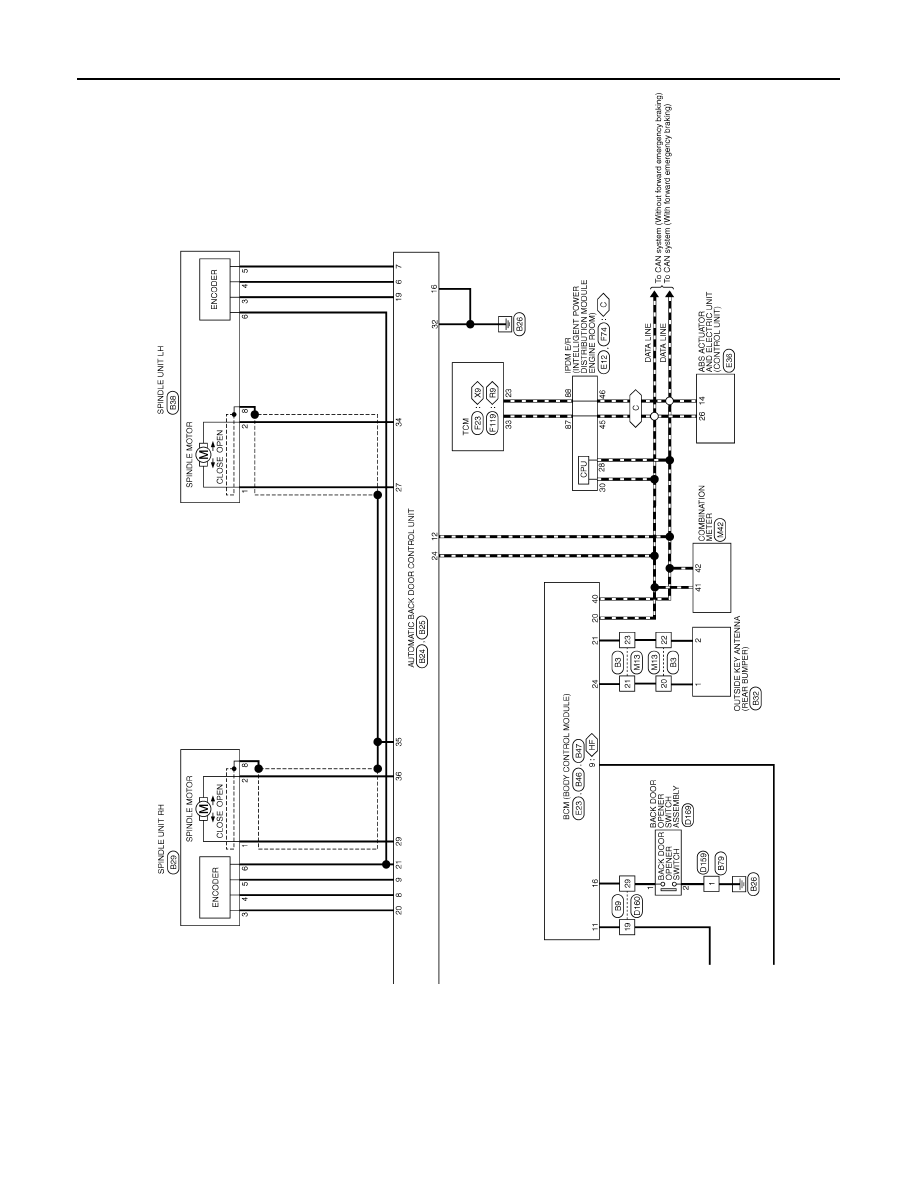

AUTOMATIC BACK DOOR SYSTEM

JRKWD4433GB

AUTOMATIC BACK DOOR SYSTEM

DLK-415

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

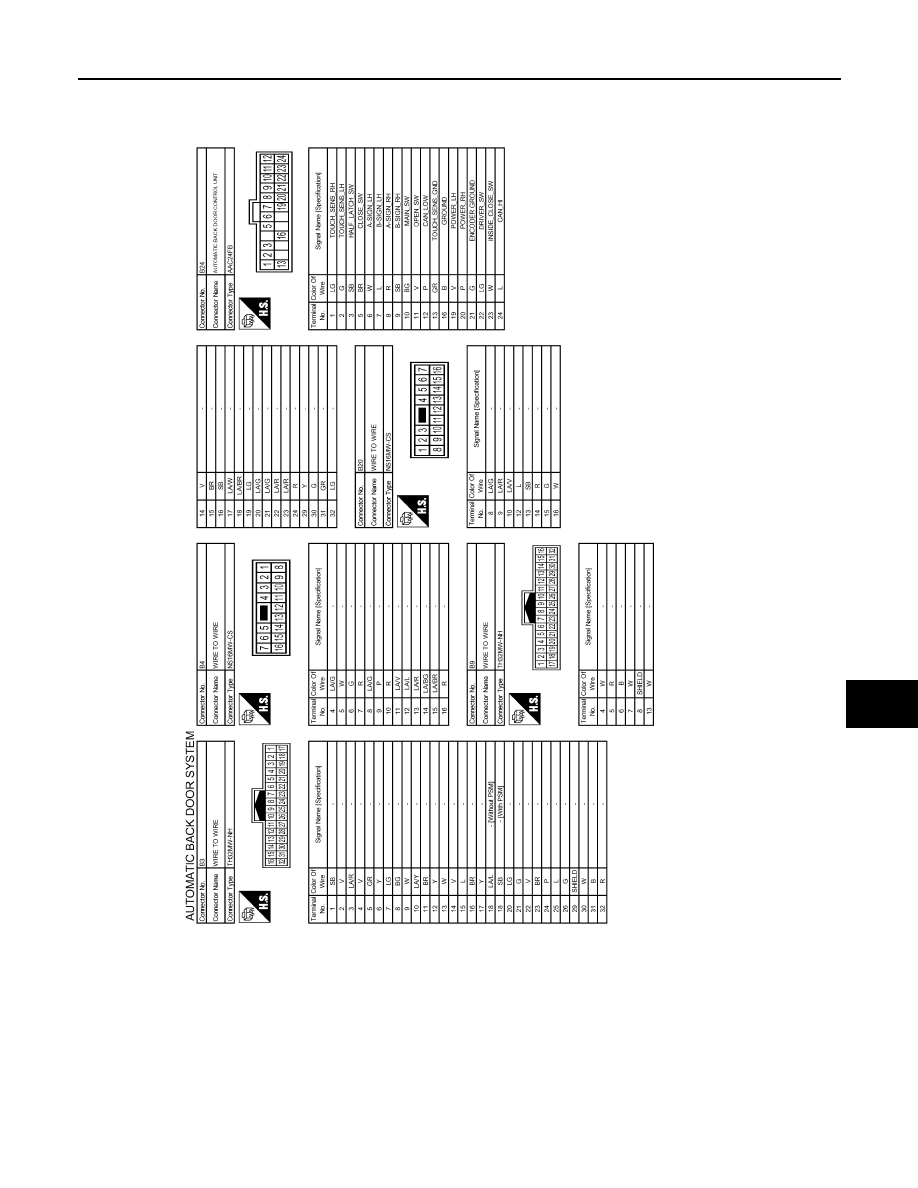

JRKWD4434GB

DLK-416

< WIRING DIAGRAM >

[TYPE 2]

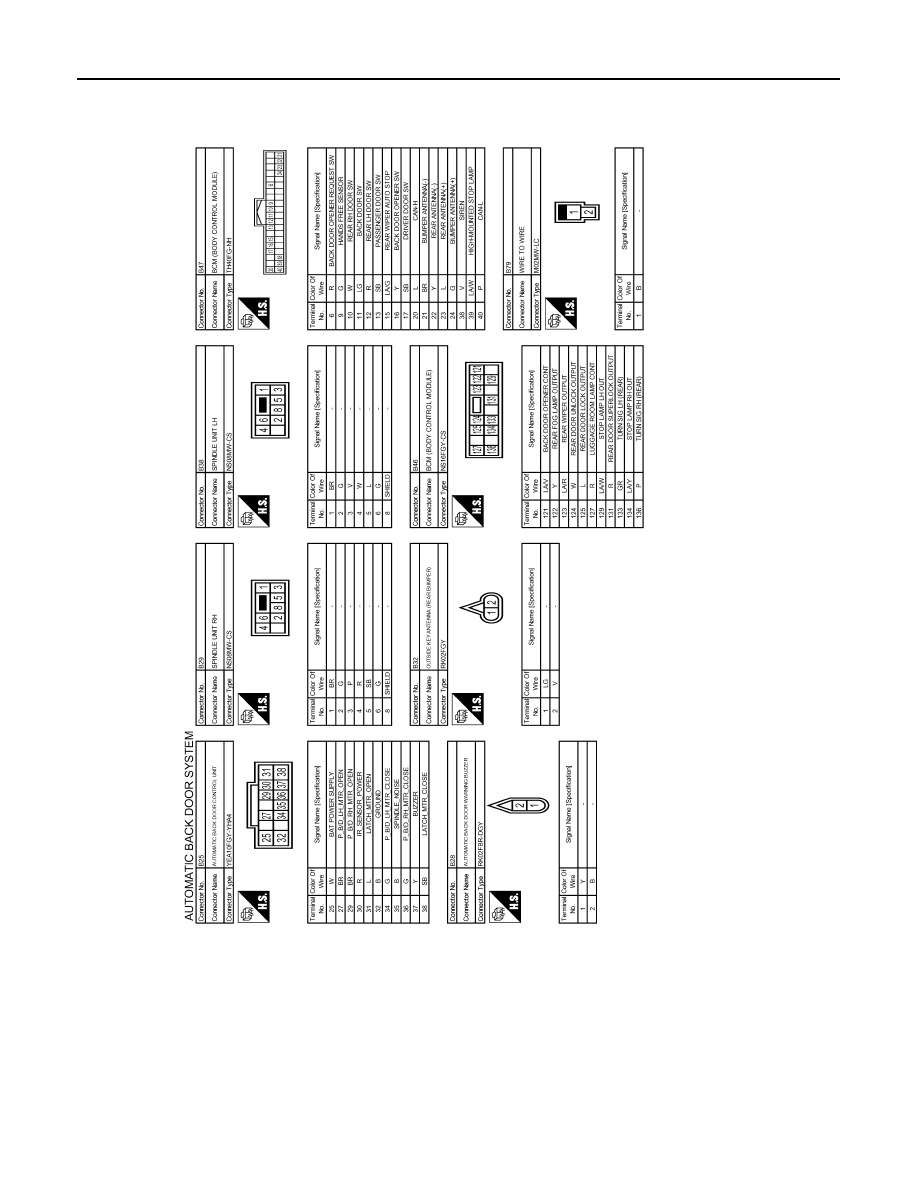

AUTOMATIC BACK DOOR SYSTEM

JRKWD4435GB
