AUTOMATIC BACK DOOR CONTROL UNIT

DLK-397

< ECU DIAGNOSIS INFORMATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fail-safe

INFOID:0000000010717465

32

(B)

Ground

Ground

0 V

34

(G)

Ground

Spindle motor LH
(close)

Output

Spindle motor LH

Auto open opera-
tion

Auto close opera-
tion

13.4 V

35

(B)

Ground

Ground (noise shield)

0 V

36

(G)

Ground

Spindle motor RH
(close)

Output

Spindle motor RH

Auto open opera-
tion

Auto close opera-
tion

13.4 V

37

(Y)

Ground

Automatic back door
warning buzzer

Output

Automatic back
door warning
buzzer

Sounding (auto
open/close oper-
ation)

Not sounding

0 V

38

(SB)

Ground

Back door closure mo-
tor (close)

Output

Back door

Closure opera-
tion

13 V

Other than above

0 V

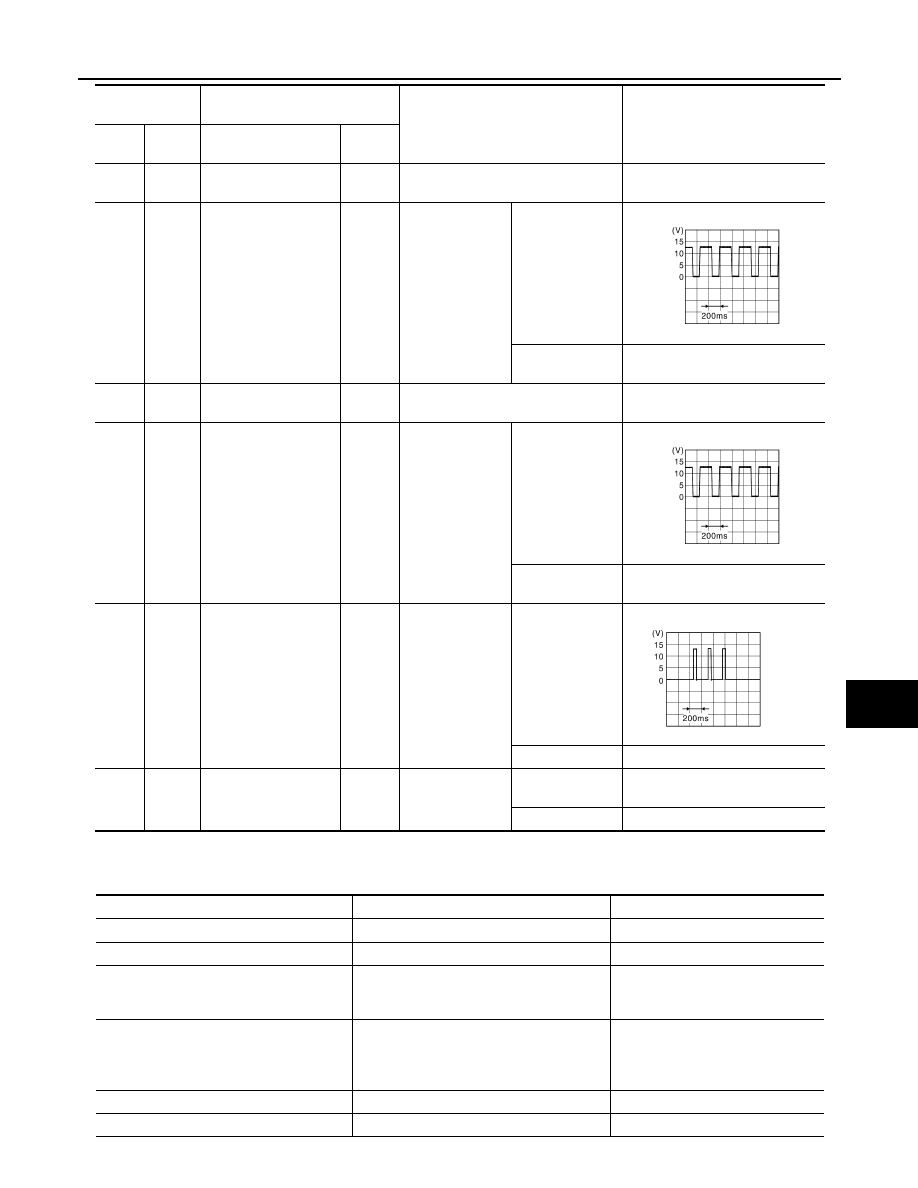

Terminal No.

(Wire color)

Description

Condition

Voltage

(Approx.)

(+)

(–)

Signal name

Input/

Output

JMKIB2776ZZ

JMKIB2776ZZ

JMKIB2777ZZ

Display contents of CONSULT

Fail-safe

Cancellation

U1000 CAN COMM

Inhibit automatic back door operation

Return to normal status

U1010 CONTROL UNIT (CAN)

Inhibit automatic back door operation

Return to normal status

B2401 IGN OPEN

Inhibit automatic back door operation

Automatic back door control unit de-
tects ignition switch ON signal via
CAN communication

B2409 HALF LATCH SW

Inhibit automatic back door operation

Automatic back door control unit de-
tects that half latch switch changes
from ON to OFF when back door ful-
ly closes

B2416 TOUCH SEN R OPEN

Inhibit automatic back door operation

Return to normal status

B2417 TOUCH SEN L OPEN

Inhibit automatic back door operation

Return to normal status

DLK-398

< ECU DIAGNOSIS INFORMATION >

[TYPE 2]

AUTOMATIC BACK DOOR CONTROL UNIT

DTC Inspection Priority Chart

INFOID:0000000010717466

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

DTC Index

INFOID:0000000010717467

NOTE:

Details of time display

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

 ON after returning to the normal condition if the malfunction is detected again.

B2419 OPEN SW

Inhibit automatic back door operation

Reconnect battery

B2420 CLOSE SW

Inhibit automatic back door operation

Reconnect battery

B2422 BACK DOOR STATE

Inhibit automatic back door operation

Half latch switch is ON from OFF

B2423 ABD MTR TIME OUT

Inhibit automatic back door operation

At least 180 seconds are passed af-
ter automatic back door operation is
inhibited

B2426 SPINDLE SENSOR LH

Inhibit automatic back door operation

Return to normal status

B2427 SPINDLE SENSOR RH

Inhibit automatic back door operation

Return to normal status

B2428 AUTO BACK DR CNT UNIT

Inhibit automatic back door operation

Return to normal status

B242A CLSR CONDITION

Inhibit automatic back door operation

Reconnect battery

B242B DETECT SENSOR POWER SUP-
PLY

Hands free sensor power supply: ON

OFF

Reconnect battery

Display contents of CONSULT

Fail-safe

Cancellation

Priority

DTC

1

• B2428 AUTO BK DR CNT UNIT
• U1000 CAN COMM
• U1010 CONTROL UNIT (CAN)
• B2401 IGN OPEN

2

• B2409 HALF LATCH SW
• B2416 TOUCH SEN R OPEN
• B2417 TOUCH SEN L OPEN
• B2419 OPEN SW
• B2420 CLOSE SW
• B2422 BACK DOOR STATE
• B2423 ABD MTR TIME OUT
• B2426 SPINDLE SENSOR LH
• B2427 SPINDLE SENSOR RH
• B242A CLSR CONDITION
• B242B DETECT SENSOR POWER SUPPLY

CONSULT display

Fail-safe

Reference page

U1000: CAN COMM

×

DLK-466

U1010: CONTROL UNIT(CAN)

×

DLK-467

B2401: IGN OPEN

×

DLK-428

B2409: HALF LATCH SW

×

DLK-430

B2416: TOUCH SEN R OPEN

×

DLK-433

B2417: TOUCH SEN L OPEN

×

DLK-436

B2419: OPEN SW

×

DLK-439

B2420: CLOSE SW

×

DLK-442

B2422: BACK DOOR STATE

×

DLK-444

AUTOMATIC BACK DOOR CONTROL UNIT

DLK-399

< ECU DIAGNOSIS INFORMATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

B2423: ABD MTR TIME OUT

×

DLK-447

B2426: SPINDLE SENSOR LH

×

DLK-449

B2427: SPINDLE SENSOR RH

×

DLK-452

B2428: AUTO BACK DR CNT UNIT

×

DLK-455

B242A: CLSR CONDITION

×

DLK-456

B242B: DETECT SENSOR POWER SUPPLY

×

DLK-459

CONSULT display

Fail-safe

Reference page

DLK-400

< WIRING DIAGRAM >

[TYPE 2]

DOOR & LOCK SYSTEM

WIRING DIAGRAM

DOOR & LOCK SYSTEM

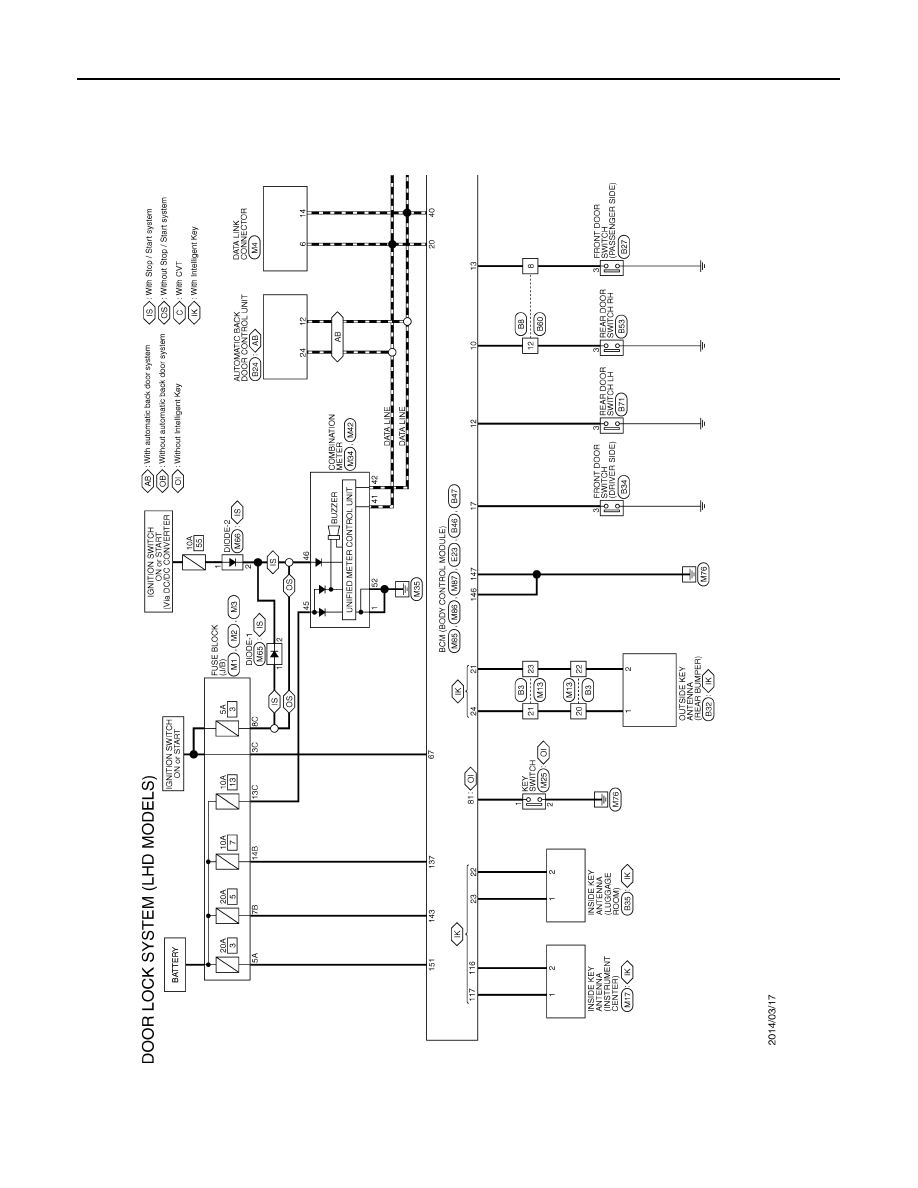

Wiring Diagram

INFOID:0000000010717468

JRKWD4405GB
