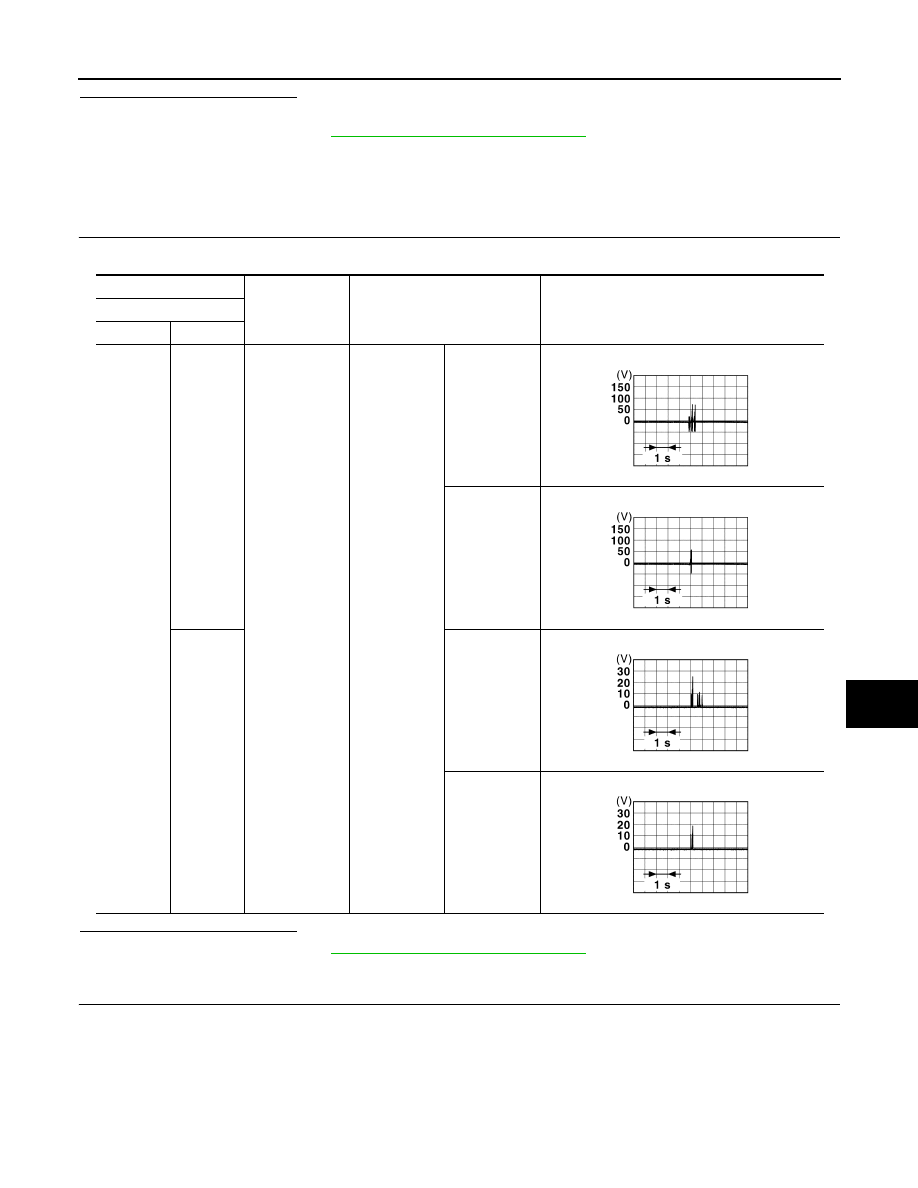

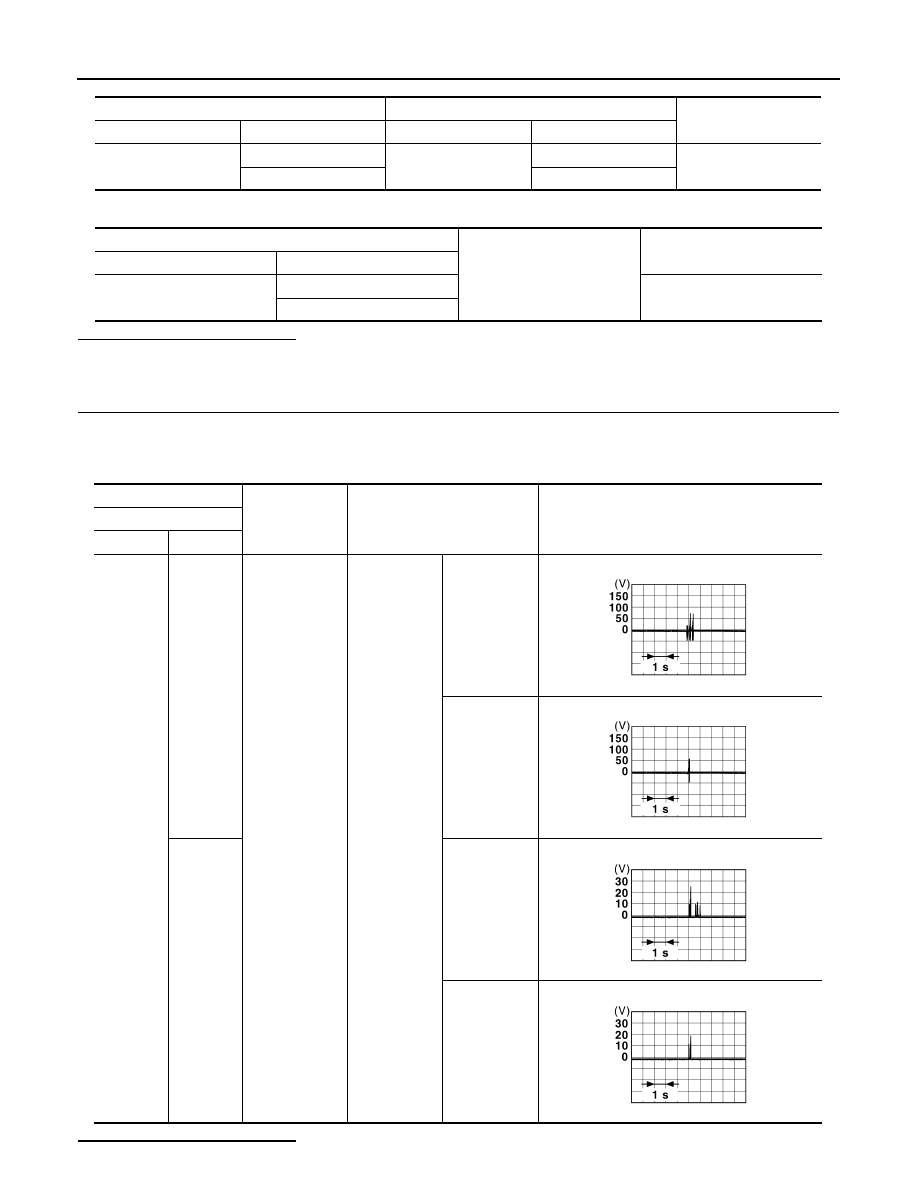

OUTSIDE KEY ANTENNA DLK-201 < DTC/CIRCUIT DIAGNOSIS > [TYPE 1] C D E F G H I J L M A B DLK N O P Is the inspection result normal? YES >> Replace front door outside handle grip. NO >> Replace BCM. Refer to BCS-121, "Removal and Installation" . REAR BUMPER REAR BUMPER : Diagnosis Procedure INFOID:0000000010708172 1. CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1 Check signal between BCM harness connector and ground using oscilloscope. Is the inspection result normal? YES >> Replace BCM. Refer to BCS-121, "Removal and Installation" . NO >> GO TO 2. 2. CHECK OUTSIDE KEY ANTENNA CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM connector and outside key antenna (rear bumper) connector. 3. Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con- (+) (–) Condition Signal (Reference value) BCM Connector Terminal B47 21 Ground Ignition switch Intelligent Key Intelligent Key 24 Intelligent Key Intelligent Key JMMIA1652GB JMMIA1653GB JSMIA1507GB JSMIA1506GB |
