HALF LATCH SWITCH

DLK-189

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace back door lock assembly ground circuit.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Back door lock assembly

Ground

Continuity

 Connector

Terminal

D172

8

Existed

DLK-190

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

HAZARD FUNCTION

HAZARD FUNCTION

Component Function Check

INFOID:0000000010708161

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “FLASHER” in “ACTIVE TEST” mode.

3.

Touch “LH” or “RH” to check that it works normally.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-190, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010708162

1.

CHECK HAZARD OPERATION

Refer to

EXL-36, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EXL-176, "Symptom Table"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

INFORMATION DISPLAY

DLK-191

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INFORMATION DISPLAY

Component Function Check

INFOID:0000000010708163

1.

CHECK FUNCTION

1.

Turn ignition switch ON.

2.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

3.

Select “INDICATOR” in “ACTIVE TEST” mode.

4.

Touch “KEY ON” or “KEY IND” to check that it works normally.

Is the inspection result normal?

YES

>> Information display is OK.

NO

>> Refer to

DLK-191, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010708164

1.

CHECK COMBINATION METER

Refer to

MWI-84, "On Board Diagnosis Function"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

DLK-192

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

INTELLIGENT KEY BATTERY

INTELLIGENT KEY BATTERY

Component Inspection

INFOID:0000000010708165

1.

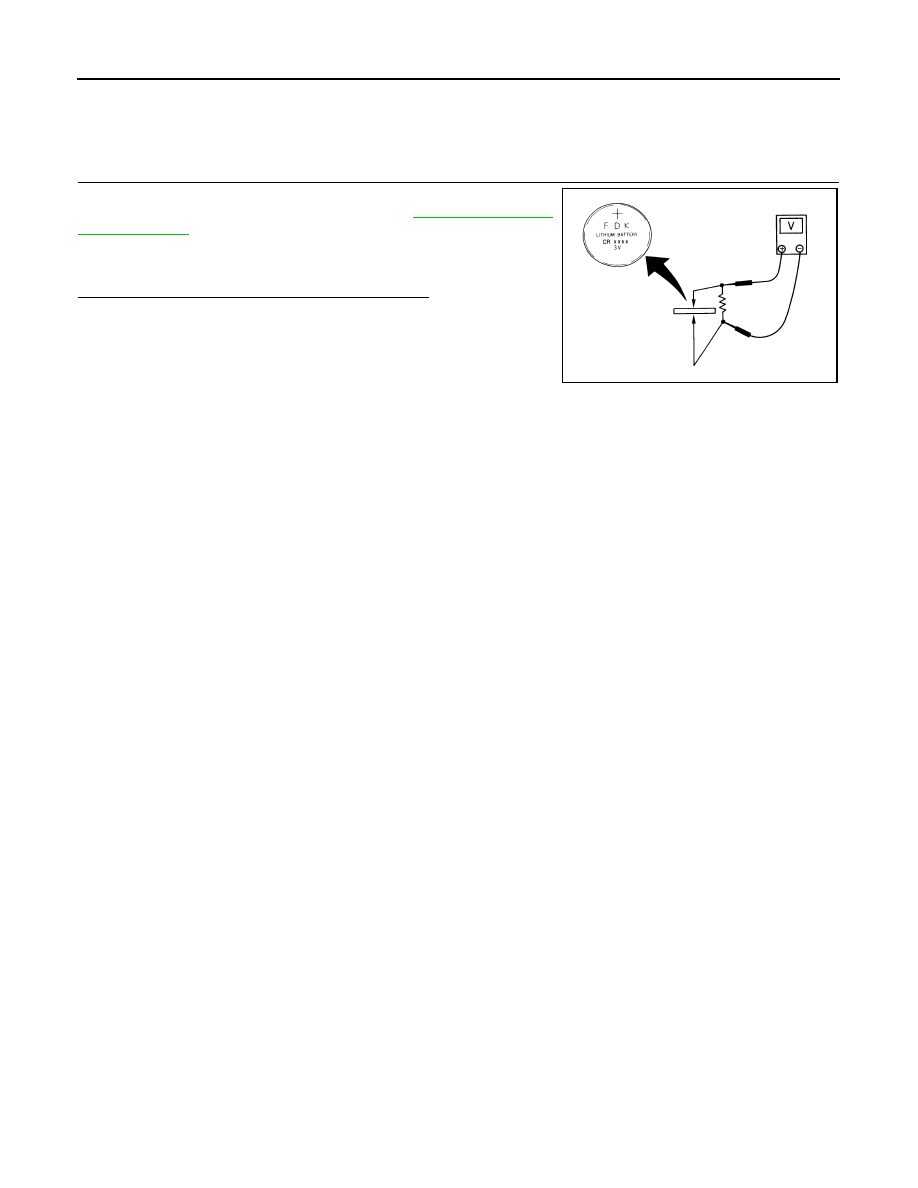

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA. Refer to

DLK-325, "Removal

and Installation"

.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key battery.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D
