Nissan X-Trail 32. Manual - part 453





B2622 INSIDE ANTENNA

DLK-153

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

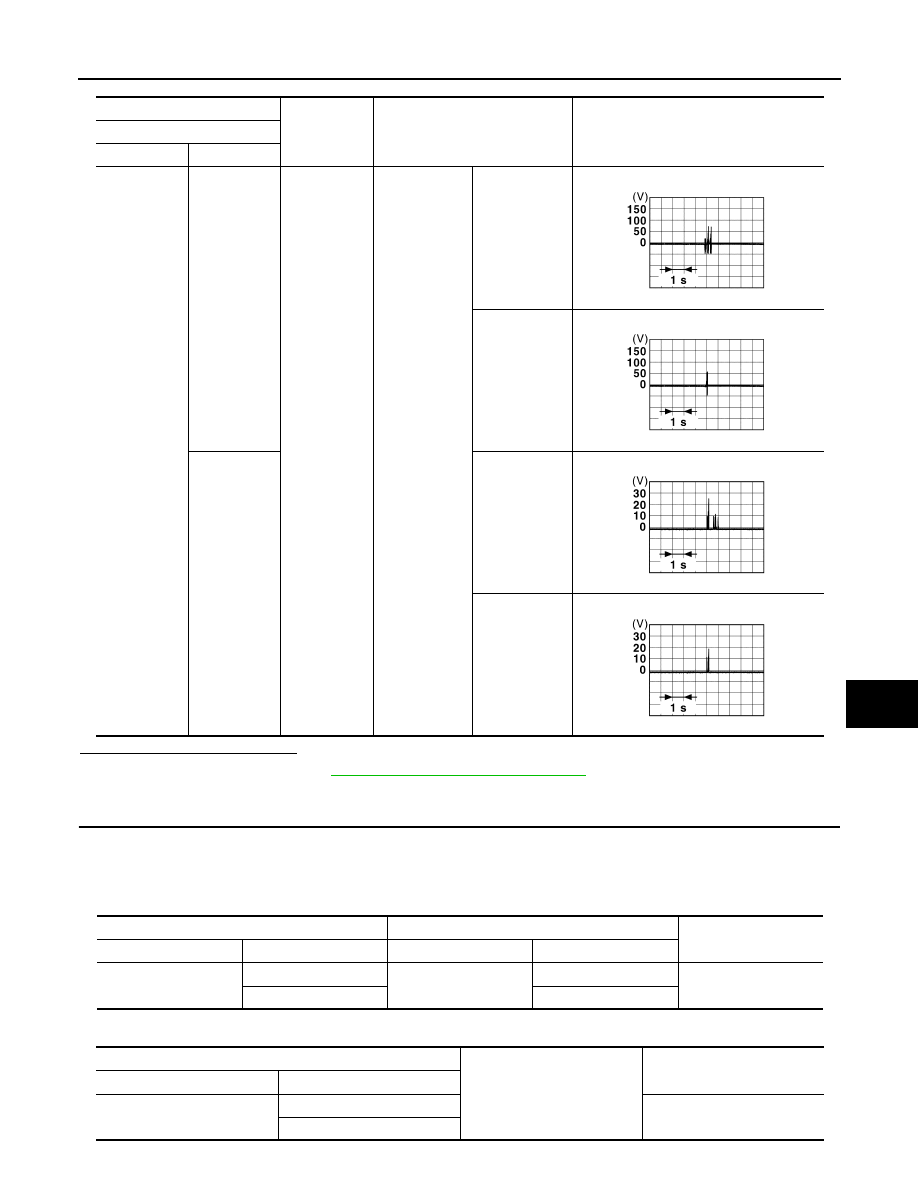

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK INSIDE KEY ANTENNA CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and inside key antenna (luggage room) connector.

3.

Check continuity between BCM harness connector and inside key antenna (luggage room) harness con-
nector.

4.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B47

22

Ground

Ignition switch
ON and any
door is open

When Intelli-
gent Key is not
in the antenna
detection area

When Intelli-
gent Key is in
the antenna
detection area

23

When Intelli-
gent Key is not
in the antenna
detection area

When Intelli-
gent Key is in
the antenna
detection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

BCM

Inside key antenna (luggage room)

Continuity

Connector

Terminal

Connector

Terminal

B47

22

B35

2

Existed

23

1

BCM

Ground

Continuity

Connector

Terminal

B47

22

Not existed

23

DLK-154

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

B2622 INSIDE ANTENNA

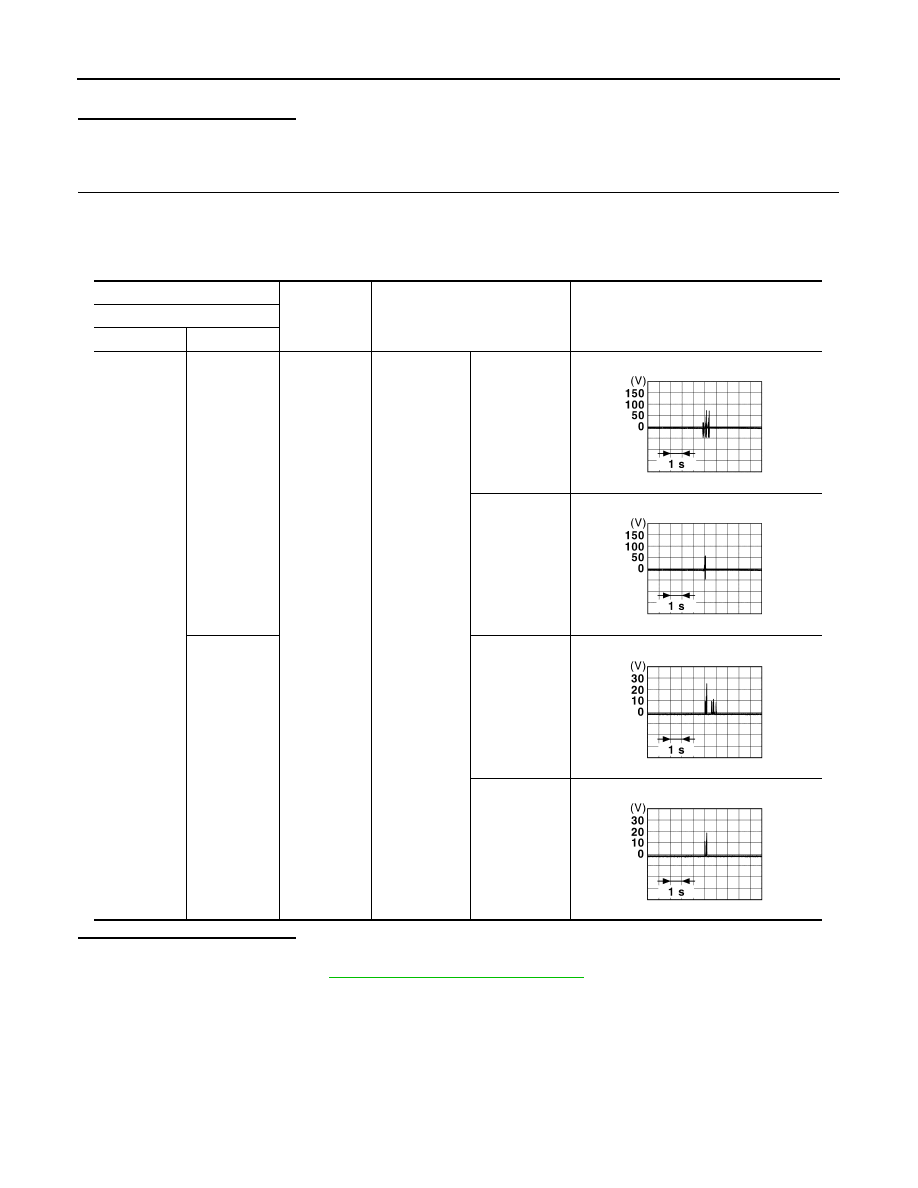

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace inside key antenna (luggage room). (New antenna or other antenna)

2.

Connect BCM connector and inside key antenna (luggage room) connector.

3.

Turn ignition switch ON.

4.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace inside key antenna (luggage room).

NO

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B47

22

Ground

Ignition switch
ON and any
door is open

When Intelli-
gent Key is not
in the antenna
detection area

When Intelli-
gent Key is in
the antenna
detection area

23

When Intelli-
gent Key is not
in the antenna
detection area

When Intelli-
gent Key is in
the antenna
detection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

U1000 CAN COMM CIRCUIT

DLK-155

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

U1000 CAN COMM CIRCUIT

DTC Description

INFOID:0000000010708107

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Modern
vehicle is equipped with many electronic control unit, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-41, "CAN COMMUNICATION SYSTEM : CAN Communica-

tion Signal Chart"

.

DTC DETECTION LOGIC

POSSIBLE CAUSE

CAN communication system

FAIL-SAFE

Inhibit automatic back door operation

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn the ignition switch OFF.

2.

Turn the ignition switch ON and wait for 2 seconds or more.

3.

Check “Self Diagnostic Result” of “AUTO BACK DOOR”.

s DTC “U1000” displayed?

YES

>> Refer to

DLK-155, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010708108

1.

PERFORM SELF DIAGNOSTIC

1.

Turn the ignition switch OFF.

2.

Turn the ignition switch ON and wait for 2 seconds or more.

3.

Check “Self Diagnostic Result” of “AUTO BACK DOOR”.

s DTC “U1000” displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-44, "Intermittent Incident"

.

DTC No.

CONSULT screen items

(Trouble diagnosis content)

DTC detecting condition

U1000

CAN COMM

(CAN communication)

When automatic back door control unit cannot communicate CAN com-
munication signal continuously for 2 seconds or more.

DLK-156

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

DTC Description

INFOID:0000000010708109

DTC DETECTION LOGIC

POSSIBLE CAUSE

Automatic back door control unit

FAIL-SAFE

Inhibit automatic back door operation

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn the ignition switch OFF.

2.

Turn the ignition switch ON and wait for 2 seconds or more.

3.

Check “Self Diagnostic Result” of “AUTO BACK DOOR”.

s DTC “U1000” displayed?

YES

>> Refer to

DLK-156, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010708110

1.

REPLACE AUTOMATIC BACK DOOR CONTROL UNIT

When DTC U1010 is detected, replace automatic back door control unit.

>> Replace automatic back door control unit. Refer to

DLK-327, "Removal and Installation"

.

DTC No.

CONSULT screen items

(Trouble diagnosis content)

DTC detecting condition

U1010

CONTROL UNIT (CAN)

[Control unit (CAN)]

Automatic back door control unit detected internal CAN communica-
tion circuit malfunction
