DOOR & LOCK SYSTEM

DLK-89

< WIRING DIAGRAM >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WIRING DIAGRAM

DOOR & LOCK SYSTEM

Wiring Diagram

INFOID:0000000010708066

JRKWD4418GB

DLK-90

< WIRING DIAGRAM >

[TYPE 1]

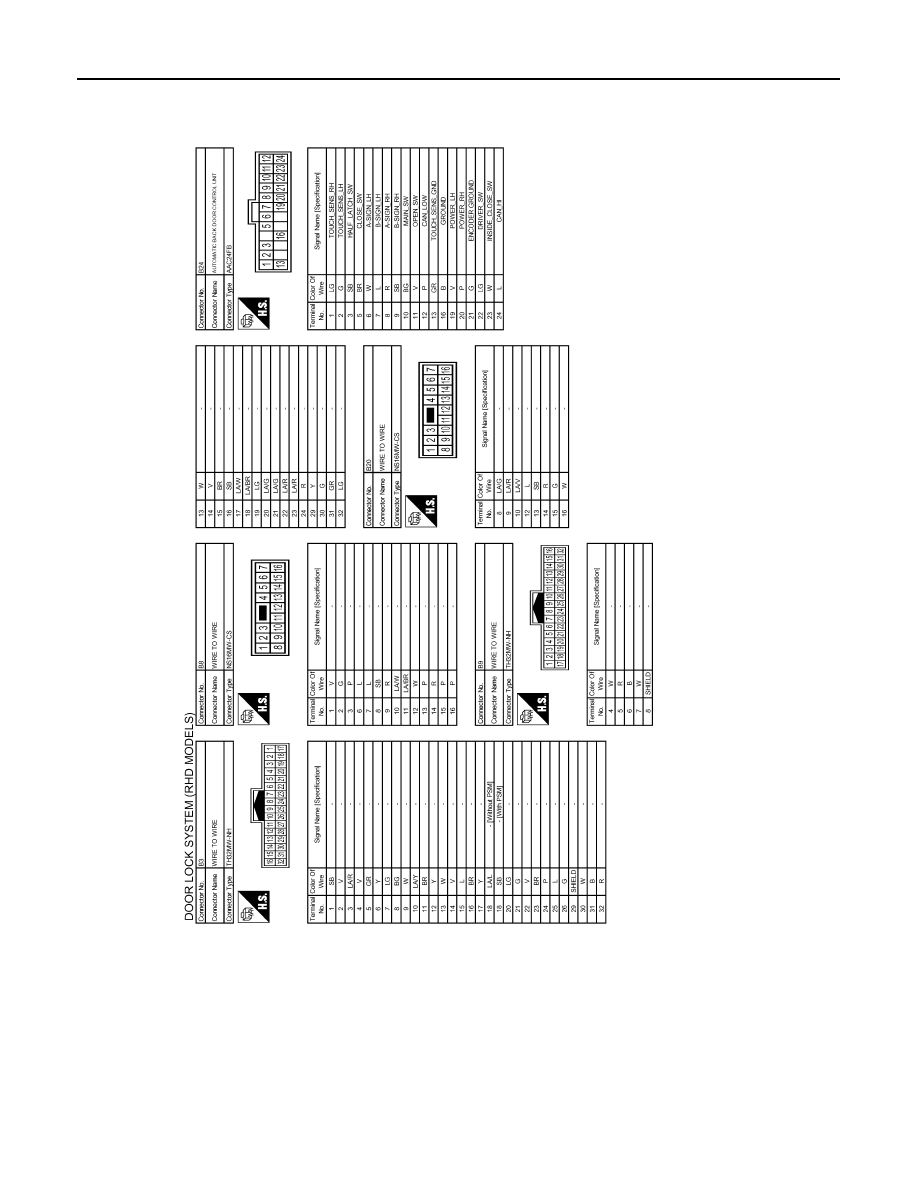

DOOR & LOCK SYSTEM

JRKWD4419GB

DOOR & LOCK SYSTEM

DLK-91

< WIRING DIAGRAM >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

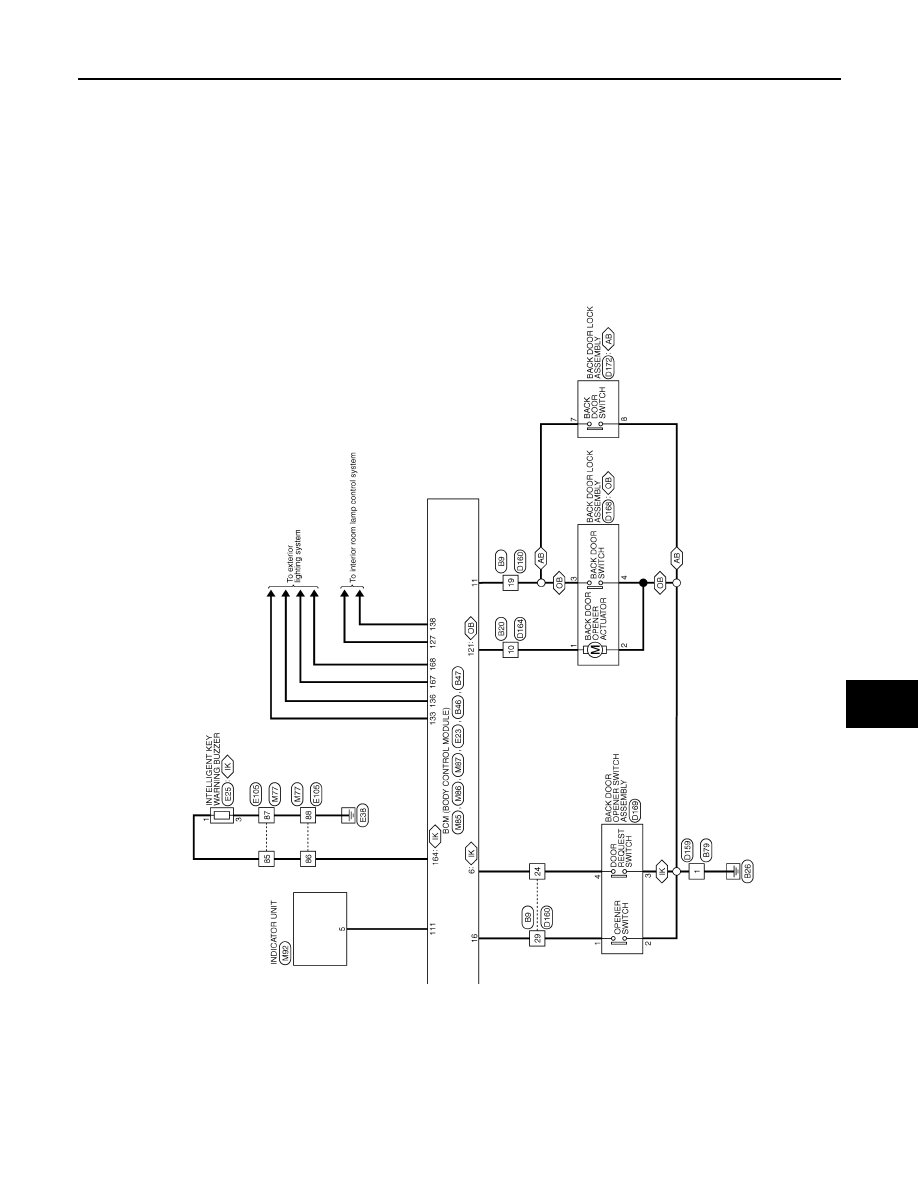

JRKWD4420GB

DLK-92

< WIRING DIAGRAM >

[TYPE 1]

DOOR & LOCK SYSTEM

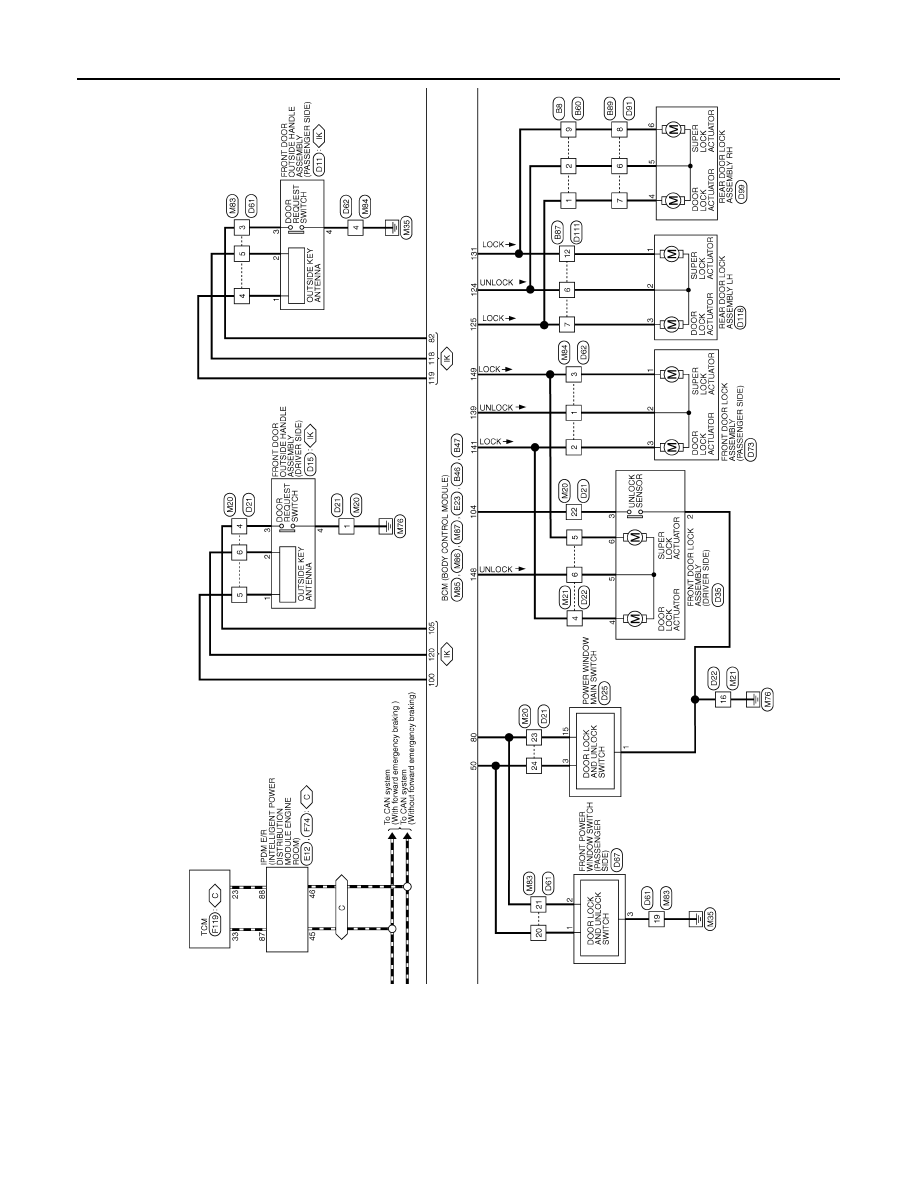

JRKWD4421GB
