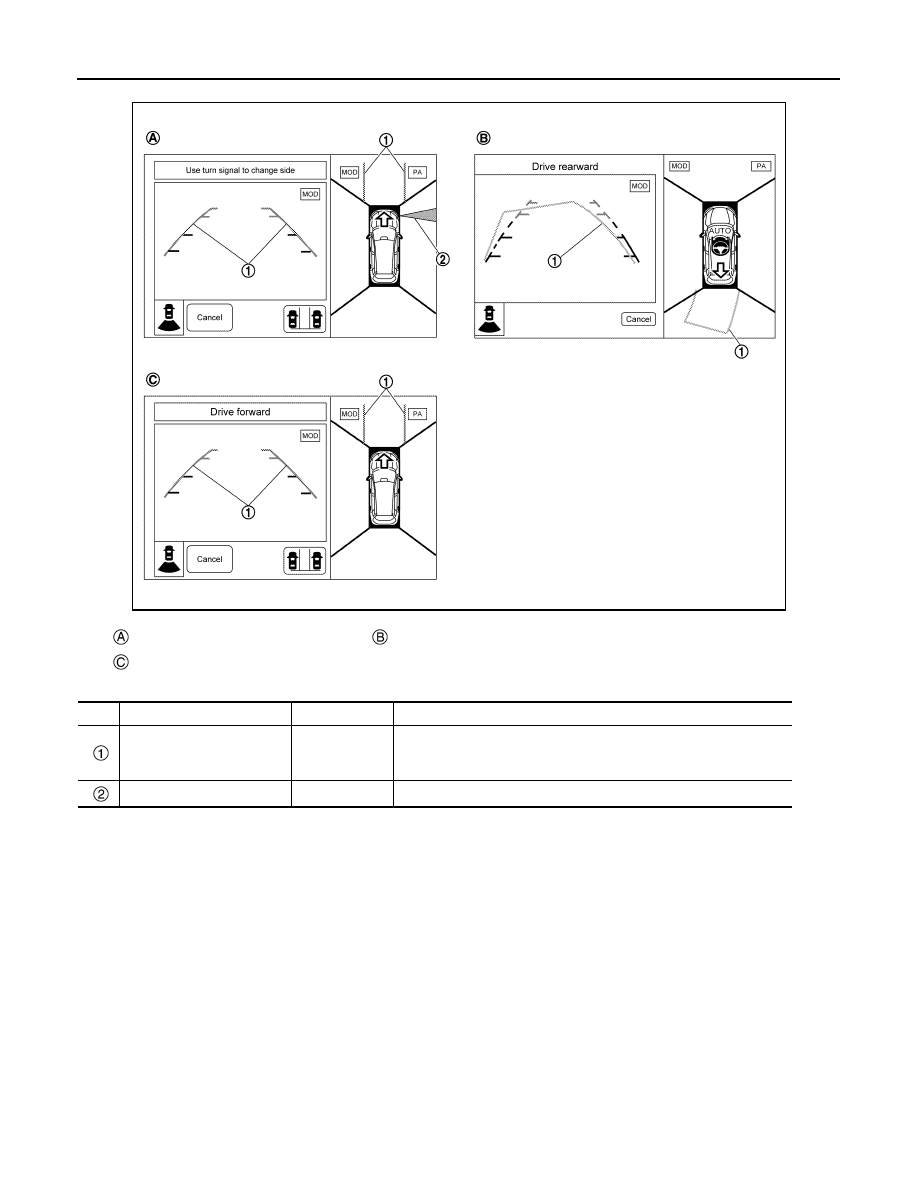

Perpendicular parking

JSOIA1521ZZ

Setting the target parking position

Moving the vehicle forward

Moving the vehicle backward (when re-
verse starting position rectangle is de-
tected)

Moving the vehicle backward (when tar-
get parking rectangle is detected)

No.

Line/rectangle name

Color

Function

Predicted course line

Forward: Green
Reverse: Or-
ange

Displays the course that will putting the vehicle into the target parking
rectangle.

Clearance guide line

Red

Displays the guide lines to avoid a collision to a obstacle.

Target parking rectangle

Blue

Displays the position where the driver wants to park.

Forward/reverse starting po-
sition rectangle

Green

Displays the position to start reversing or turning

DAS-290

< SYSTEM DESCRIPTION >

[PARK ASSIST]

SYSTEM

Parallel parking

Available Parking Patterns

The parking patterns supported by the around view monitor with Park Assist are as follows.

JSOIA1665ZZ

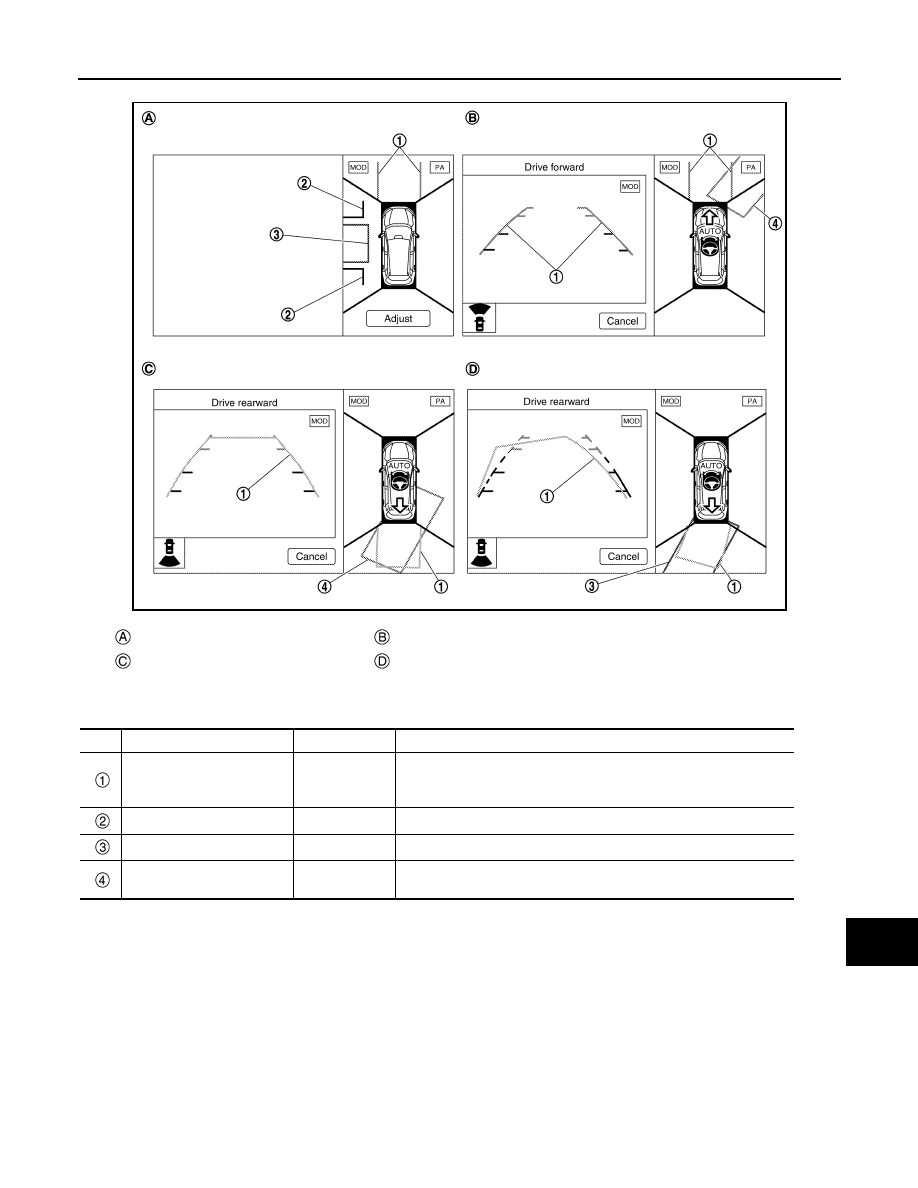

Finding a parking space

Moving the vehicle backward

Moving the vehicle forward

No.

Line/rectangle name

Color

Function

Predicted course line

Forward: Green
Reverse: Or-
ange

Displays the predicted course.

Sonar indicator

Orange

Displays the sonic wave position and direction.

DAS

SYSTEM

DAS-291

< SYSTEM DESCRIPTION >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

NOTE:

: Vehicle stop point (start of steering control)

: Operation end point

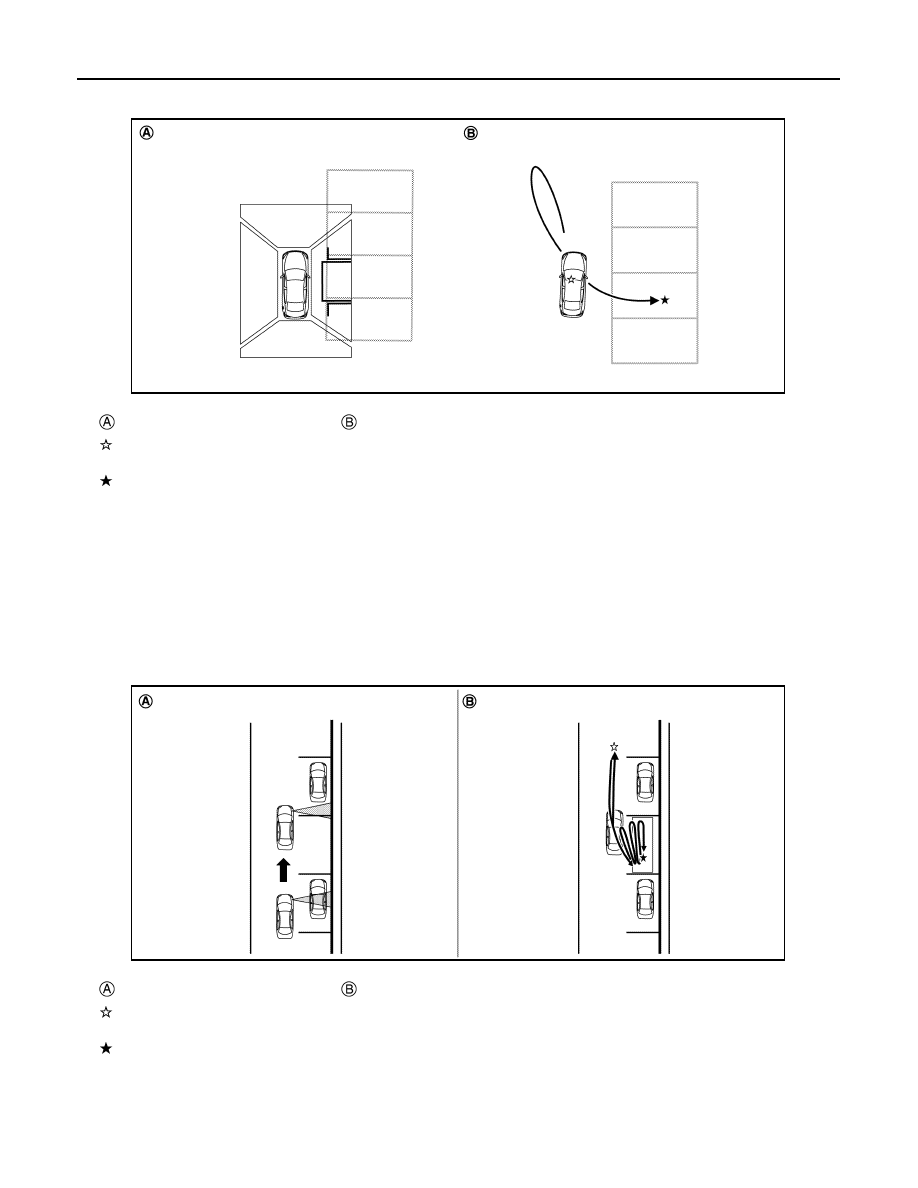

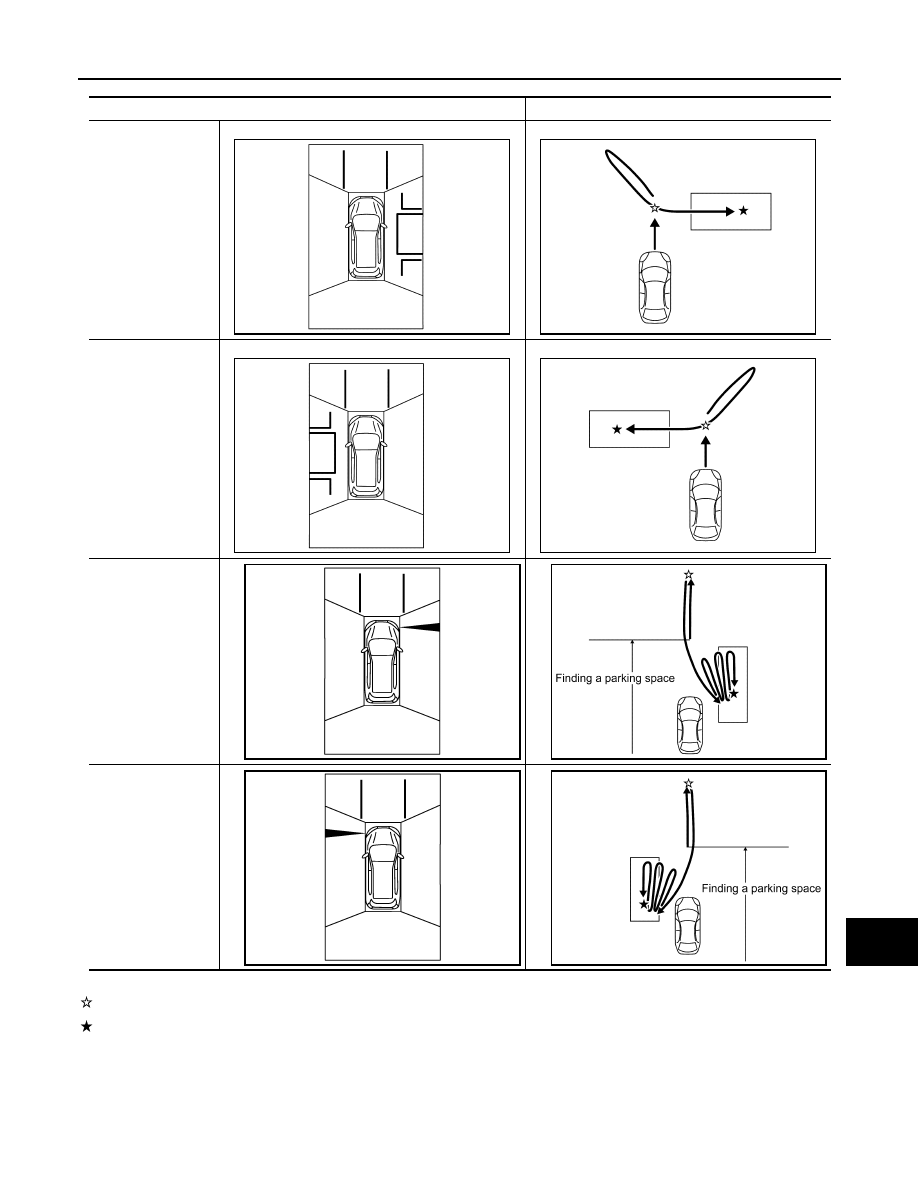

Perpendicular Parking

• System operates the steering wheel to park the vehicle in the parking space set by the driver on the bird’s-

eye view screen.
NOTE:

Screen displayed when selecting parking mode

Image of parking course

Perpendicular (R)

Perpendicular (L)

Parallel (R)

Parallel (L)

JSOIA1268ZZ

JSOIA1362ZZ

JSOIA1269ZZ

JSOIA1363ZZ

JMOIA0049ZZ

JSOIA1666GB

JMOIA0050ZZ

JSOIA1667GB

DAS-292

< SYSTEM DESCRIPTION >

[PARK ASSIST]

SYSTEM

The shift lever, accelerator pedal, brake pedal, and clutch pedal are operated by the driver.

NOTE:
• Operating the turn signal switch allows the switching between right and left.
• When the adjust switch is pressed to set a target parking rectangle, while lines are recognized and fine

adjustment is performed.

Parallel Parking

• System operates the steering wheel to park the vehicle in the parking space searched by parking sensors

(sonar) in the left/right side of the front bumper.
NOTE:
The shift lever, accelerator pedal, brake pedal, and clutch pedal are operated by the driver.

NOTE:
Operating the turn signal switch allows the switching of scanning directions between right and left.

OPERATION DESCRIPTION (PERPENDICULAR PARKING)

Setting target parking rectangle

Automatic steering control

Vehicle stop point (Start of steering
control)

Operation end point

JSOIA1668ZZ

Finding a parking space

Automatic steering control

Vehicle stop point (Start of steering
control)

Operation end point

JSOIA1577ZZ
