AROUND VIEW MONITOR CONTROL UNIT

Reference Value

INFOID:0000000010926625

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT MONITOR ITEM

Monitor Item

Condition

Value/Status

ST ANGLE SENSOR SIGNAL

Ignition switch
ON

When steering angle sensor signal is input

ON

Other than the above

OFF

REVERSE SIGNAL

Ignition switch
ON

When selector lever is in “R”

ON

When selector lever is in any position other than “R”

OFF

VEHICLE SPEED SIGNAL

Ignition switch
ON

When vehicle speed is input

ON

Other than the above

OFF

CAMERA SWITCH SIGNAL

Ignition switch
ON

When camera switch signal is input

ON

Other than the above

OFF

CAMERA OFF SIGNAL

Ignition switch
ON

When camera OFF signal is input

ON

Other than the above

OFF

ST ANGLE SENSOR TYPE

Ignition switch
ON

—

Absolute

STEERING GEAR RATIO TYPE

Ignition switch
ON

—

TYPE 0

STEERING POSITION

Ignition switch
ON

LHD models

LHD

RHD models

RHD

REAR CAMERA IMAGE SIGNAL

Ignition switch
ON

When rear camera image signal input status is normal

OK

When rear camera image signal input status is not
normal

NG

WASH SW

Ignition switch
ON

—

OFF

R-CAMERA COMM STATUS

Ignition switch
ON

When communication status with rear camera is nor-
mal

OK

When communication status with rear camera is not
normal

NG

R-CAMERA COMM LINE

Ignition switch
ON

When communication line with rear camera is normal

OK

When communication line with rear camera is not nor-
mal

NG

F-CAMERA IMAGE SIGNAL

Ignition switch
ON

When front camera image signal input status is nor-
mal

OK

When front camera image signal input status is not
normal

NG

DR-SIDE CAMERA IMAGE SIG

Ignition switch
ON

When driver side camera  image signal input status is
normal

OK

When driver side camera image signal input status is
not normal

NG

PA-SIDE CAMERA IMAGE SIG

Ignition switch
ON

When passenger side camera image signal input sta-
tus is normal

OK

When passenger side camera image signal input sta-
tus is not normal

NG

DAS-58

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

AROUND VIEW MONITOR CONTROL UNIT

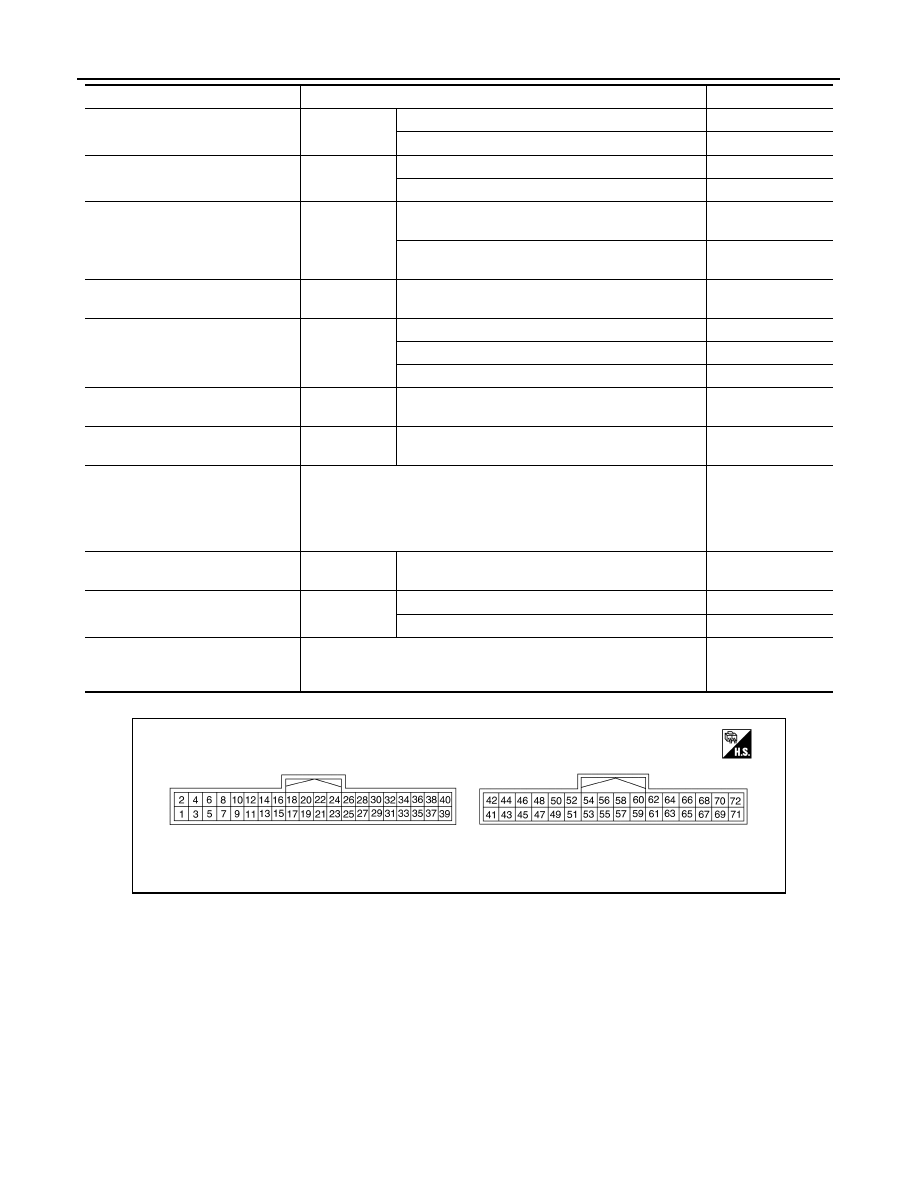

TERMINAL LAYOUT

PHYSICAL VALUES

Without BSW

PUMP COMM STATUS

Ignition switch
ON

When communication signal is input

OK

Other than the above

NG

ILL

Ignition switch
ON

When lighting switch is ON

ON

When lighting switch is OFF

OFF

ITS SW 1

Ignition switch
ON

Warning systems switch is ON. (Warning systems ON
indicator illuminates.)

ON

Warning systems switch is OFF. (Warning systems
ON indicator OFF.)

OFF

ITS SW 1 IND

Ignition switch
ON

—

OFF

TURN SIGNAL

Ignition switch
ON

Turn signal RH: ON

RIGHT

Turn signal LH: ON

LEFT

Turn signal: OFF

OFF

ITS SW 2

Ignition switch
ON

—

NO SET

ITS SW 2 IND

Ignition switch
ON

—

NO SET

VEHICLE SPEED

Ignition switch ON

Displays approxi-

mately the same

speed as the value

indicated on the

speedometer.

IDLE STOP STATUS

Ignition switch
ON

—

OFF

TRAILER HITCH SW

Ignition switch
ON

When a towing vehicle is connected

ON

Other than the above

OFF

STEERING ANGLE

Ignition switch ON

Displays a value

that corresponds to

the steering angle.

Monitor Item

Condition

Value/Status

JSNIA4749ZZ

DAS

AROUND VIEW MONITOR CONTROL UNIT

DAS-59

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

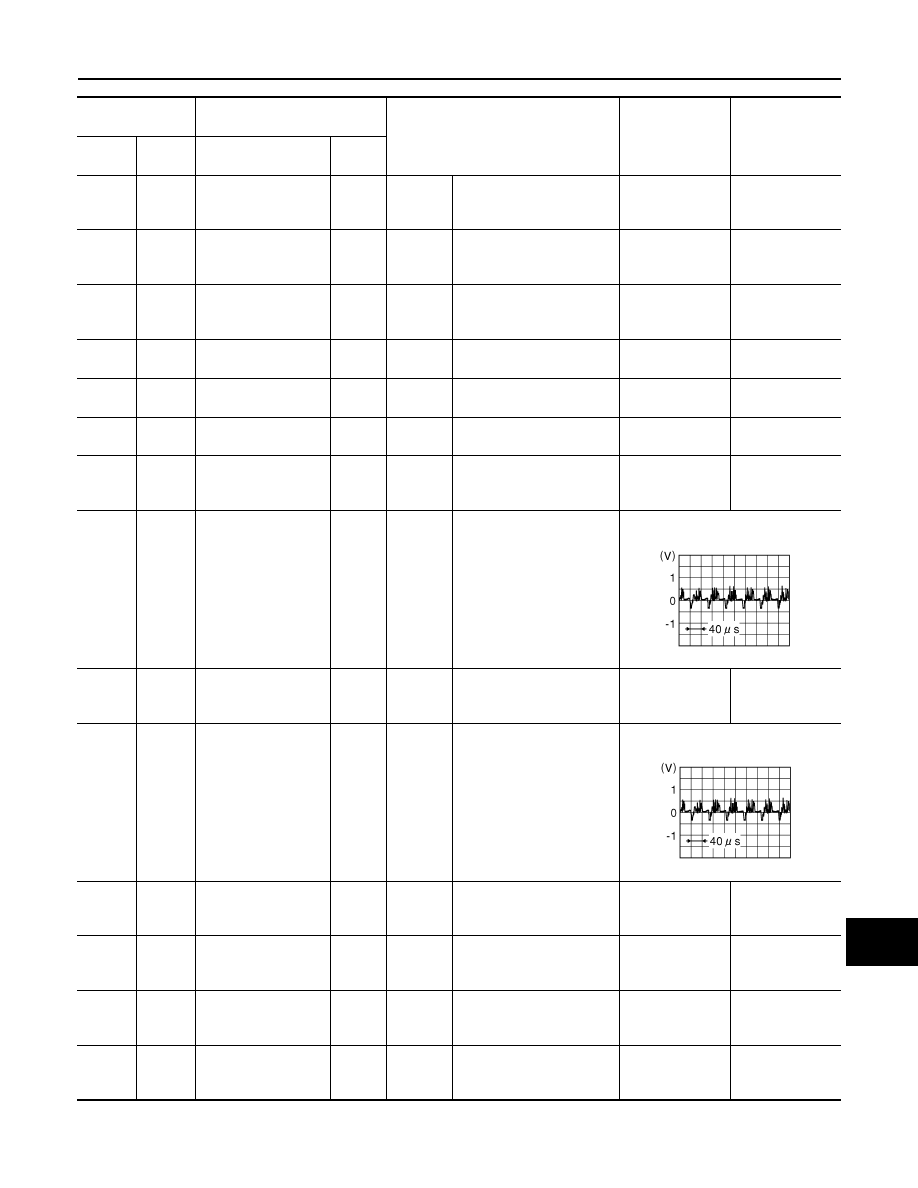

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

2

(Y)

1

(B)

Battery power supply

Input

Ignition

switch

OFF

—

9.5 - 16 V

Battery voltage

4

(SB)

1

(B)

Ignition signal

Input

Ignition

switch

ON

—

9.5 - 16 V

Battery voltage

9

(G)

—

Camera switch signal

Input

—

—

—

—

10

(R)

—

CAN-L

Input/

Output

—

—

—

—

12

(L)

—

CAN-H

Input/

Output

—

—

—

—

23

Ground

Camera image signal
ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

24

(G)

23

Camera image signal

Output

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

25

(B)

Ground

Rear camera ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

26

(R)

27

Rear camera image
signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

27

Ground

Rear camera image
signal (

−

)

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

28

(W)

27

Rear camera power
supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

29

(Y)

Ground

Driver side camera
ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

30

(L)

29

(Y)

Driver side camera
power supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

JSNIA0834GB

JSNIA0834GB

DAS-60

< ECU DIAGNOSIS INFORMATION >

[DRIVER ASSISTANCE SYSTEM]

AROUND VIEW MONITOR CONTROL UNIT

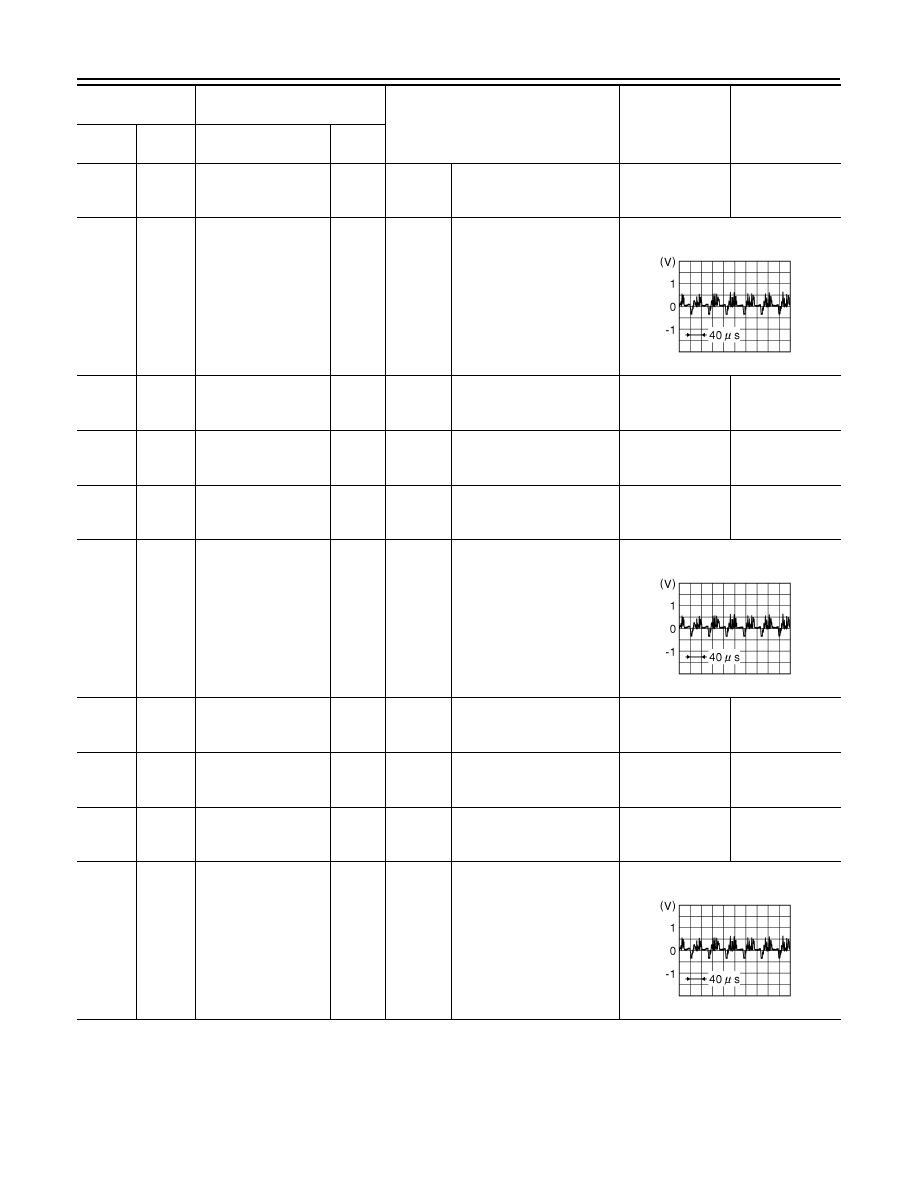

With BSW

31

Ground

Driver side camera
image signal (

−

)

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

32

(G)

31

Driver side camera
image signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

33

(L)

Ground

Passenger side cam-
era ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

34

(B)

33

(L)

Passenger side cam-
era power supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

35

Ground

Passenger side cam-
era image signal (

−

)

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

36

(Y)

35

Passenger side cam-
era image signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

37

(V)

Ground

Front camera ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

38

(L)

37

(V)

Front camera power
supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

39

Ground

Front camera image
signal (

−

)

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

40

(LG)

39

Front camera image
signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0834GB

JSNIA0834GB

JSNIA0834GB
