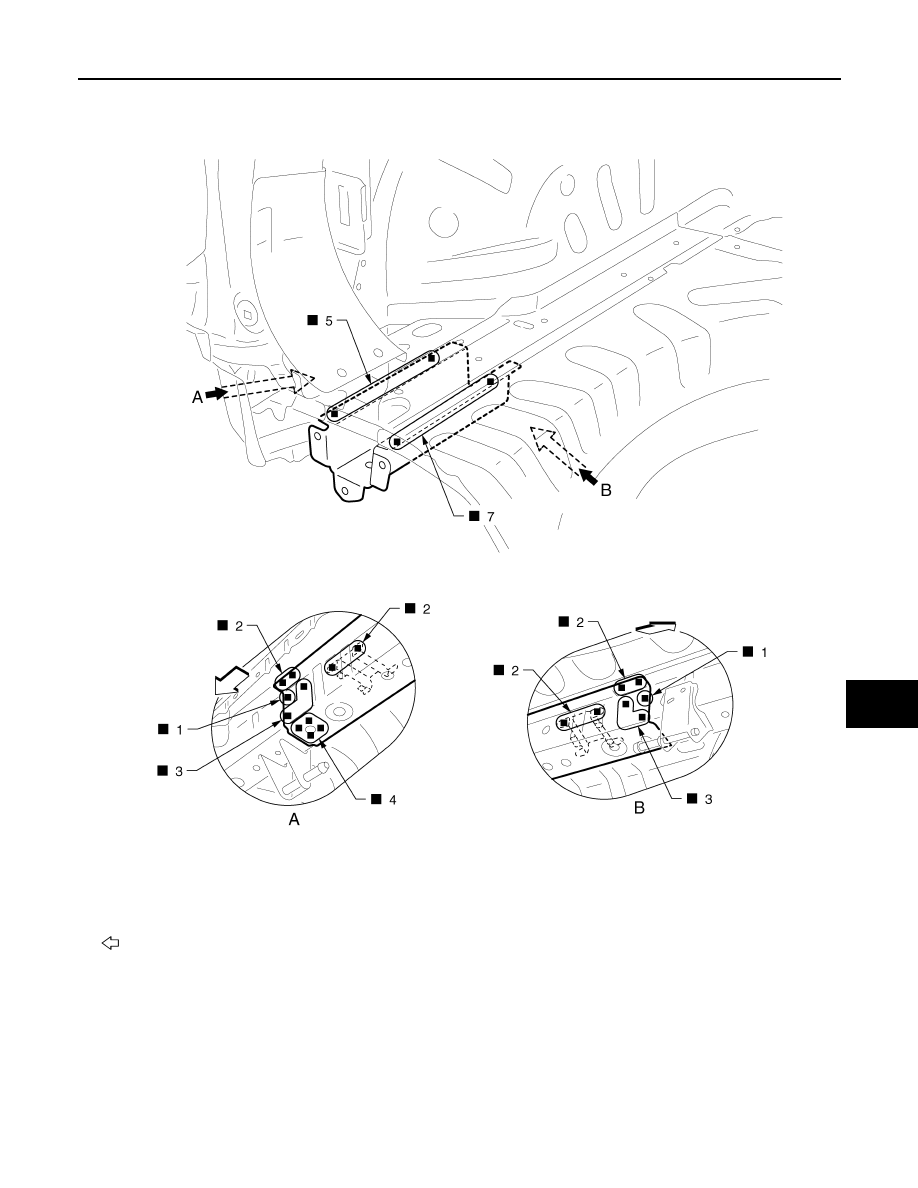

Rear side member extension

z

Rear 3rd seat mounting bracket as-
sembly

JSKIA4034ZZ

BRM-222

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR RUSSIA]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Body Center Marks (MR20DD Engine Models)

INFOID:0000000010860057

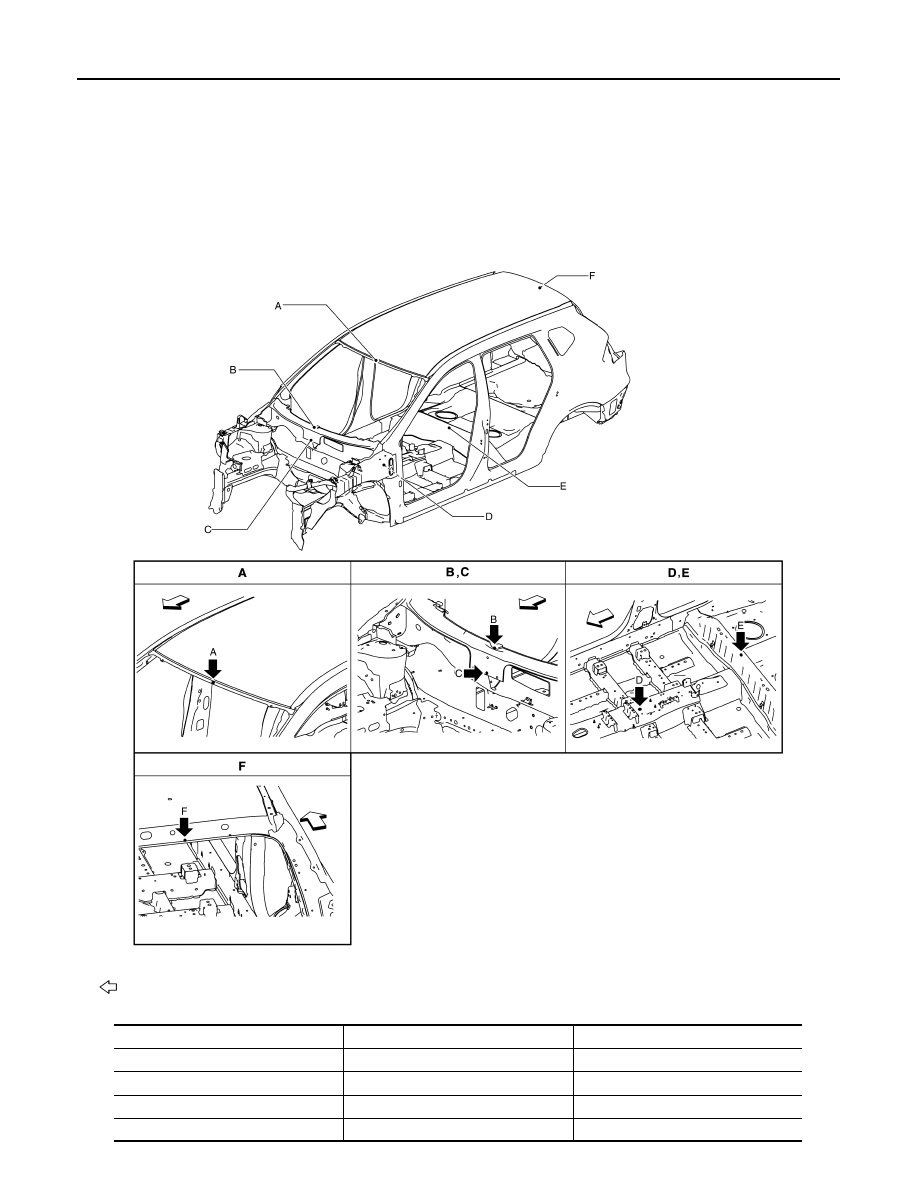

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

Indent

C

Cowl top

Hole

φ

8 (0.31)

D

Trans control reinforcement

Hole 14

×

12 (0.55

×

0.47)

JSKIA4742ZZ

BODY ALIGNMENT

BRM-223

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Center Marks (Except For MR20DD Engine Models)

INFOID:0000000010860060

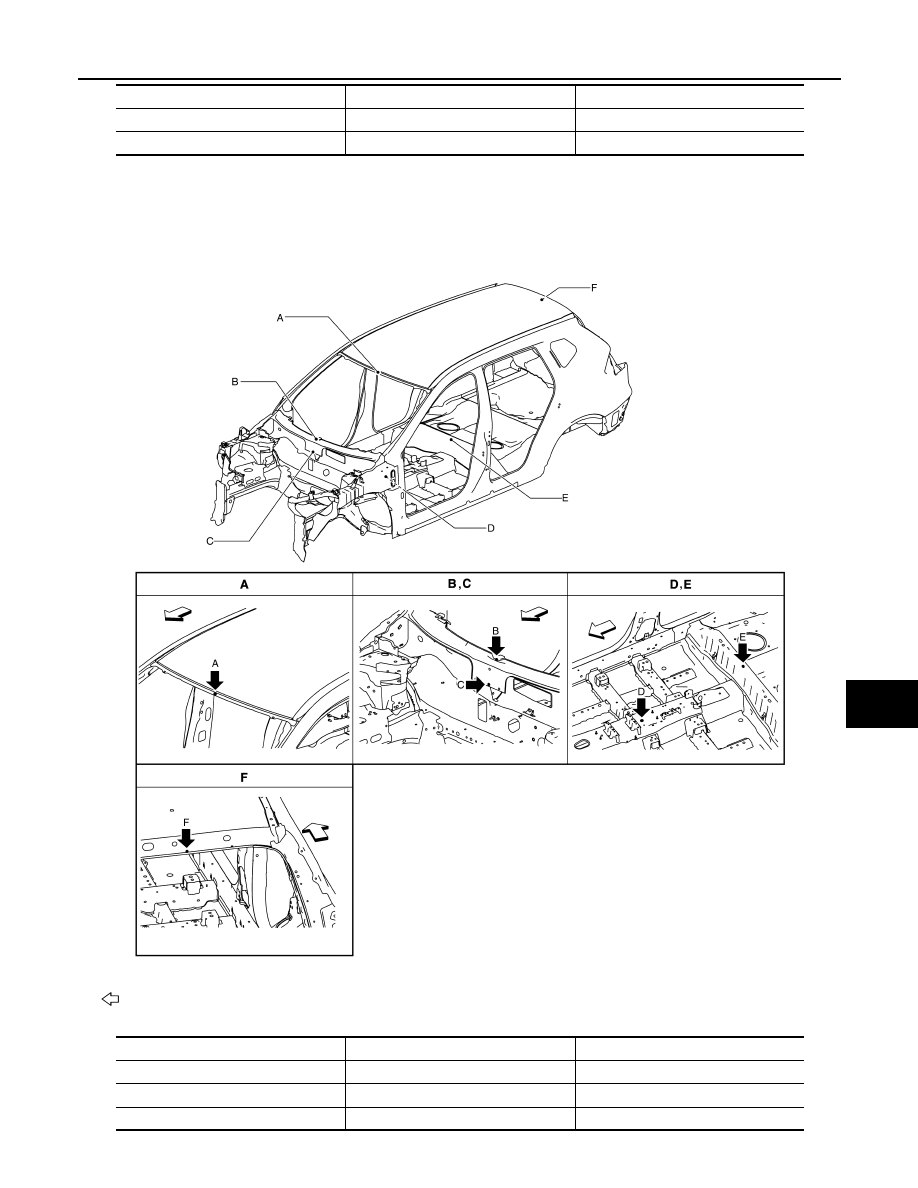

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

E

Rear seat crossmember

Embossment

F

Rear roof

Embossment

Points

Portion

Marks

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

Indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA4708ZZ

BRM-224

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR RUSSIA]

BODY ALIGNMENT

Description

INFOID:0000000010860052

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

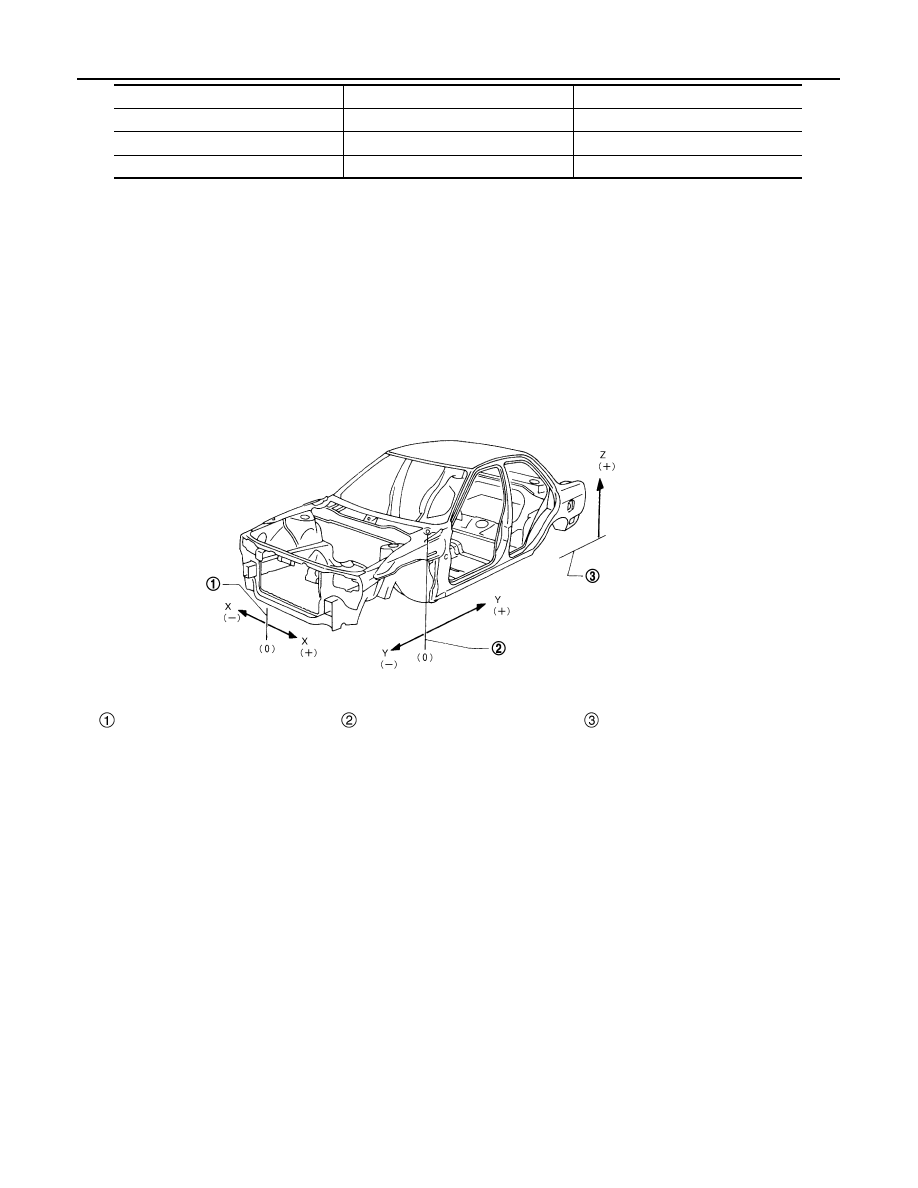

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment (MR20DD Engine Models)

INFOID:0000000010860058

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

D

Trans control reinforcement

Hole 14

×

12 (0.55

×

0.47)

E

Rear seat crossmember

Embossment

F

Rear roof

Embossment

Points

Portion

Marks

Vehicle center

Front axle center

Imaginary base line

JSKIA0073GB
