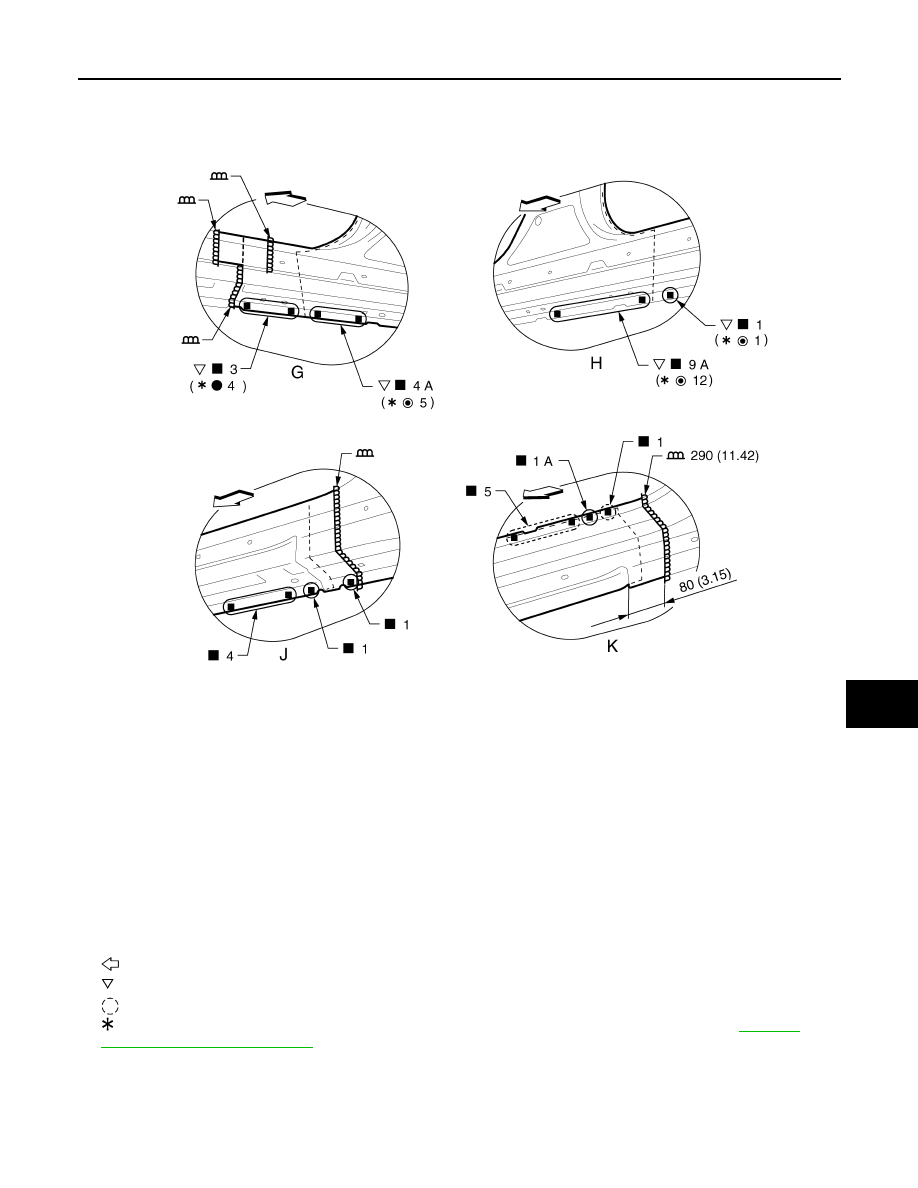

REPLACEMENT OPERATIONS

BRM-125

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-108,

"Welding of Ultra High Strength Steel"

JSKIA4609GB

BRM-126

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

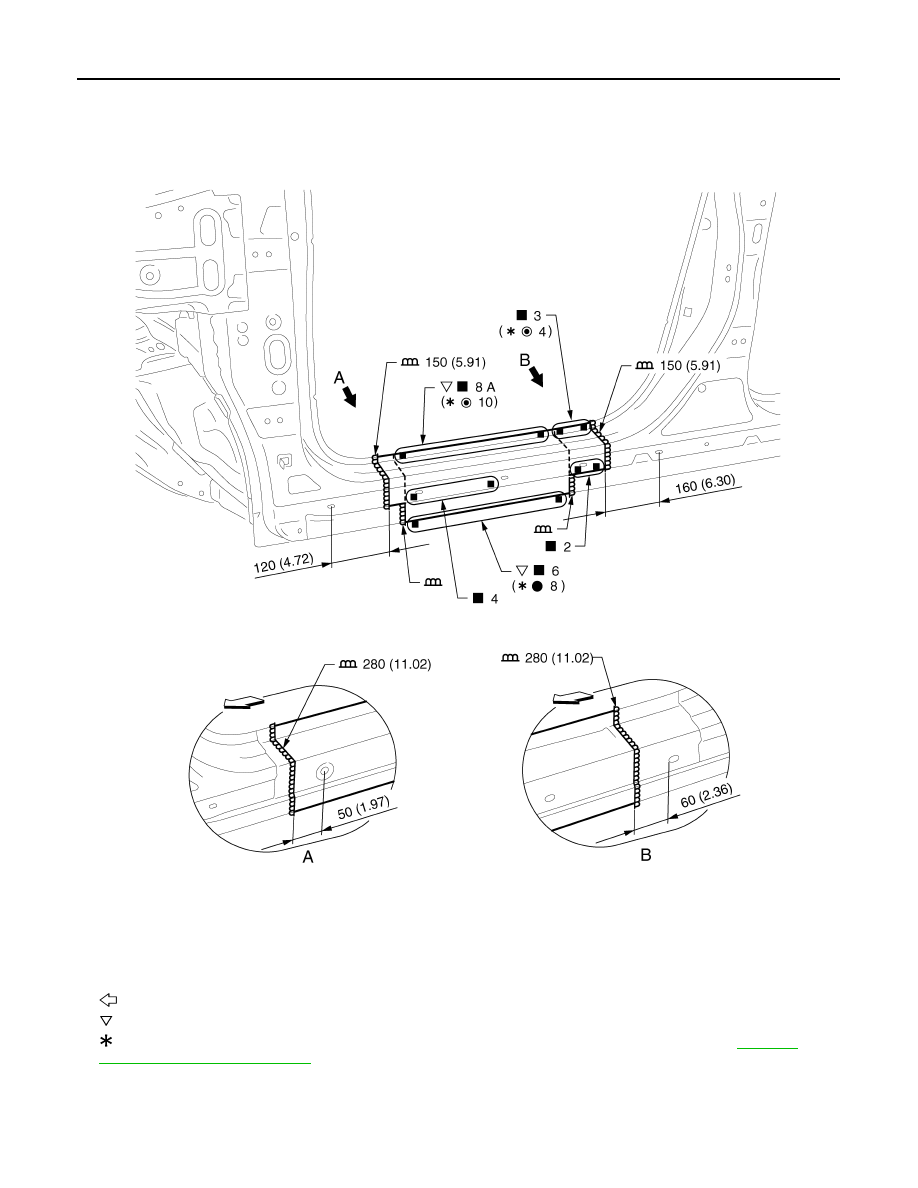

Outer Sill (Partial Replacement)

INFOID:0000000011010382

View A and B: Before installing outer sill assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-108,

"Welding of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

z

Outer sill reinforcement

JSKIA3859GB

REPLACEMENT OPERATIONS

BRM-127

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

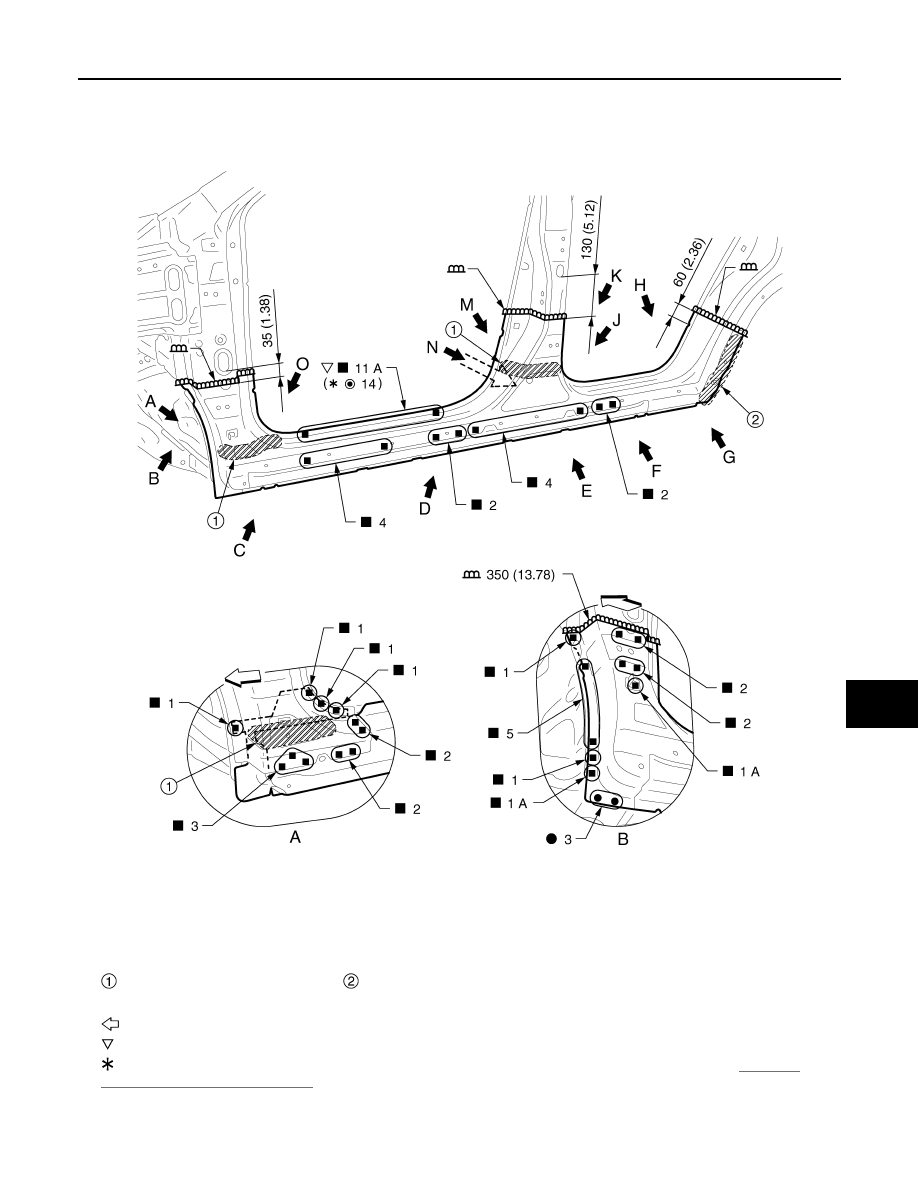

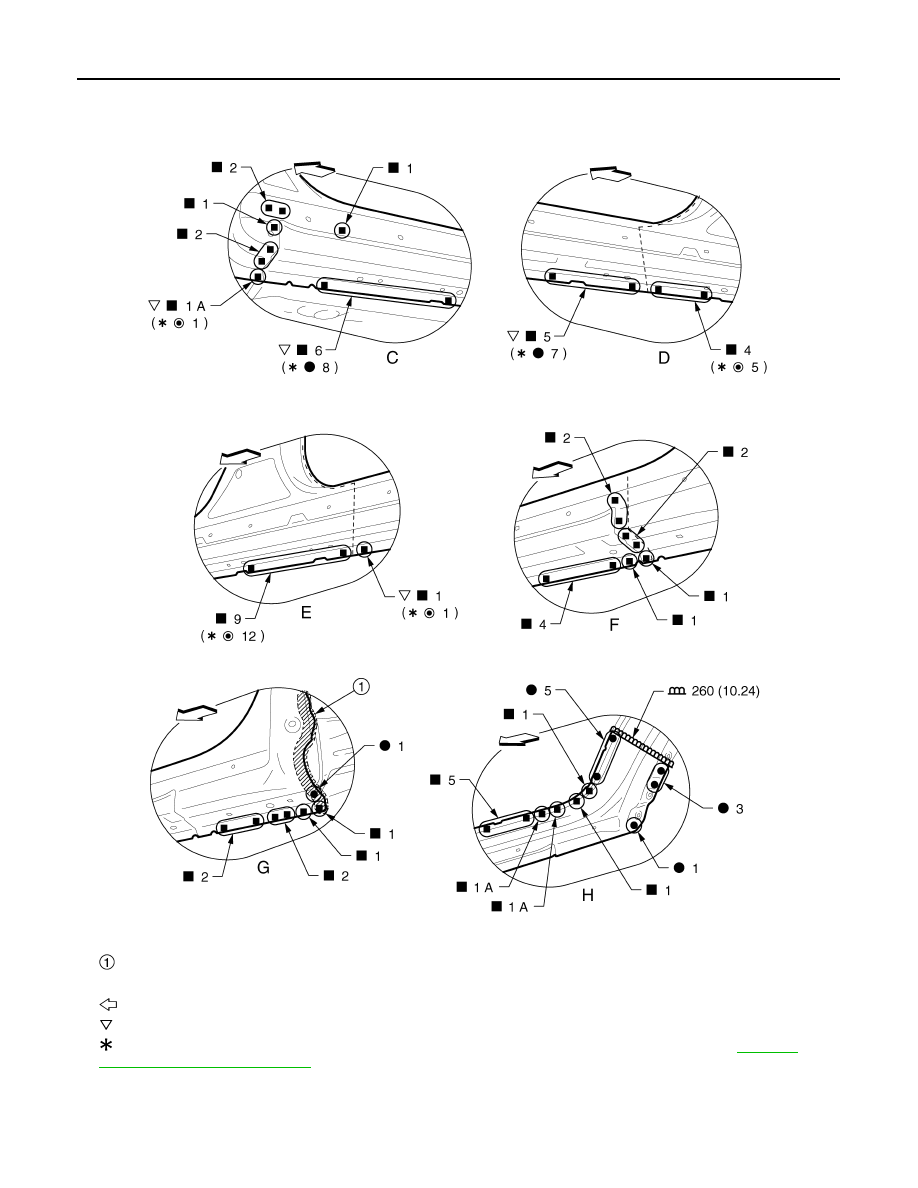

Outer Sill

INFOID:0000000010843512

Urethane foam

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-108,

"Welding of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

z

Outer sill reinforcement

z

Front fender bracket assembly

JSKIA4925GB

BRM-128

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

View A: Before installing outer sill assembly and front fender bracket assembly

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-108,

"Welding of Ultra High Strength Steel"

JSKIA4611GB
