TIRE PRESSURE MONITORING SYSTEM

WT-21

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DTC Index

INFOID:0000000010715068

DTC

Items (CONSULT screen terms)

Low tire pressure warning

lamp

Reference

C1704-00

LOW PRESSURE FL

ON

WT-33, "DTC Description"

C1705-00

LOW PRESSURE FR

C1706-00

LOW PRESSURE RR

C1707-00

LOW PRESSURE RL

C1708-00

[NO DATA] FL

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-35, "DTC Description"

C1709-00

[NO DATA] FR

C1710-00

[NO DATA] RR

C1711-00

[NO DATA] RL

C1716-00

[PRESSDATA ERR] FL

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-37, "DTC Description"

C1717-00

[PRESSDATA ERR] FR

C1718-00

[PRESSDATA ERR] RR

C1719-00

[PRESSDATA ERR] RL

C1729-00

VHCL SPEED SIG ERR

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-38, "DTC Description"

C1734-00

CONTROL UNIT

The low tire pressure warning
lamp repeats blinking at 0.5-
second intervals for 1 minute,
and then stays illuminated.

WT-39, "DTC Description"

C1735-00

IGNITION SIGNAL

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-40, "DTC Description"

C1761-00

TEMPERATURE DATA FL

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-41, "DTC Description"

C1762-00

TEMPERATURE DATA FR

C1763-00

TEMPERATURE DATA RR

C1764-00

TEMPERATURE DATA RL

C1765-00

WHEEL TOP DATA FL

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-42, "DTC Description"

C1766-00

WHEEL TOP DATA FR

C1767-00

WHEEL TOP DATA RL

C1768-00

WHEEL TOP DATA RR

C1769-00

CONFIG SETTING

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-43, "DTC Description"

C1770-00

G SENSOR FL

OFF

WT-44, "DTC Description"

C1771-00

G SENSOR FR

C1772-00

G SENSOR RL

C1773-00

G SENSOR RR

WT-22

< ECU DIAGNOSIS INFORMATION >

TIRE PRESSURE MONITORING SYSTEM

NOTE:
If some DTCs are displayed at the same time, refer to

WT-20, "DTC Inspection Priority Chart"

.

U1000-01

CAN COMM CIRCUIT

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-45, "DTC Description"

U1010-49

CONTROL UNIT (CAN)

The low tire pressure warning

lamp repeats blinking at 0.5-

second intervals for 1 minute,

and then stays illuminated.

WT-46, "DTC Description"

DTC

Items (CONSULT screen terms)

Low tire pressure warning

lamp

Reference

TIRE PRESSURE MONITORING SYSTEM

WT-23

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

WIRING DIAGRAM

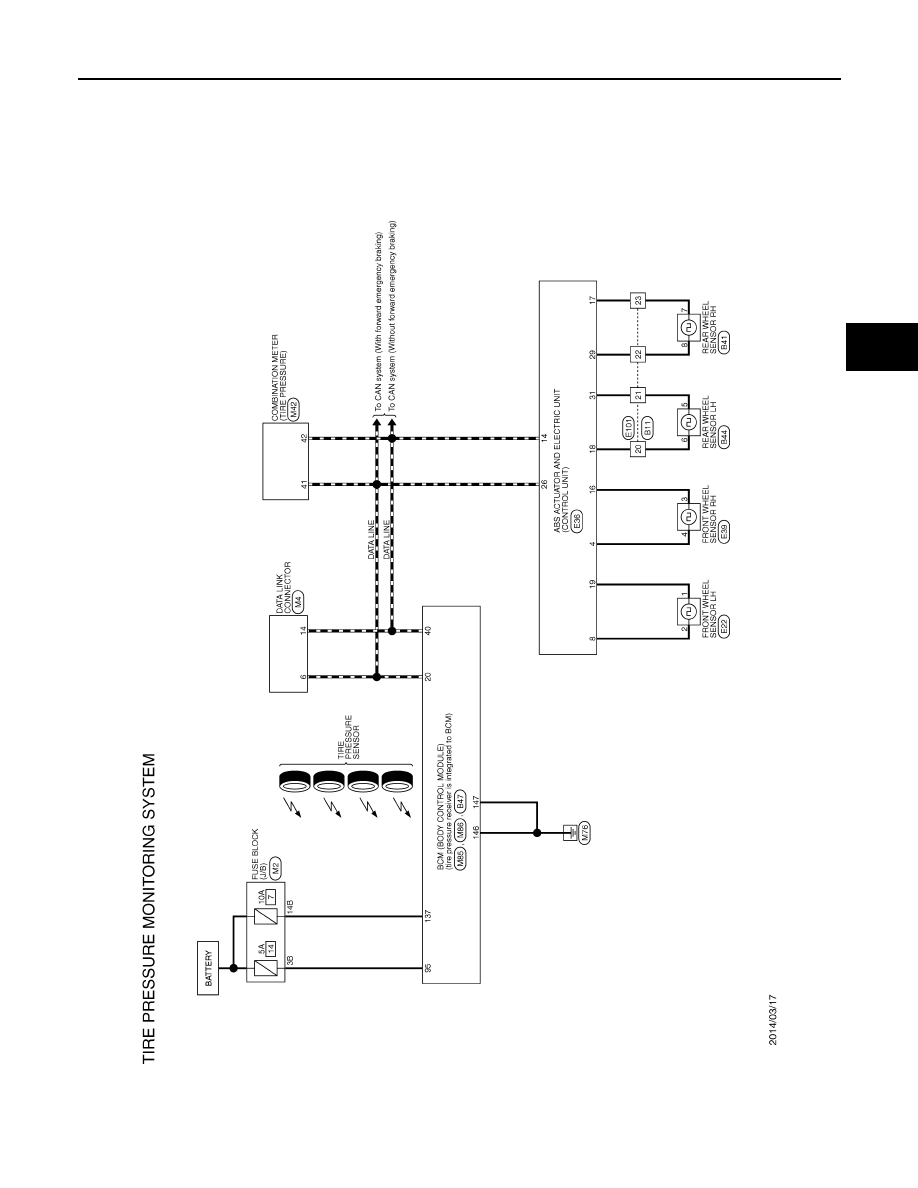

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

INFOID:0000000010715069

JREWC0993GB

WT-24

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

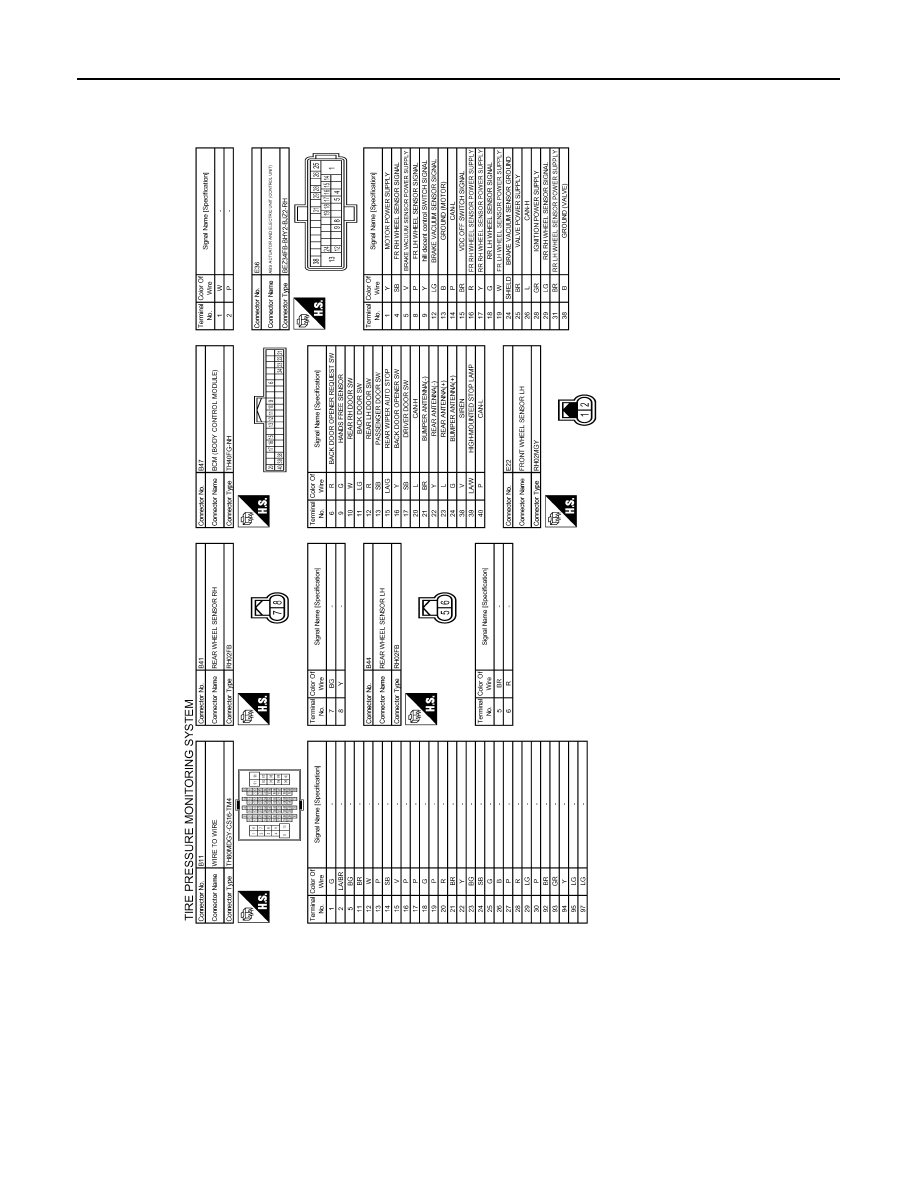

JREWC0994GB
