SOUND SPECIFICATION

WARNING CHIME : P Position Warning (Buzzer)

INFOID:0000000010713026

PURPOSE

P position warning warns the driver of egression from the vehicle while shift is other than P position.

SYNCRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)

Synchronization is applied.
Refer to

DLK-57, "INFORMATION DISPLAY (COMBINATION METER) : P Position Warning (Information Dis-

play)"

.

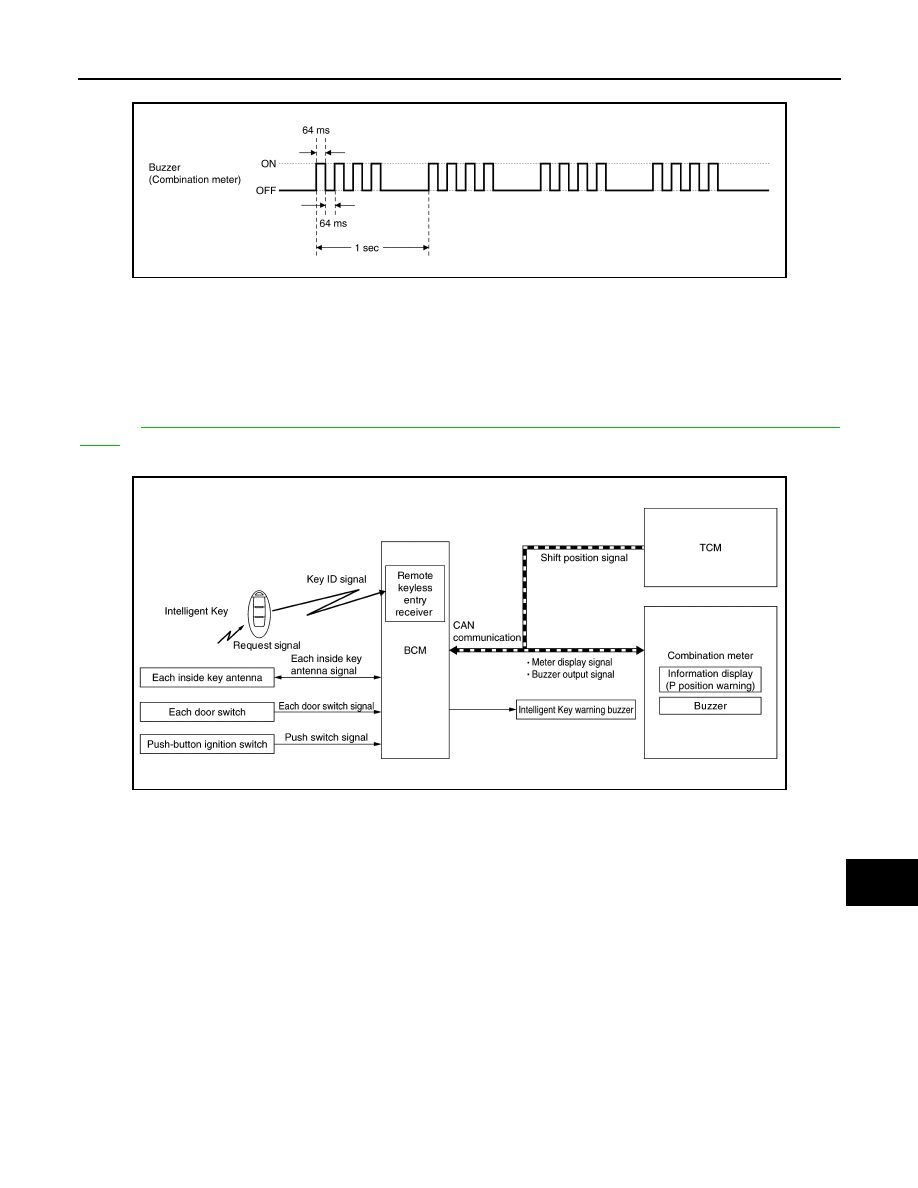

SYSTEM DIAGRAM

SIGNAL PATH

For internal

• BCM judges whether or not warning the driver is required, according to push switch signal from push-button

ignition switch, inside key antenna signal from each inside key antenna, and shift position signal from TCM
via CAN communication.

• When BCM judges that warning the driver is required, BCM transmits buzzer output signal and meter display

signal to combination meter via CAN communication.

• When combination meter receives buzzer output signal and meter display signal, buzzer and information

display operate.

For external

• BCM judges whether or not warning the driver is required, according to door switch signal from each door

switch and inside key antenna signal from each inside key antenna while P position warning (for internal) is
operated.

• When BCM judges that warning the driver is required, Intelligent Key buzzer operates.

WARNING OPERATING CONDITION

For internal

When all of the following conditions are satisfied.

JMKIB0187GB

JMKIB3612GB

WCS-16

< SYSTEM DESCRIPTION >

SYSTEM

• Shift position is other than P
• Ignition switch is turned from ON to OFF

For external

When all of the following conditions are satisfied.
• P position warning (for internal) is in operation
• A registered Intelligent Key is not detected in passenger room
• Door switch is switched from ON to OFF (Open door is closed)

WARNING CANCEL CONDITION

For internal

• When any of the following conditions are satisfied.
- Shift position is P
- Ignition switch is ON

For external

• When any of the following conditions are satisfied.
- Ignition switch is ON
- Shift position is P
- A registered Intelligent Key is detected in passenger room
- When ignition switch is in LOCK or OFF position, Intelligent Key backside is contacted to engine switch while

brake pedal is depressed (when Intelligent Key battery is discharged)

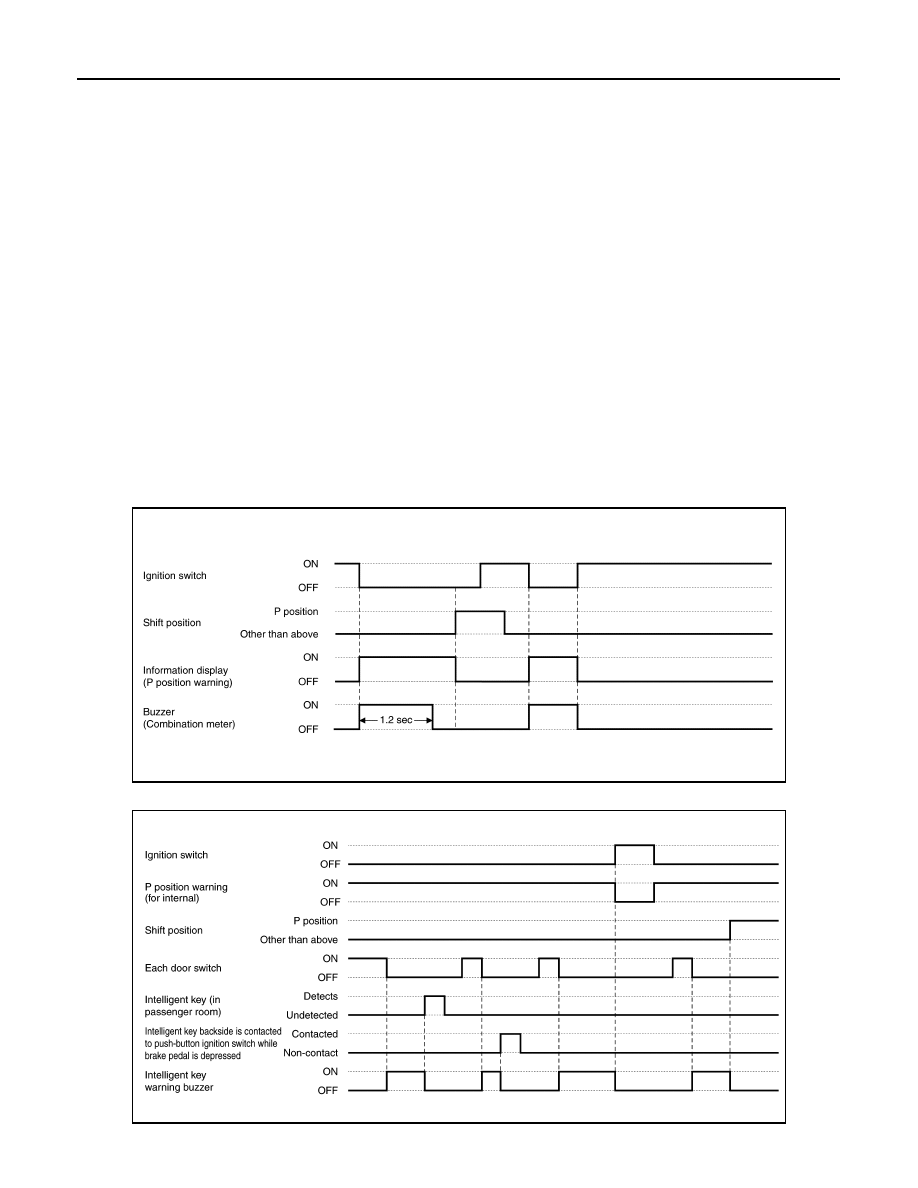

TIMING CHART

For internal

For external

JMKIB1896GB

JMKIB0191GB

WCS

SYSTEM

WCS-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SOUND SPECIFICATION

For internal

For external

WARNING CHIME : Seat Belt Warning

INFOID:0000000010743090

DESCRIPTION

Seat belt warning lamp warns the driver that driver seat belt is not fastened.

SYNCRONIZATION WITH WARNING LAMP/INDICATOR LAMP

For warning lamp, refer to

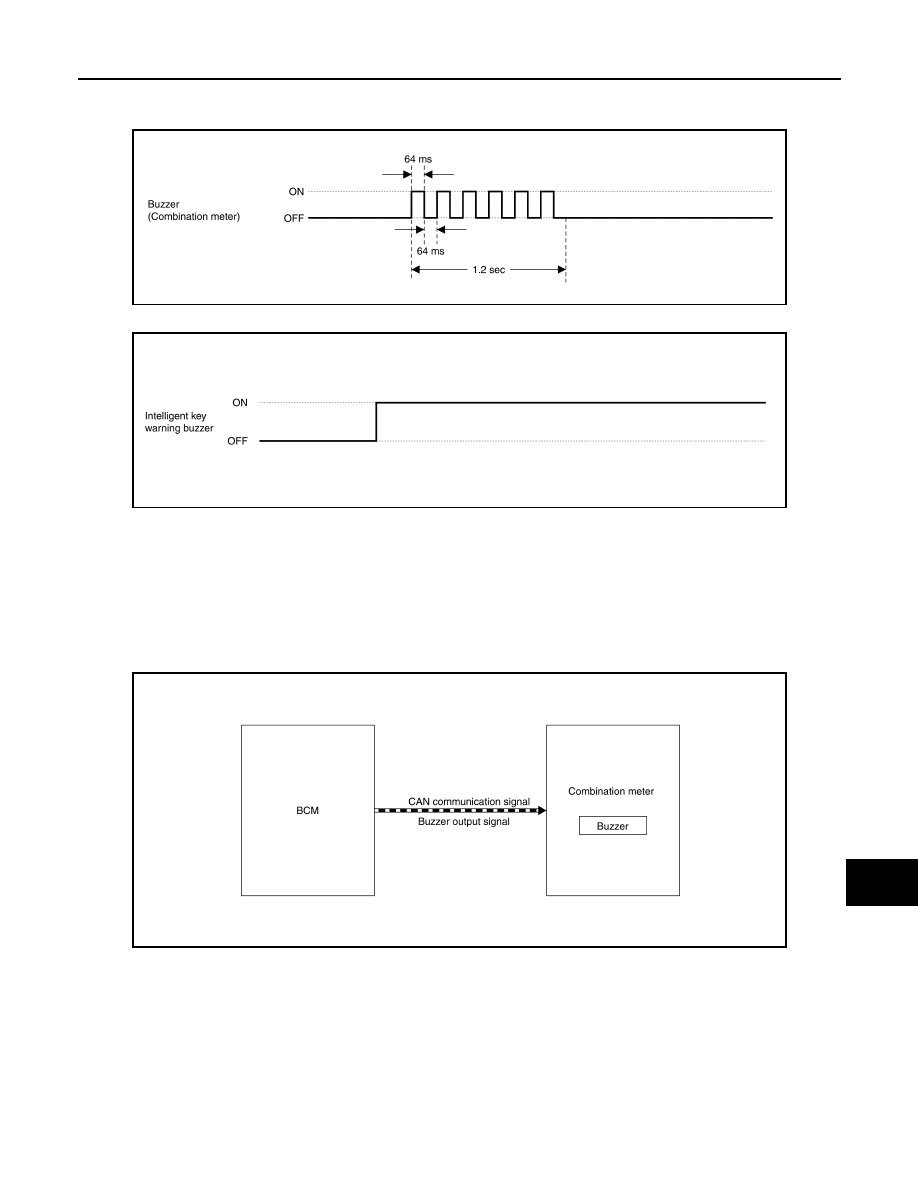

SYSTEM DIAGRAM

SIGNAL PATH

BCM judges seat belt reminder warning and transmits buzzer output signal to combination meter via CAN
communication. Combination meter sounds buzzer when buzzer output signal is received.

WARNING OPERATION CONDITIONS

Combination meter operates seat belt reminder warning buzzer when all of the following conditions are satis-
fied.
• Ignition switch is ON.
• Driver seat belt is not fastened. (Driver seat belt buckle switch is ON.)
• Passenger seat belt is not fastened. (Passenger seat belt buckle switch is ON.)
• Vehicle speed is approximately 15 km/h or more.

JMKIB1897GB

JMKIB0192GB

JMNIA0426GB

WCS-18

< SYSTEM DESCRIPTION >

SYSTEM

WARNING CANCEL CONDITIONS

Combination meter cancels seat belt reminder warning buzzer when all of the following conditions are satis-
fied.
• Ignition switch is other than ON.
• Driver seat belt is fastened. (Driver seat belt buckle switch is OFF.)
• Passenger seat belt is fastened. (Passenger seat belt buckle switch is OFF.)
• Approximately 90 seconds are passed since warning start.

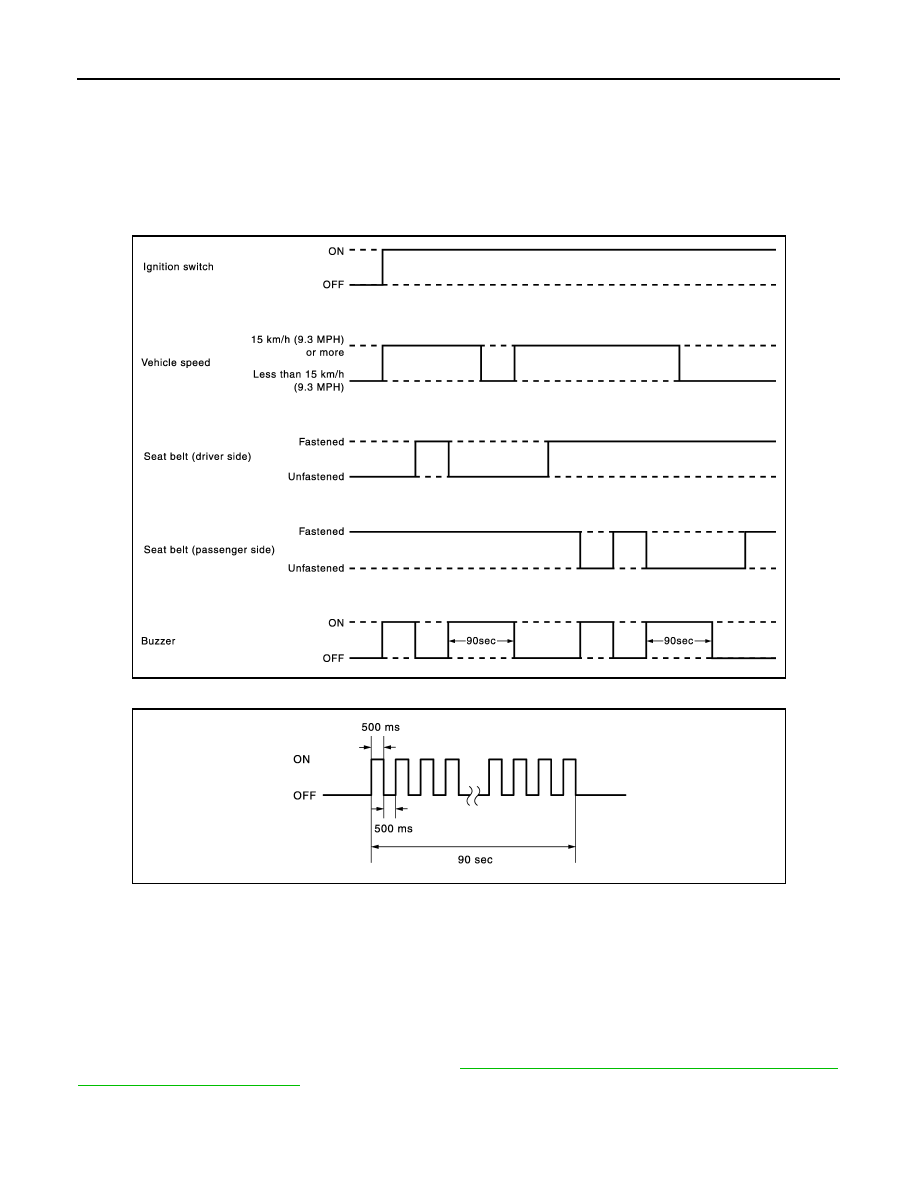

TIMING CHART

SOUND SPECIFICATION

WARNING CHIME : Stop/Start warning

INFOID:0000000011010024

PURPOSE

The combination meter alerts the driver by sounding the integrated buzzer and blinking the indicator lamp at
high speed when the driver

′

s operation is judged as improper operation while the stop/start system is operat-

ing.

SYNCHRONIZATION WITH WARNING/INDICATOR (INFORMATION DISPLAY)

Applicable
For warning/indicator (information display), refer to

EC-864, "INFORMATION DISPLAY (COMBINATION

METER) : Indicator/Information"

.

JSNIA2427GB

JSNIA2594GB
