SN-36

< WIRING DIAGRAM >

[WITHOUT PARK ASSIST]

SONAR SYSTEM

JRNWD4101GB

SN

SONAR SYSTEM

SN-37

< WIRING DIAGRAM >

[WITHOUT PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD4102GB

SN-38

< WIRING DIAGRAM >

[WITHOUT PARK ASSIST]

SONAR SYSTEM

JRNWD4103GB

SN

DIAGNOSIS AND REPAIR WORKFLOW

SN-39

< BASIC INSPECTION >

[WITHOUT PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010735548

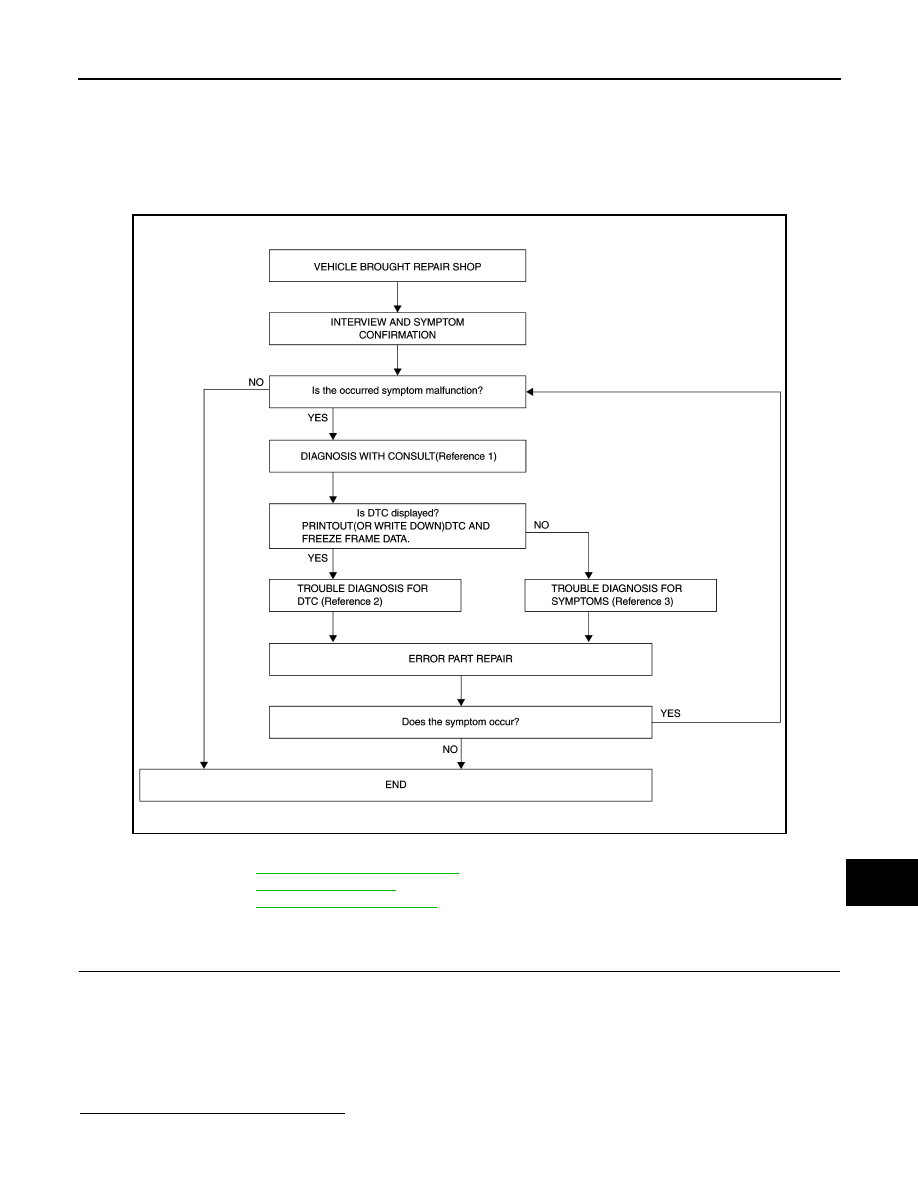

OVERALL SEQUENCE

• Reference 1··· Refer to

SN-19, "CONSULT Function"

.

• Reference 2··· Refer to

SN-28, "DTC Index"

.

• Reference 3··· Refer to

SN-109, "Symptom Table"

.

DETAILED FLOW

1.

INTERVIEW AND SYMPTOM CONFIRMATION

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check if mud, or other foreign objects are not adhering to the sonar sensor.
• Check if there is no deformation, scratches, or other damage to the sonar sensor.
• Check if water has not accumulated in the sonar sensor.
• Check the symptom.

Is the occurred symptom malfunction?

YES

>> GO TO 2.

JSNIA4482GB
