B27D1 START CUT RELAY OFF

SEC-287

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

1.

Disconnect BCM connector and starter control relay connector.

2.

Check continuity between BCM harness connector and starter control relay harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

4.

CHECK STARTER CONTROL RELAY OUTPUT SIGNAL

Check voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> GO TO 5.

5.

CHECK STARTER CONTROL RELAY OUTPUT SIGNAL CIRCUIT

1.

Check continuity between IPDM E/R harness connector and starter control relay harness connector.

2.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK STARTER CONTROL RELAY

Check starter control relay. Refer to

SEC-288, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace starter control relay.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

BCM

Starter control relay

Continuity

Connector

Terminal

Connector

Terminal

E23

171

F69

2

Existed

BCM

Ground

Continuity

Connector

Terminal

E23

171

Not Existed

(+)

(-)

Condition

Voltage

IPDM E/R

Connector

Terminal

F73

84

Ground

Other than engine
cranking

0 - 1 V

Engine cranking

6 - 16 V

IPDM E/R

Starter control relay

Continuity

Connector

Terminal

Connector

Terminal

F73

84

F69

5

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

F73

84

Not existed

SEC-288

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

B27D1 START CUT RELAY OFF

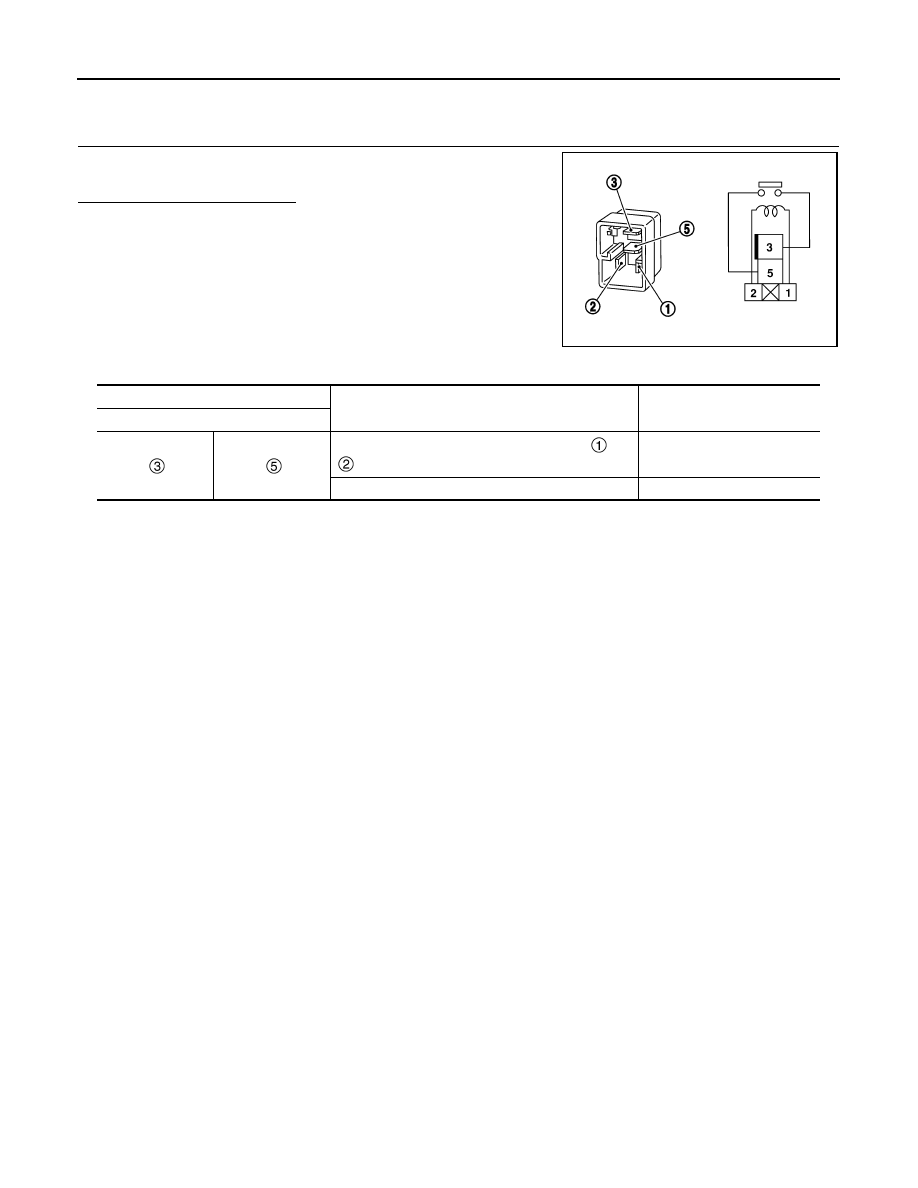

Component Inspection

INFOID:0000000010922302

1.

CHECK STARTER CONTROL RELAY

1.

Disconnect starter control relay.

2.

Check continuity between starter relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace starter control relay.

SEF497Y

starter control relay

Condition

Continuity

Terminal

12 V direct current supply between terminals

 and

Existed

No current supply

Not existed

B27D2 START CUT RELAY ON

SEC-289

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B27D2 START CUT RELAY ON

DTC Description

INFOID:0000000010922303

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Harness or connectors

(Starter control relay circuit is shorted)

• Starter control relay
• BCM

FAIL-SAFE

—

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Check DTC in “Self Diagnostic Result” mode of “BCM” using CONSULT.

Is DTC detected?

YES

>> Refer to

SEC-289, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010922304

1.

CHECK STARTER CONTROL RELAY INPUT SIGNAL

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK FUSE

Check that the following fuse is not blown

Is the fuse fusing?

YES

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

NO

>> GO TO 3.

3.

CHECK STARTER CONTROL RELAY INPUT SIGNAL CIRCUIT

1.

Disconnect BCM connector and starter control relay connector.

DTC

CONSULT screen items

(Trouble diagnosis content)

DTC detecting condition

B27D2–00

START CUT RELAY ON
(Starter cut relay ON)

When BCM starter control relay is in OFF status, and when the starter relay/starter
control relay status signal is (ON/ON)

(+)

(-)

Condition

Voltage

BCM

Connector

Terminal

E23

171

Ground

Engine cranking

0 - 0.5 V

Other than engine cranking

9 - 16 V

Signal name

Fuse

Battery power supply

30A

L

SEC-290

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

B27D2 START CUT RELAY ON

2.

Check continuity between BCM harness connector and starter control relay harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

4.

CHECK STARTER CONTROL RELAY OUTPUT SIGNAL

Check voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> GO TO 5

5.

CHECK STARTER CONTROL RELAY OUTPUT SIGNAL CIRCUIT

1.

Check continuity between IPDM E/R harness connector and starter control relay harness connector.

2.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

6.

CHECK STARTER CONTROL RELAY

Check starter control relay. Refer to

SEC-288, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace starter control relay.

7.

REPLACE BCM

Replace BCM.

BCS-121, "Removal and Installation"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 8.

BCM

Starter control relay

Continuity

Connector

Terminal

Connector

Terminal

E23

171

F69

2

Existed

BCM

Ground

Continuity

Connector

Terminal

E23

171

Not Existed

(+)

(-)

Condition

Voltage

IPDM E/R

Connector

Terminal

F73

84

Ground

Other than engine
cranking

0 - 1 V

Engine cranking

6 - 16 V

IPDM E/R

Starter control relay

Continuity

Connector

Terminal

Connector

Terminal

F73

84

F69

5

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

F73

84

Not existed
