ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000011009466

ECU

Reference

ECM

Reference Value

MR20DD:

EC-89, "Reference Value"

QR25DE:

EC-501, "Reference Value"

R9M:

EC-889, "Reference Value"

Fail-safe

MR20DD:

EC-103, "Fail-safe"

QR25DE:

EC-513, "Fail Safe"

R9M:

EC-901, "Fail-safe"

DTC Inspection Priority Chart

MR20DD:

EC-107, "DTC Inspection Priority Chart"

QR25DE:

EC-515, "DTC Inspection Priority Chart"

R9M:

EC-907, "DTC Inspection Priority Chart"

DTC Index

MR20DD:

EC-109, "DTC Index"

QR25DE:

EC-517, "DTC Index"

R9M:

EC-908, "DTC Index"

BCM

Reference Value

BCS-53, "Reference Value"

Fail-safe

BCS-76, "Fail-safe"

DTC Inspection Priority Chart

BCS-77, "DTC Inspection Priority Chart"

DTC Index

BCS-78, "DTC Index"

IPDM E/R

Reference Value

PCS-22, "Reference Value"

Fail-safe

PCS-34, "Fail-safe"

DTC Inspection Priority Chart

PCS-37, "DTC Inspection Priority Chart"

DTC Index

PCS-38, "DTC Index"

SEC-244

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010922272

LHD models

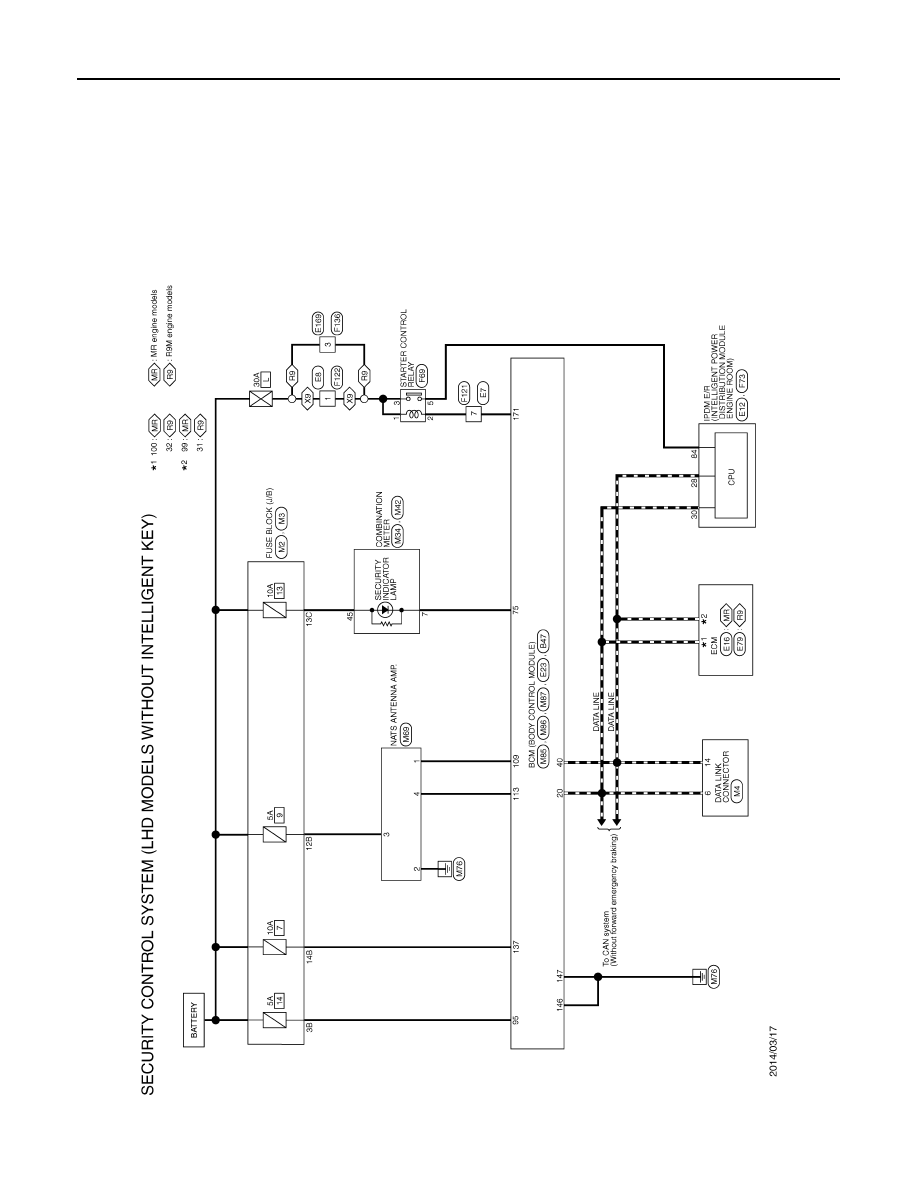

JRKWD4468GB

SECURITY CONTROL SYSTEM

SEC-245

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

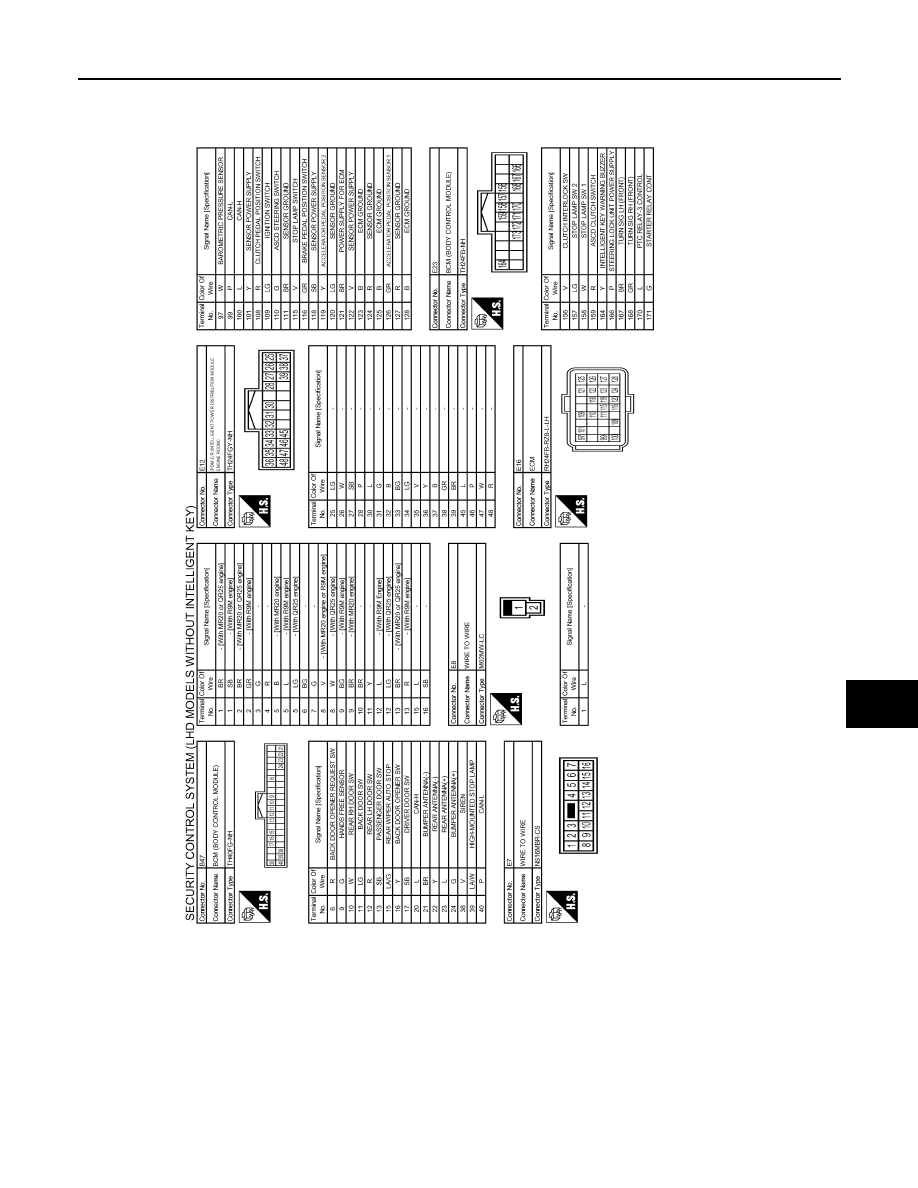

JRKWD4469GB

SEC-246

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

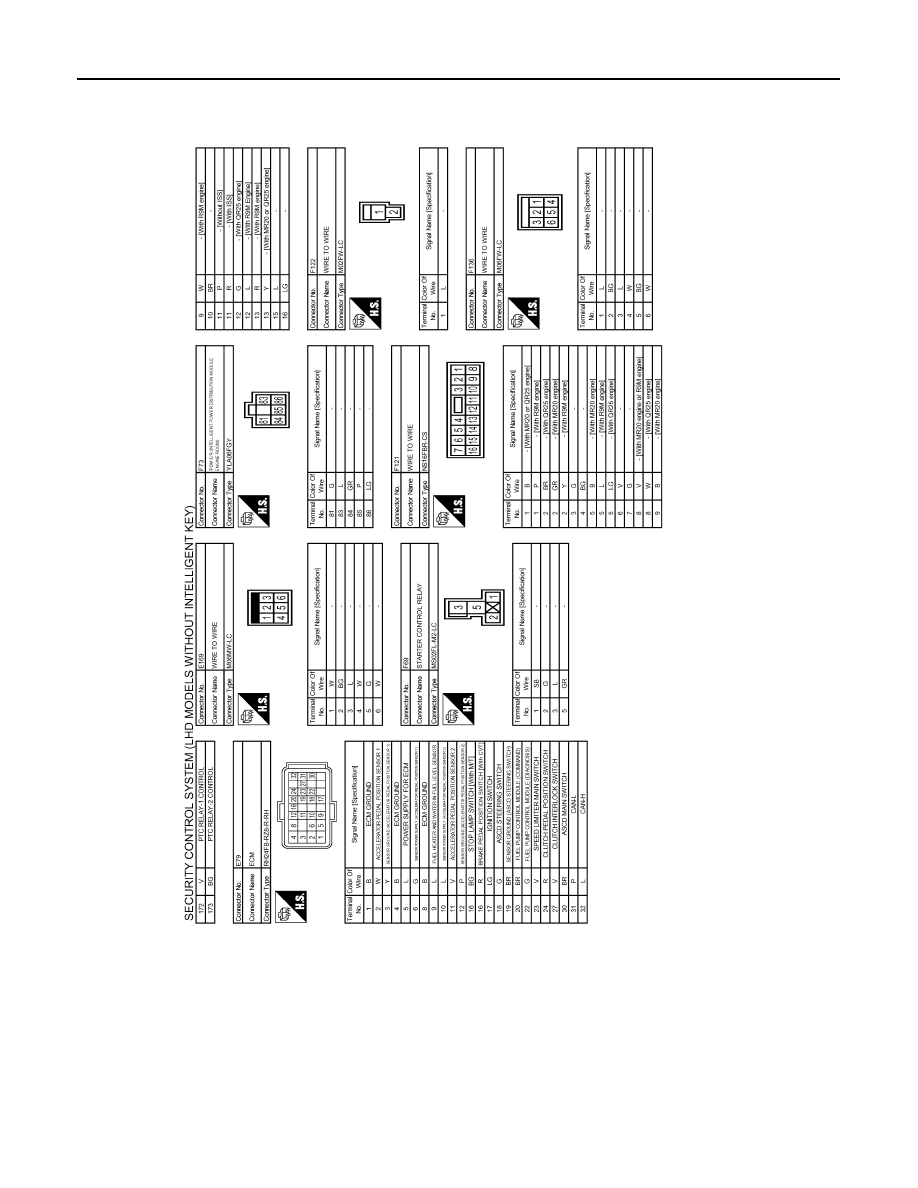

JRKWD4470GB
