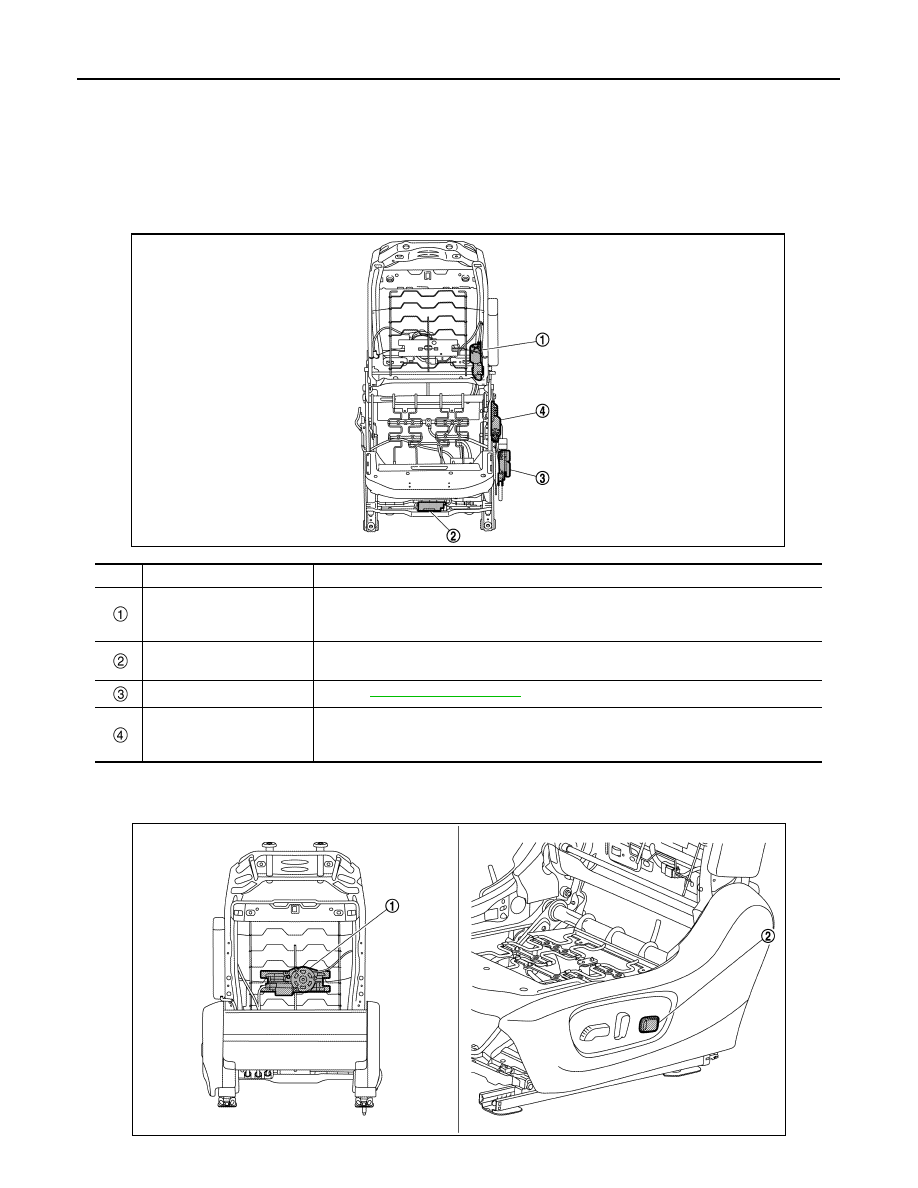

SE-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER SEAT SYSTEM

POWER SEAT SYSTEM : Component Parts Location

INFOID:0000000010713116

LUMBAR SUPPORT SYSTEM

LUMBAR SUPPORT SYSTEM : Component Parts Location

INFOID:0000000010713117

No.

Component

Function

Reclining motor (passenger
side)

• Reclining motor is installed to seat frame assembly.
• Seatback is reclined forward/backward by changing the rotation direction of reclining

motor.

Sliding motor

• Sliding motor is installed to the seat frame assembly.
• Slides the seat forward/backward by changing the rotation direction of sliding motor.

Power seat switch

Refer to

SE-9, "Power Seat Switch"

.

Lifting motor (rear)

• Lifting motor (rear) is installed to seat frame assembly.
• Lifting motor (rear) is moved upward/downward by changing the rotation direction of lift-

ing motor (rear).

JMJIB0173ZZ

JMJIB0174ZZ

COMPONENT PARTS

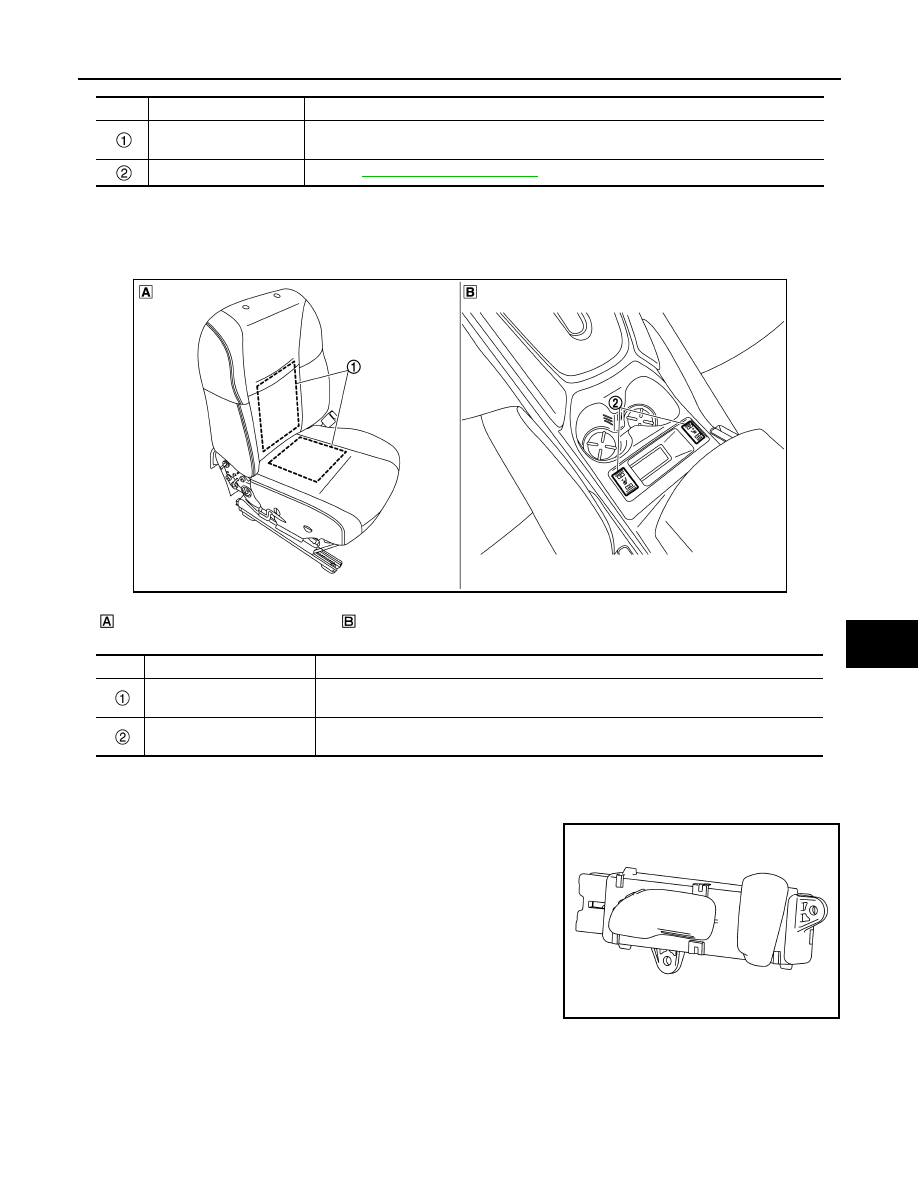

SE-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT SYSTEM

HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000010713118

Power Seat Switch

INFOID:0000000010713119

• Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor.
• Installed on seat cushion outer finisher.

Lumbar Support Switch

INFOID:0000000010713120

• Controls the power supplied to lumbar support motor.

No.

Component

Function

Lumbar support motor

With the power supplied to lumbar support switch, operates the forward and backward
movement of seatback support.

Lumbar support switch

Refer to

SE-9, "Lumbar Support Switch"

.

View with front seat

View with console switch panel

No.

Component

Function

Heated seat

• Warms seatback and seat cushion
• The heater operates with the power supplied by heater seat switch

Heated seat switch

Supplies power supply to heated seat and operates switching of HI/LO of heated seat and
ON/OFF of the system

JMJIA9768ZZ

JMJIA8953ZZ

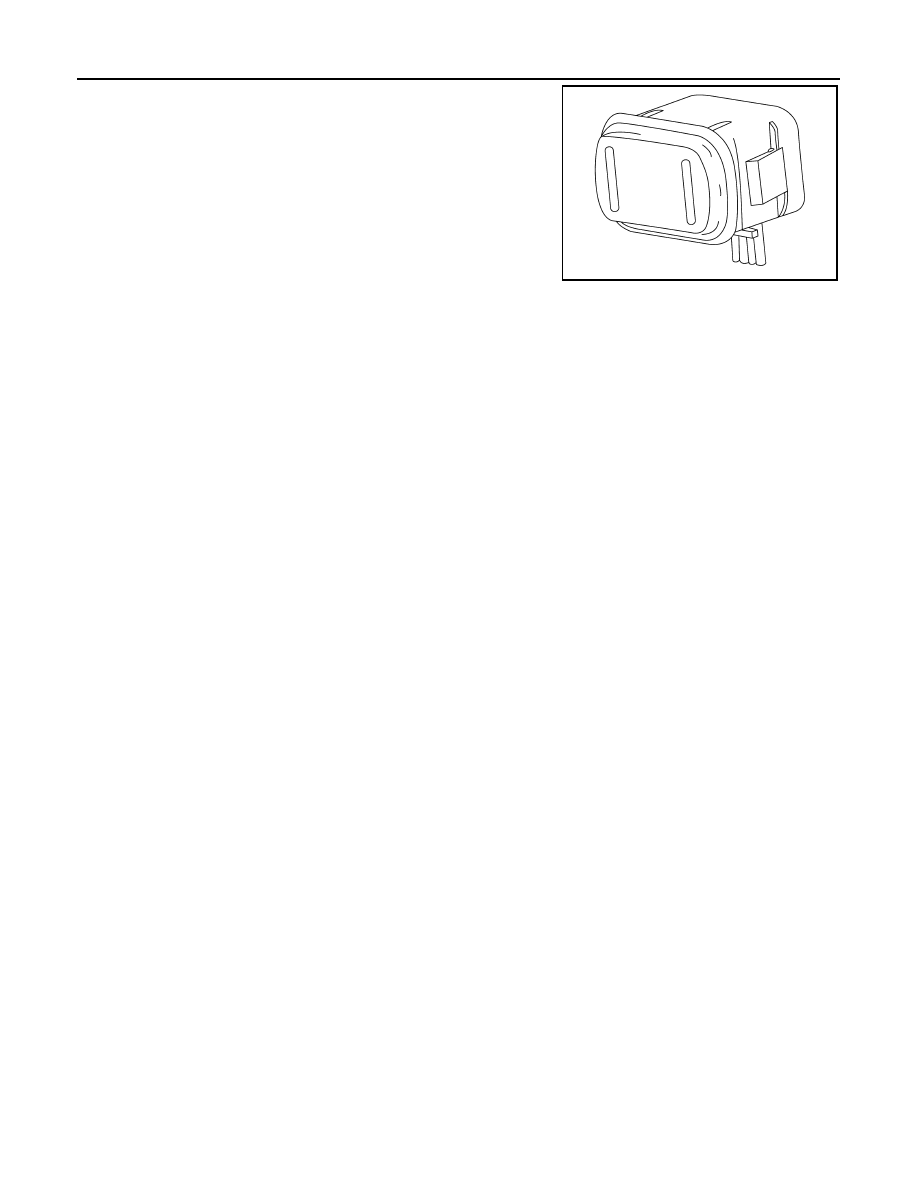

SE-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

• Installed on seat cushion outer finisher (driver side).

JMJIA8663ZZ

SYSTEM

SE-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SYSTEM

POWER SEAT SYSTEM

POWER SEAT SYSTEM : System Description

INFOID:0000000010713121

Power seat switch can be operated regardless of the ignition switch position, because power supply is always
supplied to power seat switch.

SLIDING OPERATION

While operating the sliding switch located in power seat switch, sliding motor operates and makes possible the
seat front and back position adjustment.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and makes possi-
ble the seat back forward and backward position adjustment.

LIFTING OPERATION

While operating the lifting switch located in power seat switch, lifting motor operates and makes possible the
seat cushion up and down position adjustment.

LUMBAR SUPPORT SYSTEM

LUMBAR SUPPORT SYSTEM : System Description

INFOID:0000000010713122

DESCRIPTION

• Lumbar support can operate regardless of the ignition switch position because, power supply is always sup-

plied to lumber support switch.

• While operating the lumbar support switch, lumbar support motor operates which allows forward and back-

ward operation of seatback support.

HEATED SEAT SYSTEM

HEATED SEAT SYSTEM : System Description

INFOID:0000000010713123

Heated seat is a system that operates when ignition switch is in ON position.

HEATER OPERATION

• When the heated seat switch is ON, seat cushion heater and seat back heater operate.
• Temperature of seat can be adjusted by operating on heated seat switch.
