Nissan X-Trail 32. Manual - part 1697

PG-42

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

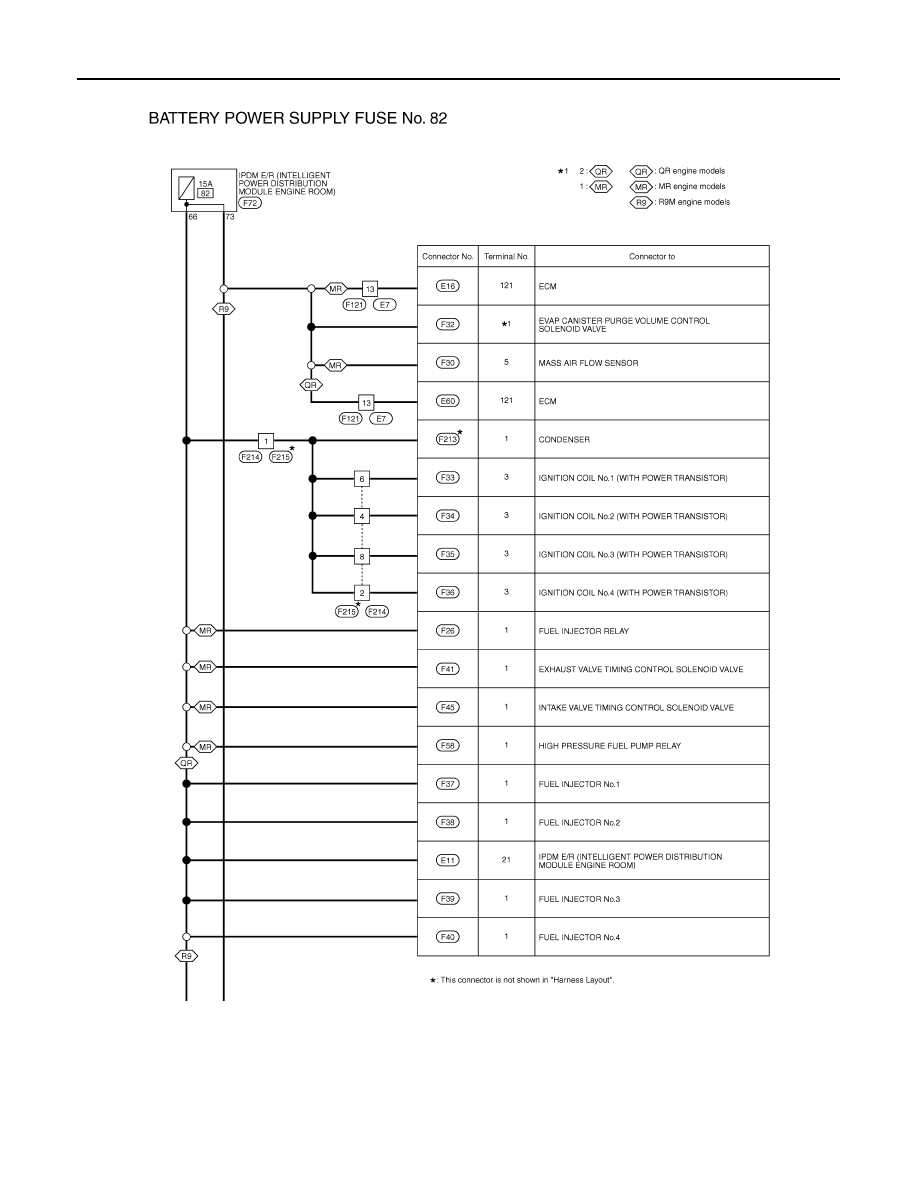

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 82 -

INFOID:0000000010709202

JRMWF4132GB

PG

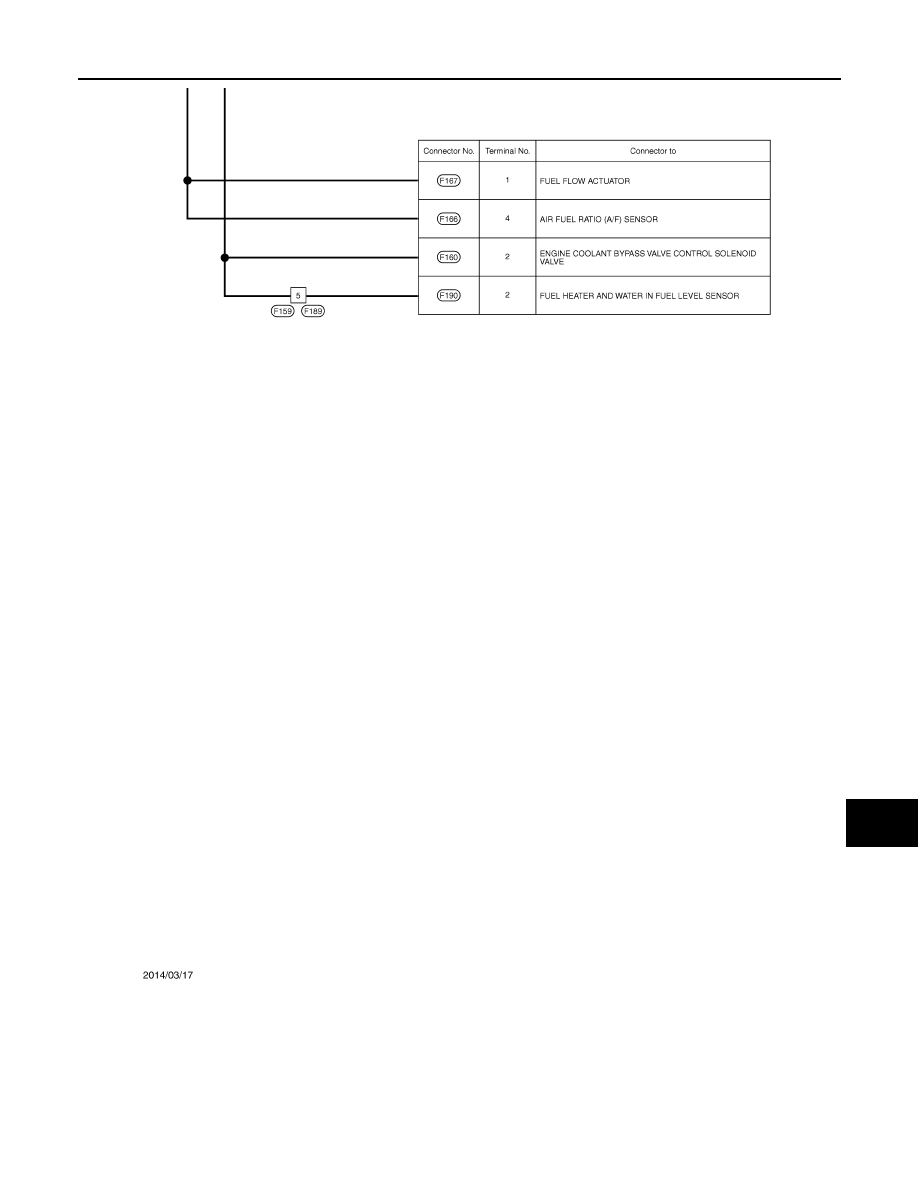

POWER SUPPLY ROUTING CIRCUIT

PG-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWF4133GB

PG-44

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

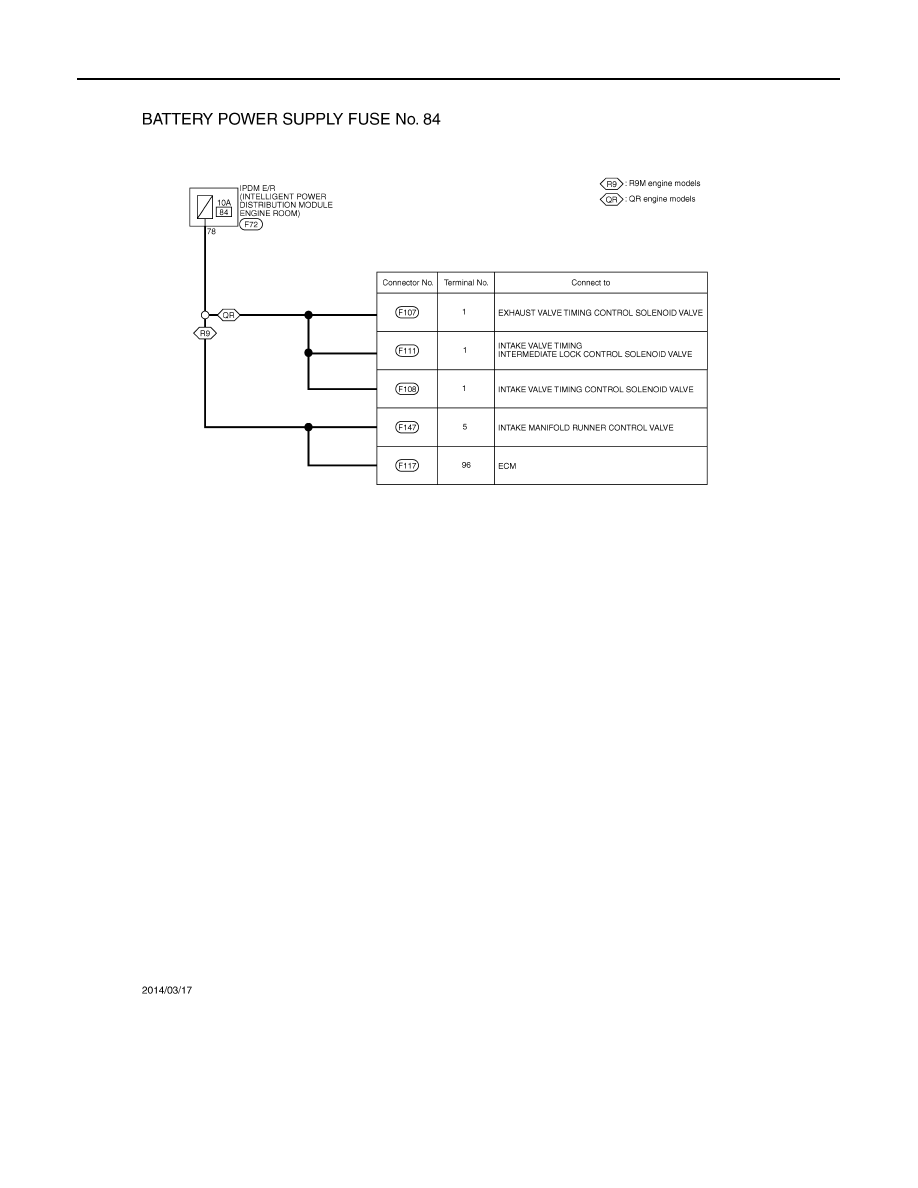

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 84 -

INFOID:0000000010709203

JRMWF4134GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

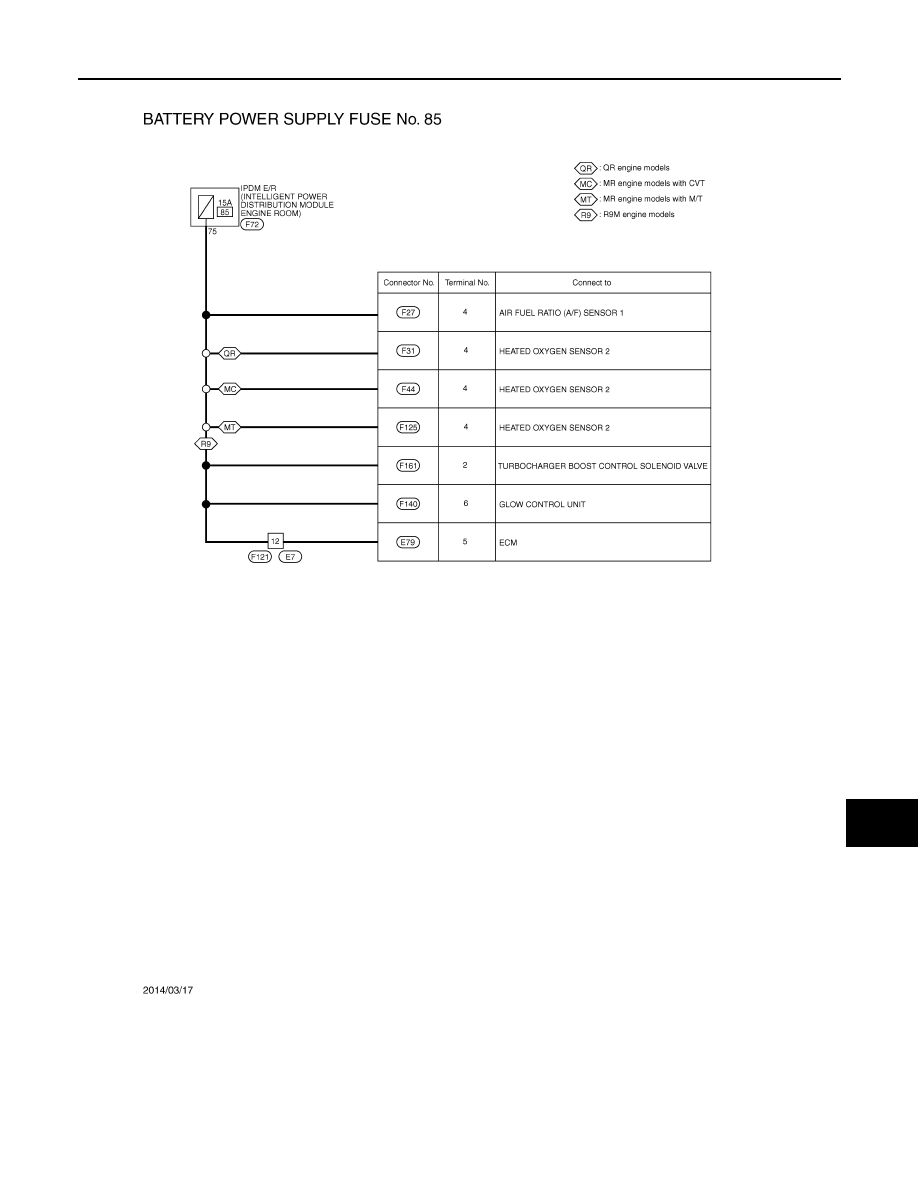

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 85 -

INFOID:0000000010763705

JRMWF4135GB
