Nissan X-Trail 32. Manual - part 1679

PCS-86

< WIRING DIAGRAM >

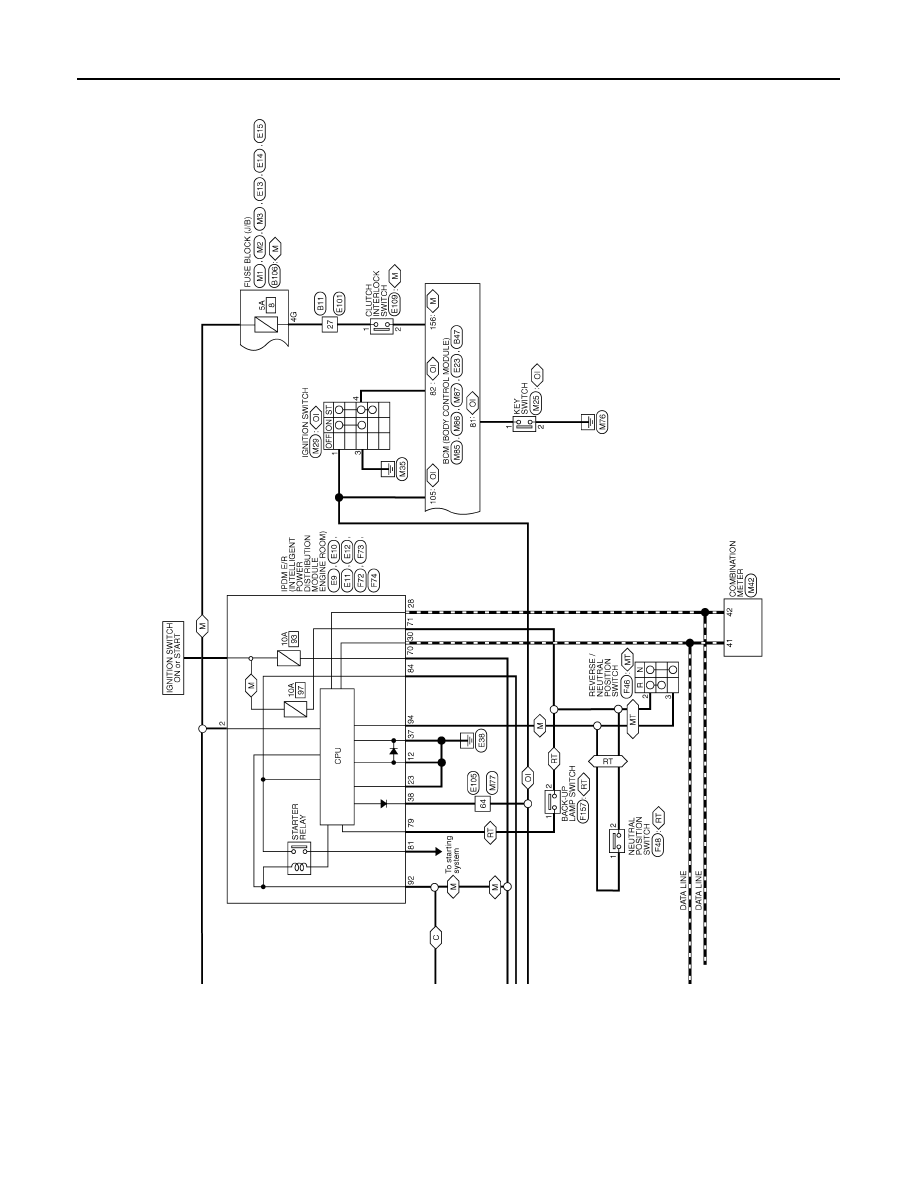

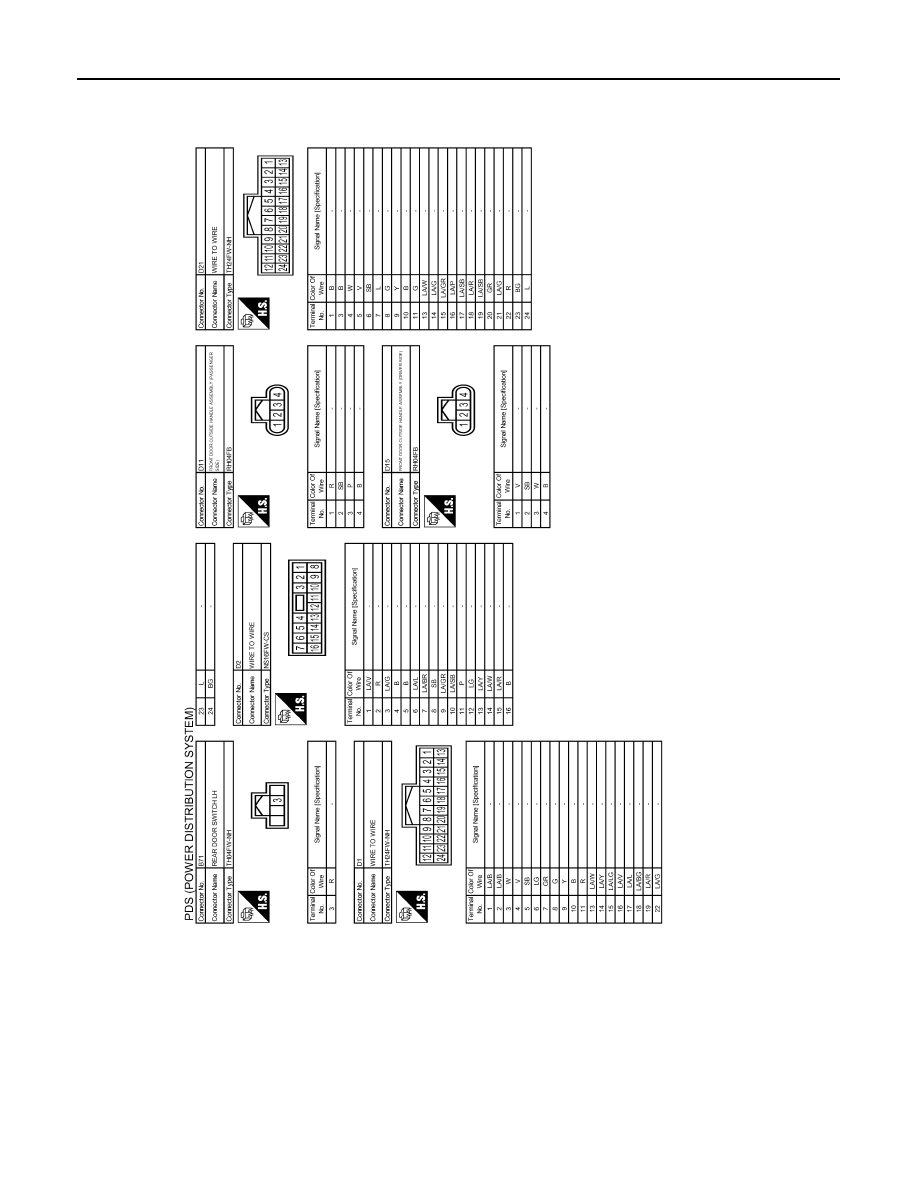

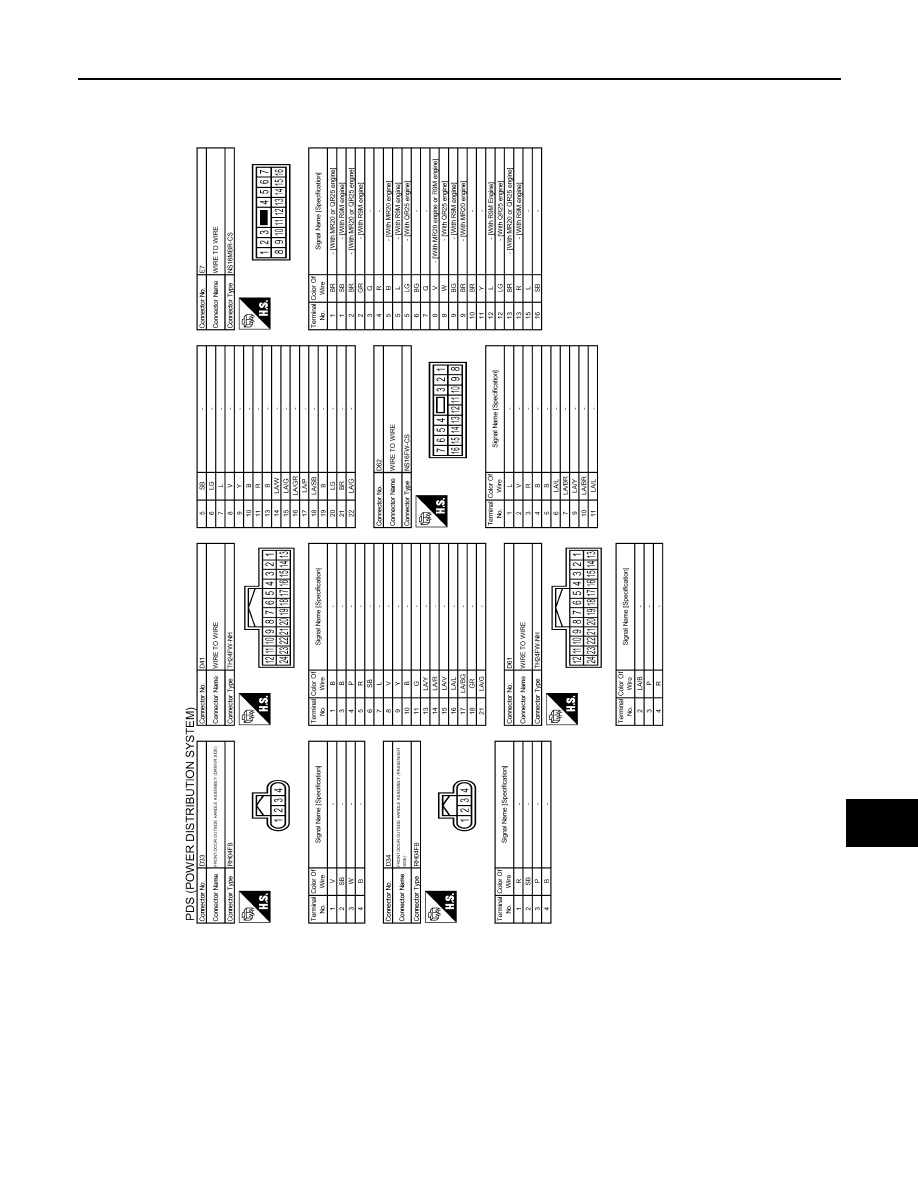

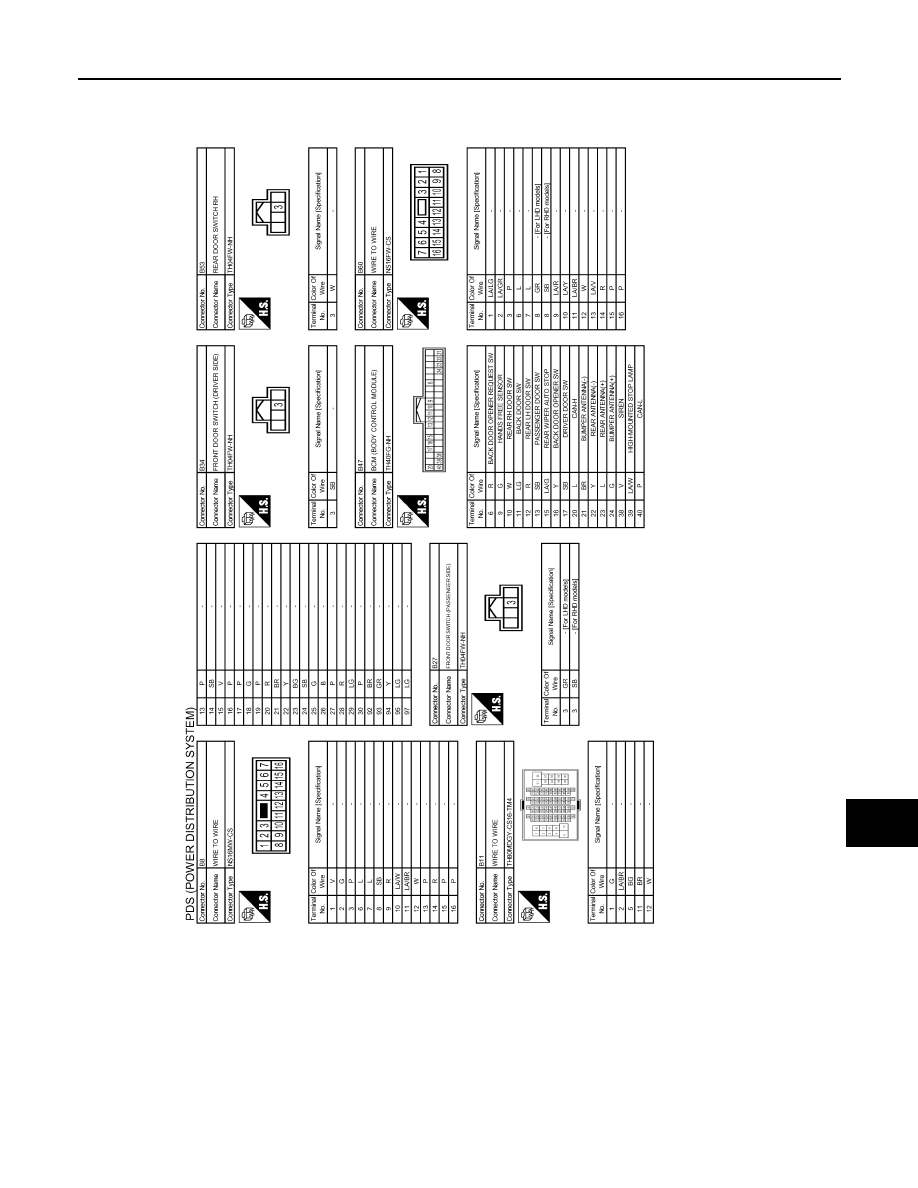

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWF4081GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-87

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWF4082GB

PCS-88

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWF4083GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-89

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWF4084GB
