PCS-58

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

B20DE IGNITION RELAY OFF CIRCUIT

B20DE IGNITION RELAY OFF CIRCUIT

DTC Description

INFOID:0000000010741724

• IPDM E/R operates the ignition relay when it receives an ignition switch ON signal from BCM via CAN com-

munication.

• Turn the ignition relay OFF by pressing the push-button ignition switch once when the vehicle speed is 4 km/

h (2.5 MPH) or less.

• Turn the ignition relay OFF with the following operation when the vehicle speed is more than 4 km/h (2.5

MPH) or when an abnormal condition occurs in CAN communication from the combination meter (Emer-
gency OFF)

- Press and hold the push-button ignition switch for 2 seconds or more.
- Press the push-button ignition switch 3 times within 1.5 seconds.
NOTE:
The ignition relay does not turn ON for 3 seconds after emergency OFF even if the push-button ignition switch
is pressed.

DTC DETECTION LOGIC

POSSIBLE CAUSE

IPDM E/R

FAIL-SAFE

—

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch OFF.

2.

Turn ignition switch ON.

3.

Check DTC in “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT.

Is DTC detected?

YES

>> Refer to

PCS-58, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010741725

1.

REPLACE IPDM E/R

1.

Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

2.

Perform DTC confirmation procedure. Refer to

PCS-58, "DTC Description"

.

Is DTC detected?

YES

>> Refer to

GI-44, "Intermittent Incident"

.

NO

>> INSPECTION END

DTC No.

CONSULT screen items

(Trouble diagnosis content)

DTC Detection Condition

B20DE

IGN RELAY OFF CIRC
(Ignition relay OFF cir-
cuit)

[CIRC SHORT TO
GROUND OR OPEN]

The ignition relay OFF is detected for 1 second at ignition switch
ON
(CPU monitors the status at the contact circuits of the ignition relay
inside it)

PCS

POWER SUPPLY AND GROUND CIRCUIT

PCS-59

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000010741726

1.

CHECK FUSIBLE LINK

Check that the following IPDM E/R fusible links are not blown.

With QR engine models

Except for QR engine models

Is the fuse fusing?

YES

>> Replace the blown fusible link after repairing the affected circuit if a fusible link is blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check voltage between IPDM E/R harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair the harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and the ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair the harness or connector.

Signal name

Fusible link No.

Battery power supply

D (80 A)

Q (40 A)

C (100 A)

R (30 A)

Signal name

Fusible link No.

Battery power supply

D (100 A)

Q (40 A)

U (100 A)

R (30 A)

(+)

(

−

)

Voltage

IPDM E/R

Connector

Terminal

E9

1

Ground

6 – 16 V

2

F73

83

86

IPDM E/R

Ground

Continuity

Connector

Terminal

E10

12

Existed

E11

23

E12

37

PCS-60

< REMOVAL AND INSTALLATION >

[IPDM E/R]

IPDM E/R

REMOVAL AND INSTALLATION

IPDM E/R

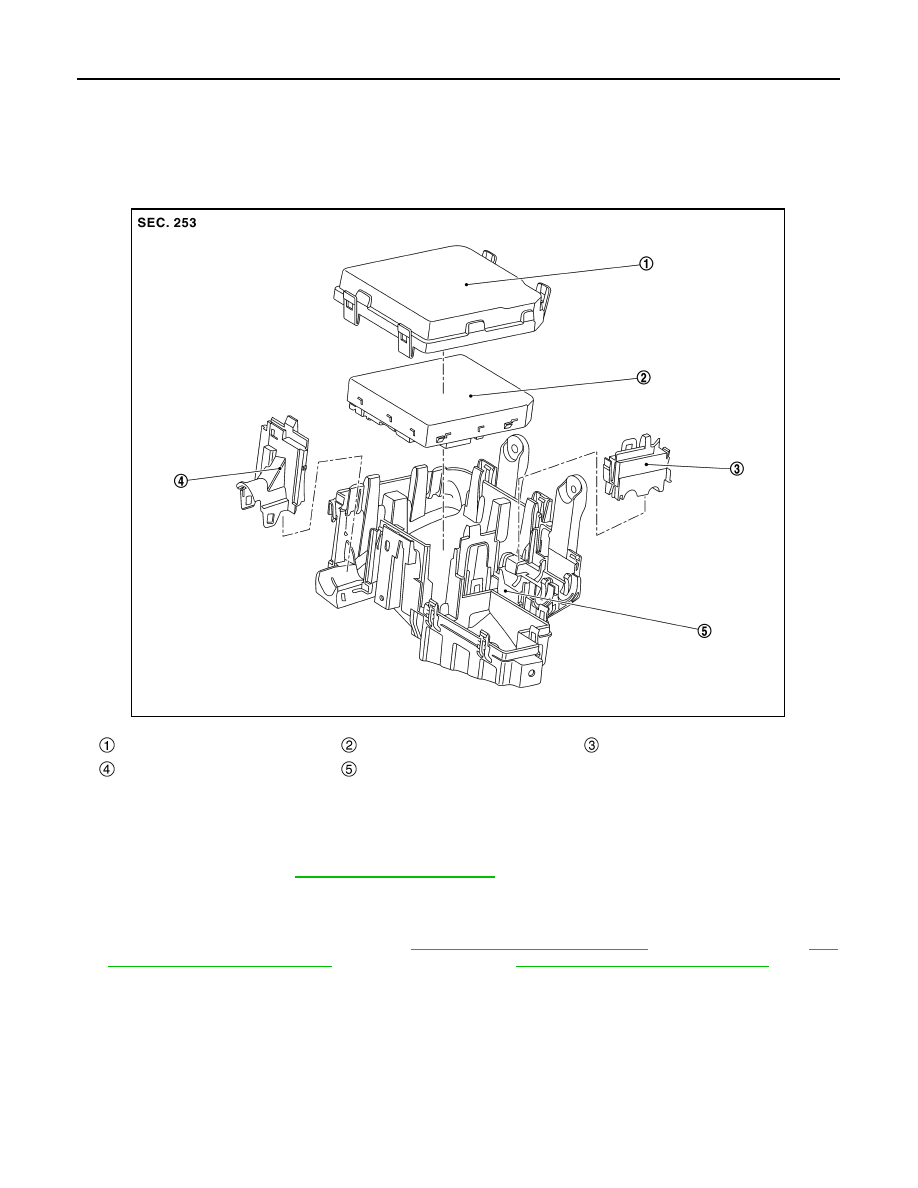

Exploded View

INFOID:0000000010741727

Removal and Installation

INFOID:0000000010741728

CAUTION:

When replacing IPDM E/R, save or print current vehicle specification with CONSULT configuration
before replacement. Refer to

PCS-47, "Work Procedure"

.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove air resonator and air duct. Refer to

EM-31, "Removal and Installation"

 (for MR20DD engine),

EM-

175, "Removal and Installation"

 (for QR25DE engine) or

EM-308, "Removal and Installation"

 (for R9M

engine).

IPDM E/R cover A

IPDM E/R

IPDM E/R cover B

IPDM E/R cover C

IPDM E/R cover D

JMMIA1583ZZ

PCS

IPDM E/R

PCS-61

< REMOVAL AND INSTALLATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

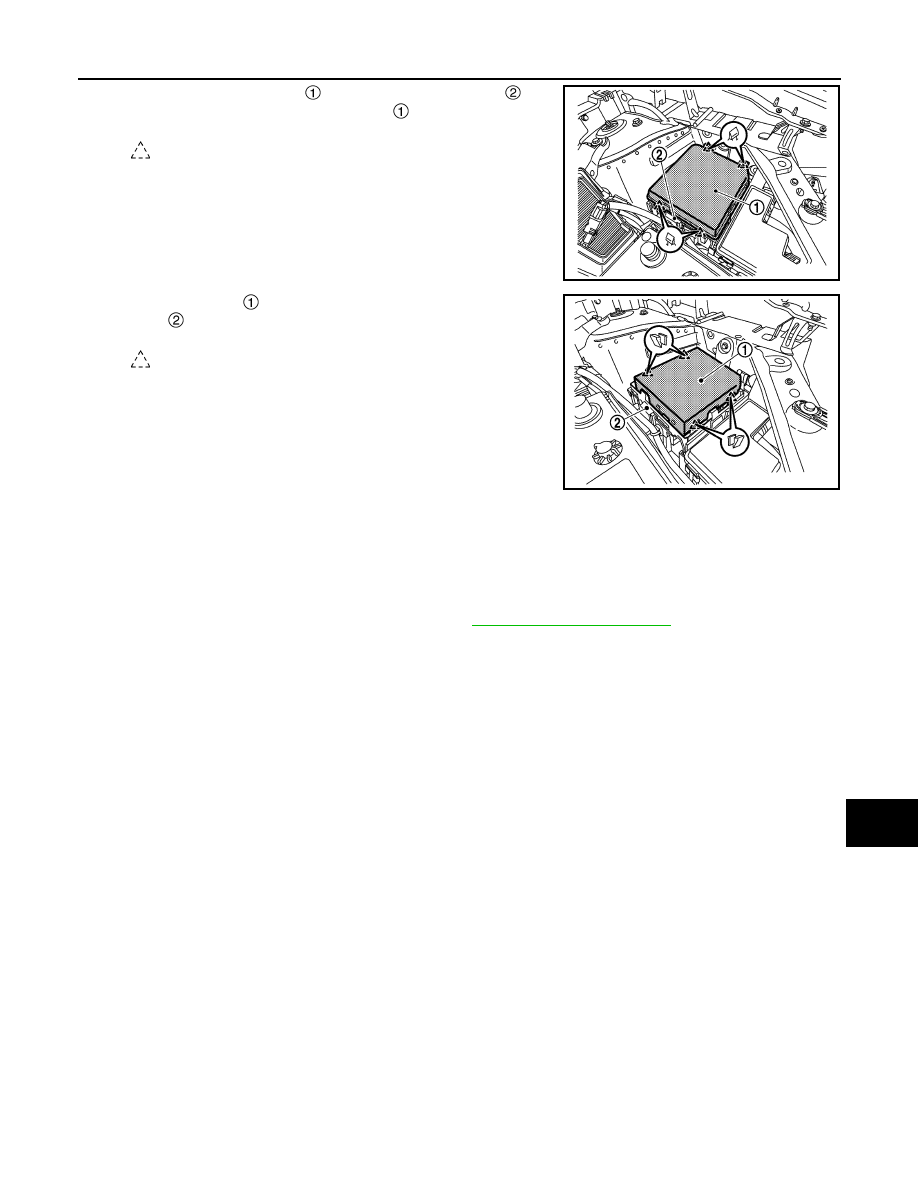

3.

Pull up IPDM E/R cover A

 from IPDM E/R cover D

 with

pressing the pawls of IPDM E/R cover A

.

4.

Pull up IPDM E/R

 with disengaging the pawls of IPDM E/R

cover D

5.

Disconnect the connector and remove IPDM E/R from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to perform “Read/Write Configuration” when replacing IPDM E/R. Or not doing so, IPDM E/R
control function does not operate normally. Refer to

PCS-47, "Work Procedure"

.

: Pawl

JMMIA1584ZZ

: Pawl

JMMIA1585ZZ
